micro pneumatics pvt. ltd Vasai, Mumbai, Maharashtra

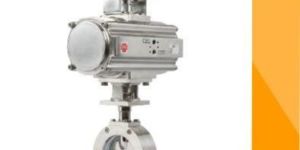

Slim design is tailor made having provisions for mounting holes on Butterfly-valve Body itself matching mounting dimensions as per requirement. Valve and actuators are designed and manufactured as per GMP norms.

Size : 1½”to 24”

Off centered disc ensures a progressive smooth and low friction seat – disc closing, MHardened sealing surface to provide high level of tightness and long life time., The unique sealing system combines with the eccentric disc rotation and the patented metallic seat provides and exceptional sealing even with high temperature fluctuations.

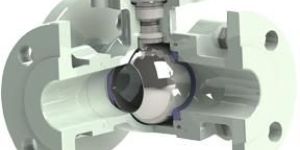

The three way ball valve is configured with Shut-off. The three ports are configured as on at bottom and one each on the right and left of the valves. With this, three way shut-off ball valve, the two different Medias can flow separately from either of the two sides of the valve to the bottom side of the valve and can be stopped. Alternately the three – way shut – off ball valve is features for diverting single media from the bottom port of the valve is either side, with shutting off of the media. With a single three way ball valve shut – off is also achieved.

Size : ½”to 8”

High Purity Ball Valve: Designed and manufactured as per GMP norms, ISO 2852 and ASME / BPE 1997 / API 6D Typically used in Bio – Pharma, Pharmaceuticals, Food & Beverage Industry. A series of grit polishes is applied in a successively finer sequence until the desired finish or surface roughness achieved on the internal surface of the valve and components. The integrated seat with cavity filler prevents fluids entrapment leading to contamination and cavity fillers ensures clean internals. Mounting InterfaceISO 5211   MOC of the BodyCF8, CF8M, CF3, CF3M (Electro polished and internal surface Buffed )   TrimCF8, CF8M, CF3, CF3M (Mirror Finished)   Lining FEP PFA   Seat/Cavity FillerPTFE Size½”to 6”   Pressure RatingPN 10   ConstructionFB, 3 piece

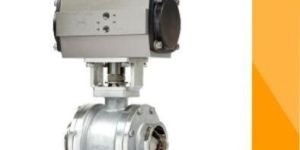

Designed and manufactured as per GMP Norms and ISO 2852. Mainly used in Pharmaceuticals, Food and Beverage Industries. Ease to separate from pipe line to flush out periodically. Valve surface roughness achieved with electro polish and a series of grit polish.     Mounting InterfaceISO 5211   MOC of the BodyCF8, CF8M, CF3, CF3M (Electro polished and internal surface Buffed )   TrimCF8, CF8M, CF3 CF3M (Mirror Polished)   SeatPTFE         Size½”to 6”   Pressure RatingPN 10   ConstructionFB, 3 piece

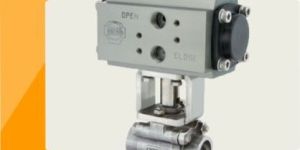

Designed & Manufactured as per Industry Standards End Connection: ASME B16.11 Double Gasket Body Sealing ensures positive body joint sealing against pipelines stresses. Multi sealed stem prevents atmospheric leakage. Antistatic and Blow – out Stem. The stem assembly consists of Belleville Washer set over the gland and tightened by gland nut assured zero gland leakage, due to live loading of gland. Mounting Interface ISO 5211   MOC of the BodyWCB, CF8, CF8M, CF3, CF3M (special on request)   TrimCF8, CF8M, CF3, CF3M (special on request)   SeatPTFE, RPTFE, CFT, GFT   Size¼”to 2” Pressure RatingCWP 1000#, PN 50   ConstructionFB, 3 piece RB, 3 piece

Designed & Manufactured as per Industry Standards. End Connection: ANSI / ASME B 1.20.1:1993 / BS 21. Double Gasket Body Sealing ensures positive body joint sealing against pipeline stresses. Multi seated stem prevents atmospheric leakage. Antistatic and Blow – out Stem. The stem assembly consists of Belleville Washer set over the gland tightened by gland nut assured zero gland leakage, due to live loading of gland.   Mounting InterfaceISO 5211   MOC of the Body WCB, CF8, CF8M, CF3, CF3M (special on request)   Trim CF8, CF8M, CF3, CF3M (special on request)   Seat PTFE, RPTFE, CFT, GFT(Special on request)   Cavity FillerPTFE RPTFE CFT     Size ¼”to 2”   Pressure Rating CWP 1000# to ASME 2500#   ConstructionFB, 3 piece RB, 3 piece

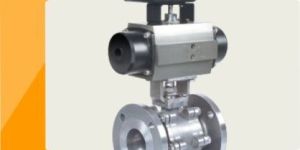

Designed & Manufactured as per Industry Standards Pressure Testing API 6D, API 598, BS 6755. Fire Test API 6FA, BS 6755 Part II Metal seated ball valve is well suited for variety of demanding services where high temperature and abrasive solids are present. The design provides freedom for thermal expansion of the ball without jamming even at extreme temperature. Application: Hot Gases, liquids, Solids and Slurries. Tightness rates: allowable leakage rate at full ▲P ASME/FCI 70-2 Class V with special lapping. Mounting InterfaceISO 5211   MOC of the BodyWCB, CF8, CF8M, CF3, CF3M,   TrimSS 316 / SS 304 HastalloyStellitedand ground   SeatSS 304 ,  SS 316Stellited Inconel 625,   Backup SealGraphite Size½”to 8”   Pressure RatingASME 150#, ASME 300#   ConstructionFB, 3 piece / 2 piece

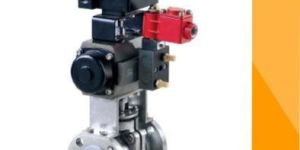

2 Piece Designed ball Valve Body with minimum 3.5 mm thermoplastic lining of PFA, FEP and PVDF, one – piece ball and Stem with minimum lining of 3 mm of PFA, FEP and PVDF universally used for highly corrosive and chemical application. Full lining thickness in the sealing zone however provides security against permeating media. Live-loaded PTFE seat rings, a permanent tightness is ensured for pressure, temperature and vacuum. MOC of the BodyDuctile Iron, WCB, CF8, CF8M, CF3M (Lined)   TrimWCB, CF8, CF8M, CF3M (Lined)   Lining FEP PFA PVDF   SeatPTFE, RPTFE (Special on request) Size½”to 8”   Pressure RatingPN 10 (Flange, dimensions as per ASA 150 #)   ConstructionFB, 3 piece

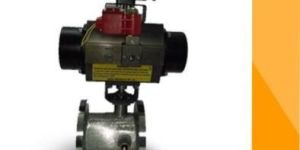

Jacketed ball valves are used for high viscous Media like ‘Resin’ or Slurry applications which solidifies at certain temperature range thereby affecting flow ability of media. The Jackets assure consistent valve heating or cooling of process media to prevent crystallization or siezing of flow media. The jacket covers the body from one flange to the other flange. Hence the valve body is modified by adding over size flanges than standard size of the valve flange.     Mounting InterfaceISO 5211   MOC of the BodyWCB, CF8, CF8M, CF3M, Hastalloy (Special on request)   TrimCF8, CF8M, CF3, CF3M, Hastalloy (Special on request)   SeatPTFE, CFT, GFT, C08023, Inconel 625 (Special on request) Size½”to 8”   Pressure Rating150#, 300#   ConstructionFB / 2 way / Single piece Design

The valve is compact segmented ball type designed to open directly in the Tank, Reactor, for 100% flushing or discharging of material. The cavity in-between ball and Body filled with PTFE or application suitable cavity filler to prevent fluids entrapment leading to contamination and production loss. he specified size consists of one higher size flange for the tank mounting and the valve is bolted to the tank bottom with gasket for ball opening into the tank.Designs: MPPL flush Bottom Valves are designed in single piece, two piece and three piece construction to suit tank design. The high end operational measurement and temperature sensing of the reaction is possible with MPPL Flush Bottom Valve.

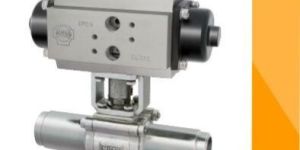

Designed & Manufactured as per Industry Standards End Connection: ASME B16.25 Double Gasket Body Sealing ensures positive body joint sealing against pipelines stresses. Multi sealed stem prevents atmospheric leakage. Antistatic and Blow – out Stem. The stem assembly consists of Belleville Washer set over the gland and tightened by gland nut assured zero gland leakage, due to live loading of gland. Mounting InterfaceISO 5211   MOC of the BodyWCB, CF8, CF8M, CF3, CF3M (special on request)   TrimCF8, CF8M, CF3, CF3M (special on request)   SeatPTFE, RPTFE, CFT, GFT   Size½”to 4” Pressure RatingASME-150#   ConstructionFB, 3 piece RB, 3 piece

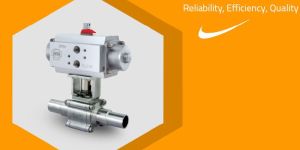

Designed & Manufactured as per Industry Standards End Connection: ASME B 16.25 Double Gasket Body Sealing ensures positive body joint sealing against pipelines stresses. Multi sealed stem prevents atmospheric leakage. Antistatic and Blow – out Stem. The stem assembly consists of Belleville Washer set over the gland and tightened by gland nut assured zero gland leakage, due to live loading of gland.     Mounting InterfaceISO 5211   MOC of the BodyCF8, CF8M, CF3, CF3M (Electropolished)   TrimCF8, CF8M, CF3, CF3M (Mirror polished)   SeatPTFE (Special on request)   Cavity – FillerPTFE     Size½”to 4”   Pressure RatingPN 10   ConstructionRB, 3 piece

Designed & Manufactured as per Industry Standards Pressure Testing API 6D, API 598, BS 6755. Fire Test API 6FA, BS 6755 Part II Designs Floating Ball Valve Trunnion Mounted Ball Valve. Floating Design Independent Ball and Stem to minimize the effect of the side thrust generated by the pressure acting on the Ball. Two independent Floating Seat Rings assure Bi–directional zero leakage at maximum rated pressure. Trunnion Mounted Ball Design The ball is fixed and the seat rings are floating free to move along the Valve Axis. At low pressure the Seat Sealing action is achieved by the thrust of the spring’s actions on the seat rings. As the pressure increases the seat rings are pushed against the ball. Mounting InterfaceISO 5211   MOC of the BodyWCB, CF8, CF8M, CF3, CF3M (Special on request)   TrimCF8, CF8M, CF3, CF3M (Special on request)   SeatPTFE, RPTFE, CFT, GFT, CO8023 (High Temperature), PCTFE (Cryogenic) Size½”to 16”   Pressure RatingASME 150# , ASME 300#(Higher rating on request )   ConstructionFB, 2 piece / 3 piece.RB, 2 piece

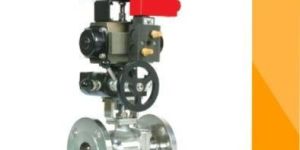

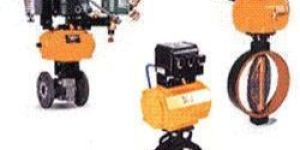

The complete Electro Pneumatic system consist of ball valve, Declutchable Gearbox, Pneumatic Rotary Actuator, Position Indicator and Solenoid Valve. The valve can be operated by declutchable Gearbox fitted on the valve, even when the Electrical power or Air Pressure fails. Valve Designed & Manufactured as per Industry Standards Pressure Testing API 6D, API 598, BS 6755. Fire Test API 6FA, BS 6755 Part II Type Floating Ball Valve Trunnion Mounted Ball Valve. Actuator Actuators are pneumatically operated quarter turn rotary, dual Rack and Pinion Design manufactured under a robust quality assurance system complying API 6A and ISO 9001:2008 The valve can be operated by declutchable Gear Box fitted on the valve, even when the Electrical power or Air Pressure fails.
