Pacific Harish Industries Limited Andheri East, Mumbai, Maharashtra

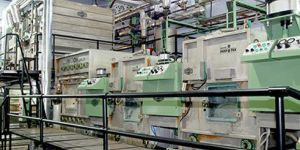

40% saving of caustic compared to batch process. Immediate results. Consistent and uniform weight reduction No crease marks rope marks Through washing and neutralizing, no need for subsequent washing. Production speed of 50 m min. Reduced water consumption.

In the 70’s, Rotary Screen-Printing Machine marked as one of the major developments in textile processing machinery, and Harish decided to manufacture a Rotary Screen-Printing Machine to walk hand-in-hand with the increasing needs of customers. This was a tough decision and called for great efforts, consistent actions, and unbeatable passion. Harish successfully designed and manufactured, a first of its kind, an all Indian – Rotary Screen-Printing Machine, for commercial printing in the textile mills in 1972. Having started with the manufacture of Hot Air Stenter and Rotary Screen Printing Machines, the Harish Textile Group now manufactures the entire spectrum of textile processing machines.

The ND-4 uses an individual direct drive to each screen, due to this, the blanket and screen heads are synchronised precisely. Lateral and diagonal settings and magnet pressure can be set on individual printing heads and stored in memory.

This is achieved with the change in airflow and heat transfer systems, and our tenter can be adapted and modelled to suit the requirements such as Finishing, Drying, Curing, Dehydration or the Heat-setting of woven and knitted fabrics.

We offer a high-quality Semi-Automatic Rotary Screen Printing Machine designed for textile printing. Made of durable steel, this machine features a semi-automatic operation with a printing width of 1000mm - 2000mm and a printing speed of 50 - 100 meters per minute. The hot air drying system ensures efficient drying, while the PLC control system provides easy operation. Ideal for manufacturers, exporters, suppliers, and retailers in the textile industry. Power supply options include 220V/380V. Upgrade your printing process with our reliable Semi-Automatic Rotary Screen Printing Machine.

Number Of Flower : Semi-Automatic Rotary Screen Printing Machine

Material : Steel

Being an industry renowned brand with exports to more than 30 countries, it has carved a niche for itself. A long list of satisfied customers, stands as a testimony for its quality and trust. Customer service being held in very high regards at Harish, we extend our support, before and after sales, along with a dedicated support team to keep up with our commitment.

Country of Origin : India

Number Of Flower : Automatic

Country of Origin : 220V

Driven Type : Electric

Number Of Flower : Industrial Machinery

Material : Metal, Plastic

Packaging : Box

Usage : Screen Printing

The ND-4 Rotary Screen Printing Machine is truly user-friendly, comprehensive with advanced software controls, with rugged and state of the art hardware permits screen rotation in a lifted condition as well.

Suitable for scouring PV, PC and different blends of fabrics. Scouring achieved in relaxed fabric condition to impart greater feel. Various combinations of washing compartments are available. Can be adapted for blending or incorporation of applicator and dosing unit.

The INDOFLEX Dyeing Padder is a dyeing and Impregnating machine for use in : Offers a better and more affordable alternative to public toilets and open defecation. Facilitates quick & easy installation, within a duration of 8-10 working hours. Promotes personal hygiene. Reduces the bacterial hazard and spread of diseases. Minimises water consumption. Reduces maintenance costs applications in tandem with stenters. The stainless steel cladded inner frame facilitates easy cleaning, and a long maintenance free working of the machine.

SUPRA 5 DLXiN – is specially designed to get 20% more production at a lower electrical power consumption. This is achieved with the change in airflow and heat transfer systems, and our tenter can be adapted and modelled to suit the requirements such as Finishing, Drying, Curing, Dehydration or the Heat-setting of woven and knitted fabrics.

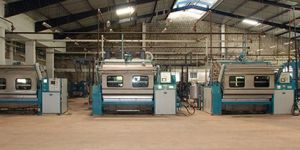

Our hydraulic driven Jiggers guarantee smooth movement of fabrics without any tension or jerks. The speed is fully controllable with a microprocessor, and the programmable auto dosing of colour and chemicals ensures colour accuracy. Our built-in PLC incorporates diagnostic for fault logging of important features and storing and retrieving up to 50 programmes. Our range of Hydraulic Jiggers Pacific, J, N, E & B are available in different widths upto 3400 mm and with capacities starting from 75 kgs to 1800 kgs of dry fabrics

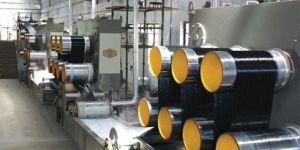

Dipping Plant and stretching line for Tyre Cord Industry Single thread dipping and stretching Tower Dryer Recycling plant for Polyester waste

Open Width Polymeriser: Model: RESINEX All rollers from S.S. 192 mm Cloth content: Multiple of 42 MTRS Heating : SteamThermic fluidElectric Center to center distance of roll in Curing chamber : 1500 mm All inside parts of machine in contact with Hot air will be painted with Epoxy paint to withstand acidic atmosphere Fabric width : 1200 to 3200 mm Temp. Regulation : upto 0.5ºC across the machine Exit Combination with A frame winder, cooling cylinders, etc.

Knife over Roll-cum-Screen Coater. Positively driven ebonite draw roller with pneumatically loaded rubber nip robber. Large dia. Backing roll for knife with hard chrome plated surface. Knife blade with required adjustment: viz., Rotary (angle) adjustment updown gap adjustment frontback (location) ad-justment. Quick lifting of knife blade with pneumatic cylinder. Seam detection system Feed pipe nozzle with distribution system. Feed pump for Coater Screen and knife coating. Screen head suitable for 640mm repeat screen.

Pressure upto 60,000 Kg and width 1800 – 3200 mm Speed upto 100 mmin. Precision fabricated and machined heavy duty frame 360 mm dia chilled C.I. Forged Steel, Hard chrome plated bowl with heating system 540 mm dia Lower cotton bowl 540 mm dia Upper cotton bowl Heavy duty bearing pedestals for all bowls Guide rolls 140 mm dia. Electrical heating arrangement with automatic temperature controller system. Seam Detector with facility to increase the gap for passage of seam Metal Detector to give alarm and to stop the machine Air cooling system for cotton bowl through air Blower.
