Pitot Tubes Dealers in Mumbai

ANNUBAR - DIAMOND BAR (AVERAGING PITOT TUBE) Annubar -Diamond Bar (Averaging Pitot Tube) is an energy saving device used to measure the flow of liquids, gases & steam in pipes, stacks & rectangular ducts. It provides high, long term stability with low permanent pressure loss. The sensor is diamond shaped which controls the separation point at which the boundary layer breaks off as the flow pass through it, resulting in a stable flow coefficient & achieving good accuracy over wide range of flow.

The Pitot Tube is a differential pressure producer suitable for air flow measurement. It includes multiple sensing points to measure total and static pressures. It is easy to install and cost effective. It offers simple, low cost installation into pipes and ducts, and high energy savings due to its low unrecovered pressure loss. There are no moving parts or sharp edges to wear, so long term accuracy can be maintained.It contains a rubber cap,Plastic base and two 1 meters length air tube.   Special Features : Air Flow Measurement Low Installation Costs Long Term Accuracy Minimal Unrecovered Pressure Loss Mass Flow Measurement

S-Shape Pitot tube Recommended specifically for flow / velocity measurement of dirty, particulate laden air or gas streams. Typical in environmental testing, large I.D. (1/4"or more) tubing resists chocking under harsh, sooty conditions. Again tube can be cleaned easily by passing air or water through it. Total & static pressure tubes are precisely aligned & arc welded together at every six inch,for maximum accuracy, strength and durability. 1/4" BSP (F) connections easily adapt to any type of pipe or tubing. Permanent engraved insertion depth graduation (optional) facilitates accurate positioning. Features :a) Long lasting S.S. construction b) 1/4" BSP c) Permanently welded d) Rated for upto 815°C (1500°F) Temp.e) Required adaptors, tubing or piping can be provided.(F) pressure connections Standard :a) MOC-304 S.S.b) Pipe -O.D. 3/8", I.D. 1/4"c) Pressure Connections 1/4" BSP (Female)d) Process connection nil(e) other required length, M.O.C., O.D. & I.D. Pipe, pressure connections can be provided Optional :1) Engraved insertion depth marking2) Nozzel or other process connection adaptors3) Isolating valves4) Connecting Hose or Tubing5) D.P. Indicating Instrument 6) Any other size, material of construction or tube as per your given drawing can be made & supplied.

Unique profile shape enables high flow rate turn down, Dual averaging for better accuracy, Suitable for Liquid, gas and steam flow measurement, Repeatability of measurement ± 0.1 %, Short upstream and downstream straight pipe lengths,Long term accuracy unaffected by wear. Averaging pitot tubes are generally used for large line sizes or ducts where other primary devices become relatively expensive. Averaging Pitot tube comprises of following components:

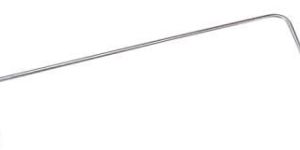

Pitot tubes, Straight type pitot tube is widely used for dirty liquids .We also send pitot tubes for calibration at IIT powai on chargeable basis to find their co-efficient, Some of the places where pitot tubes are widely used are pitot tube for air sampler & chromatography, velocity measuring, dirty, cement plant & air blower pitot tube. Pitot tube manometers are used for velocity measurement in wind tunnel . Pitot tubes can also be used with digital manometers and anemometers. Curved joint and ellipsoidal nose are used for clear AirGas velocity measurement. Standard : • MOC-304 S.S. • Pipe -O.D. 38", I.D. 14" • Pressure Connections 14" BSP (Female) or as required • Process connection nil • Other required length, M.O.C., O.D. & I.D. Pipe, pressure connections can be provided

Pitot Tube, U-Tube Manometer (Acrylic / Glass Tube

Pitot Tubes, Acrylic Body Rotameter, Glass Tube Rotamete

S Shaped Pitot Tube, Full View Sight Flow Indicato

Averaging Pitot Tube, Flow Indicator Totalizer, Signal Isolator

Pitot Tube, Manometers, Glass Tube Rotameter, Water Flow Mete

Pitot Tube, Electronics Services, PLC- Mitsubishi, Human Machine Interfac
