Plug Valve Dealers in Mumbai

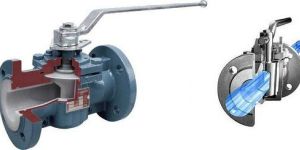

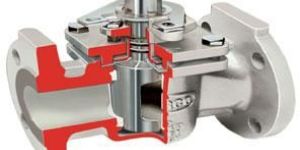

Tubefit plug valves provide postive leak tight shut-off , high flow capacity, and quick quarter-turn operation in acompact attractive design.   Features: Pressures up to 3,000 psig (207 bar) cwp Quarter-turn operation Reliable simple one pices design. Stright-through flow. Nitrile, ethylene prophylene. PTFE back-up rings on atmospheric seals Low operating torque. Minimum pressure drop. Colour coded fracture resistant nylone handles with directional flow indication Eassy to service 100% factory tested

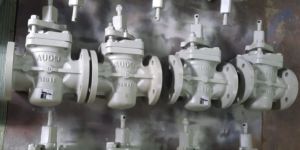

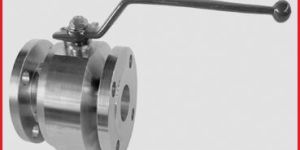

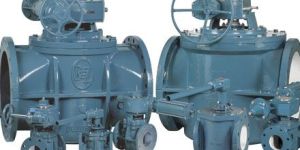

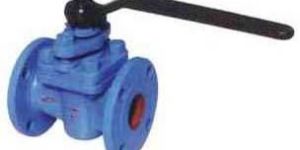

Flanged Plug Valves manufactured by our company are from high quality cast iron and cast carbon steel. FLOWTECH Plug Valves are 90 degree action from open to close, protected seats, positive shut off,, simple in line maintenance, minimum flow resistance, simple construction, and finally, rugged construction ensuring long life. FLOWTECH Plug valves can be operated manually by wrench, Hand wheel through gear box, or quarter-turn actuator driven pneumatically or electrically. Our company is renowned as one amidst the reliable Plug Valves Manufacturers and Suppliers.

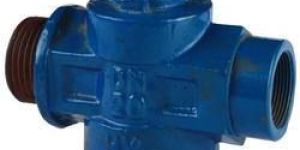

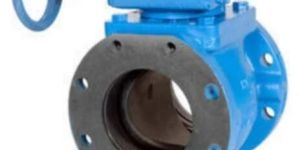

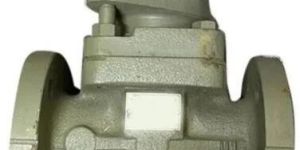

We are one of the most prominent manufacturers and supplier of Cast Iron Plug Valve. We have hired experienced professionals who manufacture these high quality tanks by utilizing optimum quality raw material, procured from the most reliable vendors of the industry. Products we offer are used to to provide flexibility to the glands and offer leak-free, easy turning performance. Furthermore, to ensure that our customers are provided with high quality valves, we use high-grade cast iron in the manufacturing process of these valves.

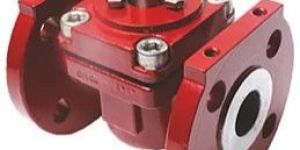

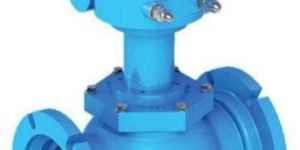

Features / Benefits:• Body - Investment casting up to 12" ANSI Class 150, 6" ANSI class 300• Sleeve Fitting - by master plug in a hydraulic press• Sleeve Locking - Human error eliminated• Pneumatic actuator, limit switch, solenoid valve, air filter regulator, etc• Multi-Port, jacketed, caged, Fire-safe test requirements of API 607 and API 6FA ANSI Class Rating: From Class 125Design Standard: BS 5158Sizes: 15mm (1/2") to 200mm (8")Materials: Cast ironEnds: Flanged, Screwed Range of application: • Oil production• Water injection• Mud systems.• Shut down valve on production• Water injection and test manifold• between valve tree and separator.• Change-over valve between filters.• Meetering stations Options: • Cylindrical• Cylindrical without seats (integrated sets in the valve body)• Full bore “through conduit”• Venturi with reduced bore Maintenance: • As a rule plug valves are expected to be maintenance free, however for some valves maintenance is highly required to secure operation and avoid damage.

Available in all moc : c.i, c.s, ss 304, ss316, alloy steel etc sizes: 15 nb to 400nb design: plug type end connection: screwed, buttweld & flanged ends pressure ration: pn.10, pn 1.6, class 150 to 300#.

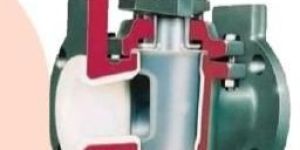

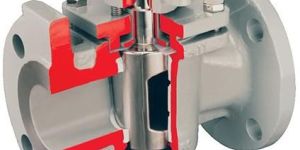

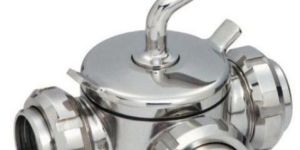

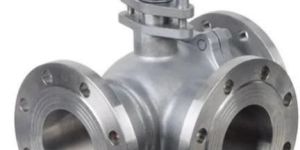

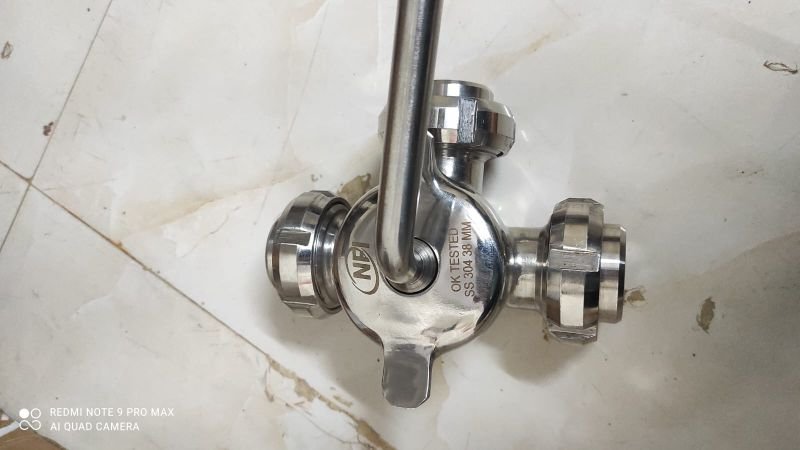

  Technical specification: plug valve is a quarter turn manual valve that uses a tapered plug to permit or prevent straight -through flow through the body. The plug has a straight through opening. this opening is the same as the area of the inlet and outlet ports of the valve. Material construction: AISI 304, AISI 316 & AISI 316l. available sizes: from 1" to 4" (25mm to 100 mm) in 2 ways or 3 ways.

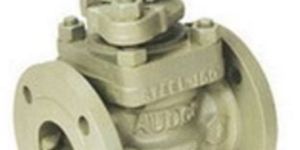

Body Cover & Gland : Cast Iron to IS 210 Gr. FG 220 Plug : Cast Iron to IS 210 Gr. FG 220 or Cast Steel to ASTM A 216 Gr. WCB Shim : Mild Steel, Nickle Plates Gland Packing : Rubberised Asbestos Gasket : Compressed Asbestos END CONNECTIONS : Screwed : BSP as per BS 21 Flanges : To match flanges drilled to BS 10 Table D, F and ANSI ASME B 16.10 Class 125 Drilled to DIN 2532 PN 10 or PN 16, BS 10 Table E or BS 4504 PN 10 Valves can also be offered with undrilled flanges.

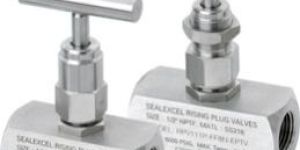

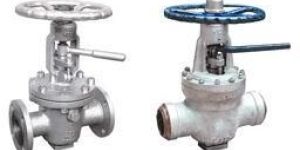

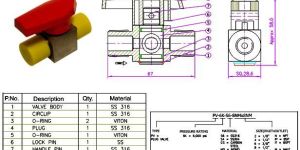

FEATURES  Available in SS316, all wetted parts in accordance with NACE MR01-75•  Heat Code Traceable to certified material test report•  Bar Stock Body Straight Patterns•  Straight through orifice hence roddable for easy cleaning•  Replaceable seals and seats•  Stem dust seal protect stem from external contamination.•  Rolled and plated thread for greater strength and smoother operation•  Packing below the threads prevents lubricant washout.•  Panel mounted feature option•  Gauge ports available•  Variety of end configuration includes SEALEXCEL® Well-Lok™    Tube Fittings, Male / Female NPT, BSPT, BSPP pipe connection.•  Orifice size : 0.187” (4.8mm) and 0.250” (6.4mm)•  Every valve is factory tested OPERATING PARAMETERS Pressure Rating   : upto 6000 psig (408 bar) at CWPTemperature Rating   :  -29ºC to 204ºC with PEEK or Acetal seat material                                           and Viton® or Kalrez® O-Rings STEM TYPE SEALEXCEL® Rising Stem Plug Valves are available with non-rotating stem tips which provides positive sealing andmaximum soft seat life. APPLICATIONS •  General Plant Service•  Instrument Isolation•  Pressure measurement devices •   Venting

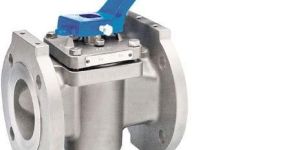

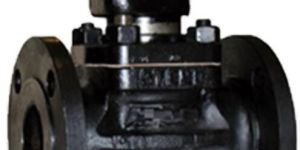

TECHNICAL SPECIFICATIONS : Size Range : Flanged Ends - 15 mm to 250 mm / Screwed Ends - 15 mm to 80 mm. Design Standard : BS 5158 Face to Face : BS EN 558 -1 Testing Standard : EN 12266-1 (BS 6755-1) Pressure Rating : Class 125 Port : Two Way / Three Way / Four Way MATERIAL OF CONSTRUCTION : Body / Cover & Gland : Cast Iron to IS 210 Gr. FG 220 Plug : Cast Iron to IS 210 Gr. FG 220 or Cast Steel to ASTM A 216 Gr. WCB Shim : Mild Steel, Nickle Plates Gland Packing : Rubberised Asbestos Gasket : Compressed Asbestos END CONNECTIONS : Screwed : BSP as per BS 21 Flanges : To match flanges drilled to BS 10 Table D, F and ANSI / ASME B 16.10 Class 125 Drilled to DIN 2532 PN 10 or PN 16, BS 10 Table E or BS 4504 PN 10 Valves can also be offered with undrilled flanges.

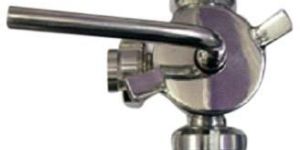

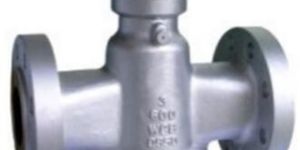

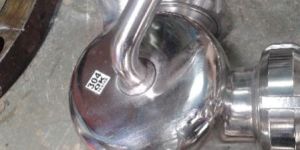

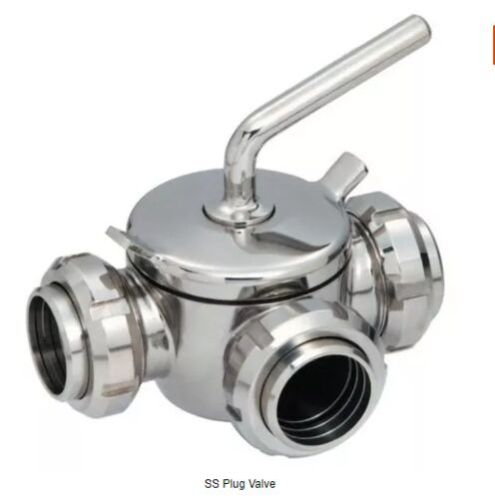

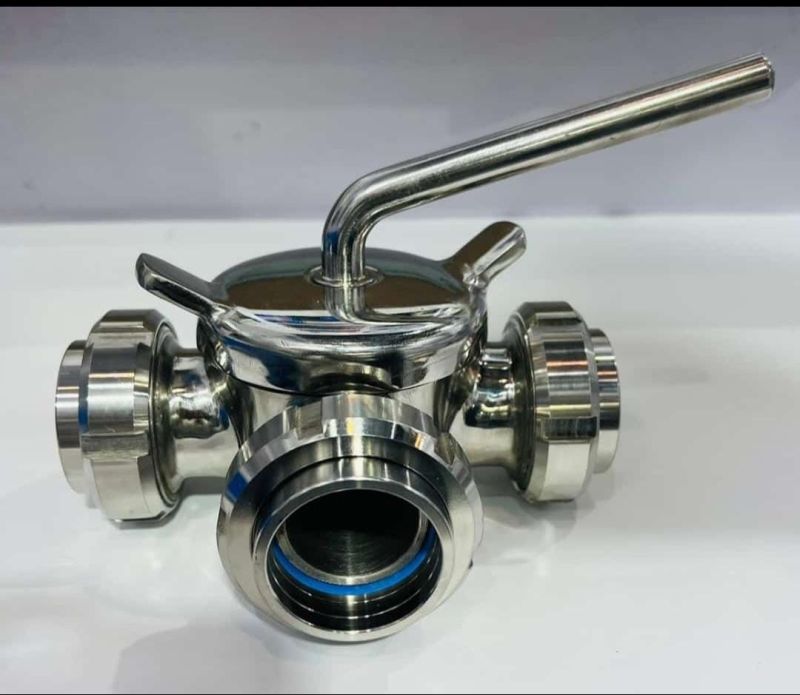

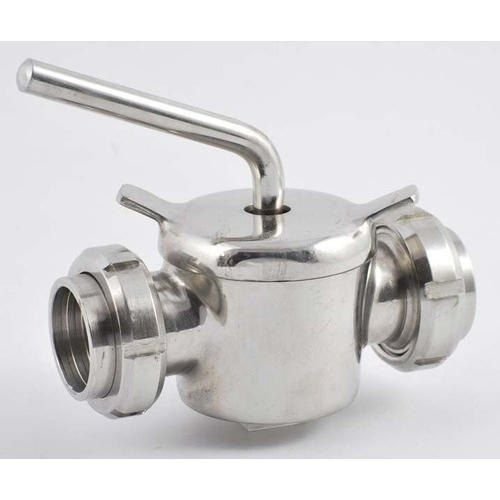

We Manufacture, Export and Supply a wide range of Stainless Steel Plug Valves for diverse industrial applications. The complete range is designed and produced under conditions of strict control as per SMS, DIN and IDF standards after which proper testing is done regarding their performance on several parameters. Sizes Available25.4 to 101.6Materials UsedStainless Steel 304, 316LKey FeaturesResistant to corrosionEasy installationLong service lifeLong maintenance intervalsModern mechanism
