Protech Engineering & Controls Private Limited Andheri, Mumbai, Maharashtra

Special Features         • Most compact yet ultra flexible protection relays • Micro controller based True RMS Measurement • Under or over voltage selection with automatic range   selection • Two Time delay ranges in one unit • User selectable Normal/Fail safe Modes • User selectable Auto/Manual Reset • Wide power supply range from 90-270V AC/DC

Most Compact Solution For Toggling Load (Load   sharing) • Micro Controller Based Relay • Output Electronically Interlocked • Wireless Interiors Makes It Highly Rugged & Error   Proof • Ideal For Fire Fighting Pumps Water & Air Conditioner • Wide Power Supply Range From 90-270 V AC/DC

Size: (mm)- 22.5mm width op contacts-1 co aux supply-90-270v acdc mounting-din channel mounting distinctive feature-micro controller based design automanual reset + normal failsafe modes.

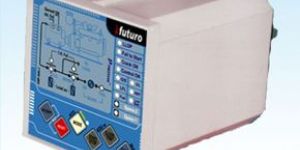

• Most Compact & simplest AMF controller• Designed using last Micro - controller technology    MIMIC type of front fascia makes it easy to use, even for    an unskilled person• INDICATIONS for Mains ON, Gen-set ON, Load on    Mains/Gen-set and all faults(Mains Fail, Low Lube Oil Pr.,    Batt. Low, Set Fails to Start, Alternator Fail, HWT, O/L &    Low Fuel level)• PROGRAMMING not required• ANNUNCIATION with flasher & buzzer both; including    ACCEPT, RESET & TEST facility.• Facility for connection of external HOOTER.• Design facilitates easy and quick installation• Virtually MAINTENANCE FREE• Existing non-AMF panels(standard panel)can be easily    converted in to AMF panels using Mini-Futro• Total wireless interiors• Totally separate Manual Mode (external wiring)• Potential Free Contacts of all the faults for external    integration(Optional)

Special Features         • Digital Programmable IDMT Relay • Compact yet most Flexible • True RMS Measurement • User Programmable 5 Curves • User Selectable Phase or Earth Fault Application

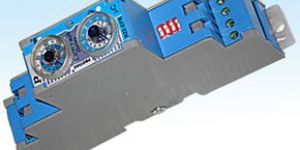

• Smart design to fit on any standard mounting   channel.• Choice of screw less terminals•Total wireless interiors• + 2% Accuracy• Test & Auto/Manual Reset facility• Designed for high reliability, as relay energizes only   under fault conditions

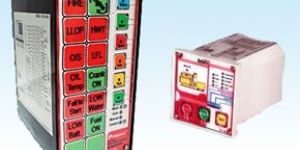

• Most simple diesel engine controller for fir hydrant system• Designed using latest micro-controller technology• Mimic/Windows type of front fascia makes it easy to use,    even for an unskiller person• Indication for mains on, fire, engine run, stop and all faults    (Low lube oil pressure, Batt. low, fails to star, HWT, o/s    and low fuel)• Annucation with flasher & buzzer both, including accept,    reset & test facility.• Facility for connection of external hooter & lamps• Design facilities easy and quick installation• Virtually maintenance free• Total wireless interiors• Common potential free contacts for external integration    (optional)

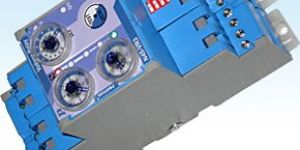

    Special Features       • Auto / Manual Reset selectable. • Fail safe selectable • Separate Sensing / Source • Measuring Voltage between earth & neutral • Monitor earth connection

Packaging Type : Carton Box

Overall Weight : 200gm

Usage : Mines, Factories, Power Plants, Shopping Malls

Specialities : Stable Performance, Shocked Proof, High Performance, Durable

Size (Inches) : 4-6 Inches

Overall Dimension : 110mmX110mmX22.5mm

Witdh : 22.5mm

Relay Height : 110

Relay Length : 110

Brand Name : PROTIME

Mounting Type : Base Mounting

Power Consumption : 2W-5W

Corrosion Resistance : Yes

Switching Voltage For Zero : 220V

     Special Features             • Most compact yet ultra flexible protection relays• Micro controller based True RMS Measurement• Two Tripping ranges in one unit• Two Time delay ranges in one unit• User selectable Normal/Fail safe Modes• User selectable Auto/Manual Reset• Wide power supply range from 90-270V AC/DC

    Special Features       • Most compact yet ultra flexible protection relays • Micro controller based True RMS Measurement • Two Tripping ranges in one unit • Two Time delay ranges in one unit • User selectable Normal/Fail safe Modes • User selectable Auto/Manual Reset • Wide power supply range from 90-270V AC/DC

    • Compact with total wireless interiors • Only of its kind with LCD and MMIC type of front fascia    makes it easy to use even for anunskilled person • IDICATIONS for D.G Set start and stop and all faults   (LLOP, HWT, O/S, O/L, LOW, battery,SFS, LFL, HZ Fault, Fail   to Stop, C.B Fail etc) and Auto Load Change over REMOTE   monitoring & control facility available (optional)• Connecting of external Indicating lamps & pushbuttons is    possible with very simple wiring• RS 232 / 485 Compatibility (optional)• ANNUNCIATION with flasher & buzzer both, including    ACCEPT, RESET, & TEST facility.• Facility for connection of external HOOTER• Design facilitates easy and quick installation.• Virtually MAINTENANCE FREE.• Existing non-AMF panels can be easily converted in to AMF    panels using AMF-futuro.• First time with Semi Auto Mode of Operation • Password protected settings.• Programmale fault inputs
