Roll Bending Machine Dealers in Mumbai (8 products available)

• Sheet Bending Roller: Plate Bending Roller

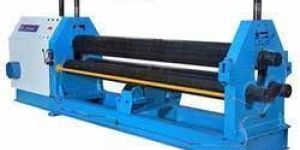

We can offer you our best quality, heavy duty steel fabricated body three roll pyramid type plate bending machines as per your requirements. We can supply you both mechanical and hand operated plate bending machine. Machine is supplied with centralized lubrication system. Heavy duty steel fabricated housing amply proportioned to withstand maximum strain. Rolls are of forged EN-8 material and run in collar type gun metal bushes. Base is of heavy duty girders. Drive through a series of hob cut steel gears and worm reduction gear box. Screw jack is provided to keep the top roll in horizontal position when trunion is retracted to facilitate removal of formed shells. The photo shows our standard 2500mm x 25mm capacity bending roller fitted with 30.0 HP three phase AC electric motor, Siemens make ONOFF Push Button Starter with Siemens make ReverseForward switch. We can supply you machine to bend sheets upto 32mm Plate. We also offer manually driven plate bending roller machines as well. Kindly ask for more details.

This is our heavy duty three roll pyramid type power operated plate bending machine in model TPH having capacity to bend 2500 x 25 mm in mild steel. The machine weighs about 6700 kgs and is equipped with 30 HP motor, siemens make on/off starter and reverse/forward switch complete with lubricaton system. Some of the salient features of our three roll pyramid type plate bending machines are as under: Heavy duty steel fabricated housing amply proportioned to withstand maximum strain. Rollers are of forged EN-8 material and run in collar type gun metal bushes. Base is of heavy duty girders. Centralized lubrication system Drive through a series of hob cut properly hardened steel gears and worm reduction gear box. Screw jack is provided to keep the top roll in horizontal position when trunion is retracted to facilitate removal of formed shells. The machine is supplied complete with : - Elicon / Redicon make Reduction gear box- Electric motor 3 phase /440 volts / 50 cycles AC- Reversible switch (Upto 5 HP)- Reversible starter (Above 5 HP)  These Three Roll Pyramid Type Plate Bending Roller Machines are available in a wide range of capacities from 1250 x 3 mm in mild steel up to 3000 x 42 mm. Kindly ask for details.

'Tee' Electro Mechanical Pyramid Type Plate Bending Machines Are The Most Popular Plate Bending Machines Working In India With Over A Thousand Machines In Use.   They Are Designed For Production Of Cylindrial Shells Used For Pipes, Storage Tanks, Chimneys, Pressure Vessels, Etc.    These Heavy Duty Plate Bending Machines Employ The Orthodox Three Roller Pyramid Principle. Bottom Rolls Are Fixed And Are Driven By A System Of Gears And Worm Reduction Gear Box Whereas The Top Roll Has A Vertical Up And Down Movement Through   (A) Screws Adjusted Manually In Model Tph.   (B) Separate Motor In Model Tpvp.    The Housings Are Steel Fabricated With Large Bearing Surface Area. The Rolls Are Of Wear Resistant Forged Steel And Are. Amply Dimensioned To Keep The Top Roll Horizontal When The Formrd Shell Is To Be Extracted By Retracting The Trunion. Horizontal Grooves Are Provided Throughout The Length, Of Rolls For Additional Gripping And Correct Feeding. Indicators Are Provided At Both Ends Correct Feeding. Indicators Are Provided At Both Ends For Correct Top Roll Pressure. (For Model Tpvp) For Conical Bending The Top Roll Can Be Inclined Disengaging The Clutch At One End Of The Worm Gears.

Repair includes repair of cylinder bore by welding­ machining & grinding process, Hard chrome plating of piston rods, Replacement / Modification of sealing system, Rectification of Oil paths / Drills ,Re-chasing / Re-Tapping of threaded holes, Maintaining parallism of liner faces. Load testing facility up to 250 T capacity. United Van Der Horst has also manufactured new design roll bending blocks with I.D. hard chrome plated and ground surface finish along with Low friction sealing design.

FORMMASTER'S Slip Roll Bending Machine is the most fundamental machine for producing round cylindrical sheet metal shells Our Slip Roll Bending Machines are built primarily for sheet metal fabrication works for producing round cylindrical sheet metal shell. The machine have initial pinch type bending arrangement to produce round cylinder to high accuracy. The three roll bending machine are ideally suited for mass production & is so design to enable quick adjustment of thickness and diameter. The machine includes all the latest features. It is one of the most convenient and easy to used three roll bender available. Both the bottom roll and taper bending roll can be adjusted by mean of a single individual hand lever. The upper roll can be easily disengage and can be rotate on pivot at one end to remove the complete closed cylindrical shell. Features: Modern Initial Pinch Type Design Ruggedly Build Positioning of Rear & Bottom Roll with Single Hand Lever Swing-out Top Roll High Quality Steel Rolls Heavy Duty Construction

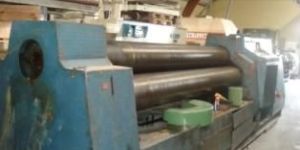

CONTROL Conventional COUNTRY OF ORIGIN Sweden DELIVERY TIME IMMEDIATE AGAINST PAYMENT DIAMETER 25mm LENGTH 3m ROLL DIAMETER 1040MM 3 Rolls WEIGHT OF THE MACHINERY CA. 25 Ton DIMENSIONS OF THE MACHINERY CA. 6 X 2.25 X 2M

• Brand Name: MASTER
• Plate Bending Roller Machine: Plate Bending Machine
• Port: Mumbai
• Place of Origin: Maharashtra, India

Roll Motorized Bending Machine have an initial pinch type arrangement. The three rolls are asymmetrically arranged to produce rolled cylinders to a high accuracy. It is ideally suited for mass production and so designed to enable quick adjustments for thickness and diameter. All the three rolls are of same diameter. The two front rolls are known as pinch rolls; the top roll is in a fix position. The lower front roll is adjustable up and down to suit the thickness of the sheetplate being rolled. The rear roll or bending roll is adjustable up and down to determine the diameter of the cylinder to be produced. The formed component can be easily removed in a few seconds simply by lowering the tail hinge & moving down the lower roll which will release the pressure on the rolled sheet & by rotating the screw at the other end which will cause the top roll to tilt thereby permitting the removal of the finished product.
