S.A Pharma Vikhroli, Mumbai, Maharashtra

The sparkler filter press consists of an assembly of filter plates and filter cloth with perforated S.S. supporting screens enclosed in an S.S. shell. The assembly is equipped with a pump to pressurize the liquid through the stack of horizontally arranged filter plates. The cartridge assembly is provided with central spacers between each of the plates. The interlocking between these spacers serves as a central pipeline, feeding equal quantities of unfiltered liquid to each of the plates. Solid particulates in the liquid get filtered and remain on the screen, allowing only the pure liquid to pass ahead. The filtered liquid is then collected at the bottom of the tank through holes provided on each of the plates. The plate is manufactured in two parts which allows easy and effective removal of the cake.           APPLICATIONS : Pharmaceuticals Chemical Food Industries Beverages Distilleries Oil Industries Dairy Industries Paint Industries   SALIENT FEATURES : Meets GMP norms. Construction follows the latest standards & engineered to perfection. Available models – 8, 14 and 18 inches plate diameter. Available with centrifugal/ gear/ lobe roto pump. Fitted with pressure gauge, safety valve and airvent. Gives crystal clear filtration. All contact parts in SS 304/316/316L. High degree of finish to all Contact parts. Minimum hold up of unfiltered slurry, boost in productivity. MOC: Contact parts S.S. 316 & S.S. 316L and non-contact parts S.S. 304/M.S. (as per requirement). Gives crystal clear filtrate by filtering particles up to 1 micron size. Scavenger arrangement to remove all the liquid. Specially designed plate provides more filtration area and easy maintenance & cleaning of the equipment. Filtration rates from 600 Ltrs/hr. to 30000 Ltrs/hr possible depending on the models. Twin mode operation allows the equipment to be used for filtering and liquid transfer purposes. Pressure tight enclosures enable filtration of volatile liquids. Centrifugal/lobe/gear pump provided as per the needs of the application. FLP motor with FLP ON-OFF push button available for flame proof applications. Available in wide range of sizes.   OPERATION: The liquid to be filtered is passed to the central passage of the filter cartridge. From here it finds its way to the different filter plates on which suitable filter media is used. As the liquid progresses through the filter plates and the screens, the filter media arrests the suspensions and allows the filtrate to the shell of the main body of the filtrate media. In some cases, the process requires the recovery of the cake. The same be collected from the top of the filter media. The added feature of this filter is that it can be backwashed without dismantling the cartridge. In case the product is same, the filter-aid required after back washing is only marginal. Since the top dome is free from any piping connection, the removal of filter cartridge is very easy.

Meets GMP norms. Construction follows the latest standards & engineered to perfection. Available models – 8, 14 and 18 inches plate diameter. Available with centrifugal gear lobe roto pump. Fitted with pressure gauge, safety valve and airvent. Gives crystal clear filtration. All contact parts in SS 304316316L. High degree of finish to all Contact parts. Minimum hold up of unfiltered slurry, boost in productivity. MOC: Contact parts S.S. 316 & S.S. 316L and non-contact parts S.S. 304M.S. (as per requirement).

Vibro sifter consists of an assembly of screens with variable mesh size which is ideal for separation and gradation of powder, granules etc. as per the particle size.The machine is designed to achieve vibrations in multiple planes accompanied by a suitable assembly of a vibratory motor having an eccentric weight at the top and bottom ends of the motor shaft. The motor rests vertically at the center of the screen assembly, on a circular base by means of springs which allow for free vibration of the unit. The top weight causes vibrations in the horizontal plane which causes the material to move across the screen towards the periphery of the screen. The bottom weight tilts the unit which causes vibrations in the vertical tangential axis. The angle of lead of the lower weight with respect to the upper weight provides variable control of the screening pattern. Thus the material moves across the screens and also in the vertical and tangential planes enabling maximum screening.           Applications : Pharmaceuticals Chemical Food industry Spices     Salient Features : Ideal for gradation and separation of powder, granules etc Available in various models providing screening diameter of 12”, 20”, 24”, 30”, 36”, 48" Portable and compact design. MOC SS304/316/316L material SS lid with charging ports Easy dismantling and cleaning Wide range of screen sizes 4-300 mesh Double decker arrangement available on request Noiseless operation

Pharmaceuticals Chemical Food Industries Dairy Industries Paint Industries Distilleries Cosmetics Beverages Oil Mills (Edible and cosmetics)   SALIENT FEATURES : Range Available: 5L to 2000L. MOC: SS 304/316/316L. Jacket and insulation available as per requirement. Provided with heating arrangement as per requirement. High degree of mirror/ mat finish available. Stirrer and homogenizer arrangement provided on demand. Tilting arrangement provided as per request. Easily washable. Dimensions available as per customer requirements. Available in conical, spherical and dome shaped bottom.

  Salient Features : Capacity available 2 ltrs to 500 ltrs. Safety valve/ pressure gauge provided. Test pressure 5 kgs/cm2. MOC 316/316L.     • Filling Vessel   Salient Features : Capacity available 2 ltrs to 500 ltrs. Viewing glass provided. Air tight lid. Outlet nozzles as per your filling machine. MOC SS 316/316L.

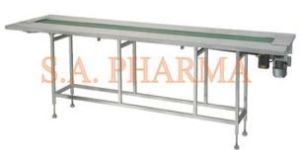

Pharmaceuticals. Beverages. Dairy Industry Cosmetics Beverage Industry     SALIENT FEATURES :   Movement direction: Left to right. Width*: 9”/ 12”. Height*: 32” to 36”. Belt type*: PVC/ Endless. Input specifications: single phase. Speed: As per customer requirement. MOC: Complete S.S. 304 structure

        APPLICATIONS : Pharmaceuticals Pharma Foods   SALIENT FEATURES : Pure, sterile and pyrogen free distilled water. Compact space saving design. High operational reliability. Meets GMP and FDA norms. Easy and silent operation. Excellent energy efficiency. Easy to maintain and operate. Fully automatic operation. High degree of finish. Auto dumping of sub-standard distillate. Special sanitary fittings.

Pure, sterile and pyrogen free distilled water. Compact space saving design. High operational reliability. Meets GMP and FDA norms. Easy and silent operation. Excellent energy efficiency. Easy to maintain and operate. Fully automatic operation. High degree of finish. Auto dumping of sub-standard distillate. Special sanitary fittings.

Salient Features : Available in 142 mm and 293 mm size. Bubble test arrangement can be provided. MOC SS 316/316L and mirror polished

APPLICATIONS : Pharmaceuticals Food Industries Distilleries Beverages   SALIENT FEATURES : GMP Construction All contact parts of SS 316 grade Hemispherical bowl Bowl tilting by manual by worm and worm wheel Teflon scrapper for scrapping the paste Split, hinged top lid Excess pressure release valve on jacket for steam High degree of finish to all Contact parts. VFD for stirrer speed variation (Optional)

APPLICATIONS : Ointment, cream and paste making. Cosmatics Food Industries

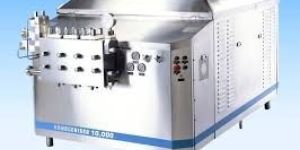

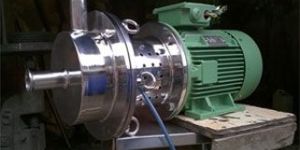

Homogenizing is a process of combining various substances to obtain a mixture of uniform consistency (homogeneous). A homogenizer is equipment used to break down the solid particles in a solution into very fine sizes to achieve a homogeneous solution. It consists of a blade mounted on a motor shaft rotating at high speeds. Depending on the applications (stirringhomogenizationmixing), we provide various types of blades to serve the required purpose.

Power : :

  Applications : Pharmaceuticals. Chemical. Food industry.     Salient Features : Ideal for mixing of powders and homogeneous lubrication of granules. Safety guards provided with limit switch interlocked to motor for higher capacity model. Available capacities 5 kg to 1000 kg. MOC SS 304/316/316L. Lab model available.

MOC 304/316/316L. It can wash 5000/10000 bungs at a time. Air inlet, water inlet, heating arrangement, perforated basket and water level arrangement provided. Heating options available: Electric/ Steam.controller/indicator.
