S.V. Enterprises Oshiwara, Mumbai, Maharashtra

These heaters are made of Copper sheathed Tubular heating element filled with high grade insulation powder & kanthal coil at the centre which is brazed to a Brass flange / S.S.Flange. Heaters are nickel chrome plated and are provided with earthing Terminals. A metallic cap is provided for protection of Terminals. Features Copper tube for instant heating and cooling Nickel plated for longer life Flange thread sizes of 1.25’’, 1.5’’, 2’’, 2.5’’ & 3’’ bspt in ready stock Fitted with metallic cover for protection S.S. flange available Application Boilers Baine marie Industrial washing machine Water tanks Scientific and lab equipments

Material : copper

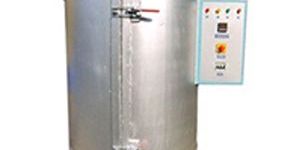

Drum Heaters provide an easy, efficient, clean & economical way for the handling of viscous or low melting point solidified materials in Drums. Drum Heaters are mobile ovens heated by flexible surface heaters made from imported Nichrome wire. They are made in rugged designs and stand normal usage in chemical industries. The contents may either be melted completely and removed as a liquid, or they may be melted only at the surface touching the drum walls and removed as a solid block by tilting the drum. The heating in Drum Heaters is gentle and uniform, and there is no chance of local overheating. Construction: This Industrial drum heater (vertical model) has a well type, double walled construction. The Inner chamber is made of MS with a heat resistive silver paint finish, and the outer chamber is also made of MS with a powder coat finish. The drum heater is made into 2 semicircular halves, which are joined at one end by heavy duty hinges & clamps and at the other end by a special press fit adjustable lock, The maximum working temp of 250ºC. Features Castor wheels provide easy movement Temp range of upto 200 deg C Flameproof drum heater option with steam or fluid heating, uniform heating Digital controller for efficient heating, can be designed between 110 v to 440 v Can be used for both HDPE and metal drums Application Asphalt Bitumen Fats Gelatin Glucose Grease Lubricating Oils Paints Petroleum Jelly Phenols Plastics Sodium Tar Vegetable Oils Varnishes Waxes

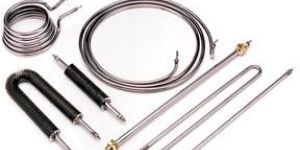

these heaters are made of chrome-nickel steel tubular sheathed heating element compacted with high grade insulation powder for better transmission of heat, provided with adjustable brackets and heavy duty brass terminals. features designed as per customer specifications diameter options of 6mm, 8mm, 10.5mm, 12.5mm, 15.5mm sheath material options of s.s.304 / s.s.316 / s.s.321 / s.s.310 / incoloy 800 / copper / titanium s.s. Termination watt density 25 watts per sq inch application ovens and incubators hopper dryers kitchen equipments hot plates packaging machines textile industry shoe making industry engineering industry

Total Carbohydrate : 1 YEAR

Brand Name : SVE

Power Source : 110V / 230 V/ 380 V/ 440 V

Country of Origin : MUMBAI

J type / Fe-Con K type / Cr-Al PT-100 RTD Type MI Thermocouples Fixed Bayonets Adjustable Bayonets Bolt and Washers, Skin Type, screw-in Push-in Melt Bolt

Application : Industries

Strip Heaters are made of helically wound resistance coil evenly stretched and strung through series of ceramic insulators. Resistance coil is mechanically connected to screw terminals or lead wires for positive connection. The element assembly is electrically insulated and covered by metal sheathing. Sheath metal selection of S.S. 304, S.S.316, Mild steel is available. Features Nickel Chrome resistance wire optional Screw or wire lead termination Maximum sheath Temperature: 400oC Nominal watt density: 3.2 watts/cm2 Length range from 200mm to 2000mm Standard stock size from 250 w to 2000 w Application Ovens Hot plates Moulds Dies Drying Melting Baking Incubators Food Warmers Air Heating Sealing Bars Load Banks

Finishing : Coated

Application : Industrial Use

Shortwave Infrared heat is transmitted directly in the form of electromagnetic rays, at a avelocity of approx. 300,000 km/sec: i.e. at the speed of light. but is also suitable for particularly demanding applications such as Vacuum technology and clean room conditions. Infrared heat is particularly economical on energy compared to other heat sources beacause it acts quickly, directly on products. Short Wave IR emitters are suitable for all applications in which the attainment of high temperatures in the shortest possible time is what counts. These lamps are not only the fastest in transmitting heat but are most suitable for specific applications involving vacuum technology and dust free (clean room) conditions. Features Heating is done by radiation this eliminates loss of energy used for heating media and heat loss due to convection Here the infrared waves penetrate the material, on which it falls and delivers the heat directly to that materialVarious type of termination options are available Standard stock size from 250 w to 2000w in 230 v and 415 v Heating Length ranging from 127mm to 1200mm Application PET preform heating in stretch blow molding machines Printing ink drying in offset machines Paper coating drying Pre – heating prior to embossing Screen printing curing on T – shirts Textiles and many more

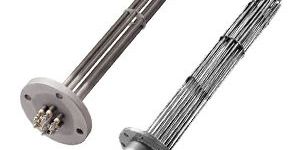

These heaters are made of Nicrohome wire sealed inside a Steel tubular high temperature grade pipe, which is compacted along with high grade MGO allowing it to withstand high insulation resistance, later the element are brazed to a Cast Iron Flange/ Brass flange / S.S.Flange / and are provided with a Thermostat pocket, earthing terminal, & cap. These heaters are designed to provide efficient heating which ensures that the Oil flash point is not achieved in case of non failure of temp. controller or sensor. Features Avaliable in s.s.304, s.s.316 Incoloy, Sheathed elements, Brass S.S. or M.S. flanges available Lower watt density for effective heating Standard stock size available Application Furnances, Oil tanks, For fuel oil heating, oil circulating, for systems which supply hot oil to plastic & chemicals processes Oil jacketted kettles and similar equipments

Material : Steel

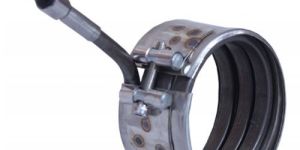

Nozzle coil heaters are similar to the coil heaters but with a bigger cross section and the option of brass collet and clamping band over the heater to ensure perfect snug fit onto the nozzle for the efficient heat transformation. The problem of material spillage results in frequent failure of mica nozzle heaters, where as these heaters are robust in such conditions. Features Available with nickel chrome steel band Temp range for upto 400 deg C Option of J type or K type thermocouple available on request Negligible effect of material spillage Minimum inner diameter of 25mm Application Injection and blow moulding Process engineering Extend nozzles

Micro tubular coil heaters are manufactured in round and rectangle cross sections, in round section available diameters are 1.5mm, 1.8mm. In rectangle cross section size is 1.3mm x 2.1mm. These heaters are swaged and compacted to these diameters and fitted into special clamps to tighten over circular parts for heating purpose. Features Flexible cold leads of 5’’ & 7’’ Round cross section of 1.5mm and 1.8mm Rectangle cross section of 1.3mm x 2.1mm Standard stock sizes available Application Pet perform moulds Hot runner nozzles Thin wall containers

Driven Type : Electric

Mica bands are made of an electrical resistance ribbon or wire, which is wound around a mica winding card and sandwiched between two sheets of mica, then wrapped in sheet metal. The resistance wire or ribbon that converts electrical energy to thermal energy is normally a nickel-chromium alloy of either 80% nickel which is useful to 1100°C or 60% nickel which is useful to 950°c. The mica is, most often, one of three types: muscovite, useful to 500°c, phlogopyte, useful to 750°c, and synthetic mica, useful to 900°c. The sheet metal is normally either mild steel, stainless steel, brass, GI depending on the temp and the product to be heated. The maximum temp for mica band heater is 400°c. Features Designed as per customer specifications Variety of termination options Available in one or two piece construction Temp upto 400 deg C S.S. braided termination Metal covering Application Injection moulding Blow Moulding Extrusion Pipe and drum heating

Power : 0.3 Kw

Medium wave IR heaters are manufactured and supply superior quality medium wave infrared heater that consists of a helically wound resistance coil housed in a pure vitreous silica fused quartz tube. The quartz tubing is terminated with ceramic insulating caps that are specially designed to allow the quartz tubing to breathe. The ceramic caps are tightly fastened to the quartz tube with high temperature cement that allows the quartz to breathe. Made of high quality material, these are superior in performance and offer long serving life. Features Quartz Infrared Heater is available in diameters of 8, 10, 12, 15 and 19 mm Available in lengths from 300 to 1500 mm Can be used only in horizontal position Fitted with specially designed heating coil to ensure longer life, Least maintenance required Available in clear and milky tubes Application Shrink Packaging Machines Lamination Industries Drying Textiles Curing Rubber

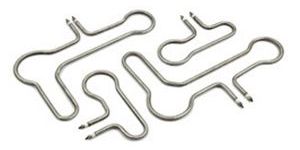

These heaters are made of Chrome-Nickel steel tubular sheathed heating Element compacted with high grade insulation powder for better transmission of heat, provided with adjustable brackets and heavy duty brass terminals. With prewired termination. Features Formed into specified shape, diameter options of 6mm, 8mm Sheath material options of S.S.304 / S.S.316 / S.S.321 / S.S.310 / Incoloy 800 / S.S. termination Watt density 50 watts per sq inch Application Hot runner moulds, manifolds

Material : Steel

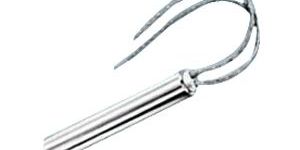

Low Density Cartridge Heaters are developed for heating applications where sheath temperatures not exceeding 3000c with maximum watt densities of 30 to 45 watts per square inch depending on applications. The heaters of various sheath diameters can be used in any assembly equipment of machine. The heater design consists of helically wound resistance coil made from nickel-chrome wire, evenly stretched and strung through holes in a round ceramic insulator. The element assembly is inserted into a Chrome Nickel Steel sheath. This alloy provides the best combination of physical strength and resistance to heat oxidation up to 4500c. Specially selected grain size and high purity magnesium oxide is used to fill all remaining space inside the ceramic insulator to increase thermal conductivity, dielectric strength, and provide longer operating heater life. Features Available in different lengths from 50mm to 1200mm, sheath metal brass, s.s.304, s.s.316, incoloy 800, copper Watt density 20 watts per sq inch Flexible leads Non corrosive material Diameter option from 6mm to 30mm Maximum sheath temp 300 deg c Application Packaging Machinery Heat Sealing Labeling Machines Hot Stamping Plastic Injection Glue guns and Wax pots Shoe Machinery Heating of gases and liquids

We are offering industrial heaters. Available in different length, wattage and voltage and made as per customer requirement, we have a wide range of standard stock product for majority of the requirements.

Automatic Grade : Manual

We are offering immersion heaters. These are mainly for water, oil, alkaline, etc applications made as per customer requirement. The length and the wattage will vary as per the need.

High Density Cartridge Heaters are made of nickel chromium resistance wire wound on MgO care. The element assembly is inserted into chrome nickel steel tube centrally and filled with MgO powder. It is then compacted into a solid mass by Swaging. Swaging increases thermal conductivity, dielectric strength and heater life. Features Nickel resistance wire Various termination exit option Diameter from 4mm to 30mm, length from 25mm to 1200mm Inbuilt J type or K type thermocouple Maximum sheath temp 600 deg C Watt density 50 watts per sq inch Direct immersible in liquids Application Packaging machine Pet perform moulds Dies and moulds Hot stamping machines Heat sealing machines Glue guns Heating of liquids

Application : Hospital

Packaging Type : Packet

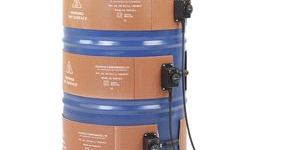

Oil drum heater is heating on the surface of drum to make the concentration and viscosity of the liquid and coagulum inside decreased uniformly. In this way It will be easy to take out the liquid and coagulum in any season. The flexible drum heater has an Inside Ni-Cr Alloy heating wires. Outside is silicon rubber insulation material for Fast heating and long working life. Ni-Cr Alloy heating wire is wound around the alkali-free fiber-glass. Main insulation material is silicon rubber which is of high heat-resistance and insulation. These drum heater is soft and flexible resulting in snug fit over the drums. Features Temperature controller on the surface of heating band The temperature range can be set between 30-150C normally Maxi heat-resistance – 250C Suggested operating temperature – < 200C Insulation resistance – > 50MΩ Dielectric strength: > 1500V /min Can be used on both HDPE and metal drums Application Fats Gelatin Glucose Grease Lubricating Oils Paints Petroleum Jelly Phenols Plastics Vegetable Oils Varnishes Waxes

Power Source : Electric

Flanged Flameproof Immersion Heater The threaded flanged flameproof heaters are made from specially selected tube which ensures that heaters do not burst and damage the surroundings, the tubes are welded onto a forged flange which ensure leak proof structure. A robust flameproof terminal enclosure protects the electrical connections. The watts density of the element core fitted depends upon the media to be heated and the kilowatt rating required. Removable Flameproof Immersion Heater The range of flameproof core removable cartridge heaters offers a hazardous area heating solution for oil and similar applications where low heat density is required. The element can be withdrawn for inspection without system drain down. The standard heater consists of a single element core fitted into a mounting flange. A robust flameproof terminal enclosure protects the electrical connections. The watts density of the element core fitted depends upon the media to be heated and the kilowatt rating required. Features Certified Ex II A, IIB OR IIC FLP junction box Lightweight cast aluminum alloy terminal enclosure with weatherproof protection to IP65 Mounting of the heater can be by threaded boss or an industry standard flange, Can be supplied with the terminal box mounted away from the fixing boss / flange for high process temperatures, any electrical supply upto 440 v A choice of carbon steel, or AISI 316L stainless steel secured by either welding or seamless depending upon the process application Application Pre-heating of oil / water Processing equipment Cleaning and rinsing tanks Heat transfer systems Boiler equipment Frost protection Compressors Turbines

These heaters are made of Chrome- Nickel, Steel sheathed heating Element fitted with 35mmf MS Finns with adjustable brackets and heavy duty brass terminals. These are designed for rapid and uniform heat transfer for forced convection air heating. Features Designed as per customer requirement Diameter options of 6mm, 8mm, 10.5mm, 12.5mm, 15.5mm Sheath material options of S.S.304 / S.S.316 / S.S.321 / S.S.310 / Incoloy 800 / copper / titanium S.S. termination, finns available in S.S.304 / S.S.316 and GI Watt density 35 watts per sq inch Application In recirculation ovens, comfort heaters, air ducts, industrial processes, load resistors, humidity control units, sauna bath heaters, HVAC, Flexoprinting and roto printing machines

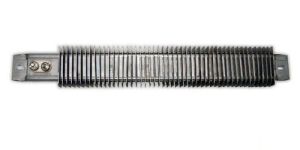

This is Basically a Heavy Duty Refractory insulated strip heater with locked on finns for fast transfer of heat to air as the surface contact area increases, also with this results in higher watt density. The finns also act as a cooling option in area where the temperature has to be precisely monitored. Features Finns act as a fast heat transfer and cooling process The option of GI, S.S.304 or S.S.316 finns Application In forced air ducts Blowers units Ovens Dryers

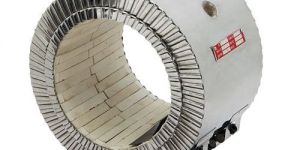

Energy Saving band heaters are ideally manufactured to reduce the time taken to heat the barrel and reduce the energy cost, with optimized heating. In addition to the in built 4mm thick heat saving insulation an extra 12mm – 25mm thick flexible insulation is added on the external sheath covered with an additional metal layer. The power saving on these heaters ranges between 25 – 40% depending on the insulation thickness selection. Features Designed as per customer specifications Variety of termination options Available in one or two piece construction Temp upto 400 deg C S.S. braided termination Metal covering Application Injection moulding Blow Moulding Extrusion Pipe and drum heating

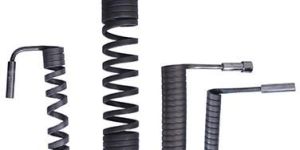

Coil heaters are typically used in area which has a higher watt density requirement. The Basic construction of these heaters involves swaging of compacted MgO, Nickel Chromium wire into a Chrome Nickel steel tube. These heaters when swaged to provide maximum support for the resistance wire, eliminating the effects of vibration and shock. Features Standard stock size from 250 w to 1200 w Temp upto 750 deg C With J type or K type T/C Highly non corrosive Various cross sections available Application Hot runner nozzles and bushing Tube extrusion Pipe forming

Application : Tube extrusion

They are constructed by a firmly burnt-in heating coil. The heater incorporates highly heatproof resistance wire that provides safety against any damage. We supply Custom Wattage Infrared Ceramic Heaters as per the requirement of our clients. Longer service life is achieved since the resistance of the heaters is made to remain constant over the whole temperature range. The glaze used in this heater has excellent radiation properties therefore the radiation efficiency is also very high. Our Ceramic Infrared Heaters are available in 3 standard models:1. Full Length 245mm(FSR) 60mm 250 to 1000 W2. Half Length 122mm (FSR/2) 60mm 125 to 500 W3. Quarter Length 60mm (FSR/4) 60mm 60 to 250 W Features The material used for the production do not oxidize therefore the surface always remains clean and do not wear out As the coil is embedded in ceramic material, it can be installed in any possible position Application In Thermoforming & Vacuum Forming Machines In PVC Pipe Belling / Socketing Machines In Hot Stamping Machines As Heat Therapy Equipment, In Shrink Packaging

Material : Ceramic

Finishing : Polished

Condition : New

Power Source : Electric

Certification : CE Certified

Length : 6-10 Inch

Country of Origin : 220V

Packaging Type : Carton Box
