Sanyo Technology India Parel, Mumbai, Maharashtra

Features Advanced Micro-controller based. US FDA 21 CFR Part 11 Compliance SW and HW. 16x2 LCD / 128x64 GLCD / 3.5" color TFT display. 4/8/16 Universal analog inputs. Programmable log time. Real time data storage of hardware and use interface event. A parallel port dot matrix printer (EPSONLX-300) interface. PC connectivity via RS-485 multi-drop facility or wireless. MODBUS RTU or Proprietary software protocol. PC interface with Sanyo SCADA compatible with any OS (US FDA 21 CFR Part 11 Compliance). Supply : 90 to 260 VAC @ 50 Hz.

Features Advanced Micro-controller based Each door locked and release Indication in RED/GREEN LED. System expansion with cascading. Support more than 99 doors in cascading. Preventing simultaneous of doors/rooms. Ensures that when one door for a room is OPEN then all other doors in that particular rooms are closed. Programmable delay between each door openings to maintains required pressure. Emergency key is available for opening the doors. Emergency & fire alarm stations. Configurable door inter-locking logic with the DIP SWITCH. Facility available to read feed back from magnetic lock. Soft touch Membrane keypad with various fault alert buzzer. Supply : 90 to 260 VAC @ 50 Hz

Features Advanced Micro-controller based Support maximum nos. of 2 or 3 doors. 16x2 Alpha-numeric LCD Display on every door Operational & faults massages on the every doors. Door LCD display are isolated from main system. Inbuilt UV Hour meter with Hour timer Reset Option. UV Light expiry life alert massage on LCD with buzzer output. User programmable system with password protected. In case of LCD display failure, door status indication by Red/Green LED. Various system process timer available like Door Lock, Blower ON and Buzzer mute time. Facility available to read feedback from magnetic lock. Easy to installation & user friendly wiring. Soft touch membrane keypad with various fault alert buzzer. Building Management System(B.M.S.) compatibility

Advanced Micro-controller based Each door locked and release Indication in RED/GREEN LED. System expansion with cascading. Support more than 99 doors in cascading. Preventing simultaneous of doors/rooms. Ensures that when one door for a room is OPEN then all other doors in that particular rooms are closed. Programmable delay between each door openings to maintains required pressure. Emergency key is available for opening the doors. Emergency& fire alarm stations. Configurable door inter-locking logic with the DIP SWITCH. Facility available to read feed back from magnetic lock. Soft touch Membrane keypad with various fault alert buzzer. Supply : 90 to 260 VAC @ 50 Hz

Features Advanced Micro-controller based 16x2 Alpha-numerical LCD Display. Supports maximum of 2 /3 Door. Auto / Manual operation selectable. Emergency & fire alarm stations. User Programmable blower ON time 0 to 99:59 (MM SS) User programmable system with password protected. In case of power failure, all door unlocked automatically and controller setting is saved. User entry from exit door permission are programmable. User can program the blower timer for exit door entry. Facility available to read feed back from magnetic lock. Easy to installation & user friendly wiring. Soft touch membrane key pad with various fault alert buzzer. Supply : 90 to 260 VAC @ 50 Hz.

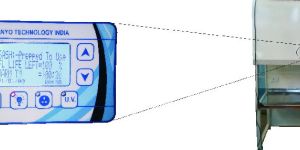

Features Advanced Micro-controller based Available in LED or 16x2 LCD Diplay. Four soft touch ON/OFF action key for Blower, UV, Lamp & Socket. Two digital reed inputs for sash window indication. Inbuilt UV Hour meter with RESET option. Blower speed controlling in m/s or fpm.(Optional) Sash sliding window UP/DOWN control. Easy to installation& user friendly wiring. Soft touch Membrane keypad. Supply : 90 to 260 VAC @ 50 Hz

Advanced Micro-controller based Each door locked and release Indication in RED/GREEN LED. System expansion with cascading. Support more than 99 doors in cascading. Preventing simultaneous of doors/rooms. Ensures that when one door for a room is OPEN then all other doors in that particular rooms are closed. Programmable delay between each door openings to maintains required pressure. Emergency key is available for opening the doors. Emergency& fire alarm stations. Configurable door inter-locking logic with the DIP SWITCH. Facility available to read feed back from magnetic lock. Soft touch Membrane keypad with various fault alert buzzer. Supply : 90 to 260 VAC @ 50 Hz

Features Advanced Micro-controller based. 16x2 LCD / 128x64 GLCD / 3.5" color TFT display. Four Soft touch ON/OFF Action key For Blower, UV, Lamp and Socket. Four digital reed inputs for sash window indication. Inbuilt UV hour meter with RESET option. User programmable system with password protected. Blower speed controlling in m/s or fpm for inlet and outlet Blower (Optional). Temperature and inlet/outlet air flow measurement. PC or Dot matrix Printer Connectivity (Optional). Sash sliding window UP/DOWN control. Easy to installation & user friendly wiring. Supply : 90 to 260 VAC @ 50 Hz.

Advanced Micro-controller based Single input Input RTD-PT 100 0.2% full scale accuracy 0.1% linearity Water level input with Audio visual alarm Programmable sock time Relay output for pressure released valve Manual start stop Supplyv: 12VDC to 36VDC

Features Advanced Micro-controller based Available in 0.56" & 1" 7-Segment LED display. HH:MM:SS display format. Master connectivity via RS-485 multi-drop facility or Wireless. Master time synchronization with GPS or Sanyo Time-tick. Field configurable Master / Slave. Soft touch membrane keypad. Building Management System (B.M.S.) compatibility. Supply : 90 to 260 VAC @ 50 Hz or 12VDC / 24VDC @ 1A

Features Advanced Micro-controller based Absolute / Differential pressure measurement. Programmable units & resolution. 8 Digit, 0.4'' bright LED display. User selectable set limits for process value violation. Audio visual alarm for process value violation. User programmable system with password protection. PC connectivity via RS-485 multi-drop facility MODBUS RTU or Proprietary software protocol. PC interface with Sanyo SCADA compatible with any OS (USFDA21CFR Part11 Compliance). Building Management System(B.M.S.) compatibility Supply : 90 to 260 VAC @ 50 Hz or 12VDC / 24VDC @ 1A

Features Advanced Micro-controller based 7-Segment LED / 128x64 GLCd / 3.5'' color TFT. Inbuilt high accuracy sensor Soft touch membrane keypad. Individuals HI and LO audio visual alarm. Front panel alarm acknowledge PC connectivity via RS-485 multi-drop facility or wireless MODBUS RTU or Proprietary software protocol. PC interface with Sanyo SCADAcompatible with multiple OS (USFDA21CFR Part11 Compliance) Building Management System(B.M.S.) compatibility Supply : 90 to 260 VAC @ 50 Hzor 12VDC / 24VDC @ 1A

Features Advanced Micro-controller based Input: RTD-PT 100 Thermocouple J, K, R, S Linear 4 to 20mADC or 0 to 10VDC Resolution: RTD-PT 100 1°C or 0.1°C Thermocouple 1°C Analog Selectable Control Type: On-Off & PID Logic: Heating or Cooling PID Tuning: Auto or Manual. Relay Output: 2 nos. 4 to 20mA Retransmission or Control analog output. PID Tuning Auto or Manual. RS-485 PC Communication with MODBUS RTU. Power supply : 230VAC, 50Hz.

Advanced Micro-controller based Input : RTD-PT 100 Thermocouple J, K, R, S Linear 4 to 20mADC or 0 to 10VDC Resolution : RTD-PT 100 1°C or 0.1°C Thermocouple : 1°C Analog Selectable 4 to 20mA Retransmission analog output (Optional) Power supply : 230VAC, 50Hz

Advanced Micro-controller based Working on Signal Amplification & Powering. Input 4-20mA DC 1% Linearity 0.1% Accuracy 0.5'' 4-Digit LED Display Auto sensing Polarity Selectable decimal point Forward voltage drop 5.5V@20mA Adjustable Zero and Span.

Advanced Micro-controller based Single input Input RTD-PT 100 Thermocouple J, K, R, S Factory settable Automatic CJC for Thermocouple 0.5% full scale accuracy for Thermocouple 0.2% full scale accuracy for RTD PT-100 0.1% Linearity 4-20mA Retransmission output through loop Load capacity 600 ohms sensor break current 3.5mA Head mounted / DIN rail Mounted Supply : 12VDC to 36VDC

Features Advanced Micro-controller based Each door locked and release Indication in RED/GREEN LED. System expansion with cascading. Support more than 99 doors in cascading. Preventing simultaneous of doors/rooms. Ensures that when one door for a room is OPEN then all other doors in that particular rooms are closed. Programmable delay between each door openings to maintains required pressure. Emergency key is available for opening the doors. Emergency& fire alarm stations. Configurable door inter-locking logic with the DIP SWITCH. Facility available to read feed back from magnetic lock. Soft touch Membrane keypad with various fault alert buzzer. Supply : 90 to 260 VAC @ 50 Hz

Features Advanced Micro-controller based Each door locked and release Indication in RED/GREEN LED. System expansion with cascading. Support more than 99 doors in cascading. Preventing simultaneous of doors/rooms. Ensures that when one door for a room is OPEN then all other doors in that particular rooms are closed. Programmable delay between each door openings to maintains required pressure. Emergency key is available for opening the doors. Emergency& fire alarm stations. Configurable door inter-locking logic with the DIP SWITCH. Facility available to read feed back from magnetic lock. Soft touch Membrane keypad with various fault alert buzzer. Supply : 90 to 260 VAC @ 50 Hz
