Semi Automatic Capping Machine Dealers in Mumbai (16 products available)

Speed : upto 42 bottles

Weight : 250 to 300

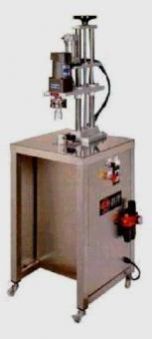

Head comes down automatically , seal and go up, can be operated by foot switch,Machine Speed Control .A.C. frequency drive,Capping head is covered by acrylic safety guard, Overloaded clutch is also provided,Screw capping machine is also provided in this model

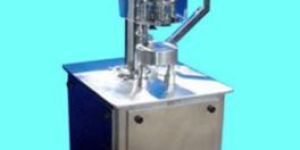

RIDDHI SEMI-AUTOMATIC ROPP or SCREW CAP SEALING MACHINE     Description:      The semi automatic cap sealing machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are provided to facilitate the servicing of machine. Machine is motorized incorporating rotating threading & sealing rollers, for threading & sealing of ROPP cap.    Operation:        Require manually feeding & unloading container, where the body and the neck of the container are positioned below the rotating head, and sealing head is performing perfect operation of threading & sealing.   Electrical:          Main Machine:- 1 HP Three face motor/ 415 Volts / 50 Hz.   Machine Dimension:             1000mm(L) x 720mm(W) x 1400 mm (H) approx   Net Weight:                           200 Kg.   Gross Weight:                       350 Kg.   Quantity:                                01 Nos.   Salient Features:                 The unit is made compact & versatile. S.S. Elegantly Matt Finished Body.         Built in front control panel. Quick setting. Motoriesed head movement. No change parts require for different container diameter. Low noise level, low power consumptions. Adjustable bottle height gauge for easy and quick setting. SS cladding or hard chrome plating of all exposed parts to ensure long life and resistance against corrosion.   Sealing pressure can be varied to suit different gauges and size of caps.

Weight : 125 Kg

Voltage : 220 V

Power : 300W

Brand Name : MEW

Machine Type : Foil Stamping Machine

Automation Grade : Semi-Automatic

Frequency : 50 Hz

Features : Simple construction and operation. , Low power consumption

For-bro offers semi automatic capping machines in two variants i.e. Screw type capping and ROPP capping. Screw capping machines are suitable for capping Plastic threaded caps on bottles and jar where as ROPP capping is best suitable for metal caps on bottle and jar. Both variants are are available in semi automatic and completely automatic model based on the requirement of the cleint.

We are manufacturer and exporters of Semi Automatic Induction Cap Sealing Machine.

Speed : 20 bottles per min.

Operation : through pedal.

Semi Automatic Capping Machines at various levels and it requires very low maintenance. As we have customized this machine as per client’s requirements, in compliance with various industrial standards it is user friendly – very easy to operate, compact in design and has long durability. Read below the technical specification and features of our most popular machine – Semi Automatic Capping Machine.

Power Supply : 415 Volts, 50 hz A.C. 3 Phase

Pressure : 6 kg Compressed Air

  The Machine is suitable for tightening of pre threaded plastic caps with the set torque. A self releasing clutch mechanism shall be provided to tighten the caps to pre set torque. The caps shall be placed manually on the container mouth. The container to be located under the capping head by the operator reference locators provided. The head comes down pneumatically on the actuation of the sensor. After tightening cap to the set torque the head will move up.

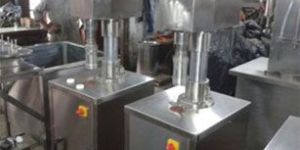

The semi automatic Screw cap sealing machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are provided to facilitate the servicing of machine.  Require manually feeding & unloading container, where the body and the neck of the container are positioned below the rotating head and sealing head is performing perfect operation of sealing. The unit is made compact & versatile. S.S. Elegantly Matt Finished Body.         Built in front control panel. Quick setting. Motorised head movement. No change parts require for different container diameter. Low noise level, low power consumptions. Adjustable bottle height gauge for easy and quick setting.     Technical Specification: Output / Hour : 1000 to 2400 Containers No. of sealing head : 1 No Electrical Power : 1 HP / 440 Volts / 3 Phase / 50 Hz (Four wire) For Main Machine.

Usage/Application : Industry

Phase : 3 Phase

Power Supply : 415 Volts, 50 hz A.C.

Pressure : 6 kg Compressed Air

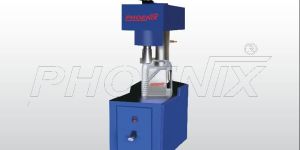

Brand : Phoenix

Speed : 20 bottles per min.

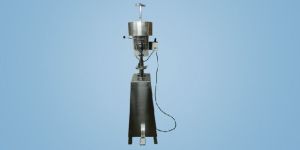

These machines are designed for sealing bottles and containers with closure of various shape and size. Our semi automatic capping can be configured for many type of closure such as aluminum roll on closure and plastic flat screw caps. These machines are very simple to operate, by adjusting stop and operation height the desired packaging and closure size can be achieved. These machines are high in performance and provide long service life.

Model : GMP.

Speed: : 20 bottles per min.

Operation : Through pedal. It can also be made pneumatic as an option. Motor rating: 0.5 hp, single phase.

These machines aredesigned for sealing bottles and containers with closure of variousshape and size. Our semi automatic capping can be configured for manytype of closure such as aluminum roll on closure and plastic flat screwcaps. These machines are very simple to operate, by adjusting stop andoperation height the desired packaging and closure size can beachieved. These machines are high in performance and provide longservice life.

Designed to seal a wide range of bottles / containers made of glass, tin, HDPE, PET and aluminium with standard RO / ROPP caps. Can accommodate standard caps ranging from 22mm upto 70mm. Can accommodate bottles / containers having diameter ranging from 25mm upto 100mm and height from 50mm upto 300mm. Provided with a rotary headset. Caps to be place manually. Can be also modified to seal rectangular tin containers from 0.25 lts. to 5 lts. with the help of can rest.

Gross Weight : 350 Kgs. Approx.

DESCRIPTION : The semi automatic cap sealing machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are provided to facilitate the servicing of machine. Machine is motorized incorporating rotating threading and sealing rollers, for threading & sealing of ROPP cap. OPERATION : Require manually feeding & unloading container, where the body and the neck of the container are positioned below the rotating head, and sealing head is performing perfect operation of threading & sealing.

Weight : 23 Kg Net /Packed : 40 kg

Input Supply : 230 V AC 50 Hz

Output power : 500 watts maximum

Cap size : 20 mm-100 mm or 60 mm-130 mm

Dimension : 400 mm x 340 mm x 690 mm (LXBXH)

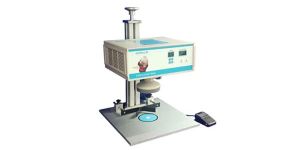

Eltech S-500,Semi-Automatic Induction Cap Sealer is specifically designed for packagers who require a semi-automatic sealing process with low production volumes. The table top model is compact and ideal for production environments where a bottle conveyor is not practically necessary. Built-in guides ensure operators properly line-up containers for sealing. A digital timer lets the operator know when the sealing process is completed. This model is suitable for batch type production and can be used continuously for 24hrs x 365 days. Ideal for laboratory use, stability testing, R & D facilities, short runs test marketing. Advanced Mosfet / IGBT technology Delivers high efficiency sealing power and long term reliability.  Sealing time in 1/10 second increments.  Compact in size.  Handle provides portability with skid-free non-marring feet for use anywhere.  Automatic photoelectric switch under sealing head eliminates the need for finger switches to start sealing cycle.  "V" stop centering guide for assurance of bottle being under sealing head.  No tools are required for adjustment or set-up.  It requires no water and is 100 % air cooled.  It is silent and has no discharge.  Digital UP/Down timer: Provides precise timing from 0.1 to 9.9 seconds.  Can seal PET / HDPE / PP / LDPE / PVC / GLASS containers.  User friendly  Continuous use, rugged built ensures long serving life  Fast and easy set up, no moving parts  Light weight design ensure easy mobility  Safe, reliable and compact.

Our Automatic Screw Capping Machine is fabricated using 304 and 316 SS ensuring optimum quality and longer functional life. Our machine comes with automatic torque control and PLC control. The Screw Capping Machine that we offer can be attached with filling and labeling machine in order to ensure flawless performance.
