Soap Making Machinery Dealers in Mumbai

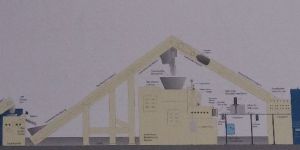

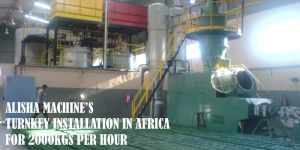

We manufacture soap making machine, toilet soap & bar soap making palnt in India. We offer the complete Plant on turnkey basis along with the Know-How to make the soap either from Soap Noodles, Palm Oil, Fatty Acid etc.Hence, there is no delay in commissioning of plants & machinery manufactured by us. We guarantee 100% hassle free production, from day one of commissioning.

Plants for saponification of Fats, Oil or Neutralisation of Fatty Acid into neat soap using following processes.Batch Processes1. Fully Boiled SaponificationThis is a batch process which involves complete saponification of oil with caustic and then separation of glycerine. First the complete Saponification of oils takes place, by addition of caustic lye, then the mass is left to settle in the pan. Two layers are thus formed. The upper layer of soap at about 60% TFM content and a lower layer of water containing glycerine and the water soluble impurities originally found in the oils.The glycerine water which has been separated from the soap is further washed diluting it again with water.The Neat soap thus produced is then taken for further processing. 2. Semi Boiled SaponificationThis is a batch process which involves the saponification. Here all the raw materials react to form the final product without formation of any by-product.The neat soap produced includes all the glycerine contained in the oils as there is no glycerine separation or washing of the soap.This process is called "semi-boiled". The Neat soap thus produced is then taken for further processing. 3. Fatty Acid NeutralisationThis is a batch process which involves the neutralisation of fatty acid and caustic lye is mixed in the Crutcher after the reaction, the neat soap if formed.The Neat soap thus produced is then taken for further processing. Continuous Processes4. Continuous Saponification for Fats/OilsThe Saponification of neutral oils is slow when it is done in a soap pan and boiling is done under atmospheric pressure.However, this process can be speeded up by application of higher temperature and higher pressure.This continuous Saponification plant uses higher temperature and pressure, giving continuous separation of glycerine lye, and of the neat soap.The Neat soap thus produced is then taken for further processing. 5. Continuous Neutralisation for Fatty AcidThe neutralisation of fatty acids is a very simple soap-making process.In this process, fatty acids and caustic lye is added continuously. The mass is then passed through the homogenising mill, where the reaction takes place quickly and the final product is very homogeneous.     Plants for converting neat soap to Soap Noodles or Bar using following processesBatch Processes6. Laundry Soap Manual DryingThe neat soap from the saponification plant or the Neutralisation plant has to be cooled before it can be converted into Bars or tablets. The neat soap is then poured into Mould where it is left to dry for one to two days and then processed further to make tablet and bars. 7. Laundry Soap by Drum CoolingThe neat soap from the saponification plant or the Neutralisation plant has to be cooled before it can be converted into bars or tablets. The neat soap is then poured into a cooling double drum to dry the soap into flakes for further processing. Cooling Drum Powder For Soap Plant 8. Laundry Soap Vacuum DryingThe neat soap from the saponification plant or the Neutralisation plant has to be cooled before it can be converted into bars or tablets. This operation is achieved using the vacuum spraying plant using the following machinery: Filter Vacuum System Heat Exchanger Soap Recuperator Vacuum Spraying Unit Noodler/Vacuum Plodder

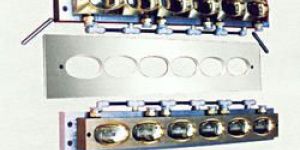

We are reckoned as one of the leading manufacturers of Multi cavity Dies Soap Stamping Machinery. They are made in compliance with the prevailing industrial norms and guidelines at our advanced infrastructure facility. They are highly acclaimed by clients for their efficient functioning. They can be used for any type of soap stamping machine. The engraving and milling of die cavities is done on CNC machines. PB 90 grade material is used for die machining. The chilling groove is also machined on CNC milling. They are well-known for their robust structure which has a flawless finish. Their sturdiness makes them resistant to damage. Clients can avail these products from us at economical rates.   Features: User-friendly Fine finish Rust-resistant Durable

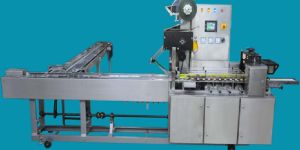

We are offering soap wrapping machine. Cross conveyor flow wrap machine is highly appreciate in biscuit and bakery industries for packaging of cream sandwiched biscuits (in on-edge position) and chocolate cake bars, soaps etc. Products are feed manually on cross conveyor which is then transferred to main feeding conveyor. the conveyor can be customized to belt or chain type as per products. The plc controlled with touch screen panel make it user friendly and is easy to set parameters. The speed can be varied up to 80 packets per minute according to stack length.

Crutcher consist of a container, open top, mounted with drive system. Mixing of mass carried out by a vertical worm revolving in a cylindrical barrel made of Mild Steel with an external jacket for hot water circulation or steam. A control valve on the bottom of crutcher adjust th discharge of mixed mass

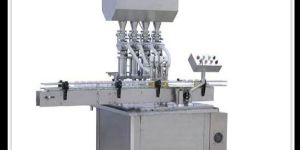

Description: AVF automatic viscosity filling machine is designed by referring to the same kind of foreign filling machines with extra functions increased. The product is simple and convenient in operation, error correction, machine cleaning and maintenance. Widely used for filling various kinds of viscosity liquid products in the industries of daily chemicals, foodstuffs, pharmaceutics and oil etc. Characteristic: Adopt injection pump to fill high precision, large range of adjusting dosage. It allows to adjustment of filling volume for all filling pumps at the same time, also for minor adjustment of each filling pump to achieve fill high volume accuracy. This pump system don’t absorb the material, good chemical stability, It has particular advantage when filling erosive material. All contact parts is made of ss 316L and silicone tube, be convenient to clean by CIP. Filling system has the function of shrinking, no drop leak. Apply to fill various viscosity liquid. All of electric elements choose famous brand such as Italy AT, Japan Mitsubishi and Korea AUTONICS. Frequency conversion control speed, auto count. The whole machine is designed according to requirements of GMP.

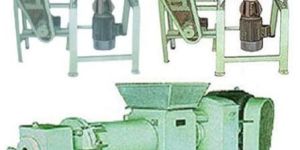

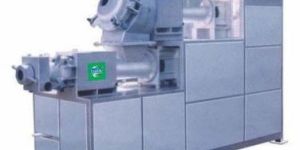

We have designed Soap Making Plant while keeping process involved in soap making procedure. Soap Making Plant is designed using high-end machines to facilitate precise performance. Further, we provide our clients with installation services for Soap Making Plant. Highlights : Powerful performance Robust construction Easy to operate Convenience in installation

In chemistry, soap is a salt of a fatty acid. Consumers mainly use soaps as surfactants for washing, bathing, and cleaning, but they are also used in textile spinning and are important components of lubricants.Soaps for cleansing are obtained by treating vegetable or animal oils and fats with a strongly alkaline solution. Fats and oils are composed of triglycerides; three molecules of fatty acids attach to a single molecule of glycerol. The alkaline solution, which is often called lye (although the term "lye soap" refers almost exclusively to soaps made with sodium hydroxide), brings about a chemical reaction known as saponification.In this reaction, the triglyceride fats first hydrolyze into free fatty acids, and then these combine with the alkali to form crude soap: an amalgam of various soap salts, excess fat or alkali, water, and liberated glycerol (glycerin). The glycerin, a useful by-product, can remain in the soap product as a softening agent, or be isolated for other uses.Soaps are key components of most lubricating greases, which are usually emulsions of calcium soap or lithium soap and mineral oil. These calcium- and lithium-based greases are widely used. Many other metallic soaps are also useful, including those of aluminium, sodium, and mixtures of them. Such soaps are also used as thickeners to increase the viscosity of oils. In ancient times, lubricating greases were made[by whom?] by the addition of lime to olive oil.

We are prominent High Speed Toilet Soap Wrapping Machine Supplier in India. High Speed Toilet Soap Wrapping Machine wraps toilet soaps with twin layers of card stiffener and heat sealable outer wrapper. Finally packed soap has the outer wrapper with heat seal on belly and envelops type end folds (also heat sealed). Soap is fed on flat belt conveyor that brings it to vacuum pick and place unit after taking a right angle turn in the High Speed Toilet Soap Wrapping Machine. Soap is placed on twin belts with lug pushers assisting in pushing it through vertically fed stiffener and wrapper. Care is taken to avoid any rubbing of soap with any stationery surface to prevent any mark. Partially wrapped soap is rotated by 180 degree and then moved by a gripped conveyor of the High Speed Toilet Soap Wrapping Machine to complete folding and sealing. Wrapped soap is erected and place in vertical position (optional) on a flat belt conveyor.Specifications : Power : 2 KW Dimension (L*W*H) : 2 sq.mtr floor space Voltage : 220 V Weight : 500 Kg

It is designed to convert Molten Hot Liquid Soap to Solid & Cold form. Chill Drum is a big rotating drum, in which 8 to13 degree Celsius of chilled water circulates continuously. Molten Hot Liquid Soap comes on the top surface in centre of the Chill Drum from Soap Holding Tank (Feed Tank) through gravity, in the form of Lumps, a small drum whichis rotating just in same synchronize speed with bigger drum makes a thin layer of 1 to 2 mm of molten hot liquid soap. When this thin layer sticking with bigger drum during complete round, on the other surface end a hard carboned steel blade is fitted out, which scraps that thin layer of Soap. Now, nature of the Soap after scraping is Cold & Solid. At Last, Main function of the Soap Chill Drum is to convert Molten Hot Liquid Soap to Solid & Hard form continuously.
