Sparkler Filter Dealers in Mumbai (26 products available)

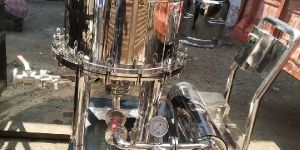

We are offering Sparkler Filter that is a totally enclosed air sealed leak proof filtration plant assembly. Consists of a filter cartridge assembly, the Sparkler Filter is constructed using Mild steel or stainless steel 304,316,316L filter plates, support screen, having interlocking cups, which are finally fitted in the Main shell tank. The entire unit is mounted on SS or MS trolley that is fitted with fiber or Cast Iron castor wheel for easy mobility. Operation The unfiltered liquid is fed into the filter under positive pressure, where liquid travels in downwards direction and finds its way through opening on sides of the Filter Plates. As the liquid pressure increases, the Filter media holds the foreign particles and allows only clear filtrate to pass through the central channel formed by interlocking pressure cups to the outlet. Filtration is continued until the cake holding capacity of the unit is reached or until the filtrate rate becomes too slow owing to cake resistance. Salient Features Manufactured from Mild steel, Stainless steel 304/316/316L quality, argon is welded and mirror polished.Horizontal Plate Filter Press is enclosed construction, preventing evaporation, oxidation, leakage and fumes escaping from product.Filter plates are available in two sizes. Deep plate for large percentage of cake holding capacity and Shallow plate for small percentage of cake holding capacity.The horizontal filter plate and even thickness of cake, prevents the cake dropping as well as cracking, thus assuring better filtrate quality.The Filtration area and cake holding capacity can be increased or decreased according to requirement.It can be provided with different types of pumps depending in the viscosity of liquid and output i.e. �Gear Pump/ Centrifugal Pump/ Lobe Pump/ Roto Pump�.M.S. / S.S. Jacket is provided for hot filtration & Cooling.Provided with bypass system & safety valve.Sample collecting device is provided.Complete Mild Steel or Stainless Steel stand with fiber or Cast Iron castor wheels and MS or SS cover to the motor. Arrangement provided to remove last drop of liquid from Scavenger plate. It is used for crystal clear filtration of pharmaceuticals, chemicals, resins, beverages, distillery, oil, ink, and other industry.

Sparkler Type Plate Filters or any other filter media is placed over each plate. The slurry mother liquor is pumped over the plates through the specially designed manifold. Filtration process is continued till the desired cut off pressure limit is achieved. Then, the cake is manually removed from each of the filter plate cavity.

• Material: Stainless Steel
• Color: Silver
• Finishing: Polished
• Corrosion Resistance: Yes
• Operating Type: Semi Automatic
• Usage: Industrial
• Specialities: High Tensile
• Minimum Order Quantity: As per Client Requirement

We among the most trusted firms, indulge in manufacturing, supplying and exporting Sparkler Filter Press. Used in several industries like automobile, automotive and textile, these products are made using quality material and latest technology. Our Sparkler Filter Press is also thoroughly checked by expert quality controllers on various parameters to ensure flawlessness. We further conduct regular researches for improvising these products.

Principle of Operation   Liquid is pumped through the central channel of the cartridge from the bottom of the body. Suspended particles are retained on the filter media resting on the filter plate. Clean filtrate emerges out from the peripheral holes of the plate, into the tank and comes out from the bottom outlet. Filter tank wall does not come in contact with the un-filtered liquid, hence remains clean.     Feature of Reverse Flow Model     Zero Hold Up of filtrate with out scavenging operation. Tank does not come in contact with unfiltered liquid, hence remains clean. Fast & easy removal of filter plate cartridge due to top dome design. Hence easy removal of cake.Uniform filter cake & aid distribution. Higher working pressure possible.     Horizontal Plate Sparkler Filters     The horizontal sparkler type filter is the most versatile filtration system for solid – liquid separation. It can also be used apart from filtration, with the help of filter aids for giving a sparkling effect to the liquids filtered. The filters are most suited for the filtration of products for the pharmaceutical, chemical, distillery, beverage, ink, oil and other allied industries. It is available in different output capacities with a variety of pumps to suit individual requirements. Horizontal Plate Sparkler Filters:- horizontal sparkler type filter is the most versatile filtration system for solid – liquid separation and available in different output capacities.   Horizontal Plate Sparkler Filters   Construction The filters are made out of Stainless steel in S.S. 304, 316 & 316 L qualities. The cartridge assembly consists of a number of disc type filter plates with perforated support screen, filter media and interlocking cups placed one on top of the other and supported at the bottom by a cartridge plate. The entire assembly is held together with the help of side tie rods which are of ‘T’ type construction for longer life. The filter together with the pump and interconnecting piping is mounted on a sturdy base cladded with S.S. sheets and provided with castors for movability. The filter can also be supplied without pump, where external positive pressure is available.     Operation         The liquid to be filtered is passed into the vessel by means of the pump or other external means. The liquid then passes through the top of the filter plates from the holes provided at the side of the plate and onto the filter media. The liquid flows simultaneously and individually through all the member plates. Hence the output of the filter depends on the diameter and the number of plates. The filter media then retains the impurities in the liquid and the filtered liquid passes through the central channel to the outlet at the bottom. The filters are optionally available with steam jacket for filtration of difficult liquids that solidifies at lower temperatures. These types of filters are generally used for obtaining clear filtrate, but it can also be used to obtain the cake that is retained on the filter media, between the plates.   Salient Features     The complete filter plate is manufactured by cold process. The sealing of the filter plate is done by the spinning process for better sealing. The cartridge assembly is provided with ‘T’ type side bolts for longer life. The filters are provided with gear/centrifugal/lobe pumps fitted with mechanical seals as per requirement.  Optionally available with steam jacket for heating of liquids at the time of filtration.       Scavenging Operation   The unfiltered liquid remaining inside the shell at the end of filtration can be filtered by scavenging operation, opening the single plate valve and applying pressure from the vent using compressed air or nitrogen / inert gas, so that even the last drop of unfiltered liquid passes through the bottom plate. It is available in 14” & 18” Dia models as a standard and can be provided in 33” Dia model on request.

Complete filtration of the batch without any hold up due to reverse flow of liquid The cake / solid & filtrate remain totally enclosed allowing filtration of toxic,hazardous & explosive liquids No contamination of internal surface of shell Zero hold up models for high value liquids Give crystal clear filtration M.S / S.S. Jacket can be provided for hot filtration. The top dome structure ensures fast & easy removal of cartridge assembly & cleaning of cake. Centrifugal / Gear / Lobe pumps can be offered, which can also be used for liquid transfer. cGMP Construction With High Pharmaceutical Finish With Documentation

New Alliance Dye Chem Pvt. Ltd. has a state of art manufacturing facilities, which is capable of handling complex reactions. Our manufacturing facility situated at Tarapur MIDC, which is about 120 Kilometers from Mumbai Airport & 110 Kilometers from JNPT Seaport. The facilities are built in on a total area of 2,750 sq. meters and consist of two production blocks, an engineering workshop and two warehouses. Our manufacturing processes are under constant supervision and the involvement of a committed team which guarantee on-time delivery of the products to our customers, with the help of latest production techniques and calibrated planning. Our state-of-the-art manufacturing plants add to our ability to deliver quality and scale, having successfully integrated our capabilities and capacities to deliver a wide product portfolio that caters to the varied needs of diverse markets.

Sparkler Filter Press Manufacturers Mumbai is among the most trusted firms who are indulged in the manufacturing of Sparkler Filter Press. Sparkler Filter Press is used in several industries like automobile, automotive and textile. Sparkler Filter Press are made using quality material and advanced technology. Our Sparkler Filter Press is also thoroughly checked by expert quality controllers on various frameworks to ensure flawlessness. Sparkler Filter Press Manufacturers Mumbai further conducts regular researches for improvising these products.

Our team members are well aware about the payment procedures and they ensure that the clients are completely satisfied with the transactions made. We accept payment through all offline and online mediums. Our quality management policies and very stringent. Therefore, our entire range of products is among the best in the industry.   Details : Type - Horizontal Plate / Zero Hold Up ( Jacketed /Without Jacketed ) Sparkler Filter Housing Specially Design to Suit Variable diameter of Filter pade of 8,14 ,18 & 24 in Chemical Process. The Housing was fabricated to match with different diameter and height with trally mounted. Material Of Construction - 304 ,316 ,316L Quality of stainless steel Sealing Material - Silicon Gasket /O Ring as per requirements Surface Finish - Mirror Finish

The Vitro range of stainless steel Horizontal Plate Type Filter Presses are made to special modular design that guarantees precisely the right filtration requirements for each application. Available in a wide range of output capacities, with different number and height of filter plates, as well as a choice of flow pumps, the Vitro Filter Presses meet customer's exact need.

Features: Rugged construction High functionality Easy to operate

• Cake holding Cap. (Ltrs): 0.216
• Size of Pump: 700

Sparkler filter is a sparkler type and consist of S.S. Shell & Top cover using bolts to give pressure tight enclosure. The filter cartridge assembly inside the shell consists of several horizontally arranged disc type filter plates with perforated supporting screens, filter media & interlocking cups. The entire assembly complete with pump & piping connection is mounted on a suitable S.S. Trolley.

We are engaged in offering a precision engineered range of zero hold up filter press machine & sparkler filter press manufacturer using quality raw material such as S.S. 304S.S. 316. Our range is available in various models as per the clients’ requirements. Gives crystal clear filtration by filtering particles up to 1 micron size. Inbuilt back wash facility eliminates time loss, gives more output with continuous operation. Scavenger arrangement to remove all the liquid filter press machine.

Sailent Features Batch Type Skid Mounted Zero Hold Up Fast and Easy Removal Easy Removal of Cake C-Gmp Model Crystal Clear Filtrate Filtration Upto 1 Micron Possible Hot Filtration Possible Application Bulk Drug Formulation Fine Chemical Construction Horizontal filter press, Filter cartridge assembly made of no. of disc Type Filter plates perforated filter screens, filter media, Inter locking cups with pump & piping, mounted on trolley Working Principle Liquid to be filtered is pumped into the filter shell and through opening on side of plates. Filters media(paper/ fabric) retains impurities allows crystal clear filtrate to flow through central channel formed by interlocking cups & to outlet of filter.

Liquid is pumped through the central channel of the cartridge from the bottom of the body. Suspended particles are retained on the filter media resting on the filter plate. Clean filtrate emerges out from the peripheral holes of the plate, into the tank and comes out from the bottom outlet. Filter tank wall does not come in contact with the un-filtered liquid, hence remains clean. Horizontal Plate Sparkler Filters:- horizontal sparkler type filter is the most versatile filtration system for solid – liquid separation and available in different output capacities.

Liquid is pumped through the central channel of the cartridge from the bottom of the body. Suspended particles are retained on the filter media resting on the filter plate. Clean filtrate emerges out from the peripheral holes of the plate, into the tank and comes out from the bottom outlet. Filter tank wall does not come in contact with the un-filtered liquid, hence remains clean. Feature of Reverse Flow Model     Zero Hold Up of filtrate with out scavenging operation.     Tank does not come in contact with unfiltered liquid, hence remains clean.     Fast & easy removal of filter plate cartridge due to top dome design. Hence easy removal of cake.     Uniform filter cake & aid distribution.     Higher working pressure possible.

Filter cloths are adapted to the different needs of the customers, like plate dimension, cake weight, particle retention or productivity. As a result, we can offer a wide range of standard and specific designs, making up options for fixations.

Sparkler filter, The effective removal of this added carbon powder calls for use of conventional bag filters or sparkler filters. The operation & maintenance of these types of filters is a time consuming & tedious affair which affects the productivity. Our Carbon removal filters are more streamlined & user friendly designs which not only replace outdated methods of filtration but also offer a host of advantages, some of which are listed below.Features Cleanable SS316L filter media offered. Zero recurring cost as the filter media can be cleaned and reused for several years Minimum to Zero initial recirculation needed, as clear filtrate is obtained by single pass filtration. Hence time and energy are saved Our system can be used repeatedly without opening, by online back flushing, thereby reducing downtime The carbon cake can be discharged by blowback and cleanly recovered in an attached vessel. Residual liquid holdup can be removed without opening the filter assembly with the help of a separate arrangement provided inside the assembly Our filters are totally closed systems and can be cleaned in-situ. This helps to attain almost zero spillages, which make our filter an absolutely clean GMP model, fit for use in clean rooms

Sparkler filter with Dome lifting arrangement, Style 2 filter Bag

Sparkler Filter, Fashion Bag

Sparkler Filter, Rotary Dryers, vacuum dryers

Sparkler Filter

Sparkler Filter, blenders, ROTOCONE VACUUM DRYER, Isolators

sparkler filters, Stainless Steel Intermediate Bulk Container

Sparkler Filter for Chemical Industry, miscella filter, Filter Leaves
