Technic Electronic Corporation Goregaon, Mumbai, Maharashtra

High Quality Variable Power Supply based on customer based specifications can be developed and manufactured. Few custom made Power Supplies can be found below for reference. Note: All sizes mentioned here are in mm unless specified. Specifications are subject to change without prior notice.

Emitter and Receiver are housed separately in two different units facing each other with their optical areas. It detects an object whenever the IR beam is interrupted. Amplifier circuit is incorporated in the receiver unit hence separate amplifier unit is not required and relay can be driven directly.

Technic Electronic Corporation is one of the leaders in designing, development and manufacturing of custom made panels. Our panels are of international standards which are made by using high quality raw materials and advanced technologies. Our custom built PLC panels and Drive panels are developed according to the clients specifications and exact needs.

Technic SGLP is a premium product which can save your expensive electronic systems from being damaged due to power fluctuations. Electronic Systems connected through SGLP ensures longer life. Need for SGLP: In current scenario, electric power has covered a big part of people's day to day life. All advanced technologies are useless incase of power fluctuation as it can destroy all electronic devices. Electronic equipments are extremely susceptible to transient voltages and surge currents due to its relatively fragile semiconductor construction. Every load being switched on or off creates some sort of electrical noise and voltage fluctuation. These transients and surges are then carried through the supply lines to all of the other loads in the vicinity. As the transients and surges increase in level, their destructive power is carried further in distance thereby reaching more sensitive electronic equipment. Every electronic device connected to the AC supply lines should have protection against these transient voltages and surge currents to ensure a longer service life. Note: Technic SGLP is not a Voltage Stalibilier. Key Features for Technic SGLP: It shields valuable electrical devices from surges in electrical power. Has ability to sense voltage leakage between neutral and ground. It protects systems from getting damaged in ground voltage lift scenario. Compact design and tested to meet tough industrial standards. Helps reduce cost due to single component placement.

Input Voltage : 415V, 3phase, 5 wire system

Dimensions : 325mm X 380mm X 175mm

More than 90% of burn out of motors are caused by unbalanced voltage supply or phase failure. These faults are mostly undetected by conventional overload relays and due to which normal overload protection doesn't trip on time. Thus there is a need for a Single Phase Preventer which senses true negative phase sequence and trips the motors. Technic Single Phase Preventer (SPP) is specifically designed to protect motors from working in unfavorable conditions such as single phasing and unbalanced voltage. When wrong phase sequence is detected by Technic SPP, the motor is automatically switched off and thus prevents rotation of the motor in reverse direction. Technic SPP can be used in any HP rated motor. Features: True negative phase sequence voltage detection LED for relay operation indication. Definite time delay to avoid tripping miss. Self powered electronic circuitry. Fully Static. Wide range of operating temperatures. Low power consumption. DIN rail or panel mounting. Professionally designed and tested. Small size and aesthetic appearance. A quality product of Technic.

Technic Servo Stabilizers is an effective solution for all the voltage fluctuation problems. Our servo stabilizers are one of the best in shielding costly appliances and sensitive equipments. Our product is precisely engineered to perfection, it features a solid state circuit to control the servo motor. The motor is mechanically attached to the arm of a continuously variable auto transformer which feeds to the primary of a series control buck boost transformer. The stabilizer output voltage is compared with the reference voltage & resultant error signal controls the Servo Motor providing true proportional control systems rather than on/off circuit. Our sophisticated technology of Servo controlled voltage stabilizer is in use for many years and has proved to be very reliable due to its rigid quality control and testing standards. Key Features for Technic Voltage Stabilizers: Fast rate of correction greater than 35V/Sec. More than 95% efficiency Low cutoff and High cutoff provided. Short Circuit/overload protection. 2-3 minutes of time delay-provided.

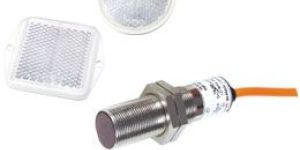

    Emitter and Receiver are housed together in a unit and it uses a reflector. An object is detected when it interrupts the light beam between the sensor and reflector. These sensors provide longer sensing distances, as the rays emitted are almost totally reflected towards the receiver.

In a system, a ground lift usually refers to a current, generally unwanted, in a conductor connecting two points that are supposed to be at the same potential, often ground, but are actually at different potentials. Ground lifts created by improperly designed or improperly installed equipment are a major cause of noise and interference in many systems. They can also create an electric shock hazard, since ostensibly "grounded" parts of the equipment, which are often accessible to users, are not at ground potential. A ground lift in a system which connects circuits designed to be at the same potential but which are actually at different potentials can be hazardous, or cause problems with the electrical or electronic systems, because the electrical potential and soil resistance at different points on the surface of the Earth can vary. In a floating ground system, that is, one not connected to Earth, the voltages will probably be unstable, and if some of the conductors that constitute the return circuit to the source have a relatively high resistance, or have high currents through them that produce a significant voltage (I.R) drop, they can be hazardous.   Solutions for Ground Lift: Technic Ground Lift Preventer (Technic GLP) is professionally designed and manufactured to prevent Ground Lift issues. Technic GLP senses leakage voltage between neutral and ground and amplify the error signal through a comparator to provide a switching facility to prevent damages to valuable systems. Technic Ground Lift Preventer (Technic GLP) is specifically designed to protect systems from being damaged in Ground Lift conditions. Technic GLP is a quality product of Technic. Applications: Military Aerospace and Marine Systems Medical Instruments Elevator Panels CNC Machines Computers & Peripherals

Power Consumption : < 2watts

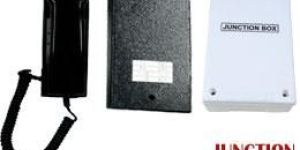

Elephones which means Elevator Phones are among the premium products of Technic Electronics Corporation. Below models are widely used by many leading Elevator companies in India. Technic Elephones are professionally designed, manufactured and tested to meet tough industrial standards for use in harsh environments. Technic Elephones provide direct call facility to make a call with a single button press which is very helpful in case of an emergency. Applications: Elevators (Lifts) Fire x Security x Entrance x Rescue Operation. Door Phone for Home. Parking lots. ATM Machines. Campus. Stadiums. Metro / Railway Stations. Airports. Roadside Emergency Stations.

Microcontroller and high speed quartz crystal is used to measure the rpm with high accuracy. It responds quickly to sudden change of RPM.

Resolution : 0.1RPM for 4.0 to 999.9 RPM ,1 RPM above 1000 RPM

Accuracy : 0.02% + Resolution

Power Consumption : 5 Watts

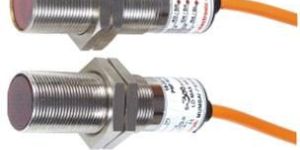

  Diffuse Reflective Sensors: Emitter and Receiver are housed together in a unit and use the light reflected directly off the object for detection. The emitter continuously emits invisible modulate infrared beam which is detected by the receiver when the beam is obstructed by any opaque object.

Memory : Count retains in Memory without power, without battery.

Display : 6 Digit, 0.56. LED display

Control Unit is used to supply regulated DC voltage and it consist of a relay output which can be connected to 110V, 230V AC. Delayed Output is also available in control unit. A amplifier is also provided in Control Unit. Sensing Distance adjustment potentiometer is provided in the Control unit.

Technic Capacitive Proximity Switches are non contact switching devices designed to sense metallic and non metallic objects in both solid and liquid form. These switches are capable of sensing materials like wood, marble, glass, plastic, water & so on. Capacitive proximity Switches use the variation of capacitance between the sensor and the object being detected. It is useful in applications, such as detection of full containers and non-detection of empty containers.
