Geotextiles Testing
Get Price Quote

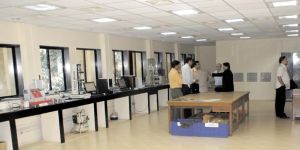

The company is a known Geotextiles Testing services provider based in Ghatkopar (Mumbai). Based on its earlier experience, expertise and facility in this field, the Ministry of Textiles, Government of India, recognized BTRA as a Centre of Excellence for Geotech in 2008. We set up a new laboratory for testing Geotech with all latest testing facilities in March 2009. We provide testing for geosynthetic products like Geomembranes, Gabions, Geotextiles, Geosynthetic Clay Liner, Geocomposites, Geogrids, Prefabricated Vertical Drain, etc. The tests conducted by us conform to national and international standard test methods. Our geotech laboratory is accredited by NABL as per ISO/IEC 17025:2005 standards. Also, it is accredited by Geosynthetics Institute (GSI), Folsom, Pensylvania, USA under the GAI – LAP Accreditation Programme for the 24 tests of geosynthetics products. Ours is the first institute in India and probably only the third institute outside USA to get this coveted accreditation. This means that clients can rely on us with utmost confidence as we provide accuracy in results that is as good as any other GAI-LAP accredited laboratories. We also have an information resource centre on Geotech that has various related books and international test methods such as ASTM, INDA, EDANA, ISO, etc. related to this field. Furthermore, the company is known for providing training to users / entrepreneurs in Geotech as well as in technical textiles. In addition, we also provide reliable consultancy to entrepreneurs who want to start a new manufacturing plant for geosynthetics by preparing project proposal product wise.Woven Geo-fabrics
Mass per square metre [ASTM D: 5261 / ASTM D: 3776 / ISO: 9864 / IS: 14716]
Tensile Strength & Elongation (Warp and Weft) [ASTM D: 5035 / IS: 1969]
UV Resistance Exposure to Light Moisture & Heat in Xenon Arc Type Apparatus [ASTM D: 4355 / BS EN: 12224 / GRI: 155]
Tensile Strength (Before & After Exposure UV Xenon Arc) [ASTM D: 5035]
Trapezoid Tear (Warp & Weft) [ASTM D: 4533]
Index Puncture Resistance [ASTM D: 4833]
Apparent Opening Size [ASTM D: 4751]
Water Permeability [ASTM D: 4491 / BS: 6906–3 / IS: 14324 / ISO: 11058]
Grab Tensile Strength & Elongation [ASTM D: 4632]
Mullen Bursting [ASTM D: 3786]
Thickness [ASTM D: 5199]
Cone Drop Test [EN: 918 / ISO: 13433] (Dynamic Puncture Test)
Seam Strength [ASTM D: 4884 / ISO: 10321]
Pore Size by Porometer [ASTM D: 6767]
Abrasion Resistance [ASTM D: 4886]
Tensile Strength (Before & After by ASTM D: 5035)]
CBR Puncture Strength [ASTM D: 6241] [ISO:12236]
Nonwoven Geo–fabrics
Mass per square metre [ASTM D: 5261 / ISO: 9864]
Wide Width Tensile Strength Machine Direction & Cross Direction
[ASTM D: 4595 / EN ISO: 10319]
Grab Breaking Load Machine Direction & Cross Direction [ASTM D: 4632]
Thickness [ASTM D: 5199]
Bursting Strength [ASTM D: 3786]
Index Puncture Resistance [ASTM D: 4833]
Trapezoid Tear Strength [ASTM D: 4533]
Cone Drop Test (Dynamic Puncture Test) [EN: 918 / ISO: 13433]
Static Puncture Strength (CBR Puncture Strength) [ASTM D: 6241 / BS EN ISO: 12236]
Apparent Opening Size [ASTM D: 4751]
Pore Size by Porometer [ASTM D: 6767]
Water Permeability of Filter [ASTM D: 4491 / BS: 6906 / ISO: 11058]
Seam Strength [ASTM D: 4884 / ISO: 10321]
Abrasion Resistance [ASTM D: 4886]
Tensile Strength (Before & After by ASTM D: 5035)]
PVD Band Drain
Width
Weight per Linear Metre
Tensile Strength & Elongation (Wide Width) [ASTM D: 4595]
Water Permeability of Filter [ASTM D: 4491 / BS: 6906]
Thickness of Composite [ASTM D: 5199]
Tensile Strength of Core [ASTM D: 4595]
Grab Strength & Elongation at Break for PVD Composite [ASTM D: 4632]
Trapezoid Tear for Filter Component only [ASTM D: 4533]
Geo-membrane Liner
Thickness [ASTM D: 5199]
Density [ASTM D: 792]
Tensile Strength [ASTM D: 6693]
Tear Strength [ASTM D: 1004]
Puncture Resistance [ASTM D: 4833]
Mass per square metre [ASTM D: 5261 / ISO: 9864]
Carbon Black Content [ASTM D: 1603]
Melt Flow Index [ASTM D: 1268]
ESCR [ASTM D: 1693 / DIN EN: 14576]
2% Secant Modulus of Polyethylene Geomembrane [ASTM D: 5323]
Geo-grid
Tensile Strength & Elongation
(Single Rib) [ASTM D: 6637 A]
(Multi Rib) [ASTM D: 6637 B]
Carbon Black Content [ASTM D: 1603]
Melt Flow Index [ASTM D: 1268]
Mass per square metre [ASTM D: 5261 / ISO: 9864]
Aperture Size & Number of ribs per metre
Rope Gabion
Size of the Gabion
Thickness of Rope
Weight per Linear Metre
Tensile Strength of Rope [IS: 7071]
Identification of material of Rope [TGA / DSC]
UV Resistance Exposure to Light Moisture & Heat in Xenon Arc Type Apparatus [ASTM D: 4355 / BS EN: 12224 / GRI: 155]
Tensile Strength (Before & After Exposure UV Xenon Arc)
[IS:7071]
Tensile Strength of Rope after Thermal Treatment (Heating)
Metal Gabion [ASTM D: 975]
Size of the Gabion
Thickness of Wire
Tensile Strength of Wire
Filter FabricsFilter fabrics [Woven Type]
Mass per square metre [ASTM D: 5261 / ASTM D: 3776 / ISO: 9864 / IS: 14716]
Thickness [ASTM D: 5199]
Thread Density [ASTM D: 3775 / IS: 1963]
Yarn Number [IS:3442 / ASTM D:3883]
Tear Resistance (Trapezoid Strength) [ASTM D: 4533 / IS: 14293]
Grab Strength [ASTM D: 4632 / ISO: 13934–2]
Water Permeability [ASTM D: 4491 / BS: 6906–3 / IS: 14324 / ISO: 11058]
Air Permeability [ASTM D: 737]
Pore Size by Porometer [ASTM D: 6767]
Apparent Opening Size [ASTM D: 4751]
Bursting Strength [ASTM D: 3786 / IS: 1966]
Breaking Strength & Elongation [ASTM D: 5035 / DIN EN ISO: 13934 –1]
Filter Fabrics [Nonwoven Type]
Mass per square metre [ASTM D: 5261 / ASTM D: 3776 / ISO: 9864 / IS: 14716]
Thickness [ASTM D: 5199]
Tear Resistance (Trapezoid Strength) [ASTM D: 4533]
Breaking Strength / Grab Strength [ASTM D: 4632]
Water Permeability [ASTM D: 4491 / BS 6906–3 / IS: 14324 / ISO: 11058]
Air Permeability [ASTM D: 737]
Pore Size by Porometer [ASTM D: 6767]
Apparent Opening Size [ASTM D: 4751]
Bursting Strength [ASTM D: 3786 / IS: 1966]
