Three Way Valve Dealers in Goregaon, Mumbai

AKI 3 way manifolds pipe to pipe (R), pipe to flange (T) and flange to flange (H) designed for connecting system impulse lines & transmitters. These manifolds consist of 1/2" NPT(F), pipe to flange or flange to flange connections on 54mm (2 1/8") centers, and of one equalizer valve, two block valves and 2 nos 1/4" NPT(F) purge (VENT) connections. These manifolds are rugged in construction to withstand high pressures and temperatures. The manifolds are rated for pressures as high as 6000 PSI at 200 o F or 4000 PSI at 500 o F. with PTFE Packing. For a Higher Temperatures Grafoil Packing is used Features One Piece Barstock Forged Body for high strangh and fully safety. Bonnet lock prevents accidents disassembly. Stem threads rolled and hard plated provides maximum service life. Two Part Stem tip, stellited and hardened provides excellent flow control and ensures buble-tight shutt off. Non Rotating Vee / Ball Tip design: Which forms a bearing joint with the stem eliminates rotation between plug & seat at closure. This prevents scoring and gailing up the valve seat and ensure long life in repetitive shutt off service. Packing material – PTFE / Ccrafoil

MOTORIZED 3-WAY ZONE VALVES WITH RETURN SPRING FOR HYDRAULIC CIRCUITS SERIES SF MAIN CHARACTERISTICS : These are powered by an electric motor and can assume two operating positions depending on whether the motor is activated or not. One or two auxiliary switches can be installed on request. These are activated when the valve switches. The Valves are equipped with an external lever for manually positioning the shut-off ball in its central positing. FUNCTION: Without electric power supply, the valve is positioned as shown in flig.1: Port A closed Port B open. The ball valve closes port a thanks to the elastic force exercised by the return springs. When it is powered, the servomotor overcomes the spring force and moves the ball form port A to B in about 20 Seconds and keeps it in that position until the electric power supply is shut off. When the electric power supply is shut off the return spring brings the shut-off ball back to port A. USING THE MANUAL LEVER: A lever is located on the side of the motor. This is used to position the shut-off ball in an intermediate positing (fig. 3). This is helpful when filling or emptying the heating system. The lever reset, form manual to automatic, takes- place automatically whenever the valve is electrically by activated. FUNCTIONAL CHARACTERISTICS : Rated supply voltage 230 Vac. (Available: 24, 110 Vac.; 50HZ) Absorbed power 5/6 W Degree of protection IP22 IES 529 Standards. European Standards Ref. CEI EN 60529 Aux. contact capacity 3 a, 250 Vac. Maximum differential pressure: See Refer to Tab. Of Hydraulic Characteristics Rated pressure PN 10 Kg /Cm (2) Flow temperature limits +5 / 110 Degree C Maximum room Temperature 60°C Nominal opening time 20 sec. Nominal closing time 6 Sec. Standard Cable Length 1000mm. AUXILIARY SWITCHES: A single pole micro switches (version M1), a two-pole micro switch (M1S version ) or two micro switches (M2 or M2 S version ) can be mounted on all versions.There is a special kit for mounting the single-pole auxiliary micro switch even in versions that do not carry it as an original part (M1 Kit.) .Kits M1S, M2 S cannot be installed in versions which do not mount them originally. MATERIALS : Valve body: Brass Valve cover: Brass Ball - bearing pin Brass Return Springs Stainless steel Motor cover Self - extinguishing ABS APPLICATION EXAMPLES 1 AS three -WAY ZONE VALVE The zone room thermostat controls opening and closure of the respective SF valves. When there is no demand it shut off power to the valve, which closes the zone and recalculates water back to the boiler return? Installing a meter as shown in the diagram permits efficient sub-division of operating costs. The load loss of the recirculation pipeline should be balanced to avoid excess flow rate variation in other circuit during valve operation.Note: Do not install the valve upside down, with the valve cover below the valve body, as it is a potential container for eventual leaks or water condensation. APPLICATION EXAMPLE GIVING PRIORITY TO THE HOT WATER HEATER We use this installation system mainly on combined boilers to permit the temperature of domestic hot water to be adjusted at the desired valve. The valve is used for priority over the heating system.

We are offering in various dimensions, our wide range of way manifold valve is highly appreciated by worldwide clients. Moreover, way manifold valves are offered keeping in view the existing market standards and requirements. This way manifold valve range has attained the reputation of being the best in market and comes at reasonable rates.

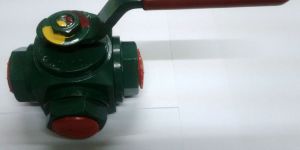

Three way ball valves multi series Ball Valves perform on-off services where quick and positive shut-off required. The compact and rugged design having spring loaded seat for high cycle life and ensure low operating torque.

Our Three Way Ball Valve is available in 1/2� to 2" sizes, L or T port with full port & reduce port. The seat of Three Way Control Ball Valve is Manufactured from the P.T.F.E., Solid S.S./ M.S. material, with an end to end MFGR'S, STD and end connection of B.S.P./ N.P.T. in screwed, B.S.10, class-150, class-300 & DIN STD in flanged. We are one of the best SS Three Way Ball Valve Manufacturers, catering to a wide network of clients all over India. Some of the salient features of our SS Three Way Ball Valve are :High durabilityAnti-corrosiveLeak-proofHigh performanceMaximum out putMinimum maintenance. Details Size : 1/2" to 2" in Screwed End 3WAY & Four way1/2" to 2" in Flange end 3way & Four wayType : 'L' or 'T' port with full port & reduce port.Seat : P.T.F.E.Material : Solid S. S./ M. S.END to END : MFGR'S, STD.End Connection : B. S. P./ N. P.T. in Screwed. B. S. 10, Class - 150, Class - 300 & DIN STD. in Flanged.

The extremely qualified people at our disposal specialize Established in 2002, Dairy Pharma Chem Liners, Malad, based at Mumbai Maharashtra is manufacturer and exporter of premium quality valves, fittings, components, precision turned component, three way ball valves, stainless steel caster wheels, pipe reducers, pipe elbows, sanitary ball valves, butterfly valves, diaphragm valves, electro polished tube fittings, water generation systems, cartridge filters, y type strainers, castor wheels and many more. Due to their high performance, low maintenance, and durability, our productions are respected. Our product fulfills the parameters of standards like the F D A.

Three Way Ball Valve, Actuator ball valve, Steam Jacketed Ball Valves

3 Way Ball Valve Flange Valve, Plummer Block, Linear Motion Rolling Guide
