TROX INDIA PVT LTD Andheri East, Mumbai, Maharashtra

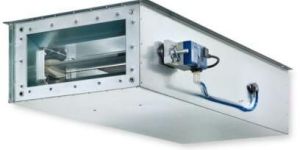

Ready-to-commission unit which consists of mechanical parts and control components.Averaging differential pressure sensor for volume flow rate measurement, Factory-assembled control components complete with wiring and tubing, Aerodynamic function testing on a special test rig prior to shipping of each unit,

Type FLEXTRO flexible plenum boxes for the connection of circular and square diffuser faces to circular ducts, suitable for supply air or extract air applications in comfort and industrial zones, Damper blade for volume flow rate balancing, can be set in 15° intervals between 0 and 90°, Equalising element that ensures the best possible airflow through the diffuser face (supply air), Metal angled support rod, with interlock, to erect the plenum box

The DS rectangular cased attenuator design offers, as standard, many advanced features including aerodynamic splitters and side liners, slide-on flanges and erosion protected acoustic infill covered by galvanized perforated sheet metal. Casing conforms to DW 142 Class B ductwork code.

Diffuser face made from extruded aluminium sections, Air control elements made of plastic, UL 94, V-0, flame retardant, Plenum box made of galvanised sheet steel, Diffuser face without extended border is powder-coated RAL 9005, jet black, Diffuser face with extended border is anodised, E6-C-0, natural colour,

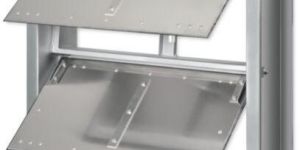

Air leakage with back pressure to EN 1751, class 4, Maximum differential pressure: 5000 Pa, Differential pressure can be adjusted from 50 – 1000 Pa (B > 600 mm: 600 Pa max.), Blades open when the maximum differential pressure is exceeded and close automatically when the pressure drops, Blades made of aluminium, casing made of galvanised steel

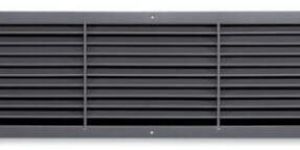

Type KS grilles suitable for supply and extract use.The grille has an injection moulded border with holes for site fixing with suitable screws.Type KS-A with horizontal face blades which are individually adjustable.

Material : Plastic

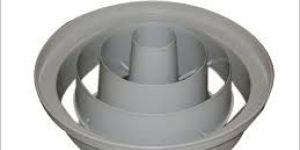

Adjustable and fixed jet nozzles achieve long throw distances and have excellent acoustic properties Nominal sizes: 100, 125, 160, 200, 250, 315 and 400 mm Volume flow rate range: 15 to 400 ls or 54 to 1440 m³h Visible parts made of aluminium For variable and constant volume flows

TROX fire dampers carry the CE marking in compliance with EN 15650. The CE marking ensures that TROX fire dampers can be used for all approved applications across the EU. Since the Construction Products Regulation (CPR) became effective on 1 July 2013, Declarations of Performance have replaced the previously used approval certificates or declarations of conformity.

Standard filtration in comfort air conditioning systems allows for use of the transmitter in the supply air without additional dust protection. Since a partial volume flow is passed through the differential pressure transducer in order to measure the volume flow rate, please note:With heavy dust levels in the room, suitable extract air filters must be provided.If the air is polluted with fluff or sticky particles, or if it contains aggressive media, dynamic pressure transducers cannot be used

For variable and constant volume flows, For suspended continuous plasterboard or grid ceilings, For suspended continuous plasterboard or grid ceilings, High induction results in a rapid reduction of the temperature difference and airflow velocity

This type of grille construction and installation detail is designed to meet latest Home Office requirements. For applications such as prison cells where it is necessary to have a heavy and robust construction and a high level of tamper resistance. The normal application for this product is air transfer or return air.

Finishing : Polished

Application : Cages, Construction Wire Mesh, Fence Mesh,Air Transfer, Return Air

Feature : Attractive Design, Durable, Hard Structure

Thickness : 10-20mm

Appearance : Antique

Country of Origin : India

Type : Grille

Material : Aluminium

Color : Silver

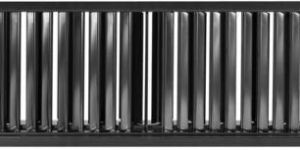

Adjustable transverse opposed action blades for flow adjustment, Individually adjustable, transverse blades for air direction control, Flow adjustment: Centrally supported blades, Air direction control: Asymmetrically supported blades.

Together with renowned designers and architects we have developed ceiling, wall, staircase and floor diffusers and grilles that are not only aesthetic design elements but also meet demanding ventilation and acoustic requirements.

Air for the people - water for the loads Today, air-water systems are used in many modern buildings and, especially in office and administration buildings, offer energy-efficient solutions for the internal space ventilation and air conditioning. There is a variety of installation possibilities for air-water systems, which means that, for almost every building, variants that meet the most demanding architectural requirements are available.

How much air do you need? Ventilation and air conditioning systems are called upon to adjust indoor air quality and the conditions for heating comfort and humidity in a room so as to comply with established stipulations (DIN EN 13779). The priority of this observation is the indoor climate. To maintain the necessary air quality and enable economical operation of the system, all air flows of a system must be monitored and controlled. The air-distribution equipment is thus given an important task. TROX is one of the world’s leading manufacturers of these units. Our international success is based on 35 years of development and production experience of volume flow terminal units and related components.

TROX X-FANS GMBH FANS AND VENTILATION COMPONENTS FOR TECHNICAL BUILDING SERVICES. We want our products to work for you. So we make sure you can contact our experts at our offices and in the field at any time for technical assistance and support. From planning your plant right through to implementation – we can provide you with the right solution for every situation. Tailor-made and innovative, whether you need to ventilate or extract smoke from an underground car park or heat large buildings and industrial premises. Even if you need complex smoke extraction systems for special-purpose structures or especially efficient ventilation designs, you can still count on us.
