Pressure Transducers Dealers in Mumbai

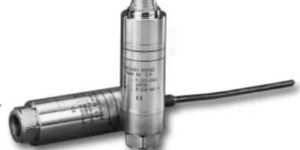

Smart sensors and transducers limited have launched strain gauge based digital pressure transducer . The product design features include stainless steel design. These are manufactured in four series viz. precision (p), general purpose (gp) and low cost (lc) depending on accuracies of 0.25 %, 0.5%, 1% respectively. Because of their stainless steel construction (including wetted parts), these sensors are industrially rugged and highly reliable. These units measure a range of pressure from -1 kgcm2 to 1000 kgcm2. Pressure transducer are available in four different accuracies with temperature ranges from 0 to 80 deg c. The compact size makes them light weight and adaptable to be accumulated in locations where space restrictions pose problem. Being strain gage based, they are suitable for dynamic pressure monitoring, in addition to the conventional static pressure monitoring. The pressure transducer have wide application in process industries such as chemical and petrochemical, food, fertilizers, steel and cement plants, flow measurements, depth sensing and level measurements.

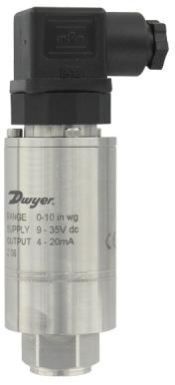

The Series 672 Low Pressure Transducer is a perfect solution to any application where a very accurate low pressure transducer is necessary. Using variable capacitance technology, the Series 672 is designed to measure pressures as low as 10" w.c. up to 400" w.c., very low ranges for a single connection pressure transducer. The 672 also features a 0.25% F.S. accuracy. Use the Series 672 in liquid level, flood warning, waste water, clean room, and open channel flow applications.

The PT460E Series transducer is a ±0.5% sensor ideal for melt pressure applications requiring simple installation, repeatability and reliability. The PT460E transducers provide the industry standard 3.33 mVV signal designed to work with most pressure indicators. The PT460E comes equipped with a six pin bendix connector. Optional thermocouple or RTD configurations are available to provide melt temperature. The PT460E features a 12-20 UNF thread for installation in standard transducer mounting holes and can be supplied with a variety of other electrical connections if desired.

  Capacity: 50 to 1000bar Load Direction: Gauge Pressure | Pressure Gauge Type: Deflecting type Diaphgram Pressure Sensor Description: Strain gage based design, S.S. construction for corrosive and hygienic applications, Vide selection of pressure range, Suitable for liquid & gas, 1/4" (6.35 mm) 1/2" (12.7 mm) BSP Male/Female thread available.   Features: Stainless Steel 17-4 PH construction Available up to 500 bar pressure Accuracy better than 0.25% Easy for installation   Industries: Manufacturing, Energy, Construction Machineries, Automotive, Automation Machineries, Assembly Lines, Agriculture, Aerospace Applications: Automotive Research, Brake Force Measurement, Differential Pressure Sensing, Hydraulic Press Testing, Process Control & Automation, Refrigeration , Compressor & Pump Pressure Measurement, Tank Level Measurement, Truck Weighing

PRESSURE TRANSDUCER, 0 to DC 100mV 6 models : 2/5/10/20/50/100/400 bar. Zero pressure - 0 DCV, Full scale - 100 mV. Power supply : DC 9V to 30V. 4 wires : 2 wires for power, two wires for signal.

Available versions: Standard; ATEX; CSA; Schiff & Offshore; with front-flush diaphragm The The pressure transducer series HDA 4300 is equipped with a ceramic pressure measurement cell with thick-layer DMS, which was specially developed for relative pressure measurement in the low-pressure range. The 4 ... 20 mA or 0 ... 10V enable the connection to all measurement and control devices of HYDAC ELECTRONIC GmbH and the linkage to commercially available control and regulation units. The variant with the front-flush diaphragm was specially developed for applications in which the media used could lead to a blockage, gumming-up or freezing of a standard pressure connection. The main areas of application lie in the low-pressure ranges of hydraulics and pneumatics, particularly in refrigeration and air-conditioning, food and pharmaceutical industry applications. Further applications include processes where the medium changes frequently and any residues could cause mixing or contamination of the media.

M3 Melt Pressure Transducer, 1 Position Magnetic Latching Solenoi

We are offering high melt pressure transducers.

Disposable Pressure Transducer, Transducer Protector, Conductivity Senso

Pressure Transducers, Flow Meters, Instrumentation Products, Load Cell

Honeywell Pressure Transducer, Copper Contacts, Flexible Copper Connector

Extrusion Melt-pressure Transducer, Symmetrical Gravimetric Analyse

Pressure Transducer, Sensor, Cruise Controls, Collision Avoidance Syste

Digitally Compensated Pressure Transducer, Meteorology Instrument

Honeywell Pressure Transducers, Petrochemical Plants, Biofuel

Measurement of Pressure Using Pressure Transduce

Pressure Transduce

Digital Pressure Transducers, Hydraulic Pipe Fittings, Waste Water Pump

Smart Sensors And Transducers Limited have launched strain gauge based digital pressure transducer . The product design features include stainless steel design. These are manufactured in four series viz.

Wet Differential Pressure Transducers, Explosion Proof Pressure Switc

Pressure Transducer / Transmitters, Lube Oil Filtration System

Honeywell Pressure Transducer, Motor End Cover (End Shield

Pressure Transducers, Aircraft Components, Leather Seat Cove

Digitally Compensated Pressure Transducer, Dell Branded P
