Tulex Industrial Tools Pvt Ltd Dombivali, Mumbai, Maharashtra

Universal Joint is a coupler interposed between Bi-Hex socket and the driving tool. It is useful for tightening nuts located at difficult angular positions, which cannot be reached with standard tools. This is available in 1/4" (6.35 mm), 3/8" (9.5 mm), 1/2" (12.7 mm), 3/4" (19 mm) and 1" (25.4 mm) square drives.

 Swivel Impact Joint is a coupler interposed between impact socket and the impact wrench. It is useful for tightening nuts located at difficult / angular positions, which cannot be reached with standard tools. These are available in 3/8" (9.5 mm), 1/2" (12.7 mm), 3/4" (19 mm) 1" (25.4 mm) and 1.1/2" (38.1 mm) square drives.

Tulex offers a range of special sockets. We may have what you need as a non catalogue item or our experienced staff of tooling experts can design and produce application specific fastener tools to suit your exact needs. Given below are some illustrations of special sockets. Thin Walled Impact Sockets :Tulex Thin Walled Impact Sockets are used at places of inaccessibility where there are restrictions due to the diameter at the nose end of the socket. In this case the diameter of the nose end is reduced. 12 point Thin Walled Sockets are available on request. Thin Walled Impact Sockets are manufactured in 3/8" (10 mm), 1/2" (12.5 mm), 3/4" (20 mm) and 1" (25 mm) square drives. Thin walled deep hexagon sockets are also available on request.

These sockets are designed to be used with pneumatic/electric impact wrenches and nut runners. They have single hex broaching for good grip on nuts and bolts to avoid tools slipping during high speed tightening operations. Its extra wall thickness together with special steel and heat treatment process helps absorb the shock transmitted to sockets while in use with impact wrenches. They have a conventional locking arrangement i.e. lock button or snap ring fitted on the male square drives. They can also be provided with two cross holes and groove for locking onto the impact wrench using 'O' ring and pin arrangement. These are available in 1/4", 3/8", 1/2",  3/4", 1", 1.1/2", 2.1/2", 3.1/2" square drives to cover nut across flat sizes 6mm to 235 mm and 1/4" to 9.1/8" in standard lengths and deep lengths. These are ideal for operating with hydraulic wrenches and most suitable for use in automobile industry.    All impact sockets are made from high strength alloy steel. These are heat treated for the best combination of strength and impact resistance. All impact sockets have an optimum wall thickness for strength and access on fasteners having restrictions. The depth of the hex openings is designed to accommodate the full standard fastener head. All impact socket have a ring and pin arrangement for securing them to the drive. The impact sockets are plated and black oxidised coated for increased protection against rusting. The Impact Socket can be manufactured with chamfered openings for ease in engagement with the drive tool and the fastener against specific requests. Note :1) Locking ring and Pin are not included with the grooved impact sockets. 2) Locking ring and pin are available on request and has to be ordered separately.

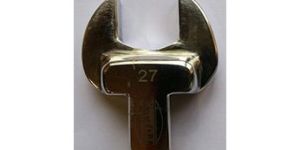

Tulex manufactures a variety of End Fittings or Spigot Insert Spanner Heads suitable for many Interchangeable Type of Torque Wrench brands across the world. These are used for accessing bolts in cramped and hard-to-access locations- easy to change. Available in chrome plated or black finish. These have eject pin for unlocking. Manufactured in Chrome vanadium steel material.

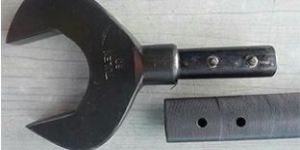

Unique, versatile design allows wrench to be used with or without optional handles. Tubular wrenches may be used without the handle to quickly run down nuts. The handle can then be attached to provide maximum turning power for final tightening or to reach otherwise inaccessible fasteners. A detent on the wrench shaft helps to align locking button with handle hole. Open end wrench head provides access in tight areas

Unique, versatile design allows wrench to be used with or without optional handles Tubular Wrenches may be used without handle to quickly run down nuts The handle can then be attached to provide maximum turning power for final tightening or to reach otherwise inaccessible fasteners A detent on the wrench shaft helps to align locking button with handle hole Offset box wrench provides turning clearance

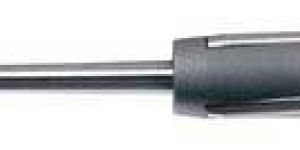

Our Tube Expander is ideal for Heat Exchanger & Condenser in 3 Rollers & 5 Rollers respectively. Tube Expander, also finds application in Boiler and sugar industry in 3 & 4 plain and 2 & 3 Flare Rollers & 5 plain rollers for sugar Mills. Besides, we also manufacture Mandrel & Accessories associated with Tube Expanders. Range : Grooving ToolInstallation & Removal Tools Serrating ToolKnock out ToolCollapsing ToolTube GuideTube PillersInternal Tube Cutters Different Models Available : TU Series – Tube ID 3.8 mm to 8.4 mmTLX 900/1300 Series - Tube ID 3.8 mm to 8.4 mmTLX 800/1200 Series - Tube ID 8.4 mm to 36.5 mmTLX 8012 Series – Tube ID 36.1 mm to 73.7mm

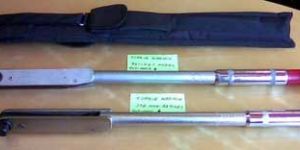

We manufacture a range of Torque Wrench which is a precision engineered spanner cum instrument. Torque Wrench offered by us is widely used for tightening of bolts and nuts as per the required torque. Our range of Torque Wrench is an adjustable or preset click type wrench which is available in ratchet and Non Ratchet type. The Torque Wrench can be obtained in a set of 12 models covering Torque requirements from 3 to 2500 Nm. Torque Wrenches are standardized to an accuracy of ±4% on calibrators. Further, our assortment of Torque Wrench is traceable to National Physical Laboratories, an important pre-requisite for ISO 9000. We offer Torque Wrench with its respective Calibration Certificate which as per to National Standards. Features : Robust constructionLong functional lifeCorrosion resistantHigh performanceHigher efficiency Applications : AutomobileMotorcyclePrecise machineryElectric powerEngineInner-engine etc.

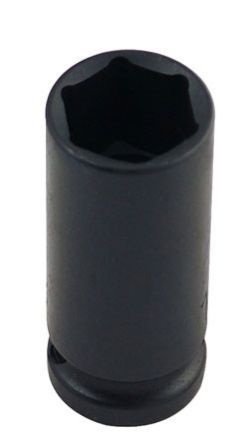

Tulex Thin Walled Impact Sockets are used at places of inaccessibility where there are restrictions due to the diameter at the nose end of the socket. In this case the diameter of the nose end is reduced. 12 point Thin Walled Sockets are available on request. Thin Walled Impact Sockets are manufactured in 3/8" (10 mm), 1/2" (12.5 mm), 3/4" (20 mm) and 1" (25 mm) square drives. Thin walled deep hexagon sockets are also available on request.

We offer swivel joint to the clients which is precision engineered and durable. Swivel joint is developed using high grade material and advance technology. Swivel joint is also offered in customized form so as to meet the specific requirement of the clients. availability : manual universal joint :a coupler interposed between bi-hex socket and the driving tooluseful for tightening nuts located at difficult angular positions, which cannot be reached with standard toolsavailable in 1/4" (6.35 mm), 3/8" (9.5 mm), 1/2" (12.7 mm), 3/4" (19 mm) and 1" (25.4 mm) square drivesimpact universal joint :a coupler interposed between impact socket and the impact wrench.useful for tightening nuts located at difficult / angular positions, which cannot be reached with standard toolsavailable in 3/8" (9.5 mm), 1/2" (12.7 mm), 3/4" (19 mm) 1" (25.4 mm) and 1.1/2" (38.1 mm) square drives

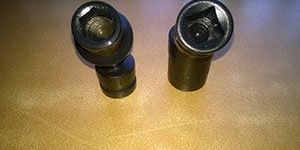

Tulex Swivel Impact Socket has a swivel joint as a built in feature. These are useful for tightening of nuts located at difficult angular positions, which cannot be reached with standard sockets. These are available in 3/8" (9.5 mm) and 1/2" (12.7 mm) square drives to cover nut sizes from 7 mm to 24 mm across flat. Tulex Swivel Impact Extension Sockets are used where requirements of bolt clearance exists.

Swivel Impact Socket has a swivel joint as a built in feature. These are useful for tightening of nuts located at difficult angular positions, which cannot be reached with standard sockets. These are available in 3/8" (9.5 mm) and 1/2" (12.7 mm) square drives to cover nut sizes from 7 mm to 24 mm across flat. Tulex Swivel Impact Extension Sockets are used where requirements of bolt clearance exists.

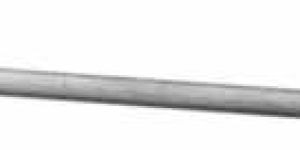

The Swivel Handle can be used as a driving tool for manually operated sockets to tighten nuts and bolts located at awkward places, unapproachable by standard driving tools. All the driving handles are designed with adequate length to provide torque as per its size. In no case pipe etc are to be used for additional leverage. It is manufactured in 1/4" (6.35mm), 3/8" (9.5mm), 1/2" (12.7mm), 3/4" (19mm), and 1" (25.4mm) square drives.

Surface Drive Impact Sockets :Tulex Surface Drive Sockets are designed for use on single or multiple spindle power tools (Non Impact Type). Specially relieved corners at the hex opening provides a floating action thus permitting the socket to engage the nut on the surface of the flat hex rather than on the corners. The large openings on six corners of the opening create a floating action that allows the socket to slip quickly and easily on to the nut or bolt. These are ideal for compensating for imperfect alignment between the tool and the fastener. These are generally recommended for impact usage. This type of a freecorner profile distributes the surface loads and relieves the possible stress areas. The torque transmitting capability is increased and the high stress concentrating points are completely eliminated increasing the impact resistance of the fastener.

Tulex Stud Tighteners also known as Stud Drivers is used for speedier tightening of threaded studs with the help of an impact wrench. This is ideal for use in the assembly and maintenance of engines. The range covers stud diameters M5 to M36 (metric) & 1/4" (6.35mm) to 1.1/2" (38.1) UNF/BSF (SAE/BRITISH) in 3/8" to 1" square drives. The tool has a cross hole and groove for locking pin and ring arrangement.

    TULEX STRIKING WRENCHES : Tulex extra Heavy Duty Slugging / Striking Wrenches are designed for use with hammers where impact or shock loading is required for loosening of frozen and rusty nuts and bolts. These slugging wrenches are duly forged from superior grade chrome vanadium steel. The blanks are duly machined with the wrench openings broached to tolerance as per federal specifications. These slugging wrenches undergo a heat treatment process including stress relieving before undergoing short blasting and surface finish operations.     A complete range of Heavy Duty Slugging Wrenches to suit most critical applications is available from Tulex. The Slugging Wrenches are machined out to exact wrench opening sizes within close tolerances. Hardening and tempering is done to achieve optimum hardness. Thus Tulex Slugging Wrenches are guaranteed for superior performance and durability. Tulex offers Heavy Duty Slugging Wrenches in - Straight Ring, Offset Handle, Open Jaw, Structural Wrenches, Tapered Handle and Tubular Handle types or with any specific modifications to suit particular applications. Tulex Slugging Wrenches are available in a range of sizes from 27 mm to 140 mm across flat. These are suitable for most rigid applications and are useful for fertiliser plants, refineries, petrochemicals, heavy engineering industries, railways, iron and steel manufacturing plants, thermal power stations, etc.

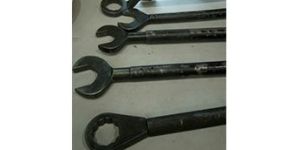

Tulex detachable Handle Wrenches are unique and versatile in design and allows the wrench to be used with or without the optional handles. TUBULAR HANDLE OFFSET OPEN JAW / RING WRENCHES Unique, versatile design allows wrench to be used with or without optional handles Tubular Wrenches may be used without handle to quickly run down nuts The handle can then be attached to provide maximum turning power for final tightening or to reach otherwise inaccessible fasteners A detent on the wrench shaft helps to align locking button with handle hole Offset box wrench provides turning clearance

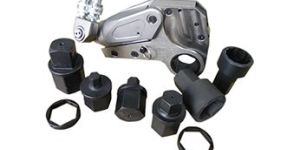

1) Special Male Hex to Male Square adaptor2) Male Hex to Male Hex adaptors3) Magnetic Top Hat Adaptor Female Square x Male Square with Collar that can be used with Hydraulic Torque Wrenches are also manufactured by us.4) Male Hex Drive Spline Drive Adaptors.

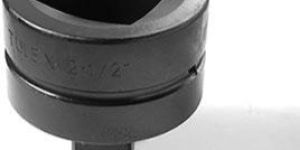

square drive adaptors are used as a convertor to permit use of sockets and driving tools of different square drive sizes. It is available in 1/4" (6.35mm), 3/8" (9.5mm), 1/2" (12.7mm), 3/4" (19mm), 1" (25.4mm), 1 1/2" (38.1mm) square drives. The torque capacity of these adaptors is limited to the torque capacity of smaller square drive.

We are offering square drive adapter. Which is fabricated using premium quality material. Square drive adaptor is in compliance with international quality standards and therefore confirms durability and high performance. availability :manual square drive adaptors :used as a convertor permit use of sockets and driving tools of different square drive sizes available in 1/4" (6.35mm), 3/8" (9.5mm), 1/2" (12.7mm), 3/4" (19mm), 1" (25.4mm),1 1/2" (38.1mm) square drivesthe torque capacity of these adaptors is limited to the torque capacity of smaller square driveimpact square drive adaptors :used as a convertorpermits use of sockets with impact wrenches of different square drive sizes i.e higher or loweravailable in 1/4" (6.3 mm), 3/8" (9.5mm), 1/2" (12.7mm), 3/4" (19mm), 1" (25.4mm), 1.1/2" (38.1mm).

  tulex spring loaded slotted bit finder   tulex spring loaded slotted screw bit finder is used widely in automobile assembly lines. Its main function is to easily locate & to tighten the screws in a faster manner. It is available for a range of slotted screws as shown in below given table.
