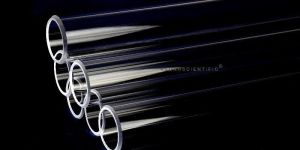

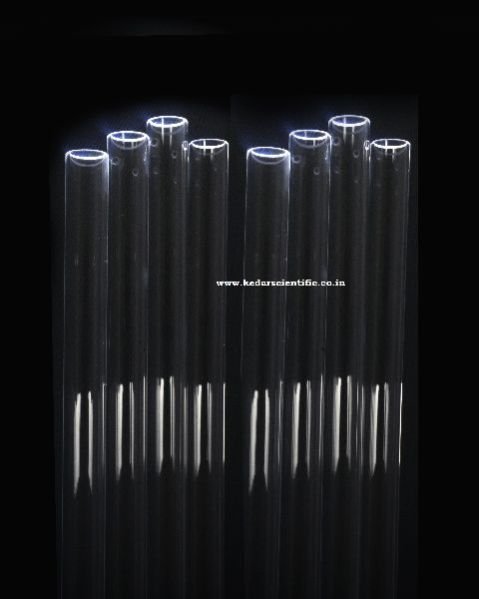

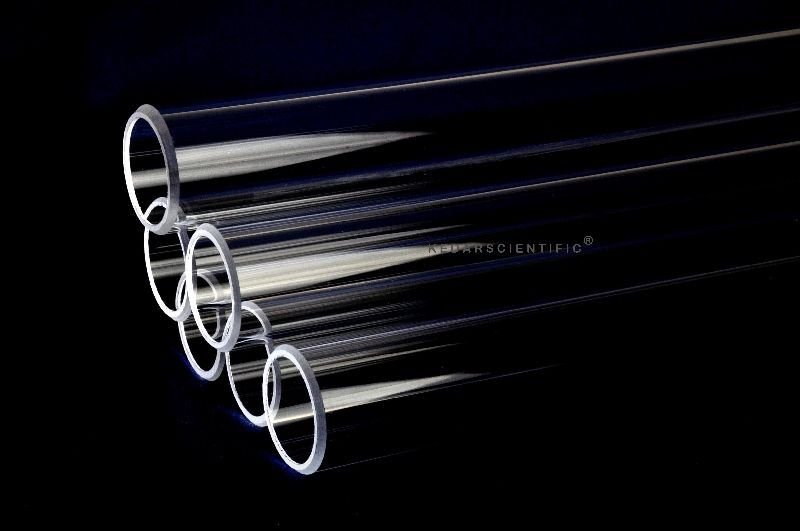

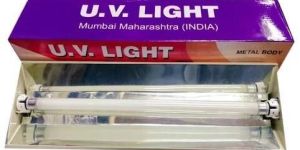

Ultra Violet Tube Dealers in Mumbai

A functioning UV Curing Lamp is as important as the reflector design and mechanism in a UV process. These lamps are also known by the name Mercury Arc Lamps, and are used for combining cure efficiency with design versatility and moderate cost. Working: • High voltage is applied to the lamp across the electrode terminals for creating a voltage field. • This field ionizes the argon and produces heat to vaporize the mercury. • This leads to the development of pressure of about two atmospheres that are required to create and maintain a balance between the required high intensity. • The spectral output essentially in the UV region is maintained throughout. • The mercury vapor arc exhibits the unique property of high emission of light in the ultraviolet region of the spectrum.

A deuterium lamp uses a tungsten filament and anode placed on opposite sides of a nickel box structure designed to produce the best output spectrum. Unlike an incandescent bulb, the filament is not the source of light in deuterium lamps. Instead an arc is created from the filament to the anode, a similar process to arc lamps. Because the filament must be very hot before it can operate, it is heated for approximately twenty seconds before use. Because the discharge process produces its own heat, the heater is turned down after discharge begins. Although firing voltages are 300 to 500 volts, once the arc is created voltages drop to around 100 to 200 volts. The arc created excites the molecular deuterium contained within the bulb to a higher energy state. The deuterium then emits light as it transitions back to its initial state. This continuous cycle is the origin of the continuous ultraviolet radiation. This process is not the same as the process of decay of atomic excited states (atomic emission), where electrons are excited and then emit radiation. Instead from the molecular emission process, where radiative decay of excited states, in this case of molecular deuterium (D2), causes the effect. Because the lamp operates at high temperatures, normal glass housings cannot be used for a casing (which would also block UV radiation). Instead, a fused quartz, UV glass, or magnesium fluoride envelope is used depending on the specific function of the lamp.

Super Powerful LED UV Inspection Lamp UV-200 Lights (Dual UV & White LED) Robust, High UV-A , Economical The Best Substitution of Traditional Lamps Super Strong UV Intensity, No Warm Time Work Continuously, No Heat, Life Time > 30,000 Hours Optional Li battery is available, For 3 hours working Global First – Special Optically PMMA Lens, Resistance to fall off

Uv lamps, Key features Two UV tubes for illumination (1 × UV 254 nm & 1 × UV 366 nm, each 8W) Convenient handling through one button operation for each UV tube Homogeneous illumination Improved user safety through tilt sensor and timer (automatic switch-off after 10 min)

We have different types of UV Lamp like minature UV Lamps, Low Pressure UV Lamps, etc. W have UV Lamps with different configurations. Our products are much in demand in the market today. We offer very reasonable pricing for all of our products.

Deuterium Lamps, Visual Colorimeters, Adjustable Volume Pipette

UV Lamps, Filter Cartridge, Industrial Sensors, Industrial Switche

Ultraviolet Lamps, Rota Meters, Water Distribution System

Fluorescent lights with unique feature to check fluorescence in diamond, currency, ID cards.

Ultraviolet Tube, Cdmt Lamps, Fiber Optic Lamp, Germicidal Lam
