Union Enterprise Pvt. Ltd. Fort, Mumbai, Maharashtra

Uni boost Self Priming Centrifugal De watering Pumps are designed and manufactured for optimum efficiency to cater different needs of water handling. The pump construction is suitable for handling muddy & sewage water, contaminated water with solids up to 40mm. Features :   > Efficient design and performance as available in international market > Automatic air releasing while priming is design specialty with added feature of quick and self-priming > Design of impeller is semi open / open vane type for non-clogging and unable to handle solids. > Back pull out design for repair possible without distributing pipelines > All rotating parts are dynamically balanced for smooth running and low vibration > Long product life due to replaceable wearing parts > Available in Monoblock Pump set and bare pump design > Bare pump can be coupled with either motor or engine > Motor designed for wide voltage fluctuations for monoblock pump sets      *  From 180 to 240 volts for single phase      *  From 350 to 450 volts for 3 phase > Easy maintenance due to availability and interchangeability of spares

shape of a single external helix, rotates around its on axis in the direction of rotation (say clockwise); while the axis of the rotor, revolves in the opposite direction (say anticlockwise) around the axis of the stator. The stator is made of and elastomeric bonded to end alloy steel tube. The stator itself is in the shape of an internal double helix. The rotor is contained within the stator and forms a continuous seal along the length of the stator. The above movement produces cavities at reduced pressures which move axially from the inlet to the outlet conveying the fluid at fixed flow rate proportional to the rotational speed.   Features :   > Abrasion resistant chrome plated rotor > Stator elastomers to suit specific requirement > Wide range of material of construction > Hardened bush pin type universal joint sealed and grease lubricated > Heat treated, hard chrome plated drive shaft

UniBoost Chemical Process Pump is a horizontal single stage centrifugal pump in stainless steel 316 and polypropylene materials.   Polypropylene Volute casing   Three piece with full metal back plate support self venting volute casing with companion flange end connection. Volute casing opens towards allows easy withdrawal of the bearing frame without disturbing the pipe work when using a spacer coupling and no realignment is necessary.   Impeller    Semi-opened radial impeller specially designed for low NPSH requirement. Hydraulic balance by back vanes. Reliable fixing of impeller on the shaft by impeller nut and positive locking of impeller nut by means of threaded insert.   Shaft   Single piece heavy duty shaft in full SS 316 material. All critical surface ground to less than 0.8 micron. Threads were shaft screws into impeller are sealed by teflon ‘0’ ring.   Shaft Sleeve   Available with Hastelloy, Alloy 20, Teflon, SS 316 as per liquid specification   Shaft Sealing   Supplied with either packing or mechanical seals in stuffing box. External cooling provided for longer sealife.   Bearing   Inboard bearing is single row, deep groove. Outboard bearing is double row, deep groove angular contact. Bearing is pressed on shaft and free to float axially in frame carries redial load only. Both bearing size are for two year minimum life.   Bearing Frame   Sturdy cast iron construction provides rigid bearing alignment and shaft support.   Features :   > Metal support piping loads without any strain on     suction and discharge nozzle > Detachable suction and Discharge branch, save the     expensive casing replacement cost. > Solid Injection moulded impeller and back plate > Shaft is well protected by a confirmed PTFE sleeve

UniBoost Electrical Operated Barrel Pump is useful for safe and efficient handling of high corrosive chemical solvents, acid, plating solution etc.   DRIVE MOTOR : Electric cord , continuous duty rated, 1 Phase.    Note: Note : Flow Rate & Head mentioned are based on Water as testing fluid at ambient conditions. Flow rate & Head varies as viscosity changes.   Features :   • Maximum flow rate 100 ltr / minute. • Max discharge pressure up to 12 mtr. • Light Weight • Easy Maintenance • Self priming

Uniboost High pressure pumps is designed with Advanced Pump Technology which ensure quality, reliability and efficiency. Our high pressure pumps are Horizontal, simplex or Triplex positive displacement plunger pumps.Design:Pump drive end assemblies are of rugged construction with high quality materials and heavy duty taper roller bearings. Bearings are lubricated by splash lubrication. Pumps are designed to permit rapid and economical maintenance, particularly regarding plunger, packing and valves are manufactured to ensure accurate alignment on reassembly.   Features :   > Extra Strong, Heavy Duty Power frame ensures uninterrupted smooth long life > Wide variety of valves are available to suit different pumping fluids and applications > Three piece liquid end block design avoids any possibility of block cracking > Spring loaded Plunger / Special Gland Packing always ensures leak free pumping service > Reversible valve seats double the normal life of valve seats thus become long lasting quite smooth operation. > Totally dependable, reliable and efficient performance > Easy to maintain, simple to repair and nominal maintenance cost.

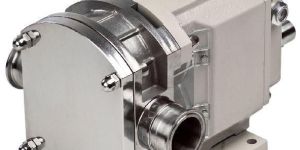

UniBoost Lobe pumps are similar to external gear pumps in operation in that fluid flows around the interior of the casing. Unlike external gear pumps, however, the lobes do not make contact. Lobe  contact is prevented by external timing gears located in the gearbox. Pump shaft support bearings are located in the gearbox. Rotary pumps can handle solids (e.g., cherries and olives), slurries, pastes, and a variety of liquids. If wetted, they offer self-priming performance. A gentle pumping action minimizes product degradation. They also offer continuous and intermittent reversible flows and can operate dry for brief periods of time. Flow is relatively independent of changes in process pressure, too, so output is constant and continuous. Rotary pumps also offer superior CIP/SIP performance. Once in line, they can be cleaned without being removed. Depending on the application, it is a good idea to check with the manufacturer to make sure if a particular lobe pump meets both 3-A requirements.   Features :   > Hygenic Construction > Easy – clean Pump’s head in place > Rotor shaft sealed by hygienic mechanical seals or by packed glands selected for the duty conditions. > Reversible flow without modification. > Pass medium solids. > Positive suction, nonpulsating discharge.

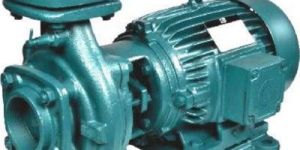

UniBoost Centrifugal Monoblock Pumps - UCM Series are designed and manufactured for optimum efficiency to cater to different needs of water handling. The pump range is suitable for a wide range of applications in Commercial and Industrial areas   Features :   > Monoblock Construction > Wide range to suit a variety of requirements > High effeciency, Less Power Consumption > Pumps with Stainless Steel Sleeve for less Shaft water > Trouble free operations with low maintenance

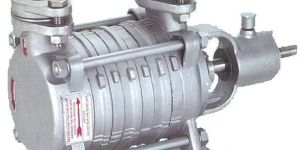

UniBoost multistage selfpriming pumps use the side channel design principle. The pumps are built as single stage or multistage pumps. All the wetted parts are made from SS 316 investment casting using lost wax process giving excellent surface finish, sound casting, giving minimum resistance to flow resulting in better efficiencies. The pump stages are staggered redially to bring about balance and minimize shaft deflection. The open star (vane) type impeller are individually hydraulically balanced thus eliminating the axial thrust on the external ball bearings of the pumps. The pumps are fitted with M-seal. Features :   > The pumps are built as single stage or Multistage > All wetted parts are SS-316 investment casting > Selfpriming - side channel design principle > The pump stages are staggered redially to bring about     balance and minimize shaft deflection > The pumps are fitted with M-seal.

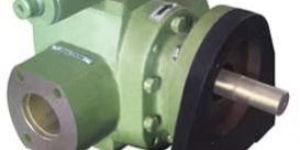

Uni Boost gear pump Model “UGNX/UGBX” which is heavy duty flange and foot mounting type positive displacement rotary gear pump. These pumps having doubled helical finished gears and hardened & ground shafts. Due to double helical gear it prevent axial load and side thrust which help to increase life and performance of pump. Model “UGBX” is a bush bearing type pump which can be used for viscous liquid having sufficient lubricating value for intermittent duty; however for continuous duty pump have needle roller bearing in Model “UGNX” and it will be selected for liquid having low viscosity, power lubricating values. Pump up to 2 1/2” size can be run at 1440 RPM & for higher the speed should be reduced to 960 RPM or Lower. In these pumps size 1/2" to 2 1/2" are provided with thread at end of suction & delivery and they are available with foot or flange mounting, But in size 3" to 6" are provided with flange at the end of suction & delivery and they are available with foot mounting only. These pumps can be operated up to pressure of 21 kg/cm² with 5.0 LPM to 2082 LPM flow capacity. These pumps are suitable for liquid up to viscosity of 1, 00,000 SSU and maximum temperature up to 200°c.   Features :   Internal Power losses: UniBoost Gear Pumps are of 2 types. The mechanical loss is the power required to overcome friction drag of all the moving part within the pump while viscous loss is power loss due to fluid viscous drag & shearing action of the fluid. Horse Power Calculation: The bhp required to drive a UniBoost pump is sum of theoretical HP & internal losses. The former is the actual work done in moving the fluid from inlet pressure condition to outlet pressure condition & is product of constant C=0.037, capacity in M3/hr. & pressure I Kg/cm2 or constant C=2.3, capacity in GPM & pressure in PSI.

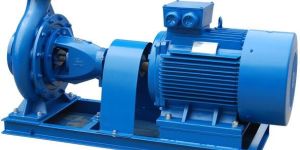

niboost “UC” Series is a horizontal single stage, Back pull out design as per ISO 2858.Standard design is foot mounted, In this design for the facility of maintenance to easily removed without disturbing the motor form the base frame & the pump casing fixed to the pipe line.   Specification : Volute Casing:One piece self venting, high efficiency, volute casing suction and discharge ends as well as the supporting feet are integrally cast in the volute casing Impeller:Closed radially impeller specially designed for low NPSH requirement. Hydraulically balanced by back vanes and for large impeller diameters by balancing holes. Shaft & Bearing:The Shaft is guided in oil lubricated bearings. The alignment of bearing is ensured by appropriate centerings and modern manufacturing methods. Shaft is of high tensile steel and accurately grounded all over. Shaft Sealing:Supplied with either asbestos or graphite packing or M seal depends on liquid. Flanges:As per ASA/BS or DIN 2533 available.

UniBoost offers magnetic drive chemical pumps which safely handles hazardous, highly corrosive explosive and toxic chemicals. They provide safe, leak-proof service because the magnetic coupling eliminates the need for traditional sealing methods, such as mechanical seals or gland packing's, which is the main source of leakage problems on Pumps. As a result, down time and maintenance cost are greatly reduced and there are no warn seals to replace. These Pumps are available in GFR-PP and PVDF for maximum chemical resistance.   Features :   UniBoost magnetic drive chemical process pumps offer many benefits: 1) Minimizes exposure of your personnel to hazardous chemicals 2) Eliminates contacting seal faces which are prone to wear and leakage 3) Provides superior corrosion resistance 4) Eliminates costly seal flush systems required on all pumps with double mechanical seals. 5) Reduces downtime and maintenance costs through extended service intervals 6) Eliminates alignmentproblems inherent in direct-coupled units.

Uni Boost range of immiscible pumps has been designed especially for filtering systems in the machine tool industry. The low-pressure pumps are available in different flow variants and come with a choice of bottom suction or suction from the top of the volute   Features :   >  All coolant pumps are manufactured as per IS : 2161. >  All coolant pumps are rated for continuous duty (S1) at an ambient temperature of 40'C. >  Dynamically balanced rotor and impeller. >  All components are manufactured and inspected on latest precision machineries and calibrated instruments to give years of maintenance free operation. >  All pumps are tested as per relevant Indian Standard in latest and well equipped testing lab.

> Service Friendly > Simple Installation > Low risk of clogging > Minimum Downtime > High abrasive resistance resin vortex impeller > Double mechanical seal > High Cooling Effect and Long Lasting running > Highly Operational Reliability

> Service Friendly > Stable performance, Reliable operation > Low risk of clogging > Minimum Downtime > High abrasive resistance resin vortex impeller > Double mechanical seal > High Cooling Effect and Long Lasting running > Non - Clog single channel Impeller

UniBoost supply a wide range of Sanitary pumps, which are made from high quality rolled stainless steel. Our range of sanitary pumps feature unique designs, trouble free safe and smooth operation. Designed to meet the hygienic requirements of the dairy, food and beverage and personal care industries, UCS centrifugal pumps increase process productivity while providing high efficiency and gentle product handling.We also customize these pumps as per the specific requirements of clients.   Features :   > As all pumps are made from rolled stainless steel, mechanical properties are far superior then cast material. > Pore free, non-pitting and non-adhering smoother surface, so less friction losses, and less crevice corrosion. > Super finish surface also ensure no ingress or emission of germs or impurities during pumping or idling which  is basic requirement of sterile hygienic application. > Designed for CIP (clean in place) or manual cleaning > Pumps are highly energy efficient and requires less NPSH to function without cavitations > Pump can handle liquids having viscosities up to 1500 centipoise > The pumps can work under a vacuum of 720 mm of Hg, suitable for vacuum evaporators. > Pumps are available with open/semi open impellers. > The best elastomers are used in the pumps to provide optimum resistance for high temperatures and  chemicals. > Dynamically combinations of seal faces as per customer\\\\\\\'s requirement (single seal / double seal, seal external cooling) > Suitable for standard motor or flange type or foot cam flange type motor or engine > Monoblock or bare pumps or with trolley > Also with flame proof motors
