Check Valves Dealers in Andheri, Mumbai

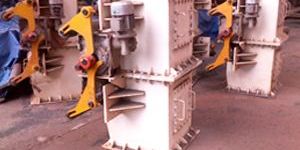

Double Flap valves find their application as a substitute of Rotary Airlocks i.e. to allow flow of dust and maintain airlock across the valve. It is particularly suitable for handling highly abrasive and gritty materials along with high vacuum across the valve. Two small hoppers are mounted in-line and with some space between them in an air-tight casing. Two sets of flaps/ cones seat against the discharge openings of the hoppers.   The flaps or cones are held on arms that are fulcrummed on two shafts. The shafts are provided with external counter weights to counter balance the weight of flap or cone, the connecting arms and also the material pressure on top. The counter weight is so selected that the flaps / cones close tightly against the seat rings fitted at the discharge end of the hoppers to avoid leakage. The flap/ cone mounting on the connecting arms self aligning type to make the sealing airtight. For cone dump valve, the seats are sometimes provided with additional rubber rings to ensure leakproofness.   The drive mechanism of these valves comprises of a geared motor with cam or linkage that alternately turns the two shafts by some degree. This results in partial lowering of the flap pair or cone at two levels alternately. Thus, as the top flap/cone lowers, material above it drops to fill the intermediate chamber. Now the top flap/cone closes and after some pause the bottom flap/cone opens to allow the material to pass out of the valve. The above mechanism ensures that any one flap/cone remains closed at any point of time thereby ensuring airlock across the valve.   Applications   • Steel Industry Blast Furnace, Electric Arc Furnace, BOF, etc   • Fertilizer Industry Phosphate Rock Dryers & Calciners, Dryers   • Non-Ferrous Copper Reverberatory Furnace, Laea Blast Furnace   • Pulp & Paper Lime Kilns, Back Liquor Recovery, Bark Boilers   • Sugar Industry Boiler Flue Gas, Bagging Section   • Mineral Products Asphalt Stone Dryers, Cement Kilns   • Pharmaceuticals Tablet Coating Fans, etc

Alarm Check Valve serves as a check valve by trapping pressurized water above the clapper and preventing reverse flow from sprinkler piping. The valve is designed to initiate an alarm during a sustained flow of water (such as the flow required by an open sprinkler) by operating an optional water motor alarm and/or alarm pressure switch. These too have a universal approval from LPCB, FM Global, Underwriters Laboratories and etc.   Specifications Material: Ductile Iron Pressure: 300psi End Connections: Flanged/Grooved Sizes: 200NB, 150NB, 100NB, 80NB Approvals: UL&FM

Simple and rugged design Pneumatic Valves these are available in sizes 1/4" to 1" BSP. They are used in applications where uni-directional flow is required.

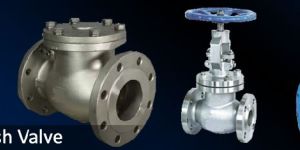

VALTECH” robust design, Cast Steel Swing Check Valves are designed and manufactured with reference to Standard BS-1868 for Pipelines 50NB and above. They are available in Flanged and Buttweld ends. Hard Faced Trim material ensures perfect Sealing and longer life. Lapped Back Seat is provided to ensure re-packing/replacing of Gland Packing in stream, when the Valve is in full open condition which ensures maximum safety, convenience and economy. If required, Valves can be offered under any THIRD PARTY INSPECTION . “VALTECH” Cast Steel Swing Check Valves are available in various materials like Cast Carbon Steel conforming to ASTM-A-216 Gr. WCB, Cast Alloy Steel like ASTM-A-217 Gr. WC-6 / WC-9; and Cast Stainless Steel like ASTM-A-351 Gr. CF-8, CF-3, CF-8M & CF-3M. Size range starts from 50 NB through 900NB and pressure rating from 150# to 600#.

Single and Double Pilot Valve, Lever Type Hand Rotary Valv

Optional : Alternate investment cast valves in Stainless Steel, Welded on integral flanged ends, Seal welded bonnet, Extended bonnet and Bellow sealed bonnet.

Manufacturing Facilities: State-of-the art production facilities in Kundaim, Goa and in Pune, Maharashtra; spread over a lakh of sq. feet in aggregate I SO, 9001-2008 certified operations. Facility accredited under CE marking, ASME, U,PP and R Stamps as well as PED. Facility and products approved by Global Engineering Consultants and Contracting companies. Well-equipped testing and inspection facilities. World class finishing and packagind processes Well documented and appropriately preserved inventories. And above all competent and caring human resources. Ball Valves Floating ball Valves: Carbon steels, stainless steels and variety of alloy steels. Two piece and three piece designs. Soft seated and metal seated; 150, 300 and 600 lbs in cast version, 800 lbs in Forged Bar. Full Bore and reduced bore; sizes ½" to 8". Trunnion-mounted Ball Valves Carbon steels, stainless steels and variety of Alloy steels. Two piece and three piece designs. Soft seated and metal seated. 150, 300 and 600 lbs in cast version- in forged Sizes: 3" to 24" Butterfly Valves Wafer, Lugged and Flanged: - Cast iron, Cast Steel and Stainless Steel Body; Moulded seat, Pressure classes 125 lbs and 150 lbs. Sizes: 3" to 24" Triple-offset, Metal seated: - Carbon steels, Stainless Steels and variety of Alloy steels, Pressure classes 150, 300 and 600 lbs Sizes: 3" to 24" Gate, Globe and Check Valves In cast version: Carbon Steels and Stainless Steels, 150, 300 and 600 lbs sizes ½" to 12" In Forged: Carbon Steels, Stainless Steels and Alloy Steels, 150 to 2500 lbs sizes ½" to 2"

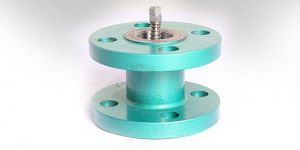

As leading excess flow check valve manufacturers, AEPL produces several types of EFCV in various sizes and using various materials based on client needs. Screwed, flanged, internal and sandwich are the types of excess flow valves, manufactured in standard sizes by. For specific industrial processes, the valves can be completely custom-engineered. There can be modifications in the material used, pressure settings, designs and end connections.With the series 2100 valves, installation can be done on tanks or in pipelines. Our series 3100 excess flow check valves are designed for installation on tanks. Their key characteristic is high flow capacity with less pressure drop. The valves have male threads on inlet side and female threads on outlet side. These valves can beused in any position. The Anil-make series 7100 excess flow check valves come with female threads on inlet and outlet areas. These are also high flow capacity valves with low pressure drop. Designed specifically for installation in lines, these valves are ideal for liquid or vapour. The applications of flanged excess flow check valves and sandwich type valves include LPG, Propane, NH3 Storage tanks, road tanker and pipe lines. The customized valves can be used for VCM, DMA, MMA, CO2 and O2 as well. The internal excess flow check valves can be utilized for LPG Propane road tankers and storage tanks. This type is provided with arrangement for isolation and closes automatically in case of five. Our valves go through several quality checks as per industry standards. The valves are tested in high-end laboratories for performance and their ability to withstand the operating condition. Additionally, we also arrange for additional certifications as required by clients for meeting the quality standards.Sandwich type valves are fitted between to flanges of pipe joint. At AEPL, we use our experience and expertise to produce high-quality valves that can serve the client’s purpose for several years with low maintenance costs.

With the help of our intelligent team of technicians, we render high quality services for PVCPU Belt Repairs & Joints. In a very short period of time, we have received huge appreciation for our service due to the fine finish offered to the repairs and joints. Our services are also focused at enhancing the longevity and smooth functionality of these products.

Cast Steel Gate Valves, Cast Steel Check Valves, Bronze Gate Valve

5 / 2 Double Pilot Valve, Flamp Proof Limit Switch Box, Vac Linear Actuato

Check Valve, Gate Valve, Check Valve, Gate Valv

PP Non Return Valve, PVC Foot Valve, CPVC Valve, UPVC Valve

Check Valves, Jute Bags, Precision Pipe Fitting

Check Valves, Actuators, Industrial Machines, Nozzle

Check Valves, Office Stationary, Globe Valves, Gate Valves, Ball Valve

Foot Valve, Welding Electrodes, Oil Lubricant, Valve, Y Strainer Valv

PVC Check Valves, New Square Box, Coupler, PVC Gate Valves, PP Pipe Te

Check Valves, Gate Valves, Ball Float Steam Trap, Thermodynamic Steam Tra

Angle Type Check Valve, Reflux Valv

Excess Flow Check Valve
