Check Valves Dealers in Ghatkopar, Mumbai

Cast Carbon Steel Swing Type Check Valve, Bolted Cover, Flanged End to ANSI 150, Body, Cover, Disc, Bracket and Lever as per ASTM A 216 Gr. WCB, 13% Cr. Steel Working Parts, AISI 410 Hinge Pn, Highstensile Studs and Nuts, Spiral Wound S.S. 304 Graphoil Filled Gasket, Valve as per BS 1868 and Tested to API 598.

In order to ensure the safety of the products, we carefully store the lot under hygienic conditions and safe environment. Moreover, the lot is stringently and regularly checked by the experts. You can rest assured us for the safest and superfast deliveries of the product range that we carry out in the dedicated time frame. Our Inconel Check Valves are tested on various parameters by our experts in order to offer the clients with the best.

Design :   API 6D / API 594 / ASME B 16.34 Face To Face :   API 6D / API 594Testing :   API 6D / API 598Material :   ASTM SpecificationsTrims :   Varities of combinationsSoft seat for tight shut-off.Lesser weight, smaller size and lesser force to open.Optional:   Replacement of conventional check valves without Pipeline modification.

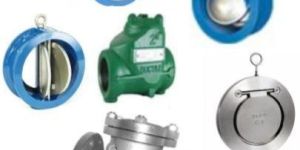

Check Valves or non-return valve, allows the fluid to pass in one direction only. A ball check valve is a check valve in which the closing member, the movable part to block the flow, is a spherical ball. In some ball check valves, the ball is spring-loaded to help keep it shut. A diaphragm check valve uses a flexing rubber diaphragm positioned to create a normally-closed valve. Pressure on the upstream side must be greater than the pressure on the downstream side by a certain amount, known as the pressure differential, for the check valve to open allowing flow. Once positive pressure stops, the diaphragm automatically flexes back to its original closed position. A swing check valve or tilting disc check valve is check valve in which the disc, the movable part to block the flow, swings on a hinge or trunnion, either onto the seat to block reverse flow or off the seat to allow forward flow. The seat opening cross-section may be perpendicular to the centerline between the two ports or at an angle. Although swing check valves can come in various sizes, large check valves are often swing check valves. A stop-check valve is a check valve with override control to stop flow regardless of flow direction or pressure. In addition to closing in response to backflow or insufficient forward pressure (normal check-valve behavior), it can also be deliberately shut by an external mechanism, thereby preventing any flow regardless of forward pressure. A lift-check valve is a check valve in which the disc, sometimes called a lift, can be lifted up off its seat by higher pressure of inlet or upstream fluid to allow flow to the outlet or downstream side. A guide keeps motion of the disc on a vertical line, so the valve can later reseat properly. When the pressure is no longer higher, gravity or higher downstream pressure will cause the disc to lower onto its seat, shutting the valve to stop reverse flow.

We offer Disc Check Valve. Disc Check Valves are recommended after traps discharging into closed systems to guarantee Non return or no reverse flow. These check valves can be mounted between pipe flanges in any direction. DCVs feature a compact and rugged stainless steel design and are suitable for any process liquid & gas, apart from steam. Disc Check Valves are designed to be sandwiched between flanges i.e. Wafer type. They are suitable for use on a wide range of fluids for applications in process lines, hot water systems, steam and condensate systems etc. Face-to-face dimensions conform to EN 558 part 2, series 52. •As standard it will be supplied with a metal-to-metal seat for use on steam applications. Springs are suitable for high temperatures up to 400°C. •MOC: ASTM A 351 Gr. CF8M •Sizes: 15mm to 150mm •Pressure: #150 and #300 •IBR IF REQUIRED

We are offering Check Valves

A] Air Compressor - Spare Parts 1] INGERSOLL-RAND :- [ IR- T-30 SS NL LPG Series ] 2] INGERSOLL-RAND :- [IR- ESV ESH IHE PHE LLE HSE XLE- Series ] 3] ELGI Compressors : - [ ELGI- SC TC THPC HV SS TS HP Series ] B] Other Air Compressors- Spare Parts 1] FOUJI :- [ FOUJI- MB SMB FI FID MBD ] 2] AIR-MARSHAL :- [AIR- MARSHAL- GC-305V , GC-294 , GC-7150 , GC-2595 ] 3] BOSS :- [ BOSS- MB SS SD ST TD TT HT HP ] 4] INDO-AIR :- [INDO-AIR- IA IAV ] 5] JK PNEUM :- [JK PNEUM- 25S , 50S , 75L , 100L , 75H , 150H ] 6] PARKEEN :- [ PARKEEN- SA SB SF SS SV TCA TCB TCI TCK ] 7] PNEUMECH :- [ PNEUMECH- PM PMF ] 8] ZEN AIR :- [ ZEN- 75H 150HH 75L 125L 25S 50S ] C] Screw Compressor - Spare Parts 1] Ingersoll-Rand ELGI Atlas - Copco CP Kirloskar Khosla Kaser Sullair Boge D] Refrigeration Chilling Compressor - Spare Parts 1] Accel Sabroe Carrier Voltas Grasso Kirloskar Stal Thermoking Trane Vilter All the Models Refrigeration Chilling Compressor Spare Parts E] Marine Compressor - Spare Parts 1] Sperre Tanabe Hatlapa Hamworthy All the Models Marine Compressor Spare Parts We do Export our product to Asian countries, Middle East, America, Canada, Europe etc. Countries. We aim to explore new avenues and conquer new frontiers.

With us, one can stay completely assured for safe and dependable payment procedures. We are a noteworthy name, engaged in offering qualitative lot of products that are the perfect outcome of premium material and modern work methods. Also, the material is sourced from the trusted places after complete quality checking.

Brass Gate Valve, Air Compression Fittings, Socket Flang

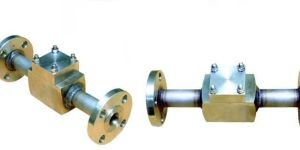

Non Return Valve – We are Non Return Valve manufacturer in Mumbai. A non-return valve allows a medium to flow in only one direction.A non-return valve can be fitted to ensure that a medium flows through a pipe in the right direction, where pressure conditions may otherwise cause reversed flow.Available in SS304,SS316, SS316L and as per Customer demand.

Forged Steel Lift Check Valve, Stainless Steel Stub En

Vertical Check Valve, Centre Hole Basin Mixer, Angular Stop Coc

Disc Valves, Diffusers, Kitchen Hood Filte

Check Valve, Ball Valve, Gate Valve, Globe Valve

Dual Plate Check Valves, Ball Valves, Gate Valves, Globe Valv

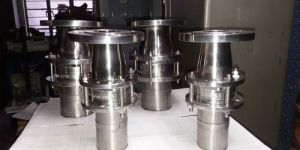

Foot Valv

Check Valves, Ball Valves, Butterfly Valves, Gate Valves, Globe Valve

We are a leading manufacturer and supplier of Double Hydrant System in Mumbai

We are leading supplier of huge range of Check Valves.

Check Valves, Forged Steel Ball Valves, Ball Valves, Gate Valve

Foot Valves, Butterfly Valves, Dual Plate Check Valve, Ball Valve
