Veena Industries Goregaon West, Mumbai, Maharashtra

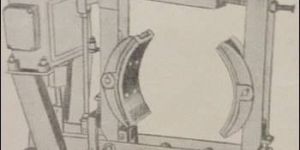

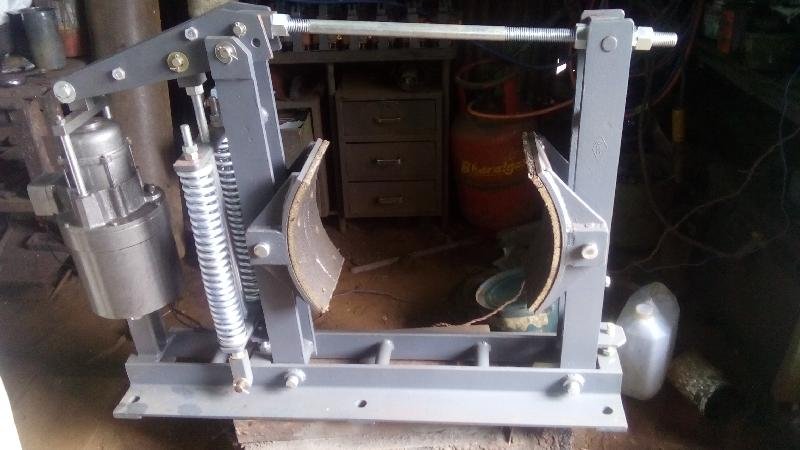

Being one of the prominent names in the industry, we have come up with Electro Magnetic Brake for our revered customers. These brakes are designed in tandem with the prevailing industry standards and are much appreciated for their precise design. Owing to their excellent functioning and fine finish, these brakes are highly demanded by the customers.   More AboutThree Phase Electromagnetic Brakes that are suitable for AC supply up to 400 to 440 volts, and are available for a wide range of Drum sizes from 150mm to 600 mm Dia. We stand in the midst of prominent Electromagnetic Brakes Suppliers based in India.Since these brakes are in normally closed position, the release of the Brake shoes is affected by energizing the Electro Magnetic coil, which overcomes the spring force and the shoes are moved clear off the drum by lever/arm linkage system so that the drum is free to rotate without any friction.When the power in given to the Electro Magnetic coil the coil gets energized and in turn pulls the plunger down. The plunger in turn operates the arm of the brakes and the brake opens.The design of the brake is such that as the lining keeps wearing out due to normal operation of the brake, adjusts itself on its own to achieve the rated toque. When specified, brake drum or drum coupling both pin bush type and flexible geared type can be supplied along with the brakes.Approx. Rs 20,500 / Piece

Veena industries manufactureing stainless steel perforated flask high grade material 316 304310 features 3.2 thickness pipe long life guarantees 6 mm flange.

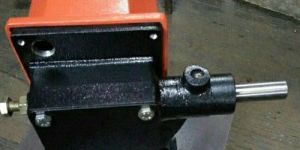

Switch Type : Rotary Limit Switch

Usage : Eot Crane

We are a fast growing provider of the finest product range, functioning from our base in Mumbai(India). We have trustworthy shipping facilities available to make on time deliveries to the destination.

We are instrumental in the manufacturing and supplying of optimum quality Thruster Brake . These brakes are precisely manufactured in compliance with technical parameters using high quality metal and latest technologies. Appreciated for their simple functionality, rust resistance and hassle-free operation, offered brakes are demanded in textile, cable winding, rubber and food processing industries.   Salient Features : This is a spring loaded normally ON Failsafe Brake Consists of Electro Hydraulic Thruster, Torque Spring and Liner riveted to Brake Shoes Works on 415 V AC, 3 Phase, 50 Hz supply Requires Transformer Oil to be filled in the thruster cylinder Function is to bring to stop, moving / rotating machinery like motor / gearbox Holds / stops the load in desired place Prevents jerk due to soft stop Maintenance free, robust design   Details : Range - Drum diameter 100mm to 600mm Thruster Capacity (Kg) - 18, 34, 46, 68, 114 Torque Capacity - 6 Kgm to 580 Kgm Applications - All Material Handling and Lifting Equipments Hoisting - Electric wire rope Hoists and Crabs Cross travel and Long travel - EOT / Gantry / Goliath / Derrick Cranes Winches and Conveyors Lifts and Elevators

Veena industries manufacturing brake shoe with lining for electro hydraulic thruster brake and electromagnetic brake all drum size from 100 mm drum dia to 600 mm drum dia

Known to be one of the trusted names in the industry, we have brought forward Brake Drum Couplings for our treasured customers. With their outstanding design and low maintenance requirements, these couplings are highly appreciated by the customers. We make these couplings available in several specifications to fulfill the varied needs of the customers.   Features : Outstanding finish High corrosion resistance Easy installation

Brand Name : veena industries

Phase : 3 phase

Power Source : AC

Number Of Flower : solenoid operated

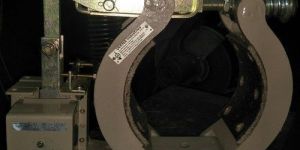

We have an extensive supply-chain system that empowers us to ensure a distribution of consignments is done within the postulated time. To ensure quality of the products, we conduct diverse quality tests at all stages and thus our products are quality assured.   More About AC Electromagnetic Brakes that are suitable for AC supply up to 400 to 440 volts, and are available for a wide range of Drum sizes from 100 mm to 380mm Dia. We stand in the midst of prominent Electromagnetic Brakes Suppliers based in India.Since these brakes are in normally closed position, the release of the Brake shoes is affected by energizing the Electro Magnetic coil, which overcomes the spring force and the shoes are moved clear off the drum by lever/arm linkage system so that the drum is free to rotate without any friction.When the power in given to the Electro Magnetic coil the coil gets energized and in turn pulls the plunger down. The plunger in turn operates the arm of the brakes and the brake opens.The design of the brake is such that as the lining keeps wearing out due to normal operation of the brake, adjusts itself on its own to achieve the rated toque. When specified, brake drum or drum coupling both pin bush type and flexible geared type can be supplied along with the brakes.Approx. Rs 4,000 / Piece
