Vijay Engineering and Machinery Company (VEMC) Fort, Mumbai, Maharashtra

Theses pumps are constructed rigidly to ensure vibration free operation. Hydraulic design is being updated with our continuous R&D efforts to meet requirements of higher efficiency and lower submergence, taking care of other parameters such as, high reliability and optimum system design. Features:  Vibration-free performance Low submergence No priming required Dry pit/Wet pit arrangement available Direct drive/Right angle gear drive Impeller pull-out/Non-pull-out Bowl pull-out/Non-pull-out Gland packed / Mechanical seal 50Hz / 60Hz availability   Application: Water supply Pumps Irrigation Pumps Cooling tower Thermal and Nuclear power plants Steel, Cement industries Refineries Sea water on off-shore platforms Condensate extraction Fire fighting Pumps Flood control Dry Docks   Specification: Delivery size up to 2200 mm Capacity up to 40,000 m3 /hr Head up to 200 m

Features:  Digital display Easy to Read Inbuilt Overload & Remote sensing dry-run protection Reverse phase protection, Single phase protection High Winding Temperature, Mechanical Seal Failure Optional-IP55 enclosures Microcontroller based Electrical control panel for control of pumps in Auto/Manual mode, etc.   Application: Use for 3-Phase/1-Phase pumps for Tank to tank Dewatering Borewell Operations Secondary cooling systems Available for Submersible pumps, Surface pumps, Vertical Inline pumps etc.   Specification: Incorporated with HMI display Push Buttons for pump ON/OFF manually Auto operation based on Level & Prog ON/OFF Timers by Built-in Integrated Electronic Module along with Neon Indicators.

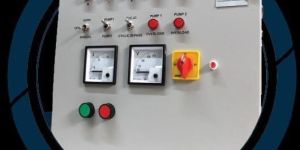

Features:  Overload protection Trip Indicator,Dry-Run Protection, Reverse phase protection Single phase protection High Winding Temperature Mech Seal Failure Optional-IP55 enclosures   Application: Use for 3-Phase/1-Phase pumps for Tank to tank Dewatering Borewell Operations Secondary cooling systems Available for Submersible pumps, Surface pumps, Vertical Inline pumps etc.   Specification: Incorporated with HMI display Push Buttons for pump ON/OFF manually Auto operation based on Level & Prog ON/OFF Timers by Built-in Integrated Electronic Module along with Neon Indicators.

Kinetic air valves are commonly used in air ventingair admission services in water pipelines. Performance of a kinetic air valve is severely affected by tampering the valve with an external mechanism. Tamper proof Kinetic Air Valves provide longer service life and cost effective maintenance. With cast iron body, cover and cowl it has a pressure rating of PN 1.0-1.6.

Mobile Solar Generators are compact Solar PV generators which are suitable for backup requirement of residential and small commercial consumption. It enables instant power supply with easy installation. Collapsible structure assembly and portable design makes it easy to transport and install.Mobile Solar Generators are designed with robust structure to face extreme environmental conditions. The unit is inbuilt with storage capacity {Li-ion batteries} to store surplus power which can be utilized during the night time. Benefits Free Power Generation Environment Friendly 24x7 Reliable Power Plug & Play Convenience Option of Fixed & Mobile System Modular & Scalable

Features:  Complete Motor Protection from various Electrical faults Separate Chambers for Power Bus/Cable Alleys & Total Isolation from Control / Starter Feeders Modbus connectivity for remote access Control panel works based on the PLC program VFD controller or the relay logic   Application: For automatic operation of the multiple pumps/motors according to the system constraints   Commercial and industrial applications Controlling multiple motors through central location   Specification: Single enclosed unit containing the motor starters, fuses or circuit breakers and a device for disconnecting power Overload Protection, Reverse phase protection, PLC protection ,Trip indicators etc. Switchgear from L&T / Schneider Electric / Siemens

RKB is a multistage centrifugal side suction, vertical delivery, horizontal pump with diffuser type casing. Pump shaft is supported in anti-friction bearings. Enclosed impellers are of radial flow type provided with balancing holes. These pumps have standard lubrication of grease and are suitable for coupling with electric motors.

These pumps are horizontally mounted having axially split casing. They can either be single stage or double stage. These are designed with single suction with a single volute operating at 50 Hz or 60 Hz. These pumps are used in urban water supply, industries, irrigation, air conditioning and so on. Water supply Air-conditioning Power plants Mine drainage Irrigation Fire fighting.

This is also known as swing type valve. These valves are designed with perfect flat seating for better sealing. With a pressure rating of PN 0.2 these valves are widely used in suction side of pump to avoid flow reversal. Features:  Rigid and sturdy design with minimum loss of head across the valve Perfectly flat seating surfaces for good sealing Preventing entry of foreign body to pump through suction pipe Long service life   Application: Used in suction side of pump to avoid flow reversal from pump to sump with monobloc pumps   Specification: Manufacturing Standard : IS 4038 Size Range : 50 to 600 mm Pressure Rating : PN 2

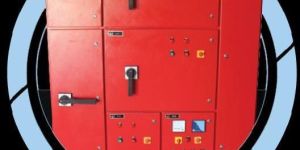

Features:  Completely automatic in operation except Switching off Diesel Engine driven pump Automatic operation of Main & jockey pumps Diesel Engine panel contains Auto Diesel Engine Starter & Battery charger Audio / Visual Fire alarm when Hydrant goes ON   Application: To Automatically control the fire pumps in case of fire situation. It is also incorporated with the Alarm system to maintain all the fire pipe line at set pressure to start DG engines automatically in case electricity failure   Specification: Incoming Control & Total Protection with MCCB / MPCB / MCB / SFU / HRC Fuses BAS/BMS related contacts incorporated in the Panel Switchgear from L&T / Schneider Electric / Siemens Control Panels for DOL / Star Delta Motors upto 1000 HP

With a low operating torque these valves have very sturdy and robust design. KBL has successfully carried out Flow Test on large size Butterfly Valves including 2200 mm in its in-house Hydraulic Research Centre at Kirloskarvadi. Another feature which makes KBL butterfly valves competitive in the market is its low life cycle cost and lower maintenance. With centric type pressure up to PN 1.6/Class 250, these valves find wide application in water works, water/effluent/sewage treatment plants and so on. Features:  Rigid and sturdy design with minimum loss of head across the valve Compact, light weight, low operating torques Eccentric seat geometry results in less wear and tear and longer life Self cleaning and non jamming seat design Gas tight shut-off Self energizing seating design Combined 'O' ring and 'U' cup seating on shaft Through flow disc design for large size Butterfly Valves   Application: Water works Power plants Sewage plants Process industries Chemical and petrochemical plants   Specification: Manufacturing Standard BS 5155 (BS EN 593)/ AWWA C504/ IS 13095 Size Range 50 to 4500 mm Pressure Ratings PN6, PN10, PN16, PN20 Class -75, 150, 250 End Connection Double Flanged

Domestic pumps, These pumps are designed with aluminium extruded motor body for better heat dissipation and corrosion resistance. Double shielded ball bearing ensures no external lubrication. Impeller is of high tensile brass and delivery casing is of cast iron. These are used in bungalows, hospitals, small fountains and so on. Head range up to 24 m Discharge range up to 2000 LPH Power rating up to 180 W (0.25 HP)

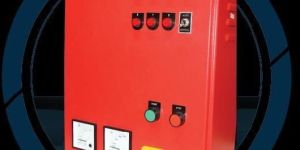

Features:  Incorporated with automatic diesel engine starter & battery charger Remote engine monitoring available by a variety of communication protocols Hooter alarm for emergency alert Trip Indicators, ON alarm, fault displays  Controls main power failure, if in case, etc   Application: Used in Fire Fighting systems. Also used as fire alarm control panel which will alert other systems. Alternate option for running pumps in remote areas.   Specification: Works in absence of electricity Auto/manual cranking for engine start Battery charging feature Automatic operation based on Pressure by Differential Pressure Transmitter or Pressure Switch.

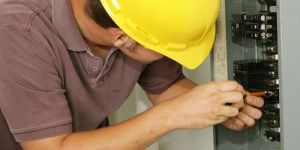

Features:  Total protection against Electrical malfunctioning like overload, reverse phase, single phase, high current etc. Incoming Control & Total Protection with MCCB / MPCB / MCB / SFU / HRC Fuses Separate Chambers for Power Bus / Cable Alleys Total Isolation from Control / Starter Feeders, Wireless connectivity available   Application: Power Panels - Regulating the power Distribution of power to the individual systems according to their needs in industries/ manufacturing units/  pumping stations/grids. Annunciation Panel - For alarming any malfunctioning and providing live status of various parameters in Generator System, Automation Systems, Fire Systems, Substation Control Room etc. AMF Panel - Make the power switch to emergency standby g   Specification: Switchgear from L&T / Schneider Electric / Siemens Auto operation based on Level & Differential Pressure by PLC-VFD PID & Differential Pressure Transmitter or Pressure Switch

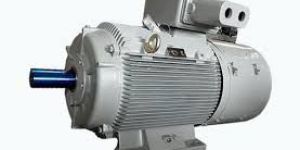

Crane duty motor, Ambient Temperature -10 to +50 degree C Altitude Not exceeding 1000mtrs above mean sea level. Atmosphere Non Corrosive & non Hazardous Relative Humidity Up to 100% Voltage 415V ?10%, 3 Ph. Frequency 50Hz ?5% Combined Variation 10% Duty S3,S4 & S5 (Refer KHD-50-33R2) Service factor 1.0

These valves are widely used for Naptha and Naptha derivatives in oil refineries. With a flanged end connection, these valves are designed with BS1873 standards. Its rigid and sturdy design along with low pressure across the valve make it a very formidable model in the entire product line. Features:  Double Flanged / butt weld end, outside screw rising stem, yoke type bonnet Back seating bush arrangement to enable repacking under pressure Rigid and sturdy design Long Service Life   Application: Naptha and naptha derivatives in oil refineries Water, steam, air, gas and liquids having corrosive properties Suitable for wide range of working conditions of pressures and temperature ratings   Specification: Manufacturing Standard BS 1873 Size Range and Pressure Rating 25 to 400 mm Class 150 25 o 300 mm Class 300 End Connection Flanged

These valves are widely used as for Naptha and Naptha derivatives in oil refineries. With a flanged end connection, these valves are designed with API 600 standards. Its rigid and sturdy design along with low pressure across the valve make it a very formidable model in the entire product line. Features:  Double Flanged / butt weld end, outside crew rising stem, yoke type bonnet Back seating bush arrangement to enable re - packing under pressure Rigid & sturdy design Low pressure loss across the valve Long service life and leak tightness   Application: Naptha and naptha derivatives in oil refineries Water, steam, air, gas and liquids having corrosive properties Suitable for wide range of working conditions of pressure and temperature ratings   Specification: Manufacturing Standard API 600 Size Range and Pressure Ratings 50 to 750 mm : Class 150 50 to 600 mm : Class 300 50 to 350 mm : Class 600

Canned Motor Pump is a centrifugal pump with hermetically sealed electric motor mounted on single shaft thus eliminating the requirement of mechanical seal or other sealing device. Entire rotating assembly is immersed in the liquid, and motor stator and rotor are isolated from the pumped liquid with corrosion resistant, non-magnetic liner and sleeve. A part of the pumped liquid is by-passed through the motor, for cooling of motor and lubricating the bearing. Features:  No seal-no leakage No coupling-no alignment and no vibration problem No separate lubrication of bearing and no contamination of lubricant No antifriction bearings Small and compact design resulting in saving in installation space Easy maintenance and longer life Extremely low noise level Absolute safety from risks of fire, explosion and leakage Automatic thrust balancing Vacuum tight construction prevents air contamination of process liquids   Application: The high reliability of these pumps makes them suitable for pumping of toxic, hazardous liquids, high temperature, high pressure services in nuclear power plant, Lithium Bromide circulation in refrigeration plant, Ammonia transfer in fertilizer plants, refineries, chemical and pharmaceutical industries and other process industries for handling toxic, hazardous or expensive fluids.   Specification: The high reliability of these pumps makes them suitable for pumping of toxic, hazardous liquids, high temperature, high pressure services in nuclear power plant, Lithium Bromide circulation in refrigeration plant, Ammonia transfer in fertilizer plants, refineries, chemical and pharmaceutical industries and other process industries for handling toxic, hazardous or expensive fluids.

Canned Motor Pump is a centrifugal pump with hermetically sealed electric motor mounted on single shaft thus eliminating the requirement of mechanical seal or other sealing device. Entire rotating assembly is immersed in the liquid, and motor stator and rotor are isolated from the pumped liquid with corrosion resistant, non-magnetic liner and sleeve. A part of the pumped liquid is by-passed through the motor, for cooling of motor and lubricating the bearing.

Feature : No seal-no leakage No coupling-no alignment.

These valves are manufactured as per IS: 9890/EN ISO 17292/BS 5351 specifications for wide spread usage in refineries, fertilizers and petro chemical industries. These are single piece/ three piece design, full bore/reduced bore. All compliance as well as application design and testing standards are maintained for smooth functioning of these valves. Features:  Single piece / three piece design, full bore / reduced bore Ends - Screwed / Socket weld / Flanged end   Application: Refineries Fertilizers & Petro Chemical Thermal Power Stations Process Industries

Air conditioning Sprinkler systems Fire fighting Booster service Handling clear and turbid water up to 3000 ppm Water supply. With a back pull out design these pumps are gland packed or mechanically sealed and are used for air conditioning, booster service, fire fighting and sprinkler system. Delivery size varies from 32 mm to 150 mm.
