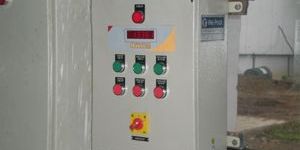

Features : * Weighing System to handle Silos, vessels, tanks & hoppers; 1 tonne to 1000 tonnes * Basic weight monitoring to full process control across the site * Solids, liquids, semisolids; internal or external; new or retrofit solutions * ATEX approved systems for hazardous areas * Range of indicators for management information and control * Unique load cell assemblies

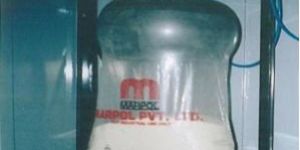

we are offering smal bag filling system. suitable for bagging of sugar, salt, grain, fertilizer plastics, chemicals and animal feed. sturdy solid equipment combined with state of the art plb based weighing technology to give you reliable around the clock bagging.

we are offering single drum filler. this is a semi-automatic, sub-surface filler. this system requires empty drums to accumulate prior to the filling station. bungs are removed and left on top of each drum, prior to filling. a scale mounted powered conveyor drives each drum on & off the fill station. the operator will replace the bung and place a cap or label while the next drum is filling. full drums will convey to a palletizer, accumulate in-line or be picked-up by fork truck.

Number Of Flower : Filling Machine

Brand Name : Wei-Pack

Material : Stainless Steel

Phase : Single Phase

Corrosion Resistance : Yes

Machine Structure : Horizontal

Filling Valve Head : Single Headed

Total Carbohydrate : 1 Year

Shape : Rectangular

Certification : ISO 9001:2008

Country of Origin : 220V

Condition : New

Automatic Grade : Semi Automatic

Driven Type : Pneumatic

Finishing : Polished, Powder Coated

Power : 10 KW

Dimension (LxWxH) : 580x260x465mm

Packaging Type : Wooden Box

Usage : DRUM FILLING

Specialities : High Performance, Easy To Operate

Availability : 100-500 Kg

Pressure : Low Pressure

We deals in manufacturing and supplying of wide range of Siever.

A prominent manufacturer, supplier of huge range of Rotary Valve.

Power : 10 HP

We are well known for manufacturing and supplying of wide variety of Plough Shear Mixer.

We deals in manufacturing and supplying of wide range of Online Check Weigher.

Application : Industrial Use

Number Of Flower : Loading Spouts

Country of Origin : India

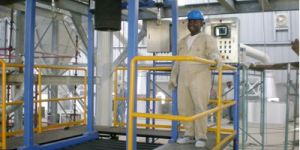

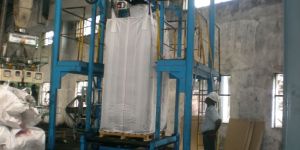

We are offering bag filling system. Features : * machines, which can fill single loop and 4 loop big bags * well proven technology * accurate filling of 250-1000kg bags, boxes, bins & containers. * reliable and easy to operate * simple bag size adjustment * low maintenance * low headroom required * mounted on integral 4 load cell weigh platform * auto tare – deducts weight of bag and pallets giving only net weight of product in bag * plc based weighing controller. * ifc mode for better accuracy.

Country of Origin : India

Number Of Flower : Jumbo Bag Filling Machine

Certification : ISO 9001:2008

Application : Food Packaging

Country of Origin : 220V, 380 V, 50 Hz, 60 Hz

Condition : New

Automatic Grade : Automatic

Bag Type : Plain Jumbo Bags

Warrenty : 1 Year

Brand Name : Wei-Pack

Material : MS / SS

Brand Name : Wei-Pack

Automatic Grade : Automatic

Certification : ISO 9001:2008

Number Of Flower : Jumbo Bag Filling Machine

Country of Origin : India

We are leading manufacturer and supplier of huge range of High Pressure Vessel.

We are well known for manufacturing and supplying of wide variety of Gravity Roller Conveyor.

Number Of Flower : IDLER

Brand Name : Wei-Pack

Material : MS

General Specifications * Two inch diameter product valve for faster flow rates * Wetted parts are 304 stainless steel with Teflon seats & seals * 500 Kg capacity scale base with four load cells * PLC based weight controller & load cell * Dust proof standard enclosure, others optional * PLC based controller * RS-232 port for optional data acquisition and printer connection * Fully welded structural steel frame

We are offering drum decanting system. A drum decanting unit, or ddu, is a mechanized and automated means to add drummed additives to the blending system. The mechanization of drum decanting promotes safety and resource utilization while decreasing blending variation and labor costs. The unit's automation simplifies recipe management and production planning while limiting waste generation.

This is the same top filling machine upgraded with options like a floor mounted controls stand, cablewinch boom height adjustment and gravity conveyors at the infeed and discharge ends.

We are leading manufacturer and supplier of different range of Bucket Elevators...

Material : MS

Brand Name : Wei-Pack

Driven Type : Electric

A prominent manufacturer, supplier of huge range of Belt Conveyors.

Wei-Pack offers manual, semi-automatic, and automated dispensing & formulation solutions to suit your individual requirements.

We are offering automatic palletized drum filler. Features: * vision based scanner system * twin gantry carriages * lance carriage with guided tracks * x, y & z axis positioning * servo motors for gantry drive * fully welded structural steel frame and conveyor * chain driven live roller or chain conveyor surface * 316 stainless steel all wetted parts * top-fill or sub-surface filling * dual control valves to eliminate water hammer * instant shift from fast to slow fill

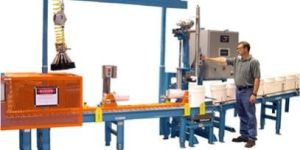

We are offering automatic pail filling system. General specifications * two inch diameter product valves for faster flow rates * quick change 2" diameter lances * wetted parts are 304 stainless steel with teflon seats & seals * 300 kg capacity scale base * fully welded structural steel frame * lance carriage with guided tracks * air operated drip pan and teflon wiper rings * plc based weight controller & load cell * dust proof standard enclosure, others optional * rs-232 port for optional data acquisition and printer connection * alpha - numeric operator keyboard

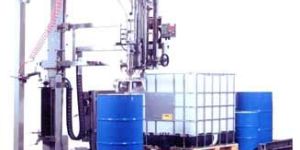

We are offering automatic ibc filler. General specifications * automatic abort if lance is not aligned with bung opening * two inch diameter product valves for faster flow rates * quick change 2" diameter lance * wetted parts are 304 stainless steel with teflon seats & seals * 1500 kg capacity scale base with four load cells * fully welded structural steel frame * air operated drip collector and teflon wiper ring * built in fume hood for vapor collection * plc based weight controller & load cells

Driven Type : Electric

Features * A solution to suit your product and application * Economic to buy – easy to install * Simple solid construction * Reliable operation * Low maintenance design * Compact machine * Sealed system to eliminate dust emissions during discharge * Adjustable for different bag dimensions * Designed for ’Clean-Flow’ product discharge

Country of Origin : 220 V

Material : Stainless Steel

Pressure : Low Pressure

Operating Type : Manual

Packaging Type : Carton Box
