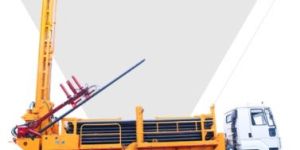

DTH 2000 DTH Auto Loader
Get Price Quote
1 Piece (MOQ)
Capacity : DTH - 2000
DTH Drill Size Min. - Max : 8" to 11"
Max. Depth : 600 mtr
Pull Down : 11200 Kgf
Pull Back : 18400 Kgf
Hoisting Speed : 27mtr/min
Mast Length : 8620mm
Rotary Head Drive : 6950mm
Centric Opening : 311mm
Compressor : 1100 CFM/300 PSI
Max Pressure : 275 Kgf/cm2
Capacity : 550 Ltr
Prime Mover Rated Capacity : 98ps@1500 Rpm
Carrier Wt : 163psi@2600 Rpm
Rod Handling Capacity : Up to 6 mtr
Road head Torque/Rotation Speed : 300 Kg-m,0-90 Rpm
Water Injection : 50 Ltr / Min
Pump Flow Pressure : 40 kg/cm
MRC : 100x800 - 2 No.

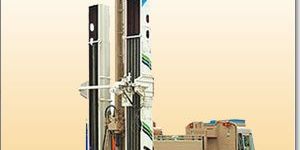

EHD Auto Loader
Get Price Quote
TECHNICAL SPECIFICATIONS Diameter 6 1/2" borehole Depth 363 mtr Application Water Well Drilling Rig Formation soft / hard PRIME MOVER Truck mounted Rig with power from Truck Engine /deck Engine MOUNTING The rig unit is mounted on a suitable Truck MAST Box type structure Max Capacity - 20 tons (44,000 lbs) Height - 8 mtr (27 ft) Rod handling capacity - 6.0 mtr (20 ft) PULL UP SPEED 39 mtr/min (118 ft/min) PULL UP FORCE 10750kgs (20240 lbs) PULL DOWN FORCE 6318 kgs (13900 lbs) PULL DOWN SPEED 50mtr/min (167ft/min) HYDRAULIC SYSTEM 210 kg / cm2 / (3000 psi) JACKS Four Hydraulic jacks COMPRESSOR SUITABLE COMPRESSOR
