CNC Machine Sensor Dealers in Nashik

Proximity Switches is served as a basic block of automation.We are proximity switches manufacturer and supplier offering sensing solutions for all applications.They are widely appreciated for their easy installation, durability, excellent resistance properties and high insulation. Our proximity switches have a long shelf life. These switches are used in all areas of automotive technology. This range is offered in inductive cylindrical type. The technical specifications of this range are the following: Supply : 230 VAC Voltage O P : Relay Output No and NC Infra Systems offers Inductive proximity switches for sensing ferrous material. These are used for automation.

Beam of invisible pulsed modulated infra - red light is produced by emitter. This beam is sensed by receiver at another end (in through beam version) or reflected by object and received by receiver placed near emitter (in diffuse version). When this beam is interrupted by object, the receiver signal gets changed and signal is produced.

• Material: Stainless Steel
• Features: Dimensional accuracy, Unique design, Technology advanced .
• Brand: Electronic Switches
• Sensing Distance: 15 mm
• Supply Voltage: 10 to 30 V DC
• Usage/Application: Industrial

• Brand Name: JK Electronics
• Housing: Brass Nickel Plated

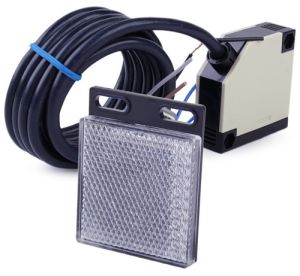

We are offering retro reflective switch. Supply : 10 to 24 vdc output : npn or pnp transistor current : 100 ma sens.dist. : 3-5 mtr. Status indicator : led. Protection : reverse polarity.

An "absolute" encoder maintains position information when power is removed from the system. The position of the encoder is available immediately on applying power. The relationship between the encoder value and the physical position of the controlled machinery is set at assembly; the system does not need to return to a calibration point to maintain position accuracy. An "incremental" encoder accurately records changes in position, but does not power up with a fixed relation between encoder state and physical position. Devices controlled by incremental encoders may have to "go home" to a fixed reference point to initialize the position measurement. A multi-turn absolute rotary encoder includes additional code wheels and gears. A high-resolution wheel measures the fractional rotation, and lower-resolution geared code wheels record the number of whole revolutions of the shaft.  An incremental rotary encoder provides cyclical outputs (only) when the encoder is rotated. They can be either mechanical, optical or magnetic. The mechanical type requires denouncing and is typically used as digital potentiometers on equipment including consumer devices. Most modern home and car stereos use mechanical rotary encoders for volume control. Due to the fact the mechanical switches require denouncing, the mechanical type are limited in the rotational speeds they can handle. The incremental rotary encoder is the most widely used of all rotary encoders due to its low cost and ability to provide signals that can be easily interpreted to provide motion related information such as velocity. The fact that incremental encoders use only two sensors does not compromise their resolution. One can find in the market incremental encoders with up to 10,000 counts per revolution, or more. There can be an optional third output: reference or "index", which happens once every turn. This is used when there is the need of an absolute reference, such as positioning systems. The index output is usually labelled Z. The optical type is used when higher speeds are encountered or a higher degree of precision is required. Incremental encoders are used to track motion and can be used to determine position and velocity. This can be either linear or rotary motion. Because the direction can be determined, very accurate measurements can be made.

• Type: Optical
• Power Supply: 10-30 Volts DC
• Application: Sensing
• Operation Pressure: 10Kg/cm2
• Load Current Max: 100mA
• Surface Treatment: Powder Coated

IntroductionThe Optical Proximity Switches are a reliable solution for automation where other Proximity Switches have limitations.These are Infra-red type sensors incorporating advance and reliable technology.These switches have a distinct advantage of higher sensing distance over Inductive and capacitive type switches.   These can work more reliably in a noisy electro-magnatic radiation environment. As an infra-red wavelength is used, it is immune to visible light interference.Applications These switches are very useful for counting and position sensing application in Pharma, food, Paper, Plastic Automobile industry. They also work effectively in level sensing applications for solids, grains, sand, ice and other non-metallic bulk material. Some typical applications are; Component positioning sensing in Electronic Industry Counting of bottles, Jars, Containers etc. Glass sheet position sensing For security 7 safety in machine Tools, presses etc. Colour sensing applications Principal Of OperationThese Switches incorporates an infra-red transmitter and receiver device hose in single enclosure or separate enclosure. The precision pulsed transmitter beam is interrupted or reflected by the object. The advanced electronic circuit generates an effective output signal when the object is sensed.Diffused Scan: Diffused scan type switches have both transmitter and receiver is same enclosure. The closely focused beam is reflected back by the object. Through-Beam: Through-Beam type switches have separate transmitter and receiver. The object is sensed when the beam is interrupted.Retro Reflective: Retro reflective switches use a special reflectorto reflect back the beam. When an object interrupt the beam, an output signal is generated. These model have greater sensing distance compare to diffuse scan type. The receiver does not considerthe reflection from the object.Technical Terms Standard ObjectThe sensing distance specified for diffused scan switch is considered with a white object having minimum 90% reflectivity.ConstrictionThese switches are offered in tubular metallic, Acrylic and Plastic enclosure. Standard model are available with integrated two meter long cable. Switches with built in (Male) connector.

• Brand Name: Samrat
• Current Rating: 300 mA
• Shape: Rectangle
• Sensing Distance: 5 mm
• Cable Length: 2 mtr
• Material: Plastic
• Color: Sky Blue
• Operating Frequency: 1 KHz
• Features: Durable, Dimensional accuracy, Type Flush/Non-Flush, Logic NPN/PNP, Out Put Indicators Through LED
• Size: 18*18*36 mm
• Power/Voltage: 5 to 30 VDC
• Protection Degree: IP 67
• Voltage Drop: 1.5 VDC

• Sensing Distance: 90 / 80 / 65 mm
• Current Rating: 200 mA
• Model Number: IP 18308 DN
• Brand Name: Electronic Switches
• Shape: Cylindrical
• Cable Length: 2 mtr
• Features: Optimum Strength , Excellent performance , Easy to handle.
• Supply: 5-30 VDC, 90 to 240 VAC
• Operating Temperature: Upto 55 Degree C
• Diameter Of Sensor: 12 / 18 /30 mm
• Housing: Plated Brass
• Output Indications: Through LEDs

We are offering ir/ photoelectric proximity switch, diffuse retro through beam sensor used in factory automation with shortcircuit reverse polarity protection.

• Switch Type: Inductive
• Brand Name: Electronic Switches
• Features: Rust proof, Precise dimensions, Durability
• Power Supply: 10 - 30 Volts DC
• Operating Temperature: Upto 55 Degree C
• Length of the Sensor: 65 mm
• Range of the Sensor: 2 - 7 / 2 - 10mm ( Ferrous)
• Diameter Of Sensor: 18 / 30 mm
• Housing: Plated Brass
• Output Indications: Through LED

Detection Principle of Capacitive Proximity Sensors Capacitive Proximity Sensors detect changes in the capacitance between the sensing object and the Sensor. The amount of capacitance varies depending on the size and distance of the sensing object. An ordinary Capacitive Proximity Sensor is similar to a capacitor with two parallel plates, where the capacity of the two plates is detected. One of the plates is the object being measured (with an imaginary ground), and the other is the Sensor's sensing surface. The changes in the capacity generated between these two poles are detected.The objects that can be detected depend on their dielectric constant, but they include resin and water in addition to metals.

Photoelectric Proximity Switch, Anti Collision Device, SENSOR CABEL

Inductive Proximity Switch, Proximity Switch And Sensor, Electronic Equipment

Photoelectric Proximity Switch, PIR Motion detector

Capacitive Proximity Sensors, Photoelectric Sensors

Photoelectric Switches, Connectors, Proximity Switches
