Subal Electronics Pathardi, Nashik, Maharashtra

230 VAC 50 Hz Single Phase Test Voltage OP Voltage: 0-30 KV AC & 0-50 KV DC OP Current 20,30,40,50,100mA Display 3.5 digit panel meter Duly 15 Minutes ON OFF Control 1 manual output voltage Meters 2 Leakage current selector sw Digital analogue panel meter Protections Tripping facility for current Interlock Zero start interlock, door inter locking

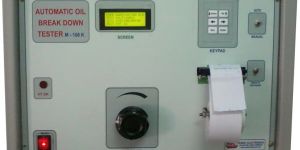

We present the best in class Transformer Oil Breakdown Tester, which is an equipment designed and produced to test the Electrical Stregth of Liquid Insulating Materials such as Transformer Oil, Capacitor Oil etc. The test set carries out test on these materials as per Indian Standard Specification IS 6792. This Oil Test Set is essential for Transformer & Switchgear Manufacturers, also for oil filtration units. Technical Specifications Input : 230/240 Volts 1 Ph 50 Hz AC+Output : 0-60 kV or 0-75 kV or 0-80 Kv or 0-100 kV Center Tap Earthed – Motorised & Manual Models AvailableCapacity : 600 VA for 60 Kv / 800 VA for 80 Kv / 1 KVA for 100 KvIndicating : Mains ‘ON’ & ‘HT ON’ LampsMetering Backlight LCD DisplayVoltmeter to monitor output Voltage Protection Zero Inter-Locking Arrangement Transparent Hood (Cover) on TEST CUP with door interlocking micro switchElectronic Fast Acting Over Current Tripping device sensing HT Current directly. Special Features Test To IS 6792 , IEC -156Ergonomic Design Complete User FriendlyResin Encapsulated HT TransformerTransparent High Impact Methyle Mathacrylate (Acrylic) Test CupRemovable Mushroom Head Electrode (IS: 6792 & IEC: 156)Duly Hardened Alloy Steel GO & NO GO gaugeMotorised cum Manual OperationUnit Housed in Portable Air Cooled Metal Casing.

We are a reputed Standard Capacitor Manufacturer, Supplier and Exporter from India. These Standard Capacitors are made using the latest technology in our advanced manufacturing unit. Standard Capacitor Values vary as per their specification. Besides, clients are free to Buy Standard Capacitor in bulk quantities as per the applications. Our Range Manual C & Tan – delta SystemSemi Automatic C & Tan-delta SystemAutomatic C & Tan-Delta system (pc)Automatic C & Tan-Delta System (Microprocessor)Automatic C & Tan-Delta System (Laptoo)Induction compensating unit (ICU) use with cap & Tan-Delta BridgeStandard Capacitance & Tan – Delta Calibrator BoxExternal Current Transformer (For range extension)Standard Capacitor (Dielectric medium - sf6 Gas)Oil Tan-Deka & Resistivity Test system Three Terminal One cell up to 3 kvResonating Inductor for range extension of power supply Minimum Order Quantity : 50

We introduce ourselves as one of the renowned Semi Automatic Capacitance & Tan Delta Testing Equipment Manufacturers, Suppliers and Exporters based in Maharashtra, India. Semi Automatic Capacitance & Tan Delta Testing Equipment is being used to obtain varied accurate measurement. Besides, our Semi Automatic Capacitance & Tan Delta Testing Equipment is widely appreciated for its high durability, innovative structure and efficiency. Features No Manual Balancing is required Graphical vector for tan-delta vs. voltageComparison of earlier reading with latestSince it is a portable system no foundation is required Data communication facility through internet can be possibleAny type of up-gradation in the existing system can be possible Automatic induction compensation facility for any external interferenceComparison of old data vs. new data for easy analysis of Troubleshooting of test objectsWindows based software is used in the system / well-known brand Lap top or pc based system Minimum Order Quantity : 50

We manufacture, supply and export Oil Tan Delta & Resistivity Test System all over the world. We are based in Nashik, Maharashtra, India and are offering Oil Tan Delta & Resistivity Test Systems in varied grades and specifications. Besides, Oil Tan Delta & Resistivity Test System, offered by us, serves the purpose of testing electrical equipment in different industries. Minimum Order Quantity : 50 SpecificationsDetailsTan-Delta range0 to 19.99 with resolution of 0.01%Tan-Delta accuracy+/-1% of the reading +/-1 x 10Di-electric constant Range0.2 to 10Test Voltage0 to 600 VacIndication31/2 digit DPMPower Supply230 Vac +/-10% / 50hzWarm up tome5 minutesInsulation Resistance TesterTest Voltage500 VDCIndicationTaut band Panel MeterWarm up time1 MinutePower supply230 VAC +/-10% / 50HzMegohm Range2 M ohm to 10o M ohm in 7 rangesHeating ChamberTemperature Range0 to 150 Deg. C.Indication31/2 digit DPMHeating ElementInduction CellTemp. Sensing probePT 100Accuracy+/-1CThe Terminal Oil cellCell materialSS & Tetlon insulatiorsCell Capacitance55 pf = / -1pfCell Constant620 (Normal)Test ElectrodesHV, LV & gaurdDistance between electrode2 mm 85 pe IS - 335Oil Volume60 ml

Manual Capacitance & Tan Delta Testing Equipment is widely used for testing resistivity and other factors of varied electrical equipment. Besides, our quality controllers perform various tests on Manual Capacitance & Tan Delta Testing Equipment before making the final delivery. We make sure that we bring forth only the best quality Manual Capacitance & Tan Delta Testing Equipment. Moreover, we have become a trusted Manual Capacitance & Tan Delta Testing Equipment Manufacturer, Supplier and Exporter in India. Minimum Order Quantity : 50 Technical Specifications Capacitance Range : 1 PF to 0.1MFDResolution Cx Multiplying Factor - 0.01, 0.1, 1Resolution - 0.1 PF, 1 PF, 10 PFAccuracy : +/-1% of reading +/- range resolution +/-1PFTan-Delta Range : 0.0001 to 100 in 2ranges 0.1 & 1.0Resolution: Tan-Delta Factor : 0.1 & 1.0Resolution : 1 x 10-4 Accuracy : +/-1% of reading +/-5 x 10E-4 Power Supply 1.1KV, 100 mA with inbuilt Standard Capacitor 230 VAC +/-10% / 50 HzRated Power : 0.1 KVa MaxO/P Voltage : 0 to 10 KV Cont.Voltage Indication : 3 ½ digit DPMVoltage Resolution : 0.01 KVVoltage Accuracy : +/- 2 % of the reading +/- 1digitO/P Current : 100 mA Cont.Tripping Current : 105 mA Features Safety Precautions : Zero start, external interlock, Body Ground with indications Modes of operations UST - Ungrounded Specimen TestGST - Grounded Specimen TestGSTg - Grounded with guard Specimen TestInterconnecting set of cables : HV lead shielded 10 meters (1 No.), LV lead single shield 10 meters (1 No.), Interconnecting leads 1.5 meters (Cx, Cs and V/ground)Operating Manual : 1 Set Calibrator Box Capacitance : 10,000 PFTan-Delta : 0.5% & 5%Test Voltage : 1 KV Max Oil cell Cell Constant : 620 nominalCell Capacitance : 55 pF to 70 PF nominalCell Material : Stainless steel (SS 316)Insulation Material : Teflon RingGap between electrodes : 2 mmMaximum applicable voltage : 2 KVVolume of oil required : 60 ml approx

10 Meg – 10^9 Meg in seven ranges Resistivity 62000 x 10 Ohm-Cms Current range 0-50 A with multiplying selector of 10^-6 to 10^ -12 Test voltage 500 V DC Test voltage accuracy Test voltage accuracy Power supply 230 V AC +- 10%, 50 Hz Indication Ana lodge Taut Band Meter Measurement accuracy +-3% on first 3 ranges and +-5% on next 2 ranges on center scale Dimensions 180 x 340 x 290 (mm) Weight 6.5 Kg approx.

We also provide Repairing & Calibration Services Of Insulation Resistance Tester.+-3% on first 3 ranges and +-5% on next 2 ranges on center scale,0-50 A with multiplying selector of 10^-6 to 10^ -12,10 Meg – 10^9 Meg in seven ranges

We are engaged in the manufacture and export of High Voltage Breakdown Tester. Our High Voltage Breakdown Tester provides effective protection from short circuits. This High Voltage Breakdown Tester is quite compact and portable. The product features rugged construction. Applications High Voltage Breakdown Testers are used to test the stress voltage and can be used for any kind of insulating material.This instrument is used in all types of electrical industries. Silent Features Short Circuit protectionCompact, Portable and RuggedSuitable for field use Technical Specifications Input Voltage : 230 V AC / 50 HzOut Put Voltage : 0 TO 5 KVAC variableOut Put Current Rating : 100 mA Max.Voltage Indication : ½ digit DPMVoltage Accuracy : 2% +/-1 DigitTrip Current : 105 mA Note : As per customer requirement voltage & current can be supplied.

We are the foremost Fully Automatic Capacitance & Tan Delta Testing Equipment Manufacturer, Supplier and Exporter from India. Fully Automatic Capacitance & Tan Delta Testing Equipment, offered by us, is made using the latest technology in our manufacturing unit. Our Fully Automatic Capacitance & Tan Delta Testing Equipment is known for its rigid construction, efficiency and performance. Moreover, we can handle the bulk orders of Fully Automatic Capacitance & Tan Delta Testing Equipment as per the requirement of the clients. Facility To Measure : Extraction current, power factor inductance, induction current, watt loss, Humidity temperature correction factor, & measures capacitance up to 0.03 MFD at 10 kv Features No manual balancing is required Graphical vector for tan-delta vs. voltage Comparison of earlier reading with latestSince it is a portable system no foundation is requiredData communication facility through internet can be possibleAny type of up-gradation in the existing system can be possibleAutomatic induction compensation facility for any external interferencecomparison of old data vs. new data for easy analysis of Troubleshooting of test objectsWindows based software is used in the system / we known brand Lap top OR PC based system Minimum Order Quantity : 50

We are engaged in manufacturing, supplying and exporting Automatic Oil Tan Delta Testing Equipment. Our Automatic Oil Tan Delta Testing Equipment is being manufactured using high-grade raw materials in our advanced manufacturing unit. Automatic Oil Tan Delta Testing Equipment delivers high-efficiency and accuracy providing the best testing solutions. Moreover, we have become of the reputed Dealers of Automatic Oil Tan Delta Testing Equipment from India. Minimum Order Quantity : 50
