Key Parameter Measured and Displayed for Battery Diagnosis Display of Battery Condition ( Good Ok Pay Attention Replaced) Overload Protection to ensure Operator Safety Loose Lead Detection ,Reverse Polarity Protection, Unit Conversion CCA IEC EN DIN

Feature : Terminal Shutter Interlock Mechanism Prevents Wrong Operations,Data Hold, Auto Power Off Etc.

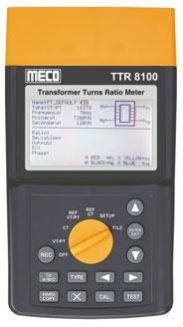

Transformer is a very important Element in the Electric Power Distribution System. It needs to be maintained from time to time to Guarantee Smooth Power Supply at Consumer end. MECO TTR8100 is Portable instrument for accurate measurement of 1-Phase & 3-Phase Transformer VT CT Turned Ratio, Excitation Voltage, Current, Phase Angle and Deviation. TTR8100 ensure the Correct Turn Ratio & Quality of the Transformer. It Check Live Test Point, Short Circuit, Open Circuit and Revers Polarity before each measurement.

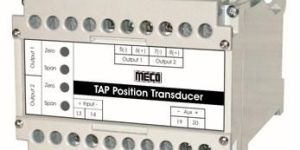

MECO Tap position Transducer takes various Resistance inputs and provides a Stable, Ripple-Free and Optically Isolated DC load independent output in the form of current or voltage. The output can be connected to Controllers, Data-Loggers, PLC's AnalogDigital Indicators, Recorders for display, analysis or control. They are ideal for SCADA, Energy Management, Telemetering for Remote, Local as well as Central Monitoring System.

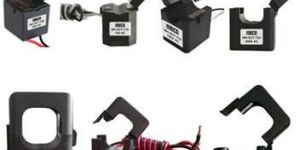

MECO Split Core Sensor's have a high secondary to primary turn ratio. These sensor's give a standard 5A AC or 1A AC output (any one only) which is suitable to conveniently measure on Single Three Phase Circuits with good stability and high anti-interference ability. It is ideal for power and energy measurement with high precision and small phase angle error in applications related to electric power, communication, monitoring and control. it can measure a variety of electric parameters without removing cables.

Max. solar system power (Pmax) search by Auto-scan: 1000V, 12A (12000W capability) The analyzer and the Remote Solar Detector is connected by Bluetooth wireless communication (Bluetooth 2.1 + EDR Class 1) The Remote Solar Detector is moisture-proof Intelligent test logic with no personnel attendance required in the field Solar system analyzer waits and tests the system until appropriate sunlight irradiance is detected Max. voltage (Vpm) at Pmax, Max. current (Ipm) at Pmax Voltage at open circuit (Voc), Current at short circuit (Isc) Efficiency (%) calculation of solar system Temperature measurement of solar panels Irradiance measurement of sun light Series resistance (Rs) calculation of solar panels With data loggingopen function, the I-V curves of solar system can be analysed recorded for a period of time (e.g. 60 min.) Conversion of I-V curve under OPC to data under standard test condition (STC) based upon IEC standard Provide Operating Condition (OPC) and Standard Test Condition (STC) test reports for verification of solar panel performance (OK or NO OK)

This instrument is designed to measure Solar Power in the range from 400 to 1100 nanometers. The good Spectral Range, Orientation and Angular detection of meter allow users to conduct the most precise quantitative measurements of Solar Power Radiation Solar Power Measurement with Orientation and Tilt Angle Easy measurement for rate of daylight penetration Auto change for measuring range Auto power off with disable function Instantaneous display AveMinMax values 20 points memory Socket of tripod mounting Magnetic mount Backlit LCD and 4 digits triple display

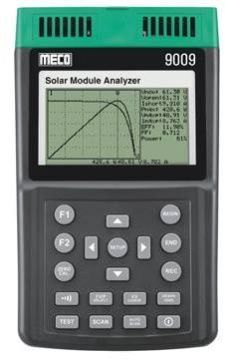

I-V Curve Test for Solar Panel Module Cell Max. Solar CellModule Power Cell Power(Pmax) search by Auto-Scan Capability: 60V, 12A Best Resolution: 1mV , 1mA Manual Single Point I-V Test Max. Voltage (Vmaxp) at Pmax Max. Current (Imaxp) at Pmax Voltage at Open Circuit (Vopen) Current at Short Circuit (Ishort) I-V Curve with Cursor to Display each Data Point Efficiency (%) Calculation of Solar Panel

12 Parameters, 68 Values on 22 Pages 3 Phase 4 Wire Complete with Standard Accessories Programmable CTR & PTR, Instr. Address, Password & MD Period Coloured Input Terminals for Phase Identification POWER MASTER Software Datalogging, Tabulation & Graphs Built-In 20 Energy Meter of 8 Digit Resolution TRMS Measurement Rugged & Portable Casing RS 485 Port, 5kV Isolated Port (Standard) Max. Demand, THD, Password Protection & Auto Scroll Facilities Energy Retention & Energy Reset Facility Clamp-On CT's for Current Input Full Annunicators on Display

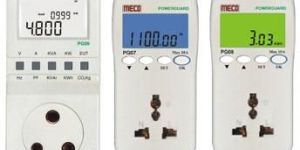

Three Pin Socket and Plug Suitable for Indian Socket Large Dual Row LCD Display with Backlight and Annunciators Memory Retention (KWh, EUT) Simple, Easy and Accurate Continuous Measurements Counts CO2 generated by Electrical Equiptment (0.555kg CO2 is generated by using 1 KWh Energy).

Applications : Teaching,It can be used in Houses, Offices, Shops, Schools, Laboratories etc,Demonstration & Testing of Electrical Energy Consumption of Household / Office Appliances Etc.

Terminal Protection Cover Reliable & Rugged Static Circuits Low Ripple in outputs Signal Flame Retardant Polycarbonate case Choice of Multiple Asymmetrical Outputs Wide Choice of Suppressed Ranges Open and Short Circuit Protection for Outputs Dual Outputs (Non Isolated Isolated) Self � Powered, AC, DC Auxiliary Supply Bi-directional Output Fast Response Time Din-Rail Mounting Bi-Directional Inputs for Import Export input.

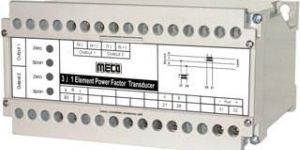

MECO AC Power Factor Transducers measure the power Factor in 1 Phase and 3 Phase electrical systems. The resulting output signal is directly proportional to the system power factor. These Transducers provide an output which is load independent and isolated from the input. The output can be connected to Controllers, Data-Loggers, PLC's AnalogDigital Indicators, Recorders for display, analysis or control. They are ideal for SCADA, Energy Management, Telemetering for Remote, Local as well as Central Monitoring System.

Number Of Flower : DIN Series

Analysis of 3P4W, 3P3W, 1P2W, 1P3W Systems Display of 35 Parameters in one screen (3P4W) Programmable CT (1 to 600) and PT (1 to 3000) Ratios RMS, PEAK Value & Crest Factor True RMS value, Active Power, Apparent & Reactive Power ( KVA, KVAR) Power Factor, Phase Angle ( Ф ) & Energy (WH, KWH, KVARH, PFH) Average Maximum Demand (KW, MW, KVA, MVA) with Progrmmable Period Display of 50 Harmonics in one Screen with Wave form with Peak value (1024 Sample Period) Analysis of total Harmonics Destortion (THD-F) Capture 28 Transient Events with Programmable Threshold (%) (DIP, SWELL & OUTAGE) Built in timer & Calender for Data Logging 512K Memory with Programmable interval (2 to 3000 seconds, 17000 records for 3P4W Systems) Optical Isolated RS-232C ~ USB Interface Calculated Unbalanced Current through Neutral line Graphic Phasor Diagram Facility to retrieve Power Data & Harmonics on Meter Screen Software for easy download of Recorded Data & Transient events Graphic Phasor Diagram Facility to retrieve Power Data & Harmonics on Meter Screen Software for easy download of Recorded Data & Transient events.

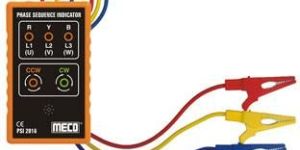

In Electrical System, sometime without identification of Phase Sequence it is impossible to proceed further. The Phase Sequence Indicator is used to determine the Phase Sequence R, Y & B of 3 Phase Voltage. It is important that Phase Sequence is known properly prior to energizing electrical motor & other equipment, as incorrect connection could cause damage to the equipment. The correct operation of measuring instrument like 3 Phase Energy Meter, 3 Phase Power Meter and Automatic Control of devices also depend on the Phase Sequence.

Brand Name : 3 Phase Sequence Indication via LED & Buzzer

Application : Open Phase Indication via LED & Buzzer

Country of Origin : Reverse Phase Indication via LED & Buzzer

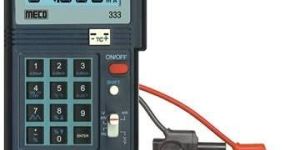

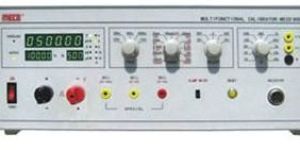

Calibration of AC Volt, Amp, Frequency Meters Calibration of DC Volt, Amp Meters Calibration of Resistance Meters, Insulation Testers.

Specialities : Stability DC : < 0.01 %FS / 3 min, AC : < 0.02 %FS / 3 min,Power Supply : 230 VAC, 50 (60) Hz Etc.

4 - 20mA (1KΩ Load, 24V Loop Supply) with1mA Resolution 0 -100.00mV, 0-1.0000V, 0-12.000V K, J, E & T Thermocouples (°C and °F) Frequency : 1-62500 Hz DC Current Basic Accuracy : 0.025% Easy Key Pad Number Operation Easy Step and Auto Ramp Functions 0-20mA & 0-24mA Selectable 0-100% Output (mA, mV, V) Beeper Warning when Output is Open (mA) or Short (mV,V )

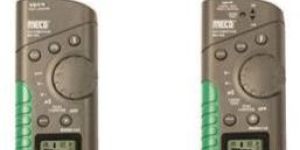

2 in 1 Automotive Auto Ranging DMM & Power Probe (MAM6120) 3 in 1 Automotive Auto Ranging DMM, Power Probe & Logic Probe Hands - Free Test Leads for Excellent Convenience Flashlight for Operation of Automotive Diagnosis Auto Range, Auto Power Off, Low Battery Warning & Data Hold

Basic Accuracy 0.25% Max. Test Current : 5A (120mV) for 7002 Max. Test Current : 10A (60mV) for 7272 Manual or Auto Range Four Terminal Kelvin Measurement 6 Ranges with 1mV Best Resolution Measurement of Resistive and Inductive Materials Setting for HI, LO & PASS Readings Memory of 3000 Measurements Data Programmable HI-LO Alarm with memory of 20 Data Large LCD with Backlight & HOLD Function Low Power Consumption Battery Operated with AC Adaptor Low Battery (Voltage) Alarm LED indication for Invalid Resistance Measurement Cable Length Measurement in feet & meters User Interface Software for PC Communication via RS232C(to USB Bridge) cable Built-inBatery Chaging Circuit & Calender Clock

Availability : 1125 gms Battery Included (approx.)

Dimensions : 260 x 158 x 70 mm (approx.)

Functions : HOLD MAX MIN MAX - MIN AVG APO Range : -30°C ~ 550°C, -22°F ~ 1022°F Accuracy : Refer Catalogue Resolution : 0.1°C, 0.1°F Emissivity : 0.1 ~ 1.0 (Adjustable) Power : 1.5 V AAA x 2 Batteries Dimension : 25 x 51 x 133 mm (approx) Weight : 125 gms Including Battery (approx) Accessories : 1.5V AAA Battery (installed) x 2, Wristlet x 1, Protection Cap x 1

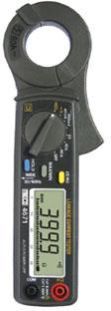

10µA Ultra High Resolution Large Conductor Diameter (30mm) AC Current in 5 Ranges (40mA, 400mA, 4A, 40A, 60A) Wide Frequency Response (40Hz-1KHz) ACA, ACV, Ω and Continuity Large 3¾ Digit LCD (4000 Count) 40 Segment Fast Bargraph Display (20 timessec.) Data Hold and Max Min Hold Relative Measurement 600 Vrms Overload Protection in Resistance Range Jaw Opening Cable Dia. 30mm. max.(approx) Display is Manual Low Battery Indication Sampling Time 3 timesec. (Display) 30 timesec. (bargraph)

Basic measurement accuracy 0.1% & speed upto 10 meas sec Large LCD display with bright white backlight Ultra low power consumption, battery powered for 2 hours of continuous use Automatic identification function (Ai). Percentage display & 4 tolerance comparator : 1%, 5%, 10% & 20% 9V battery & External power supply Automatic correction function with datahold, max. min. average recording Utility function configuration & current setup recovery after power off Standard Mini-USB interface, SCPI compatible Auto power Off Constant output impedance : 100 ohm

Dimension : 193 x 93 x 48mm (approx.)

Availability : 395gms (approx.)

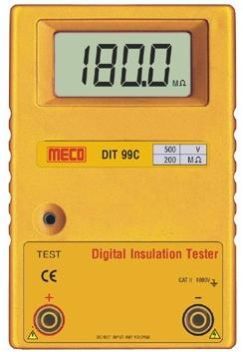

Ideal for Insulation Resistance Measurement of Electrical Equipment (Motors, Transformers, Machines, etc), Electrical Cables for Distribution Networks, Cables for Commuinication Networks, House Hold Appliances (Washing Machines, Mixer, Toaster, etc), Industrial, Commercial & Resisdential Installations.

Feature : 3½ Digit 17mm LCD Display,Single Person Push Button Operation Etc.

Ideal for Insulation Resistance Measurement of Electrical Equipment (Motors, Transformers, Machine, etc), Cables for Communication Networks, Industrial, Commercial & Residential Installations, Electrical Cables for Distribution Networks, House Hold Appliances (Washing MAchine ,Mixer, Toaster,etc)

Feature : Single Person Push Button Operation,Terminal Voltage : > 85% of Rated Voltage for Insulation Resistance Etc.

Laser Switch Auto Power Off Low Battery Indication Backlight Display MAX Function MIN Function LCD size 30 x 31mm Power 9V Battery Product Color : Yellow + Black Product Size : 170 x 92 x 46mm (approx) Product Net Weight : 157gms including battery (approx)

Electronic energy meter power transducer precision power meter and other power andenergy monitoring devices Over current protection circuit of motor andother electrical appliances.
