Position Sensors Dealers in Navi Mumbai

Hall Effect Sensor AH34 is a low noise linear analog output sensor device which opens wide scope of measurements related to displacement, angular position and current ratings. These sensors shows ratio metric property as the output voltage of the sensor is proportional to the applied magnetic field. The AH34 hall sensor is packaged in 3 pin ultra mini SIP, which confers to the industrial requirement for small size, high accuracy and extensive work capacity avoiding any type of mechanical stress. Each sensor has inbuilt BiCMOS monolithic circuit with temperature compensating circuitry and an amplifier for processing low signal and high gain. The device can withstand extreme environment conditions with temperature ranging from -40oC to 150oC. The device is lead (Pb) free and best suited in application of automotive and industrial applications. Package 3 pin-SIP Output Source Current 2 mA Output Sink Current 10 mA Supply Voltage 4.5 to 5.5 volt Supply Current 9 mA (max) Operating Ambient Temperature Range -40o C to +150o C Sensitivity 2.5000 mV/G to 5.000 mV/G (Typ.) Application ·         Automotive,   ·         Current measurement   ·         Angular positions   ·         RPM measurements.

Laser sensors combine the alignment advantages of a visible sensing beam with the increased sensing range of a laser . They operate on dc or ac/dc (universal voltage). Class 1 and class 2 devices are available.

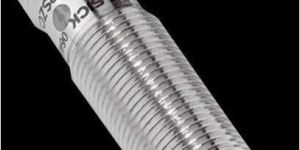

Inductive Proximity Sensors, Photo Electric Proximity Sensor
