POWERMASTER LTD. Turbhe, Navi Mumbai, Maharashtra

  Features Digital display of output voltage. Used in on site application and areas which are prone to high voltage fluctuations.

Variable Belt Driven Machine (Electrically Driven) Electric Tube Cleaners with Variable Frequency Drive (VFD), facilitates control over speed of motor by varying the frequency as per our requirement. Adjustable speed drive in electro-mechanical drive system to control AC motor speed and torque by varying motor input frequency. Variable frequency drive used in a drive system have three main sub systems - AC motor, main drive controller assembly and drive operator interface.

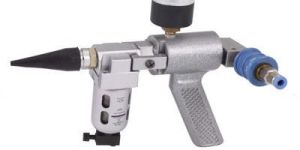

A simple test instrument used by manufacturers and used to identify leaky tubes in condensers, heat exchangers and other tubular apparatus.   The Vacuum Tube Leak Tester PVLD-3000 is a simple and precise tool used for testing tubes of boilers, condensers and heat exchangers. It is the fastest and most accurate method of locating leaky tubes for plugging or replacement or installation of new tubes.   It works on the principle of vacuum in which the tool sucks the air from the tube and creates a vacuum to a desired reading on gauge. Steady reading on gauge indicates NO LEAK. If the reading on the gauge drops it indicates a tube with a LEAK.   Features of Vaccume Tube Leak Tester Only one tool necessary for testing multiple tube sizes. Built-in easy to read vacuum gauge. Multifiled exhaust for quiet operation. Lightweight and easy to use.

Used to reduce the wall thickness of thick tubes to weaken the bond.   Features of Tube Wall Reducer Used to ‘thin’ the walls of heavy gauge tubes as a step in their tube removal tools from tube sheet. Suffix model number with tube gauge when ordering. Example for 3/4”O.D. 16G, model number will be WR-750-16. Wall reducers available for mm tube sizes also. Please enquire. Wall reducers are suited for tube sheets up to 5” thick. Longer reaches are available.

  For simple, quick and reliable testing of tube to tube sheet bore joints. Silent during use. Ergonomic design makes testing effortless.   Features of Tube to Tube Sheet Joint Testing Kit Simple, Quick and Reliable tube joint testing. Test 10 tube joints per minute. Interchangeable seal sets : Allows testing of tube joints from 7.75 mm to 30.63 mm ID with easy to replace accessories. Joint Testing Gun weights less than 1.5 kg. Air supply : Uses standard plant air supplies from 70 psi to 100 psi (4.7 to 6.8 bar). Silent during use. Ergonomic design makes testing effortless. Each Kit packed in compact and handy case.

These high speed steel Titanium Nitride coated tools are ideal for smooth and accurate reaming of holes in tube sheets of Condensers, Coolers and Heat Exchangers.   Features of Tube Sheet Hole Reamer High speed steel, cryogenically treated and coated with Titanium Nitride for long life. Ideal for heat exchanger and condenser tube sheet reaming. Reamers available in MM sizes also. Also available on diameters upto 4”.

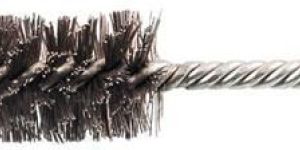

Used to clean tube sheet holes before insertion of tubes.   Features of Tube Sheet Hole Brush To clean tube sheet bores, prior to tube installation. Can be used with any standard pneumatic or electric drill. Available in Carbon Steel, Stainless Steel and Brass.

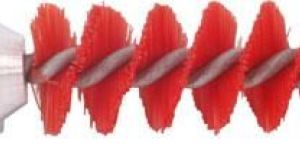

It protects the tube end during installation of tubes into the shell of the heat exchanger and ensures accurate alignment of the tube while passing through the baffle plates.   Features of Tube Guide To ‘Pilot’ the tube through the tube sheets and baffle plates during tube insertion. High strength Nylon bristles holds Tube Guide Firmly in tube.

Specially designed to expand stainless steel thick walled and exotic harder tubes, where conventional expanders would fail. Can expand tubes in a deep chanel using stepping extension. Quality leak proof joint in 3 to 5 seconds. Precise control of advancing force. Constant RPM even under load condition ensures equal pressure to the rolls for tight fit, leak proof joint between tube and tube sheet. Internal cylindricity of expanded tubes. Durable heavy-duty construction ensures long reliable life. Reduction of tube stretching and internal stresses. Simple operation saves time and reduces operator fatigue. Large oil tank and external filter for better cooling effect and easy filter replacement. Automatic lubrication system increases tool life and reduces consumable cost. Continuous programmed cycle-microprocessor controlled.

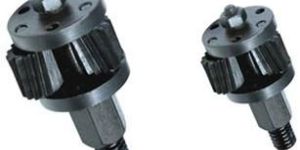

These tools are used typically in boilers and other larger tubes that have a light to medium deposit. These tools use patented ergonomic cutting wheels that ensure the same tooth of the cutter wheel does not touch the same spot when cleaning. This prevents grooves being formed in the tube scale. The cutters ‘fly out’ when the tool is rotated and perform cleaning action.

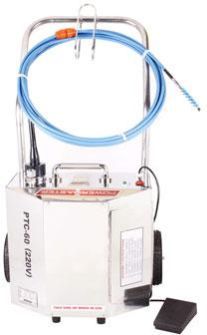

electric tube cleaners are environment friendly, compact and easily maneuverable units used to clean straight and curved tubes in heat exchangers, condensers, boilers and other tubular apparatus. Water consumption can be regulated as needed. Easy interchangeability of various shafts and accessories for maximum versatility.   they work by attaching a cleaning tool (to be determined on type of deposit to be cleaned) to a flexible shaft. The electric tube cleaner provides rotary motion to the flexible shaft which rotates the cleaning tool inside the tube. If needed water passes through the flexible shaft to aid in flushing out of the deposits. All electric tube cleaners are supplied with forward direction foot switch. Dual direction foot switches are available on request.   features of electric tube cleaner : water flushes through the shaft and helps remove deposits from tube. forward direction foot switch enables operator to concentrate on cleaning operation without worrying about cleaner. flexible shaft can be easily disconnected. stainless steel body for use in the harshest environments. easy interchangeability of various shafts and accessories for maximum versatility. large wheels for easy transportation. water consumption can be regulated as needed.

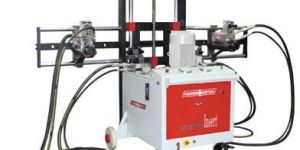

Used for insertion of long and heavy tube bundles into the shell of heat exchangers. Two fully automatic pull pistons are used to push the tube bundle into the shell. The pulling pistons slide on a biaxial positioning frame horizontally as well as vertically to position the pull pistons as per the diameter of the tube bundle. The unit can be easily converted into twin headed continuous tube puller or extractor.   Features of Tube Bundle Inserter Used for insertion of long and heavy tube bundles inside the shell of heat exchangers. Inserts tube bundle at rate of 3mtrs/min. Generates a coaxial force of 60 tons to insert tube bundle into the shell without any jolts thereby avoiding damages to shell and tube bundles. Can be easily converted into double headed tube puller for tube extraction.   TECHNICAL SPECIFICATIONS

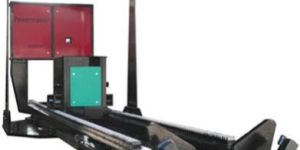

Tube Bundle Extractor specially designed to remove the tube bundle from the tube sheet without damage to sell of heat exchangers. Tube Bundle Extractor is equipped with a two cylinder air-cooled Hatz-Silent-Pack diesel motor, type 2L30 with 24 V electric starter as standard. The power output is 20 kw at 3000 rpm continuous operation. The exhaust pipe is fitted with a spark arrestor. Additional device to bring the bundle on the equipment in a state of equilibrium (balance stroke 1650 - 3000 mm). Continuously pulling winches incl. 30 horsepower gasoline engine (pulling speed appr. 6 m/min - 12 m/min). Head prism movable up and down for taking up and holding of the bundle flange. All functions hydraulically operated by remote control 24 volts.   Features of Tube Bundle Extractor Shorter length in comparison to similar equipment. Less width for penetrating into the plant. Less Height. Faster working due to the head prism movable up and down and the continuously working 30 tons winch. More safety for operator due to electric remote control system. Independent of separate energy sources such as portable air compressor units. Less dead weight.

Features Heavy Duty Sheet Metal Construction. Conveniently houses all tools needed for expanding tubes.

1/4” Square Drive Spindle to suit all Standard Sockets and Screw Driver Bits. Bi-Directional operation with consistent repeat accuracy. Concealed adjustment mechanism to prevent accidental re-setting during use.

  Features Nano Series Torque Multipliers Compact, Heavy Duty Torque Multiplier with a torque multiplication of 5:1. Accuracy better than ± 4% with high repeatability. Provided with detachable reaction handle. Optional offset reaction arm also available on demand. Supplied in sturdy molded plastic carrying case for better storage and handling.

THE PST SERIES TOPSIDE BOLT TENSIONERS IS ONE OF THE MOST LIGHT, COMPACT AND VERSATILE LINE OF TENSIONERS AVAILABLE:   Features Versatile Design: The PST Series standard variable tensioners are designed to provide a wide range of flexibility, covestu covering sizes from 3/4” to 5.3/4” (M-16 to M-150). Different stud sizes are accommodated by the same load cell the sa by simply changing the adaptor kit consisting of Threaded Puller, Bridge and Nut Driver. High Strength Aircraft Quality Alloy Steel: The PST Series tensioners operate at a maximum pressure of 1500 Bar covestu and are manufactured from high strength AISI 4340 alloy steel parts for long lasting trouble free performance. Stroke Indicator: The PST Series tensioners have and an exceptional stroke of 15 mm. The Integral Stroke covestu Indicator allows the piston stroke to be viewed while tensioning is in progress. A Red line on piston indicates covestu an over stoke ensuring safe operation. Safe Design in event of Piston ‘Over Stroke’: The PST series tensioners are designed so that in event of covestu over-stroke the high pressure fluid will be released from the inner side of the load cell, thus saving the operator covestu from any potential exposure. Multi Tensioning: The PST Series load cell is provisioned with two connections and this acts as a manifold for covestu multi applications. By using high pressure link hoses, any number of bolt tensioners can be connected and used covestu simultaneously. This ensures equal tightening of all bolts on the flange and reduces work time. Anti Roll, Composite Material Seals: All PST Tensioners are fitted with Anti Roll, Composite Material covestu seals for longer life and high reliability. The seals used have a low coefficient of friction so that the covestu piston can be returned to a closed position with minimal effort. PST Series tensioners can be provided piston with machined PU (poly urethane) seals if requested by the customer. Floating Piston: The unique piston design allows 2º tilt without any loss of load, preventing piston seizure covestu or damage to piston bore.

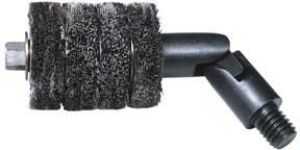

These tools consist of 4 stainless steel circular brushes that are mounted on a shaft and connected to a Universal Joint. These tools are used to clean soft to medium scales. Replacement circular brushes can be ordered when wear starts.

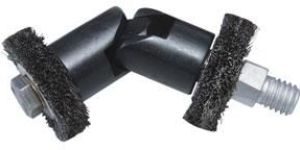

  These tools consist of 2 stainless steel circular brushes that are mounted onto a Double Universal Joint for maximum flexibility. These tools are used to clean soft to medium scales. Replacement circular brushes can be ordered when wear starts.

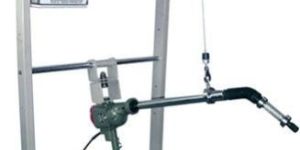

  Features Used to free the operator from handling drives. Sturdy construction absorbs all torque during tube expansion.

Flexible Shaft Machine (Electrically Driven) Flexible Shaft Machine is a self-contained portable unit, mounted on a 3-wheel trolley, fitted with a carrying handle. It incorporates a directly coupled, totally enclosed squirrel cage, 2800 rpm. continuously rated electric motor. Selecting the H.P. of the motor depends upon length and size of Flexible Shaft and nature of scaling. It is controlled by a push button starter which is provided with three thermal adjustable overload relays. Each machine is fully wired, carefully tested and is fitted with a 15-feet length of PVC Cable to main supply. Longer cable can be supplied upon request. Please consult us if your electric supply is different from listed below. Motors for alternate supplies are also available.
