Radix Electrosystems Private Limited TTC Industrial Area, Navi Mumbai, Maharashtra

ZGE202 is used to measure the temperature of a thermocouple and transmit it to a wireless receiver ZGB201 connected to a PC for data logging. 1 year+ battery life User configurable for type J, K, T, E, R, S, B, N Thermocouple Input Transmits process temperature, ambient temperature, signal strength & battery status Operates in the free radio band 2.4GHz User programmable transmit interval IP65 (NEMA-4X) weather resistant enclosure

Wireless Transmitter - Receiver system is designed to measure temperature and relative humidity and to send it across wirelessly to the receiver station for data logging and monitoring purpose.An Hastle free, easy to install system comprises of wireless sensors transmitter covering all standard thermocouples and RTDs along with repeaters and receiver unit. It comes with free utility software and has full featured SCADA option available.Ideal for HVAC, Cleanroom, DAQ system, BMS system etc. the system covers wide range of applications where wiring is difficuit. Wireless Transmitter for RH + T (Surface and Head designs) For Temperature :RTD : Pt100 For Temperature :Thermocouple : J, K, T, E, R, S, B, N Relative Humidity : in % RH Wireless Range : as given below For Zigbee Range : Up to 120m outdoor line of sight and Up to 40m indoor urban For RF Range : Up to 10 km For GPRS Range : Not range bound Battery life : Minimum 1 year

ZGE201 is a wireless transmitter used to measure the temperature of a RTD sensor and transmit it to a wireless receiver ZGB201 connected to a PC for data logging.It is available in surface mount as well as in variety of other RTD sensor designs. The RTD can be integrated with the transmitter, or kept remote, connected by a cable.

Repeater ZGB202 is used to boost the wireless signal if the signal is not strong enough to travel directly from the transmitter to the receiver. Amplifies weak signal & re-transmits to receiver Receive data from up to 20 wireless transmitters or repeater and re-transmits data to receiver Compatible with all Radix ZGE series wireless transmitters No configuration required Increases range up to 1km (Line of sight) Repeater to repeater arrangement can further increase range

ZGE203 is a wireless transmitter used to measure the Relative Humidity and Temperature and transmit it to a wireless receiver ZGB201 connected to a PC for data logging.It is available in surface mount, duct mount and in remote sensor version. See more... 1year + battery life Integral or remote RH+T sensor Operates in the free radio band 2.4GHz Transmits relative humidity, temperature, signal strength & battery status User programmable transmit interval IP65 (NEMA-4X) weather resistant enclosure

The ZGB203 wireless receiver with RS485MODBUS RTU receives the transmitted signals from ZGE201, ZGE202, ZGE203, ZGE204 transmitters & ZGB202 router. The ZGB203 acts as a MODBUS slave. This allows the data received to be accessed by any MODBUS master, eg a SCADA software on a PC, or a PLC. See more... With RS485MODBUS RTU Receive signal from ZGE201, ZGE202, ZGE203, ZGE204 transmitter & ZGB202 Repeater Up to 25 - Channel data can be received Adjustable baud-rate for RS485MODBUS RTU

The ZGB201 wireless receiver is a compact device that recevies the transmitted signals from ZGE201, ZGE202, ZGE203 Transmitter & ZGB202 Router and display log Graph the data on your PC. ZGU201 software is included with each unit for displaying Process value, Ambient temperature, along with RF signal strength & battery condition. See more... Receive Signal from ZGE201, ZGE202, ZGE203 transmitter & ZGB202 Repeater USB powered Upto 48 channel reception through USB connection ZGU201 windows based software included for display & logging

The Series I2-4 Weatherproof Immersion Temperature Sensor is ideal for monitoring hot and chilled water lines feeding Air Handlers and Cooling Towers. The plastic housing has a 14 turn twist off cover to reduce installation time. The multiple knockouts allow for easy conduit access to any side of the housing. The Series I2-4 can be ordered with a choice of 11 output options that allow it to communicate to any standard building control system.

Probe Diameter : 1/4" (6.3 mm)

Cable Length : 8

Probe Material : 304SS

The Series UDL Universal Input Data Loggers are available with 0, 2, or 4 universal inputs. Each universal input can be individually configured to accept a thermocouple, RTD, thermistor, voltage, or current input. All Series UDL data loggers have an internal temperature sensor and a digital input which can be used as a trigger to start logging or as a pulse counter for interfacing with flowmeters or other sensors with a pulse output. Optional features include an internal humidity sensor, an LCD display, and an external humidity and temperature sensor. The Series UDL loggers interface to the USB port of a PC. The unit includes software, USB connection cable and installed battery.

Availability : 5.8 oz (165 g)

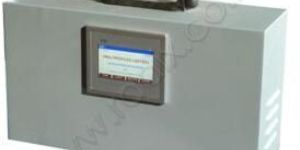

Radix Designed touch Screen data logger is a very efficient and cost effective solution for data logging in various application in Warehouse, Laboratory, Environmental Chamber or even room temperature monitoring. See more... Portable design with Touch Screen display Datalogging for upto 64 channels SD card slot provided for large data storage 1GB SD card can store 40 days data with 1 sec logging interval for 32 parameters Logged data can be dumped in USB pendrive for further analysis Offline analysis of logged data using powerful & versatile Historical Viewer utility Ethernet connectivity for retrieval of data over LAN, as well as for using Historical Viewer utility Universal Inputs (RTD-Pt50,Pt100, Pt1000, TC-J, K, T, R, S, mV, 0~1510 V, 04 ~ 20 mA etc..) Individual Channel configuration through Touch Screen HMI A cost effective & versatile design from Radix

Choose from our three ranges of multifunction programmable timers; Memory, Non-Memory and Cyclic Timers, that automatically operate a time-based process, counting upwards or downwards. Memory timers have non-volatile memory that stores process information even when the instrument is powered down, or in case of a power outage. Cyclic timers can be programmed for periodical counting. Operators can easily set upto two set-points using membrane keys or push-wheels on the front panel of the timer. All Radix Timers are accurate to 0.01% of a quartz crystal.

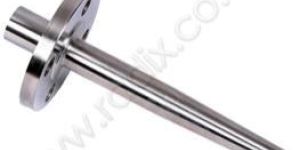

TBR5XX SERIES Construction Solid drilled barstock with Flange CS, SS304, SS316, SS316L, SS310, Inconel 600, Incoloy 800, Monel, Hastelloy Parallel Tapered Stepped shank Sensor connection : ½” BSP NPT OR M20 x 1.5 Optional : Mounting Stub Socket , Plug OR cap with chain Design as per ASTM PTC 19.3 Wake frequency calculation on request IBR Certificate

Thermowells and protection tubes are used to protect temperature sensors such as thermocouples and RTDs. It is selected in accordance with temperature measuring point conditions and desired measurement accuracy in a given application. It should withstand the temperature, pressure, vibration and shock for long, stable operation. Radix offers a vide range of BARSTOCK (monolithic drilled well of bar material) and FABRICATED (protection tube weld sealed at the end of drawn metal pipe) thermowells and protection tubes. Fabricated wells are used in low pressure applications and Barstock wells in applications subjected to significantly large stresses such as high pressure gases and high speed fluids, with suitably selected shape, size and material appropriate to the temperature and operating conditions.

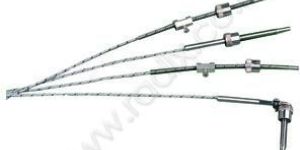

Thermocouples generally trump RTD Sensors for ruggedness, speed of measurement, range of temperature and cost. These thermocouples are fabricated using premium quality raw material and latest techniques in compliance with the international standards. These are widely used in science & industry, temperature measurement for various industrial processes. Clients can avail the offered thermocouples from us at market leading prices. Manufactured as per client's specific requirements, these thermocouples can be availed by clients at affordable prices from us.

Radix Blind Controllers are an excellent option for low-budgets and applications that do not require indication. Simple to operate, they are available with ON-OFF or Time-proportional Control, offering great control accuracy at a low cost.

Series 7000 Spirahelic® Direct Drive Pressure Gages were originally developed in response to military needs for unbelievable resistance to shock and vibration while delivering premium accuracy. The Dwyer Spirahelic® features a triple coil spiralhelical wound Bourdon tube which provides the ultimate in operator safety while continuing to incorporate the advantages of a low inertia movement without gears or linkages. This low inertia movement is provided by the unique Bourdon tube design which eliminates complex mechanical movements such as gears that are common in conventional 'C' Bourdon tube gages which wear and cause inaccuracy or early failure. Expensive and leaky liquid filled gages are no longer necessary due to the triple wound Bourdon design which withstands shock and vibration.

The Series PV three-way normally closed electro-pneumatic solenoid pilot valve can be direct mounted to operate the Series SAV Angle Seat Valve actuators.When the solenoid valve receives the electric input signal, it switches the pneumatic supply pressure to the actuator, which moves the valve from the closed to open position, or reversely for normally open valves. When the input to the solenoid valve stops, the pneumatic supply pressure is again blocked, and the valve returns to the normal position. Suitable for use with air or other inert gases, the valve is supplied with a DIN connector, and is fitted with a manual override. Water can also be used as a pilot media provided that a suitable drain line is attached to the exhaust outlet. Select the proper model according to the SAV valve actuator diameter and power requirements.

Series MV Mini Brass Ball Valves are ideal for use in small, confined spaces, where larger valves are of no use. Installation is made easy with a choice of female x female or male x female process connections. Pure PTFE ball seats provide broad media compatibility and bubble tight shutoff. Double seal system allows valve to be operated in both directions.

Series DBV Brass Ball Valve is an economical hand lever ball valve ideal for commercial or general industrial use. The Series DBV is the ideal choice for a manual shut off valve, along with many other applications. Valve body, body cap and ball are made of a quality brass for great durability. Seats and stem packing are constructed of PTFE for long lasting service as well. Blowout-proof stem provides safety in the event of overpressure. Full port design allows for maximum Cv while still retaining minimal pressure drop.

Scanners are highly versatile instruments. Receiving multiple inputs from many different sources, scanners can group those signals to perform intelligent control operations or simply trigger alarms. Choose from the 16-channel ISOSCAN or 8-channel ISOTHERM.Also availabe with FDA 21CFR SCADA version.

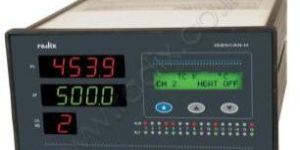

ISOSCAN is a 16-channel scanner by Radix. It has 5 distinctive software versions for a wide variety applications that must be reviewed before selecting a model. With up to 16 inputs and 16 outputs, ISOSCAN receives input from 8 types of thermocouples (B, E, J, K, N, R, S, T) Pt100 RTD sensors and voltage or current (4-20 mA or 0-20 mA) linear input. Inputs can be selected on the front panel of the scanner without DIP reconfiguring for each channel.

Radix manufactures two rh+t on-off controllers, htc96 and hx96a, for applications involving humidity and temperature control, and two rh wet and dry bulb controllers, rhc201 and rhc301, for pure humidity control.

Model Number : HTC96,HX96A, RHC301 ,RHC201

Size : 96 x 96 x 100,

Our reliable rate-indicators are ideally suited for applications involving the measurement of motor speeds, shaft speeds and the like. Receiving input from a wide range of sources such as proximity switches, photoelectric switches, voltage pulses, limit switches and electromagnetic pickups amongst others, these rate-indicators are also easy to program on the shop floor, highly accurate and retransmit isolated outputs.
