Separation Engineers, India Belapur, Navi Mumbai, Maharashtra

Power : 0.85-4.5 kW

Frequency : 50 Hz

Country of Origin : 220 V

Country of Origin : 220 V

Material : Stainless Steel,Mild Steel

Capacity : 50-800 kg/hr

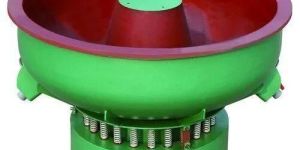

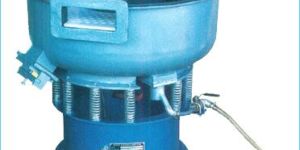

Vibratory Finishing Machine is specially designed rubber lined bowl having three component mechanical vibrations vertical, horizontal & gyretary, which can be tuned independently to suit any specific job for the optimum finish of parts. The components to be deburred finished, are loaded into the bowl, along with specific proportion of media, water & finishing compound. Then optimum vibration are set, these vibrations make components and media along with compound roll over each other and interact rigorously, resulting in Deburring, Finishing, Descaling, Discoloring, Burnishing, Smoothening & Brightening of components. The finish depends on the type and size of media, type and composition of chemicals, vibration pattern set etc. & of course the cycle time given.

Brand Name : Sepro

Volume : 500-1500 Ltr

Power : 3.7 kW

Application : Deburring

Country of Origin : 220 V

Frequency : 50 Hz

☉ The turbulent zone at the band inlet produces an arc-filter effect, which keeps the filter paper free of dirt and hence permeable at this point.☉ The particles settle in the non-turbulent arc of the filter reservoir, to form a cake. The cake itself acts as an additional filter media layer, thereby enhancing the filtration effect even further. A pool forms gradually as the particle deposits build up on the paper.☉ Depending on the type of filter, high hydrostatic pressure difference is produced in this way which helps to ensure that the filter paper is used with maximum efficiency.☉ As the open area of media reduces, the maximum preset level in the tank is reached, geared motor switches on and pulls new filter paper from the reel, ☉ The filtration from the fresh media paper starts, level in the tank sinks and the conveyor stops automatically. At the same time the sludge and used filter paper are discharged on the other end of the tank.

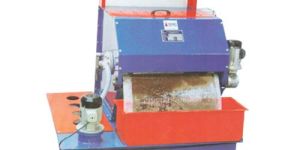

Band Paper Filter” is an endless sturdy metal-jointed band conveyor, fitted to form a semicircular loop between two rotating disc wheels.The filter paper is inserted between the Disc Wheels and the tensioned conveyor. The medium to be filtered is introduced into the tank through the central inlet pipe.By positioning the pipe centrally, the medium to be filtered can be received directly from the machine by gravity into the filter unit. The structure does not require a lift pump.

The "sepro Gyroscreen" is a circular highly efficient Gyratory screen with adjustable multiplane three component mechanical vibration. The heart of gyroscreen is the robust specially made vibrator motor which is designed for long trouble free continuous operation. The vibrator motor has double extended shaft fitted at each end with variable eccentric weight. Motor is rigidly mounted on circular vibrating table on rugged springs. Number of interchangeable spacing frames having discharge outlets along with tensions rings fitted with screens cloth can be mounted one on top of the other, on the Vibrating table with the help of clamp rings.

Country of Origin : 220 V/380 V

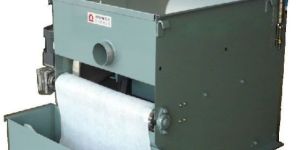

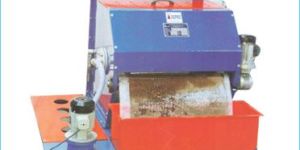

“Sepro Compact Band Paper Filter” is an endless sturdy metal-jointed band conveyor, fitted to form a semicircular loop between two rotating disc wheels. The filter paper is inserted between the Disc Wheels and the tensioned conveyor. The medium to be filtered is introduced into the tank through the central inlet pipe. By positioning the pipe centrally, the medium to be filtered can be received directly from the machine by gravity into the filter unit. The structure does not require a lift pump.

Compact Band Paper Filter" is a revolutionary and pioneering development in band filter technology and Engineered to precision, suited for high flow rate and dirt content. The "SEPRO Compact Band Paper Filter" has no relative movement, between the conveyor, filter paper, wheels and sludge drivers. Even large amounts of dirt and contamination, cannot damage the filter paper. The system requires up to 80 per cent less space, than a conventional band filters available, without any restrictions in terms of filtration output and cleaning efficiency.

Feature : Greater capacity, more accurate screening, Minimum Power Consumption, Long life with self compensating Screen Tension.

Material : Mild Steel

☉ The machine is run to make components and media along with compounds to roll over each other and interact rigorously under pressure exerted by centrifugal force generated due to high speed of Turret and barrels, resulting in desired finish of components in quick time.☉ The finish depends on effective “G” Force, Shape of the Barrels, Speed of Barrels, the type and size of media, type and composition of chemicals selected and pre-determined cycle time.
