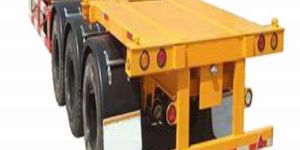

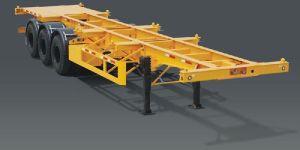

Skeletal Trailers
Get Price Quote
12 M TANDEM AXLE FLAT BED TRAILERTECHNICAL SPECIFICATIONS
Trailer weight (Unladen)
4.70 T ( APPROX )
Chasis
All steel welded construction. 2 Nos. Main longitudinal members are high strength lighter weight Parallel flange Beam of ST 52 (or) Equivalent grade steel running along full length of the trailer. Cross members - Rolled or Folded of material IS-2062/ST-52 are positioned at suitable locations. 8 nos. of twist lock shall be provided to suit 1- 40 feet container, 2–20 feet container. Optional 4 nos. additional twist lock to suit 1-20 feet container at middle.
Landing leg
Two speed landing leg shall be provided at the front end.
Axles
2 Nos. 13T Axle Shall be provided
King pin
2” king pin equivalent to IS : 6763 Part I provided
Suspension
12T capacity Tandem axle leaf spring suspension with load equalizing brackets.
Tyre Wheel rim
10.00 x 20 – 16 PR – 8 Nos. 7.50 x 20 – 8 Nos.
brakes
Twin line air brake system coupled to tractor brake system. Trailer brakes are actuated from tractor. T24 brake chamber shall be provided on all axles. Parking brake shall be manually actuated.
Electrical
24V DC electrical include tail lamp, brake lamp and direction indicator lamps fitted at rear end of trailer. Side Marker lamps shall be provided on both sides.
Surface Preperation Painting
Trailer surface shall be Shot blasted and cleaned.
Painting
One coat of primer and one coat of finish quick dry enamel paint with colour of customer choice.
Other fitments
Fitments such SUPD, RUPD, reflectors on both sides and rear shall be provided as per CMVR.
