HJE TECH INDIA PRIVATE LIMITED Sector 83, Noida, Uttar Pradesh

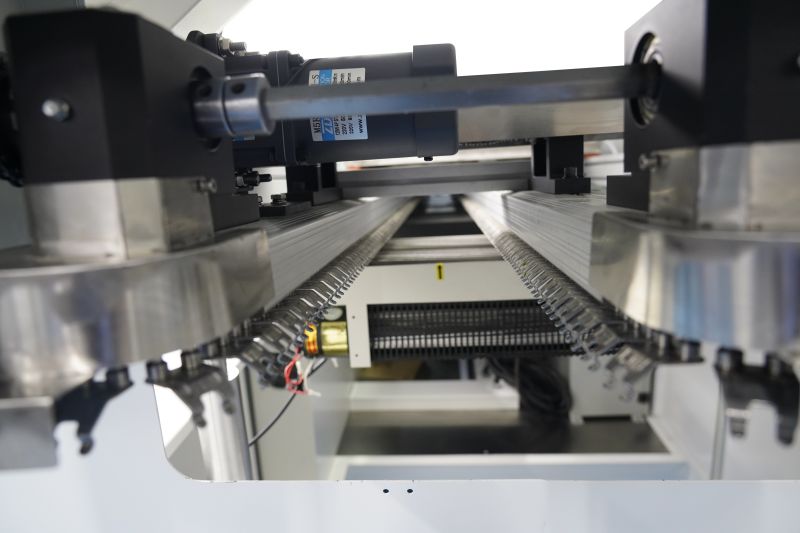

Features： 1. The transportation system adopts stepless frequency conversion speed regulation, closed-loop control, speed is stable and accurate. 2. The forced natural air-cooling system can meet the cooling slope requirements of lead-free processes. 3. Manual adjustment of track angle, easy to operate. 4. The preheating area adopts hot air heating, five stage heating, stable temperature zone, drawer style design, easy to use and safe. 5. Streamlined exterior design, interior modular design, suitable for lead-free soldering of SMT and DIP. 6. The dual-wave control adopts stepless frequency conversion technology, which can independently control the peak height. 7. Equipped with sound and light alarm and emergency braking system, the motor is equipped with overload protection function. 8. The solder pot is made of 316 stainless steels, which is corrosion-resistant and oxidation resistant. 9. The solder pot adopts motor lifting, which is stable and safe. 10. The trolley of solder oven is controlled by a motor.   Specification:  Model HJE-350 Dimension（ L×W×H ） 4570×W1400×1650(mm) Total Power AC380V3φ5W 50/60Hz 45KW Working Power 12KW Preheating and warming time ＜15min Temperature Range Room temperature-350℃ Board Size 50~W350mm×H120mm PCB up/down space Up 120mm down15mm Transmission angle 8~10° Transmission direction From left to right The height of the PCB entrance from the ground 750±20mm Transmission speed 500-2100mm/min Number of preheating zone and mode 5 bottom hot air preheating zones Temperature control mode PID+SSR Control mode PC+PLC Spray system Step motor Transport Claw Heavy duty double hook claw Solder pot capacity 400kg Wave height Stable as 25mm Operation mode of solder pot Electric lifting, get in and out Solder pot core material 316 stainless steels Cooling mode Forced air cooling

Driven Type : Electric

Automatic Grade : Semi Automatic

Certification : ISO 9001:2008

Number Of Flower : Wave Soldering Machine

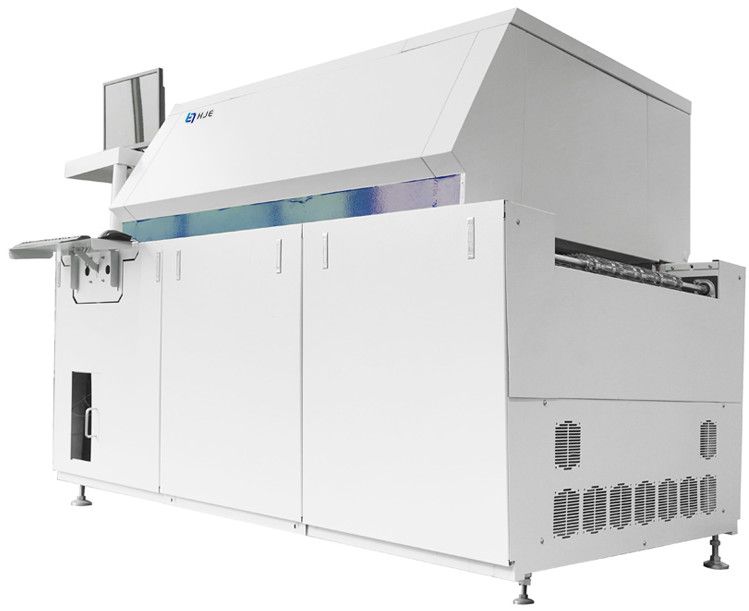

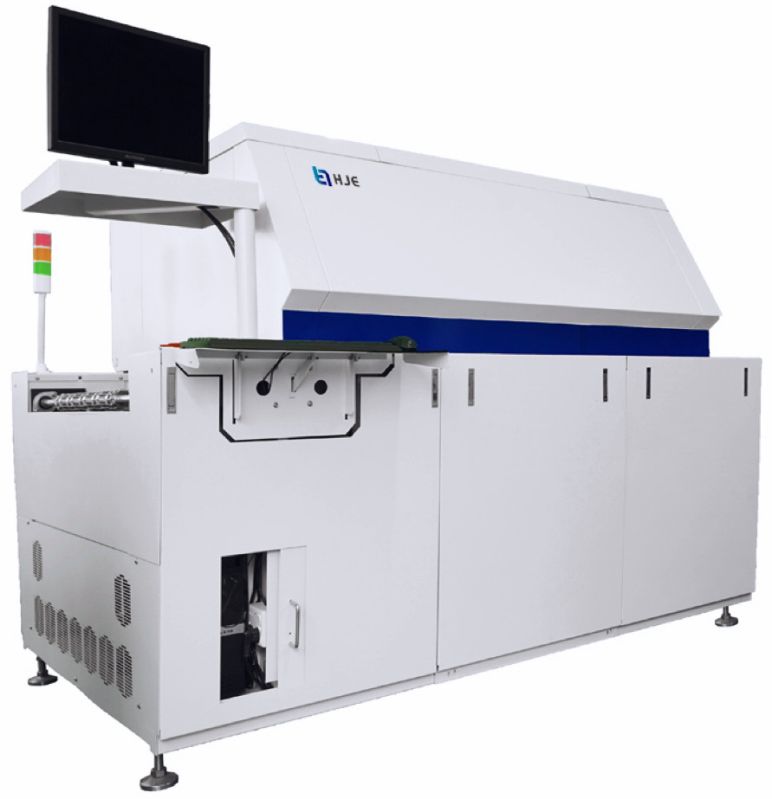

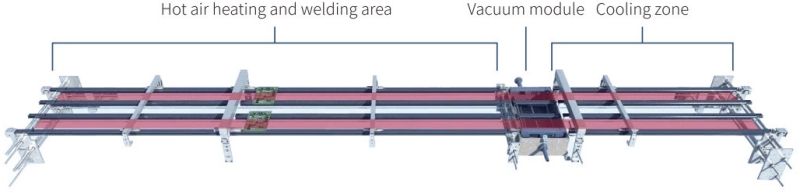

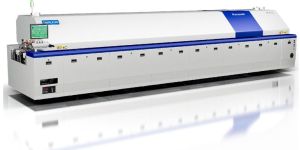

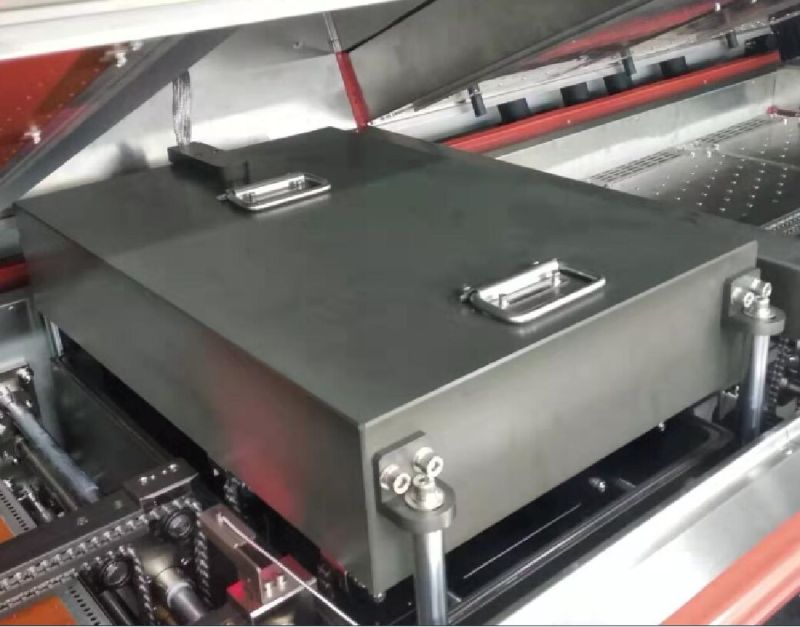

Functions Vacuum reflow process is a kind of technology which makes the reflow soldering process in vacuum environment. In the vacuum environment, due to the pressure difference between inside and outside of the solder joint and maintaining a certain period of time, the bubbles in the solder joint are easy to overflow, the void rate of the solder joint is greatly reduced, and the combination of vacuum and reflux welding is realized. Specification: Model TRV-800-N TRV-1000-N TRV-1200-N Dimension 5520*1430*1530mm 6300*1430*1530mm 7050*1430*1530mm Electronic required 3phase,380V 50HZ/60HZ Heating zones Top8(1 IR)+Bottom7 Top10(1 IR)+Bottom9 Top12(1 IR)+Bottom11  Cooling zones Top3+Bottom3 Vacuum pressure range ≥5mbr Temp. range of hot air Room temperature～350℃ Temp. range of vacuum chamber Room temperature～280℃(optional:320℃) Conveyor 300～1700mm/min PCB Height PCB Top30mm/Bottom20mm L*W PCB size L:min150mm,max300mm      W:min100mm,max400mm Gas pressure N2/0.4-0.6Mpa   Model TRV-800D-N TRV-1000D-N TRV-1200D-N  Dimension 5520*1660*1530mm 6300*1660*1530mm 7050*1660*1530mm Electronic required 3phase,380V 50HZ/60HZ Heating zones Top8(1 IR)+Bottom7 Top10(1 IR)+Bottom9 Top12(1 IR)+Bottom11  Cooling zones Top3+Bottom3 Vacuum pressure range ≥5mbr Temp. range of hot air Room temperature～350℃ Temp. range of vacuum chamber Room temperature～280℃(optional:320℃) Conveyor 300～1700mm/min PCB Height PCB Top30mm/Bottom20mm L*W PCB size L:min150mm,max300mm W:Dual-Channel min100mm, parallel pass max250mm*2 Gas pressure N2/0.4-0.6Mpa

Driven Type : Electric

Condition : Used

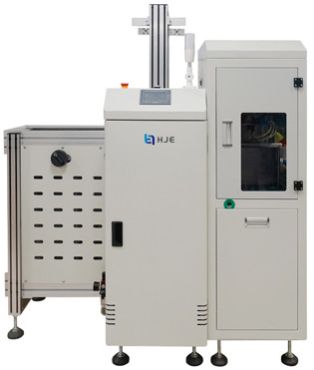

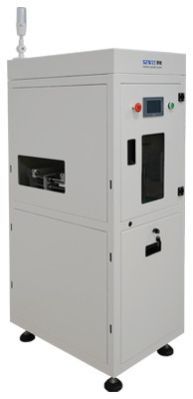

Functions： Equipped at the start terminal of SMT line to achieve sucking or delivering board automatically. The stacked bare boards are automatically fed into the back-end equipment by vacuum adsorption, reducing labor cost, increasing production efficiency. Features： 1.Fully steel structure, welded with metal plate and high temperature spray coated for the outer surface. 2. Control system adopts a Mitsubishi PLC , operated by touch screen interface. 3. The nozzle is made of flexible silicone suction cups, curved surfaces that can be adsorbed. 4. The suction plate structure adopts a closed-loop motor, lifting stable and accurate stopping. 5. The width of guide rail can be automatic adjusted, the measurement of material size is completed through the interface operation. 6. Material stacking is convenient; stack capacity with 150-200 pieces depending on the thickness of the board. 7. Photoelectric protection, sound and light alarm in case of abnormality. 8. With Standard SMEMA to communicate with other machines to achieve in-line operation. 9. CE certified. Model HJE-PC250VL HJE-PC350VL Dimension（L×W×H） 438×720×1465(mm) 590×930×1465(mm) PCB Size（L×W） 50×50-330×250(mm) 50×50-450×350(mm) PCB Conveyor Speed Approx. 6sec Transport Height(mm) 920±30(mm) Power supply AC220V±10v,50/60Hz Air Pressure 5kgf/cm2 Power 200W Transmission speed 1-12m/min PCB Thickness 0.4-4mm PCB capacity 200PCS（0.6mm thickness） Transport direction L~R（R~L One-touch switch flow direction） Control Mode PLC+ Touch Screen

Brand Name : HJE

Condition : New

Automation Grade : Semi Automatic

Application : Industrial Use

Certification : CE Certified

Number Of Flower : Vacuum Loaders

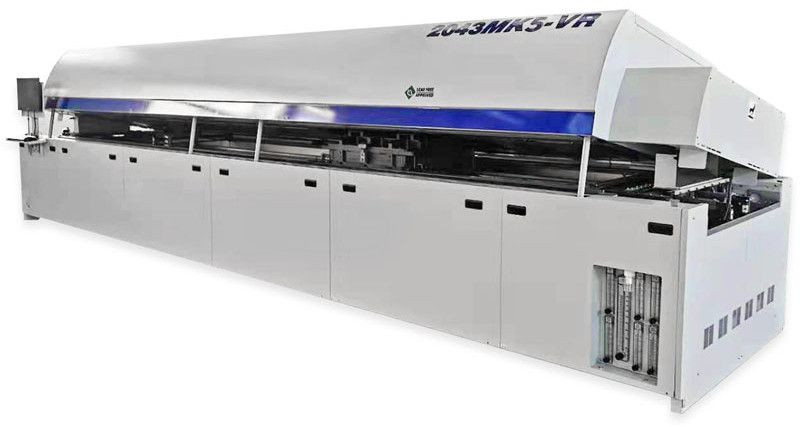

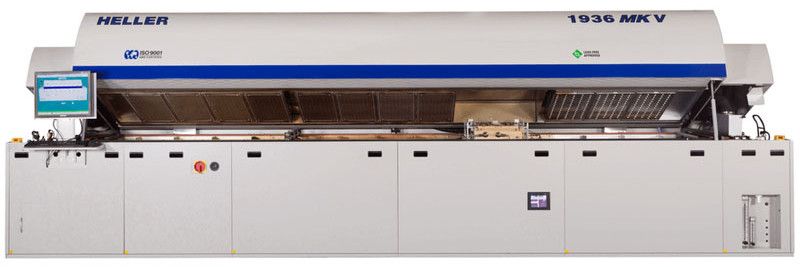

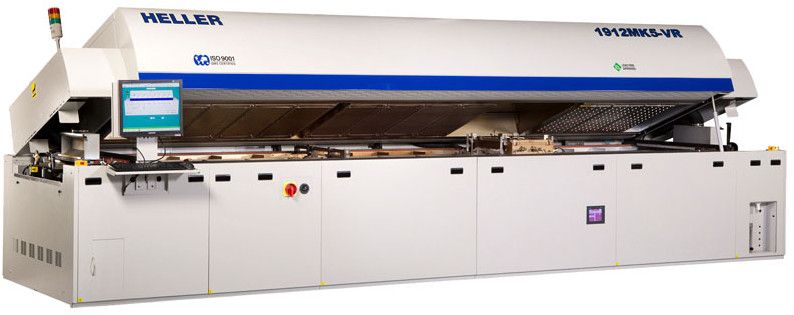

Features： 1、Heller Industries provides optimized cycle (average 30s~60s) to achieve super high UPH. 2、Heller vacuum assisted reflow applies multi-zones to meet various thermal profile requirements. 3、Heller Industries utilizes advanced pumping package with high capacity for fast pump down time. 4、Reflow time under vacuum of 15 seconds was able to achieve ＜1% total void area spec. 5、Heller adopts high efficient flux collection system to collect the flux and keep tunnel clean. 6、On-the-fly maintenance is available. 7、Chamber exhaust fore line, ball valve, butterfly valve and dry vacuum pump are heated to 150℃ to eliminate flux condensation.   Specification： Model 1808MK5-VR 1911MK5-VR 1912MK5-VR 1936MK5-VR 2043MK5-VR Oven Length 465cm 590cm 590cm 589cm 680cm Process Gas Options Air, Nitrogen, Formic Acid, forming gas Air, Nitrogen, Formic Acid, forming gas Air, Nitrogen, Formic Acid, forming gas Air, Nitrogen, Formic Acid, forming gas Air, Nitrogen, Formic Acid, forming gas Heated Zones Convection: 7 Top / 7 Bottom IR: 3 Top Convection:  10Top / 10 Bottom IR: 3 Top Convection: 11 Top / 11 Bottom IR: 3 Top Convection:  8Top / 8 Bottom IR: 3 Top Convection:  10Top / 10 Bottom IR: 3 Top Heated Length (Convection/Total) 174cm / 273cm 262cm / 364cm 290cm / 382cm 290cm / 382cm 327cm / 430cm Cool Zones 2 Top (Bottom Option) 3 Top (Bottom Option) 3 Top (Bottom Option) 3 Top (Bottom Option) 3 Top (Bottom Option) Max Working Temperature (Convection / IR) Standard: 350°C / 400°C, Option: 400°C / 480°C Standard: 350°C / 400°C, Option: 400°C / 480°C Standard: 350°C / 400°C, Option: 400°C / 480°C Standard: 350°C / 400°C, Option: 400°C / 480°C Standard: 350°C / 400°C, Option: 400°C / 480°C Min Vacuum Standard: 10 Torr Option: < 10 Torr Standard: 10 Torr Option: < 10 Torr Standard: 10 Torr Option: < 10 Torr Standard: 10 Torr Option: < 10 Torr Standard: 10 Torr Option: < 10 Torr Max Board Size L500 x W450 x H29（cm） L500 x W450 x H29（cm） L350 x W350 x H29（cm） L350 x W350 x H29（cm） L500 x W450 x H29（cm） Cleanroom Option Down to Class 1000 Down to Class 1000 Cleanroom Option Down to Class 1000 Cleanroom Option

Driven Type : Electric

Condition : Used

Automatic Grade : Semi Automatic

Power : 6-9kw

Application : Drying Process

Certification : CE Certified

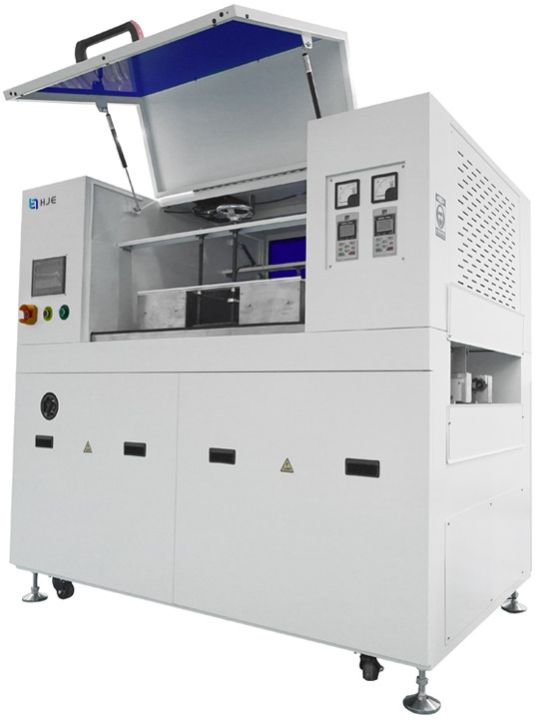

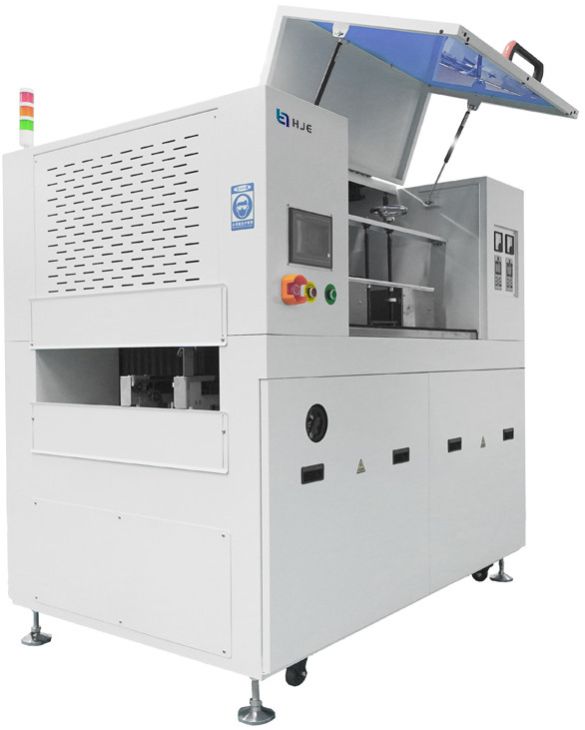

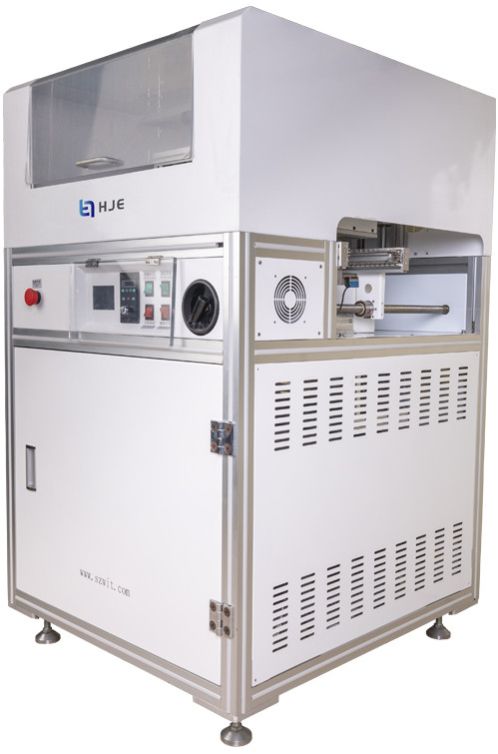

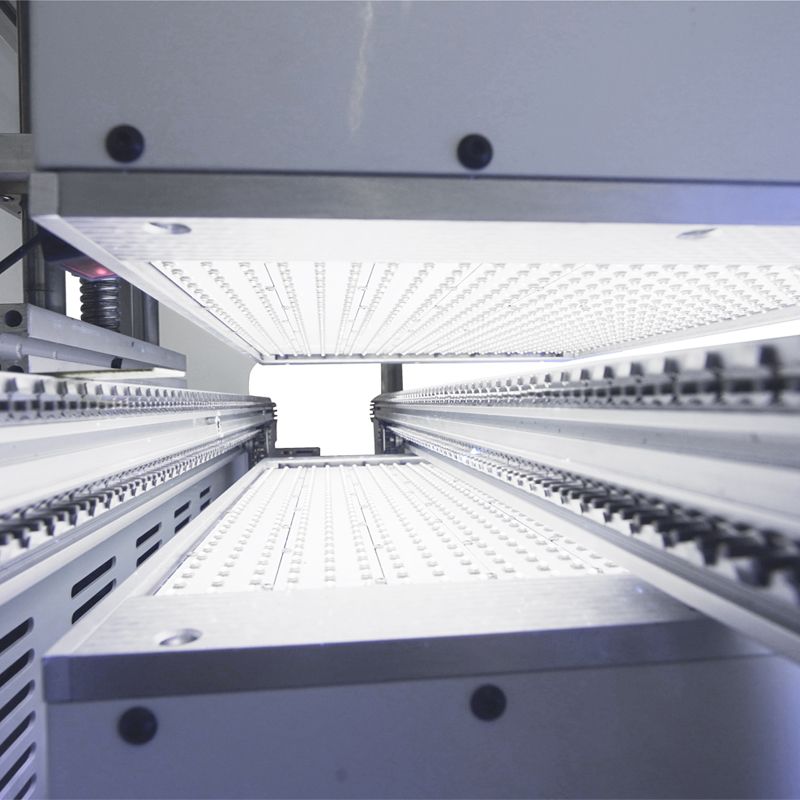

Function: Online UV (LED) curing oven is commonly used for UV glue bonding and curing of mobile phone screens, suitable for TFT screens, IPS screens, super LCD screens, and OLED screens. The light source adopts a dedicated UV LED cold light source, it does not damage materials such as PVC/TP, and does not produce ozone, is energy-saving and environmentally friendly.   Specification: Model HJE-UV450 Product Online UV curing furnace Dimensions L919*W810*H1380mm PCB breadth 50mm-450mm Direction of transfer □ left-right □ right-left (default left to right) Wavelength 365nm Cooling Fan Cooling Weight 205kg Setting Touch screen can be set brightness, time Light source height Adjustable within 50mm Power 4600W Convey height 900±20mm Conveying speed 0-4500mm/min The light area 314X370mm Power Input 100-240V AC 50-60 HZ Number of luminescent heads There are 2 double-sided curing lamps Energy value The standard value is over 7000 MJ Function The equipment shall support online function, and the form of the chain shall connect with the front and rear machines and support communication with the front and rear machines

Brand Name : HJE

Material : Stainless Steel

Finishing : Polished

Driven Type : Electric

Shape : Square

Condition : New

Power : 6-9kw

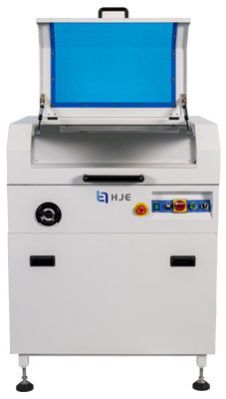

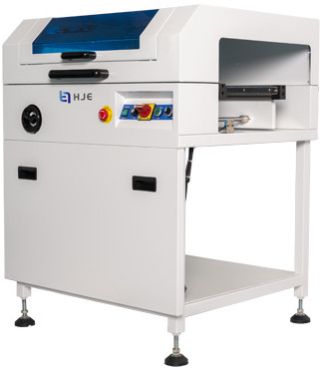

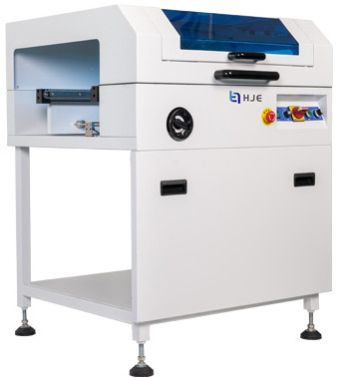

Functions： This is used at end of conformal coating line, it’s designed to frequent visual inspection of PCB’s is required. Features： 1. Full Steel structure, welded with metal plate and high temperature spray coated for the outer surface. 2. Special reinforced aluminum profiles with max 5kg load-bearing capacity. 3. Conveyor width adjustment using hand crank. 4. SZWIT independently develops an integrated control board with stable performance. 5. Configure with dust cover and UV light. 6. Adopt a background simulation photoelectric sensor, suitable for various color PCBs with sensitive induction. 7. Configure with Standard SMEMA to communicate with other machines to achieve inline operation 8. CE certified. Specification：   Model HJE-UV-460 Overall Dimension L910×W801×H907.5 PCB width size(mm) 50~460mm Supply voltage Single-phase AC220V/50-60HZ Air Pressure N/A Power 300W Transmission height 900±30mm PCB Transport direction L~R（R~L One-key switch flow direction） Transport speed 1-12m/min(Adjustable)

Brand Name : HJE

Finishing : Polished

Driven Type : Electric

Machine Material : Stainless Steel

Shape : Rectangular

Features： 1、It has the delay shutdown protection function to avoid irregular deformation of lamps and other components due to uneven heat after shutdown; 2、Counting function of PCB plate material online; 3、Transmission system CVT speed governor; 4、Can test the equipment with each hardware interface; 5、With IO monitoring function, convenient for maintenance; 6、With chain transmission, it can be connected with other SMT devices (providing online signal); 7、With the manual adjustment function of the chain guide rail width; 8、Touch screen human-machine operation interface, greatly facilitate the use of users; 9、It is equipped with a suction fan to facilitate the exhaust gas discharge; 10、Stainless steel chain carries 15kg weight (speed of 50-300mm / min).       Specification: Model HJE-UV180 Electric source Three-phase and five-phase lines are 380VAC 50Hz UV lamp power * quantity （Total length is 600, and the luminous body length is 450） Power density of the UV lamp 75w/cm2 UV intensity of illumination 80~200mw/cm2 Radiation direction Under the photo type Minimum UV energy value (at a speed of 5m / min) 150mj/cm2 UV band and main peak wavelengths Main peak from 280 n m to 420 n m is UVA 365nm Transmission belt speed 0.5~3m/min Continuous adjustable Width 100~450mm adjustable Transmission belt transmission mode Speed down motor transmission Conveyor belt to ground height 900 ±25(mm) Effective irradiation width 450 (mm) Import and export height adjustment 10~110 (mm) UV energy deviation (conveying width direction) Within 20% Dynamic temperature of the UV room ≤100℃ (When rail speed is 2m/min) Temperature on the surface of the box ≤40℃ Cooling-down method Air blast cooling Air exhaust volume 750m3/h 58mmAq UV lamp power adjustment 100% Turn light UV lamp height adjustment The 120 (mm) UV lamp to the mesh belt distance UV lamp service life 800h Total power ~12KW External dimensions of the host 1800L*910W*~1860H(mm) Appearance color of equipment white

Brand Name : HJE

Material : Stainless Steel

Finishing : Polished

Driven Type : Electric

Shape : Rectangular

Condition : New

Power : 9-12kw

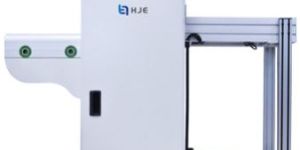

Features： This unit is used to collect PCBs into magazine at the end of SMT/DIP or testing production line. The PCB's are collected from upstream machine using attached conveyor and pushed into the magazine automatically. Avoid manual touch, reducing labor cost, increasing production efficiency. Features： 1. Full Steel structure, welded with metal plate and high temperature spray coated for the outer surface. 2. Mitsubishi PLC control system, touch screen interface. 3. Lifting by motor, transmission by precision ball screw, effective step distance can be set by 10,20,30,40mm。 4. Material containers are fixed by four-position cylinder, moving stable. 5.Board receiving drive by motor, stable, speed adjustable. 6.Photoelectric protection, sound and light alarm in case of abnormality. 7.With Standard SMEMA to communicate with other machines to achieve inline operation. 8. CE certified.

Shape : Square

Certification : CE Certified

Condition : New

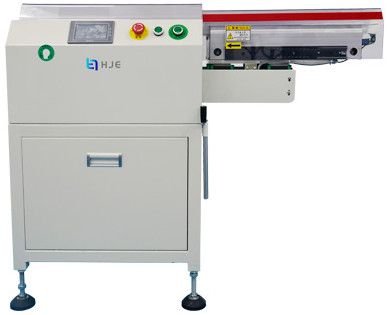

Functions： It is applicable to the full-automatic connection between adjacent equipment of SMT, DIP or assembly line, and has the functions of transmission and stop. When the production line needs passage, just start the access button, which is convenient and fast. Features： 1、Fully steel structure, welded with metal plate and high temperature spray coated for the outer surface. 2、Double guide rail design, independent control the delivery system, configure with protection cover. 3、. Mitsubishi PLC control system, touch screen interface 4、Server motor driven for smooth extension and retraction. 5、Conveyor rails material uses dedicated aluminum,Double-sided anti-static belt, anti-slip and wear-resistant; 6、The rail adopts a precision ball screw combined with a hard chrome plated rod, which can be adjusted smoothly. 7、Background suppression photoelectric, suitable for various color PCBs with sensitive induction. 8、Configure with Standard SMEMA to communicate with other machines to achieve inline operation. 9. CE certified. Specification：   Model HJE-T1200 Overall Dimension（L×W×H） 1200×800×960(mm) PCB Size（L×W） 50×50～L500×W330(mm) Power supply AC220V 50/60HZ Air Pressure 5~6KGf/cm² Power 200W Transmission height 900±30mm Transport speed ＞14m/Min PCB Transport direction L~R（R~L One-touch switch flow direction） Control Mode PLC+ Touch Screen

Brand Name : HJE

Finishing : Polished

Driven Type : Electric

Machine Material : Stainless Steel

Shape : Rectangular

Condition : New

Functions: The first station of SMT production line, deliver the board to next station automatically, Combining Vacuum and magazine feed for single and double sides board. This integrated function enhances overall efficiency of your production. Features： 1. Full steel structure, welded with metal plate and high temperature spray coated for the outer surface. 2. Control system adopt a with Panasonic PLC, operated by touch screen interface, convenient on man-machine interaction. 3.Cast aluminum lifting platform, using medium to large motors for lifting, with adjustable step sizes of 10mm, 20mm, 30mm, and 40mm 4.Leadshine motor to adjust width, precision ball screw, PCB can pass by smoothly. 5.Loading drive by Leadshine motor and line rail. 6.Adopts vacuum suction, can stack 100-150pcs PCBs each time (depended on the thickness of the PCB). 7.The suction function can be measured and input according to the size of the PCB, and the width can be adjusted with one click on the touch screen. 8.The suction part moving up and down by the lifting and lowering of Leadshine closed-loop motor, stable lifting, precise positioning, and speed adjustable. 9.Built-in fault retrieval function and safety detection system, sound and light alarm in case of abnormalities. 10. Adopt a background simulation photoelectric sensor, suitable for various color PCBs with sensitive induction. 11. Configure with Standard SMEMA to communicate with other machines to achieve inline operation. 12. CE certified.

Brand Name : HJE

Condition : New

Automation Grade : Automatic

Certification : CE Certified

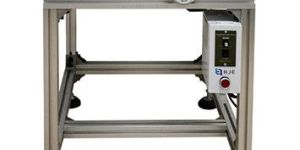

Functions： This conveyor is used to feed PCB’s or pallets from DIP line into wave soldering machine. Features： 1. Full Steel structure, welded with metal plate and high temperature spray coated for the outer surface. the bottom added weight and not easily displaced. 2. SZWIT independently develops an integrated control board with stable performance. 3. The double track is made of special thickened aluminum, which is not easy to deform and wear-resistant. 4. Dual speed on second segment for fluent transfer. 5.Photoelectric protection, sound and light alarm in case of abnormality. 6.With Standard SMEMA to communicate with other machines to achieve inline operation. 7.CE certified Specification：   Model HJE-JB1200C Overall Dimension L1000×W720×H920 PCB width size(mm) 50～350mm Supply voltage Single-phase AC220V/50-60HZ Air Pressure N/A Power 200W Transmission height 900±30mm PCB Transport direction L~R（R~L One-key switch flow direction） Transport speed 1-12m/min(Adjustable)

Brand Name : HJE

Material : Full Steel Structure

Feature : Full Steel Structure,Welded With Metal Plate & High Temperature Spray Coated For The Outer Surface

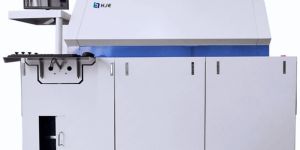

Features Practical reflow welding, small footprint, strong structure, furnace is not easily variable, good sealing performance, special furnace design, stable temperature control. Suitable for small electronic products with low-capacity requirement. With strict requirements for the temperature and welding quality. Suitable for companies with laboratory or research companies.   Specification: Model No HJE-400 Outer Dimension L2100×W1400×H1650mm Net Weight Approx. 850KG Exhaust airflow rate 10m3/min*1 channel Power Supply 5W3P; 380V 50/60HZ; （□ O: 220V 50/60HZ） Power Demand Total power 35KW，Working power 7KW Warming Time 约20mins Temp. Setting Range Room Temp.--300°C Rail Width 560mm Components Clearance PCB Top 30mm Transportation Direction L to R Conveyor Height 900±20 mm Transportation Speed 300-2000mm/min Data Storage Multiple production mode data Board Dropped Alarm Tower Light: Yellow–Warming; Green-Normal; Red-Abnormal Abnormal Alarm Abnormal Temperature (Extra-high / Extra-low Temp.) No of Heating Zoon Up 4 / Bottom 4 Control Mode WINXP+PC+PLC Temp Control Mode PID Close Loop Control+ SSR Driving Transportation System By Rail Transportation Control Mode Inverter + Transportation Motor Upper Cover Startup Drive by electric，Convenience for cleaning UPS Backup power

Driven Type : Electric

Condition : New

Automatic Grade : Semi Automatic

Application : Drying Process

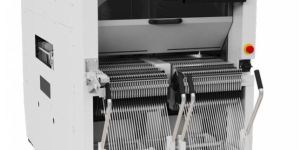

Features: 1. High-speed placements of up to 100,000 CPH.*¹ 2. Best-in-class placement rate per square meter(sq ft).*² 3. Integrates seamlessly with the production environment 4. Achieve high quality production         Specifications: Model RX-8 Board size 50×50～510mm*¹ *²×450mm Component height 3mm Component size 0201*³～□5mm Throughput 100,000CPH Placement accuracy ±0.04mm (Cpk ≧1) Feeder inputs Max.56 *⁴ Electric Three-phase  AC200V,220V～430V *⁵ Power consumption 2.1kVA Pneumatic 0.5±0.05MPa Air consumption(standard) 20L/min ANR (during normal operation) Dimension(W*D*H) 998mm×1,895mm×1,530mm Weight 1,810kg(with fixed bank)/1,760(with bank changing)

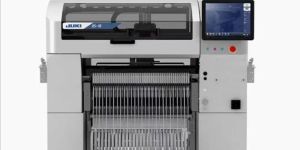

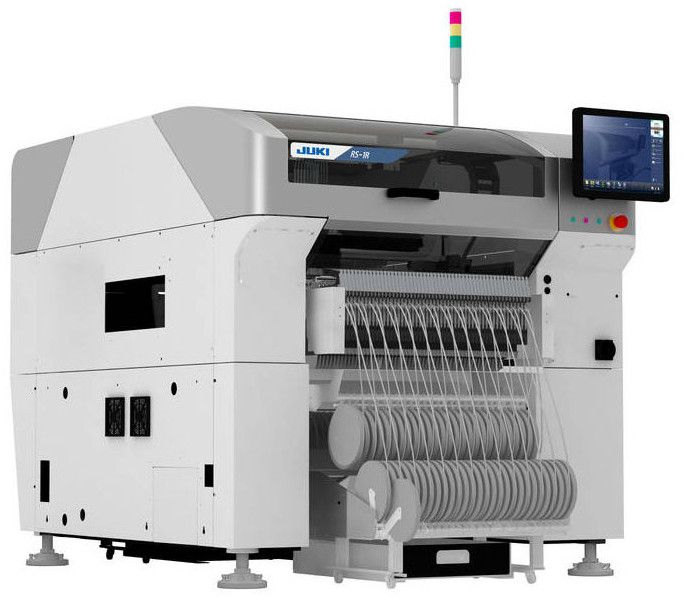

Features: 1. Class leading speed, up to 47,000 cph 2. Self-Optimizing Smart Head 3. Optimum line balance and highest throughput 4. Nozzle Traceability function 5. Large Nozzle ATC 6. Wide components range from 0201 (metric) to large connectors and ICs 7. Optimal for LED placement     Specifications: Conveyor specification Standard 150 mm conveyor extensions, upstream and downstream 250 mm conveyor extensions, upstream and downstream Board size Minimum 　 50×50 mm Maximum 1 buffer 650×370 mm(single clamping) 3 buffers 950×370 mm(double clamping) 1,100×370 mm(double clamping) 1,200×370 mm(double clamping) 　 360×370 mm 500×370 mm 600×370 mm Component height 25 mm Component size 　 0201*¹ ～□74 mm/150×50 mm 　 　

Features & benefits of MK7 series SMT reflow oven: Reflow Oven w/New Low Height Top Shell The new low height top shell provides much easier access for reflow oven operators. All skins have double insulation to save up to 10-15% in reflow soldering energy loss. INDUSTRY 4.0 Compatible Reflow Oven Internet of Manufacturing (IoM) — Smart factories, intelligent machines and networked processes through the use of cyber-physical systems. Enhanced low height heater module provides the lowest Delta Ts with better air flow and uniformity! The Uniform Gas Management system eliminates “net flow” which results in nitrogen consumption reductions of up to 40%! New semi-circular heater is more robust and efficient with much longer lifetime.

Driven Type : Electric

Certification : ISO 9001:2008

Model No. G5 Machine Performance Repeat Position Accuracy ±0.01mm Print Accuracy ±0.025mm NCP-CT (Cleaning and printing not included) 7.5s HCP-CT(Cleaning and printing included) 19s/pcs Process CT 5min Transfer Line CT 3min

Brand Name : GKG

Material : Steel

Driven Type : Elecric

Condition : Used, New

Automatic Grade : Automatic

Certification : CE Certified

Features: 1. Class leading speed, up to 47,000 cph 2. Self-Optimizing Smart Head 3. Optimum line balance and highest throughput 4. Nozzle Traceability function 5. Large Nozzle ATC 6. Wide components range from 0201 (metric) to large connectors and ICs Optimal for LED placement Recognitions system 10 / 27/ 54  mm view camera Operations system Rear-side operation unit / keyboard (front only) Inspection function Coplanarity sensor / Component Verification System(CVS)*⁵ Conveyor Conveyor extension *⁶ / support pin / support sponge Electrical protection CE compatible specification / Ground-fault interrupter Force Control Force control unit / Force control nozzle Software*⁵ JaNets / IFS-NX / Flex line CAD Component handling and feeders Feeder TrolleyRF feeder only / RF-EF dual servo *⁷) / Electric tape feeder (RF/EF*⁷) / EF feeder adapter*⁷/Electric stick feeder*7(Type-N/Type-W) / Matrix tray server TR8SR, TR5SNX, TR5DNX / Matrix tray changer,TR6SNV, TR6DNV / Dual tray server TR1RB / Nonstop operation function / Tray Holder / IC collection belt /Tape reel mounting base(for RF / for EF) / Splicing jig / Electric Trolley Power Station PW02*⁸ Others RS-1R・RS-1 nozzles(with or without RFID tags) / Splicing tape / Big foot / Offset placement after solder,screeen-printing Solder lighting / Mini-signal light / non-stop operation / FCS calibration jig / large ATC /vacuum pump

Condition : Used

Shape : Rectangular

Driven Type : Electric

Brand Name : JUKI

Material : Stainless Steel

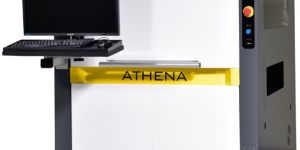

Specification: Model ATHENA  TPI Camera 10MP 12MP Resolution 10um 15um 18um 10um 15um Inspection speed 19.2cm/s 43.2cm/s 61,5cm/s 24cm/s 34,5cm/s FOV(Field of View) 32*30mm 48*45mm 57*54mm 40*30mm 48*36mm Pin Height Range 20mm+/-10 mm (can be customized) Height accuracy +/-3% Model                                     ATHENA TPI ATHENA L TPI PCB Specification Inspection Size Max PCB Size 330x330mm (13×13  inch) 510×510mm (20×20  inch) Min PCB size 50×50mm(2x2inch) Thickness 0.4～7mm Top Clearance 50mm Bottom Clearance 100mm Dimension (W*D*H) W x D x H 1050×1350x1550  mm (41×53×61   inch) 1230×1535x1550  mm (49×61×61   inch)   Weight 990kg(2183Ib) 1100kg(2425lb)   Power consumption 3.5KW(16.0A Max@220 AC)   Electrical Requirement 200～240Vac,1 Phase.50/60Hz

Features: 1. Advanced High-Speed Inspection and Measurement Technology 2. Profiling height of Pin 3. Bottom Camera head Gantry Type Movement 4. Ease of programming (Auto Teach Function)

Specification： Model EAGLE 3D - 8800 EAGLE 3D – 8800HS EAGLE 3D – 8800PRO Camera 4MP 9MP 12MP X/Y Pixel Resolution 10um 15um 18um 10um 15um 18um 15um Inspect Speed 9.1 cm2/ sec 20.5 cm2/ sec 29.5 cm2/ sec 18 cm2/ sec 40.5 cm2/ sec 58.3 cm2/ sec 52.65 cm2/ sec FOV (Field Of View) 20 x 20mm 30 x 30mm 36 x 36mm   30 x 30mm 45 x 45mm 54 x 54mm 45 x 60mm Height Range 0 – 5.5mm (option 27mm) Height Accuracy ± 3% Max. PCB Warpage ± 3mm Motor Type XY Linear Servo Motor PCB Specification Inspection Size Standard Min. 50 x 50mm (2 x 2 inch) Max. 330 x 330mm (13 x 13 inch) Large Min. 50 x 50mm (2 x 2 inch) Max. 510 x 510mm (20 x 20 inch) Thickness 0.4 ~ 7.0mm Top Clearance 50mm Bottom Clearance 50mm Electrical requirements 220 ~ 240Vac, 1Phase, 50/60Hz Power Consumption 3.5KW (16.0A Max @ 220 AC) Machine Dimension W x D X H / Weight (Standard) 1010x1190x1600mm (40 x 47 x 63inch) / About 750kg (1653lb) W x D X H / Weight (Standard) 1190x1370x1600mm (47 x 54 x 63inch) / About 970kg (2143lb)

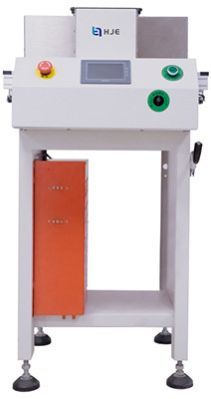

Functions： Equipped at start of SMT production line, used to deliver the stacked bare board to next station automatically, increasing production efficiency. Features： 1、Fully steel structure, welded with metal plate and high temperature spray coated for the outer surface. 2、Mitsubishi PLC control system, touch screen interface 3、 Combined with PCB loading and pass-by functions. 4、Adjust width by precision ball screw, PCB can pass by smoothly. 5、 Applicable to multiple thickness of PCBA from 0.6 to 3mm. 6、 Short cycle time, high loading efficiency. 7、 Compact structure, easy to operate. 8、 Non-stop loading boards. 9、 Small size. Save space. 10、Background suppression photoelectric, suitable for various color PCBs with sensitive induction. 11、Configure with Standard SMEMA to communicate with other machines to achieve inline operation. 12. CE certified.

Feature : Full Steel structure, welded with metal plate & high temperature spray coated for the outer surface

Brand Name : HJE

Functions： The PCB shuttle conveyor can be used for transporting boards from one line into two lines or vice versa of SMT and DIP. he PCB board transport from one-track machine to dual-track placement machine for subsequent production. Separate production line as 2-in-1 or 3-in-1, save labor cost and space, optimize equipment capability, improve production efficiency. Features： 1. Full steel structure, welded with metal plate and high temperature spray coated for the outer surface. 2. Special aluminum alloy track, built-in hardened chrome rod, operation smooth, no noise. 3. Sever motor to ensure the accuracy, stability and longer lifetime. 4. Base is made of pure aluminum alloy, operation stable. 5.The PCB feeding part is connected by precision ball screw, transmitted by stepper motor, speed is adjustable. 6. Photoelectric protection, sound and light alarm in case of abnormality. 7. With Standard SMEMA to communicate with other machines to achieve inline operation. 8. CE certified. overall dimension Customize PCB Size L350×W(50-250)mm(Customized) operating height 900±30mm   transmission dierection L-R or R-L (optional) Exchange Mode Single trail Dual Trail Power supply AC220V 50/60HZ Air Pressure 5~6KGf/cm² Power 300W 700W Positioning Mode Plate edge positioning Control Mode PLC+ Touch Screen

Brand Name : HJE

Shape : Rectangular

Functions： This unit is equipped in front of solder paster or before conformal coating process, The machine uses specially formulated elastomer rollers to remove dust, particles, etc. from the PCB surface. This contamination is transferred from the elastomer rollers to adhesive rolls. Features： 1. Fully steel structure, welded with metal plate and high temperature spray coated for the outer surface. 2、Mitsubishi PLC control system, touch screen interface. 3、Used roller brush, Silicone sticky dust, electrostatic blowing dust cleaning mode. Easily remove the particles of PCB surface. 4、The roller brush is equipped with a box vacuum cleaner, which is low noise and easy to clean. 5、Silicone stick roller, Precision lamination with the board surface. 6、High-frequency ion rods: can make the ion balance reach to±35V within 2seconds. 7、、Double-sided anti-static belt, anti-slip and wear-resistant; 8、The precision ball screw combined with the hardened chrome rod makes , stable and smooth while adjustment. 9、The guide rail transmission adopts 4 square shaft transmission, and the double-track belt is synchronized in the same position, which does not slip and resists resistance. 10、Automatically width adjustment, drive by leadshine server motor. 11、Background suppression photoelectric, suitable for various color PCBs with sensitive induction. 12、Configure with Standard SMEMA to communicate with other machines to achieve inline operation. 13. CE certified. Model HJE-PCB-C330 HJE-PCB-C460 Dimension（L×W×H） 450×750×1270(mm) 650×836×1270(mm) PCB Size（L×W） 100×50~445×330(mm) 100×50~550×460(mm) Process flow Into board-brush dust-dust recovery-sticky dust roll sticky dust-ion wind removal of static electricity on the board surface-out of the board Operating height 900±30(mm) Transport direction L-R or R-L (optional) Power supply AC220V 50/60HZ Air Pressure 5~6KGf/cm² Power 200W PCB thickness 0.6-2(mm) Roller speed 0.5-20m/min Number of sticky wheels 2PCS Number of sticky paper rolls 1PCS Control Mode PLC+ Touch Screen

Brand Name : HJE
