Mainee Steel Works Private Limited Sector 65, Noida, Uttar Pradesh

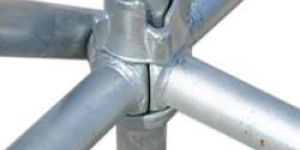

Cuplock system is one of the leading scaffolding arrangements used worldwide. Its unique node point connection makes it the fastest, safe, most economic and versatile Scaffolding ever conceived & designed. It is fabricated out of requisite grade steel tubes i.e., “B” class. The connection point is set at 500 mm intervals. Available in 3.00, 2.50, 2.00, 1.50, 1.00 Mtr sizes.

ADJUSTABLE U JACK (STIRRUP HEAD) Fabricated out of 32.00, 36.00 & 38.00 mm and MS Bar with 4 TPI Acme / Square threads. U Head having requisite height fabricated out 100 x 6 mm MS Flat & Malleable cast iron Cup Type, Double Handle light / Heavy duty nut. Sizes available are 350, 450, 550, 600 mm bar length.

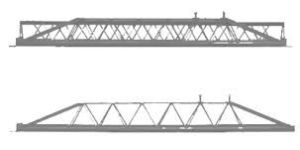

These spans provide maximum safety with minimum supervision. Fabricated out of 2 mm sheet lattices of 10 mm bar and main bar of 16 mm & T section of 40 x 5 mm. It needs no intermediate support to be provided. Its available sizes with their respective opening and load carrying capacity are as under. Available in 2 mm sheets, Lattices of 10 mm bar and main bar of 16 mm and T section of 40 x 5 mm sizes.

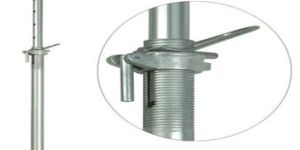

Adjustable Telescopic Prop is one of the ideal, most economical & important part of shuttering system to support all kind of form-work to slabs, beams, wall and columns. It is fabricated out of “B” class steel tubes and is in two parts.Available in 2 x 2, 2 x 3 & 3 x 3 Mtr. sizes.

Adjustable Base Jack fabricated out of 32.00, 36.00, 38.00 mm and MS Bar with 4 TPI Acme / Square thread, 150 x 150 x 6 mm MS Flat Base Plate & Malleable cast iron Cup Type.Double Handle light / Heavy duty nut. Sizes available are 350, 450, 550, 600 mm bar length.
