Seperator TapeA Suitable Tape Made Up Of Suitable Material Between The Conductor And Outer Covering.
Covering/Outer SheathGeneral Purpose(TRS)-Type(SE1)/Heat Resisting, Oil Resisting And Flame Retardant(HOFR)-Type(SE3) Can Be Used For Outer Sheath To Suit A Variety Of Environment Conditions.
Admissible Pulling Force (When Pulled With Pulling Eye)Copper – 50N/Mm2
WeldingDesigned For The Secondary (High Current) Connection To Automatic Or Hand — Held Metal Arc Welding Electrodes. It Is Suitable For Flexible Use Under Rugged Conditions, On Assembly Lines And Conveyor Systems, In Machine Tool And Automatically Operated Li
The welding cables manufacturer is Shyam Cables and the specifications are as follow – Copper/Aluminium Conductor With General Purpose (TRS)/HOFR Elastomeric Compound Sheathed Welding Cables “ISI MARKED”
The welding cables manufacturer is Shyam Cables and the specifications are as follow – Copper/Aluminium Conductor With General Purpose (TRS)/HOFR Elastomeric Compound Sheathed Welding Cables “ISI MARKED”
Power : Earthing/Return Leads, Power Feeds To Electrolytic Plating Process, Busbar Connection, Transformers, Generators, Aircraft Servicing Equipments Etc.
1.1 K.V Grade, Flexible Annealed Tinned Copper Conductor As Per IS : 8130, Conductor Melinex Taped, EPR Insulated Type IE-2 As Per IS : 6380, Cores Will Be Identified With White Insulation And Number Printed On Each Core, All Cores Laid-Up Together With Fillers & RPCT Taped (Wherever Reqd.) And Overall Heavy Duty PCP/CSP Outer Sheathed Type SE 4 As Per IS : 6380, Cable As Per The IS: 9968/88/Pt.-1”
1.1 K.V Grade, Flexible Annealed Tinned Copper Conductor As Per IS : 8130, Conductor Melinex Taped, EPR Insulated Type IE-2 As Per IS : 6380, Cores Will Be Identified With White Insulation And Number Printed On Each Core, All Cores Laid-Up Together With Fillers & RPCT Taped (Wherever Reqd.) And Overall Heavy Duty PCP/CSP Outer Sheathed Type SE 4 As Per IS : 6380, Cable As Per The IS: 9968/88/Pt.-1”
Max Conductor Resistance at 20 degree C Ohms/km19.5
Current Carrying Capacity & 40 degree C12
Colours of CoreRed, Yellow & Blue

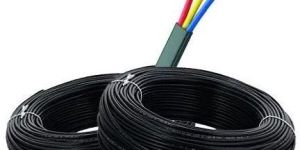

The specifications of three core flat submersible cable. 1.1 KV Grade, Aluminium / Annealed Bare Copper, Flexible- Class-5 /Solid- Class -1/Stranded- Class-2 Conductor As Per IS : 8130, ( PVC Type A/ HR PVC Type C ) Insulated As Per IS : 5831, & Overall PVC Type St-1 Sheathed As Per IS : 5831, Flat Cable Conforming To IS: 694/90, these submersible cables are “ISI Marked”
The specifications of three core flat submersible cable. 1.1 KV Grade, Aluminium / Annealed Bare Copper, Flexible- Class-5 /Solid- Class -1/Stranded- Class-2 Conductor As Per IS : 8130, ( PVC Type A/ HR PVC Type C ) Insulated As Per IS : 5831, & Overall PVC Type St-1 Sheathed As Per IS : 5831, Flat Cable Conforming To IS: 694/90, these submersible cables are “ISI Marked”
Shyam Cables is the best silicone rubber cables manufacturer in India. The the specifications of Silicone Rubber Cables are as follow – 1.1 K.V Grade, Flexible Annealed Tinned Copper Conductor As Per IS : 8130, Silicon Rubber Insulated Type IE-5 As Per IS : 6380, Cores Will Be Identified With Coloured Insulation, All Cores Laid-Up Together With Fillers & Fibre Glass Taped (Wherever Reqd.) And Overall Fibre Glass Braided With Silicon Varnished Cable, Conforming To IS 9968/Pt-1/1988.”
Shyam Cables is the best silicone rubber cables manufacturer in India. The the specifications of Silicone Rubber Cables are as follow – 1.1 K.V Grade, Flexible Annealed Tinned Copper Conductor As Per IS : 8130, Silicon Rubber Insulated Type IE-5 As Per IS : 6380, Cores Will Be Identified With Coloured Insulation, All Cores Laid-Up Together With Fillers & Fibre Glass Taped (Wherever Reqd.) And Overall Fibre Glass Braided With Silicon Varnished Cable, Conforming To IS 9968/Pt-1/1988.”
AssemblyInsulated Conductors Are Laid Up Together; If Necessary Interstices May Be Filled With Fillers. A Separator Tape Of Non Hygroscopic Poly Propylene Material Is Applied Over Laid Up Cores Wherever Necessary.
FillersNon-Hygroscopic Poly Propylene Fillers Are Included Between Laid Up Cores Wherever Required.
Bedding /Inner SheathNon-Hygroscopic Poly Propylene Fillers Are Included Between Laid Up Cores Wherever Required. Xlpe PVC / HR PVC / FR/FRLS Extruded PVC Compatible With Operating Temperature.
ArmourGalvanized Steel Round Wire / Flat Strip.
UnarmouredGalvanised Flat Strip/Wire Is Not Provided
Outer SheathXlpe PVC/ HR PVC/ FR /FRLS PVC Can Be Used For Outer Sheath To Suit A Variety Of Environment And Fire Risk Conditions.
Minimum Bending Radius12XD(For Multicore); D-Overall Diameter Of Cable(Mm)
Admissible Pulling Force (When Pulled With Pulling Eye)Copper-5ON/Mm2

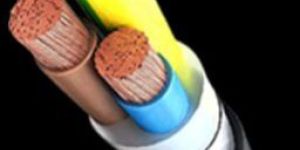

Shyam Cables is the Best Power & Control Cables Manufacturer in India. The specifications of Power & Control Cables are as follow – 1.1K.V Grade, Copper/Aluminium Conductor, Xlpe PVC/HR PVC Insulated, Cores Laid Up And PVC Inner Sheath, G.I. Steel Wire/Strip-Armoured / Unarmoured And Overall Xlpe PVC/HR PVC/FR/FRLS PVC Sheathed power and control Cable “ISI Marked”.
Shyam Cables is the Best Power & Control Cables Manufacturer in India. The specifications of Power & Control Cables are as follow – 1.1K.V Grade, Copper/Aluminium Conductor, Xlpe PVC/HR PVC Insulated, Cores Laid Up And PVC Inner Sheath, G.I. Steel Wire/Strip-Armoured / Unarmoured And Overall Xlpe PVC/HR PVC/FR/FRLS PVC Sheathed power and control Cable “ISI Marked”.

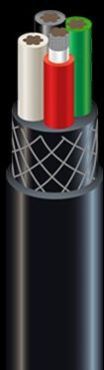

1.1 kv grade epr insulated cores laid up elastomeric compound inner sheathed & outer sheathed pliable gi wire armoured /unarmoured mining cable as per is :14494.
1.1 kv grade epr insulated cores laid up elastomeric compound inner sheathed & outer sheathed pliable gi wire armoured /unarmoured mining cable as per is :14494.
1.1 KV Grade, Flexible Annealed Tinned Copper Conductor As Per IS : 8130, EPR Insulated Type IE-2 As Per IS : 6380, Cores Will Be Identified With Coloured Insulation, All Cores Laid-Up Together With Fillers & RPCT Taped (Wherever Reqd.) And Overall Heavy Duty PCP Outer Sheathed Type SE 4 As Per IS : 6380, Cable As Per The IS: 9968/88/Pt.-2.
1.1 KV Grade, Flexible Annealed Tinned Copper Conductor As Per IS : 8130, EPR Insulated Type IE-2 As Per IS : 6380, Cores Will Be Identified With Coloured Insulation, All Cores Laid-Up Together With Fillers & RPCT Taped (Wherever Reqd.) And Overall Heavy Duty PCP Outer Sheathed Type SE 4 As Per IS : 6380, Cable As Per The IS: 9968/88/Pt.-2.
ConductorStranded, Circular, Plain /Tinned – BS 6360 Class 2.
InsulationPVC (Polyvinyl Chloride)
PairingTwo Insulated Cores Shall Be Uniformly Twisted Together To Form A Pair With Maximum Lay Length Of 100 Mm.
Pair IdentificationColour Code As Per BS-5308 Part-2 Individual Shielding : Each Pair Shielded With Aluminium Mylar Tape, Helically Applied With The Metallic Side Down In Continuous Electrical Contact With Annealed Tinned Copper Drain Wire Of 0.5mm2.
AssemblyTwisted Pairs Are Laid Up Together, If Necessary Interstices May Be Filled With Fillers Of Non-Hygroscopic Material Compatible With The Insulation.
Overall ShieldingAccumulated Pairs Again Overall Shielded With Aluminium Mylar Tape, Helically Applied With The Metallic Side Down In Continuous Electrical Contact With Annealed Tinned Copper Drain Wire Of 0.5mm2
Bedding /Inner SheathExtruded PVC .(For Unarmoured Cables: Inner Sheath To Be Provided Only If Required)
ArmourGalvanised Steel Round Wire/Flat Strip.
UnarmouredGalvanised Flat Strip/Wire Is Not Provided
Outer SheathHR PVC/ FR /FRLS PVC Can Be Used For Outer Sheath To Suit A Variety Of Environment And Fire Risk Conditions.
Minimum Bending Radius5XD(For Unarmoured); 6XD(For Armoured); D-Overall Diameter Of Cable(Mm)
Admissible Pulling Force (When Pulled With Pulling Eye)Copper- 50N/Mm2
Shyam Cables India’s Leading Instrumentation Cables Manufacturer and Supplier. The Instrumentation Cables Manufacturing specifications are as follow – 300/500V Grade, Multi-Pair Cables With Copper Conductor, PVC Insulated, Pairs Laid Up, Individual And Overall Shielded With Aluminium Mylar Tape Along With Atc Drain Wire, PVC Inner Sheath, G.I. Steel Wire/Strip Armoured/ Unarmoured And Overall Hr PVC/FR/FRLS PVC Sheathed Cable.
Shyam Cables India’s Leading Instrumentation Cables Manufacturer and Supplier. The Instrumentation Cables Manufacturing specifications are as follow – 300/500V Grade, Multi-Pair Cables With Copper Conductor, PVC Insulated, Pairs Laid Up, Individual And Overall Shielded With Aluminium Mylar Tape Along With Atc Drain Wire, PVC Inner Sheath, G.I. Steel Wire/Strip Armoured/ Unarmoured And Overall Hr PVC/FR/FRLS PVC Sheathed Cable.

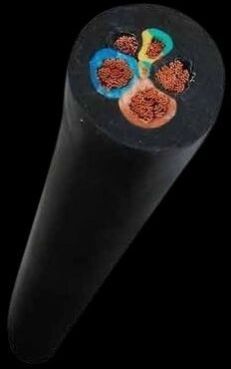

These are the specification of High Mast Cables Manufacturing. 1.1 KV Grade, Flexible Annealed Tinned Copper Conductor As Per IS : 8130, EPR Insulated Type IE-2 As Per IS : 6380, Cores Will Be Identified With Coloured Insulation, All Cores Laid-Up Together With Fillers & Melinex Taped Cotton Reinforcement And Overall Heavy Duty PCP Outer Sheathed Type SE 4 As Per IS : 6380, As Per The IS: 9968/88/Pt.-1.
These are the specification of High Mast Cables Manufacturing. 1.1 KV Grade, Flexible Annealed Tinned Copper Conductor As Per IS : 8130, EPR Insulated Type IE-2 As Per IS : 6380, Cores Will Be Identified With Coloured Insulation, All Cores Laid-Up Together With Fillers & Melinex Taped Cotton Reinforcement And Overall Heavy Duty PCP Outer Sheathed Type SE 4 As Per IS : 6380, As Per The IS: 9968/88/Pt.-1.

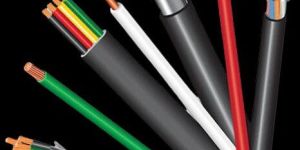

Shyam Cables’s is the Best FRLS cables manufacturer in India. The Flame Retardant, Low Smoke, wires are designed for use in fire hazard areas where such hazardous situations exist. The FRLS cables specifications are as follows – 1.1 KV Grade, Annealed Bare Copper Conductor, Solid- Class -1/Stranded- Class-2 ( Class -1 Only Upto 6 Sqmm , XLPE Insulated, Cores Laid-Up, PVC Inner Sheathed, Galvanised Steel Wire/Strip Armoured And Overall FRLS PVC ) Outer Sheathed Cable, Conforming To IS: 7098.
Shyam Cables’s is the Best FRLS cables manufacturer in India. The Flame Retardant, Low Smoke, wires are designed for use in fire hazard areas where such hazardous situations exist. The FRLS cables specifications are as follows – 1.1 KV Grade, Annealed Bare Copper Conductor, Solid- Class -1/Stranded- Class-2 ( Class -1 Only Upto 6 Sqmm , XLPE Insulated, Cores Laid-Up, PVC Inner Sheathed, Galvanised Steel Wire/Strip Armoured And Overall FRLS PVC ) Outer Sheathed Cable, Conforming To IS: 7098.
These are the specification of making Fiberglass and Asbestos Cables are as follow – 1.1 K.V Grade, Flexible Annealed Tinned Copper Conductor As Per IS : 8130, Overall Fiber Glass Braided With Silicon Varnished Cable, manufacturer ‘Shyam Cables”
These are the specification of making Fiberglass and Asbestos Cables are as follow – 1.1 K.V Grade, Flexible Annealed Tinned Copper Conductor As Per IS : 8130, Overall Fiber Glass Braided With Silicon Varnished Cable, manufacturer ‘Shyam Cables”
1.1 KV Grade, Flexible Annealed Tinned Copper Conductor As Per IS : 8130, EPR Insulated Type IE-2 As Per IS : 6380, Cores Will Be Identified With Coloured Insulation, All Cores Laid-Up Together With Fillers & RPCT Taped (Wherever Reqd.) And Overall Heavy Duty PCP Outer Sheathed Type SE 4 As Per IS : 6380, Cable As Per The IS: 9968/88/Pt.-2.”
1.1 KV Grade, Flexible Annealed Tinned Copper Conductor As Per IS : 8130, EPR Insulated Type IE-2 As Per IS : 6380, Cores Will Be Identified With Coloured Insulation, All Cores Laid-Up Together With Fillers & RPCT Taped (Wherever Reqd.) And Overall Heavy Duty PCP Outer Sheathed Type SE 4 As Per IS : 6380, Cable As Per The IS: 9968/88/Pt.-2.”
1.1 KV Grade, Flexible Annealed Tinned Copper Conductor As Per IS : 8130, EPR Insulated Type IE-2 As Per IS : 6380, Cores Will Be Identified With Coloured Insulation, All Cores Laid-Up Together With Fillers & RPCT Taped (Wherever Reqd.) PCP Inner Sheathed, Nylon Reinforcement And Overall Heavy Duty PCP Outer Sheathed Type SE 4 As Per IS : 6380, CRD Cable As Per The IS: 9968/88/Pt.-2.
1.1 KV Grade, Flexible Annealed Tinned Copper Conductor As Per IS : 8130, EPR Insulated Type IE-2 As Per IS : 6380, Cores Will Be Identified With Coloured Insulation, All Cores Laid-Up Together With Fillers & RPCT Taped (Wherever Reqd.) PCP Inner Sheathed, Nylon Reinforcement And Overall Heavy Duty PCP Outer Sheathed Type SE 4 As Per IS : 6380, CRD Cable As Per The IS: 9968/88/Pt.-2.
Shyam Cables Pvt. Ltd. was founded in 1969 by a group of experienced technocrats and enthusiastic entrepreneurs. They were specialized and well-skilled in Cable technology. With excellent infrastructural facilities, contemporary modern facilities, a well-equipped laboratory with the highest standards to ensure testing and safety which is essential for the nature of business and a specialist workforce, it was a significant commencement. The primary driving force was the ambition to become a pioneer in the field of cable manufacturing.
