AUTO AND MANUAL MODES AVAILABLEHIGH QUALITY HEATER
BATCH CODING AND TRIMMING POSSIBLEFAST DELIVERY
Psct15 is compact and sturdy machine for sealing and trimming laminated filled tubes in medium output. A high efficient and simple to operate design from amson engineering, by which you can seal, stamp batch code and trim around up to 3000 sealed tubes in 8 hour shift. Psct15 is suitable for cosmetic and pharma industries where the daily production is medium. This model can be also used for lab and r&d purpose because each time a single tube is sealed or trimmed. The machine occupies a small area of floor space (2 ft x 2 ft). Peculiarity of this design is all operations are done pneumatically. There are switches for auto and manual selection. Each operation can be individually selected by electrical push buttons. Inbuilt panel box at the front side, having main operating switches and controls like mains on-off, emergency stop, digital temperature control are given. Timers for heating, sealing, trimming are mounted at the front operating panel. A set of solenoid valves responsible for the synchronized operation of the machine is safely fitted at separate chamber on the back bottom side of the machine.
Description and Operations :

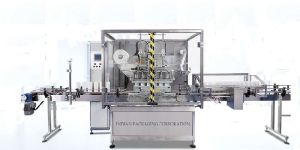

This unit contains Indexing turret of 8 pockets.
This unit contain mechanical indexer.
Cans are entered into turret at 45 degree.
Indexing Turret Will Pick the Jar Into Below The Cutting and Sealing Head.
Cutting & Sealing will be done at same time.
Dancing Roller Assembly Which Helps the foil for Proper Tension and easy cutting.
Turret places the container to the output conveyor.
Interlocks :
When Input sensor sense the container machine starts in auto mode.
When Output sensor sense the Container machine stops in auto mode to avoid overload / jamming.
No container, no Sealing.
No Container, No Foil Cut.
Clutch slips at overload/jamming in machine.
Emergency stop, machine off.
