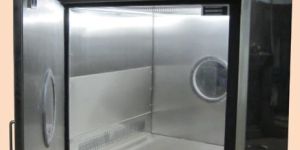

Dynamic Pass Box Dealers in Palwal

Dynamic pass box is designed to allow material transfer through controlled environment without much personnel movement. It also aids controlling of particulate contaminants into clean room & between different classified areas. Dynamic pass box is available in powder coated Mild Steel, SS 304 / SS 316/ SS 316L or a combination of both.  General Specifications • Two Stage filtration• EU6 – Prefilter (95% down to 5 micron)• EU13/EU14 - HEPA Filter – Supply (99.97% down to 0.3 micron)• Statically & Dynamically balanced Motor-blower with suspension arrangement to reduce noise level• Doors with double walled flush glass view panels• SS Handles & SS hinges• Internal covings for easy cleaning• Electro-magnetic Interlocking• Indicator on either side• Door Release Switch on either side• Differential Pressure Gauge : 1 No.• On / Off Switch for Motor• DOP Test Port  Standard Models Model Work Area Dimension (H x W x D) 450 x 450 x 450 mm 610 x 610 x 610 mm  Operating Conditions Air cleanliness : ISO Class 5 (ISO 14644-1:1999 (E))Air Velocities : 90 ± 20 FPMAir Flow : Vertical - RecirculatoryNoise Level : Less than 65 dBVibration Level : MinimumPOWER SUPPLY : 230V AC 1-Ø 50HZ Options and Accessories A wide range of configurations to suit any application : • Mechanical Interlocking• U. V. Light with Hour Meter with interlocking arrangement to put-off U.V. Light if either door opens• Floor mounted contruction with three side wall structure.• Support Stand to mount the pass box.• Flange for sealing the gap between the pass box and the cleanroom wall
