General SpecificationsSS Handles & SS hinges Internal covings for easy cleaning Electro-magnetic Interlocking
Work Area Dimension (L x W x H)450 x 450 x 450 mm
ModelPT-18-18-18
steripass™ is designed to allow material transfer through controlled environment without much personnel movement. It also aids controlling ingress of particulate contaminants into clean room & between different classified areas.
DoorSolid door w/ mechanical or electrical interlocked
WindowTempered Glass
UV LampOptional
HEPA FilterOptional
Suction FilterStainless Steel w/ 9501o down to 5 u Efficiency (EU -4 Rating.)
Supply FilterAluminum w/ 99.999% down to 0.001 u (EU -14 Rating.)
BlowerBranded Heavy duty
Noise< 78 db
Power Supply220 / 230 Volts
AccessoriesHour meter magnehelic Pressure Gauge
ElectricalsHour Meter, Fluorescent light, UV light, Electromagnet for door interlocking, Buzzer and Indicator l
Air Shower FacilityOptional
CleanlinessClass 100
CertificationsISO ISO 9001:2008 , ISO 13485:2 016

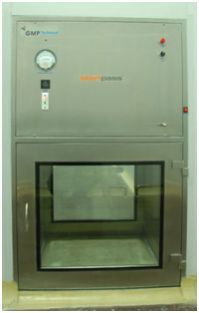

National Dynamic Pass Box equipment are made of Inner & outer high grades stainless steel (304 / 316) with international quality standard components including mechanically or electrically interlocked doors and UV light. This National dynamic pass box equipment are equipped with suction filter made of stainless steel with 95% down to 5μ efficiency (EU-4rating) and supply filter made of aluminum with 99.999% down to 0.001 μ (EU-14 Rating.) An interlock guard system controls the inlet and the outlet of Pass Box not be opened at the same time, in order to prevent the cross contamination.
