Gujarat Wedge Wire Screens Ltd. Halol, Panchmahal, Gujarat

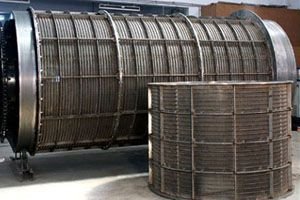

Rotary screens complete with side flanges and support drive drums of Stainless Steel Mild Steel mainly for Sugar and other Chemical plants to achieve very efficient filtration. Our rotary screens have very .high strength coupled with very high open area and rigid construction.

Material : Stainless Steel, Mild Steel

Number Of Flower : Rotary Screens

Packaging Type : Metallic

Application : Filtration In Sugar And Chemical Plants

Working Principle of Wedge Wire Screen Tubes in Radical ReactorsCatalytic reforming is an important process for improving gasoline quality and producing petrochemical raw materials. Catalytic reformer is one of the most common devices in modern petroleum refineries and petrochemical catalytic reforming joint enterprises. According to the flow direction of oil and gas in the reactor, it is divided into axial reactors and radial reactors. Radial reactors are widely used in modern reforming units.The existing radial reactor is equipped with a gas distribution device and a gas collection device, which are respectively installed in the center and around the reactor. The gap between the two is filled with catalyst to form a catalyst bed. There are two kinds of wedge wire screen tubes in radical reactors: scallop wedge wire screen tubes and cylindrical wedge wire screen tube. The devices installed around the reactor are scallop wedge wire screen tubes (flat tubes). According to the flow direction of the gas, they respectively serve as the flow diversion channel or the flow collection channel of gas respectively. The device installed in the center of the reactor is a cylindrical wedge wire screen tube and the bottom of the wedge wire screen tube is connected to the outlet of radial reactor. When the reactor is working, the raw materials enter from the inlet at the top of the reactor, and a series of reactions occur under the action of the catalyst. The gas will be collected in the cylindrical wedge wire screen tube and transferred to the next reaction stage.Catalytic reforming is an important process in the refining and petrochemical industries. In the actual catalytic reforming reaction, many unexpected situations may occur. For example, in the case of sudden shutdown, the catalyst will move toward the scallop wedge wire screen tube where the gas is accumulated in the reactor. The scallop tube is subjected to a large external force, which may lead to instability and deformation. Therefore, we must choose high quality wedge wire screen tubes to ensure their compressive strength, flatness, verticality and other factors to improve the catalytic reforming effect.

Material : Metal

Shape : Round

Certification : CE Certified

Feature : Good Quality, Matte Finish

Finishing : Polished

Basket Type : Wire Mesh

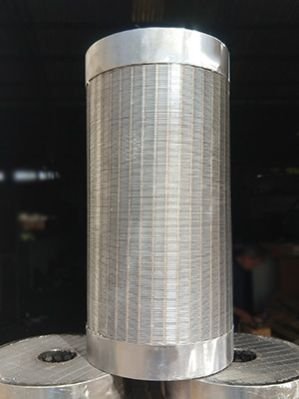

Wedge Wire Screen Tube - Different Surface and Edge TypeWedge wire screen tube, also called round slot tube. It is made of stainless steel wire, which is the most popular type because of outstanding chemical stability and corrosion resistance.The wedge wire screen tube is composed of working profile and support profile. It is produced on an automotive machine. The support profiles is placed on the suit position of the machine, during the surface profiles are spirally wounding, the support profiles are welded onto the surface profiles.Types of wedge wire screen tubeWedge wire screen tube has various different types, according to the different standard, here are the detailed introduction of the wedge wire screen tube, just refer to them and know more about the round slot tube and get a reference for choice.According to the surface of wedge wire screen tubeThere are two types of wedge wire screen tube seen from the surface. One is the normal types, which has continuous and regular angles on the edge. It is economical, which is suit the applications where the accuracy is not very strict. The other type is perfect round type. It is produced by the strict standard, which has better filtering accuracy than the common type. Additional, the perfect round type can be used in the most precise machines and complete the arduous filtering task.Features of wedge wire screen tube Accurate filtering performance. High efficiency. Narrow slot openings. Normal or high grade type for choice. Various edge types. Wide range of diameters for choice. Special sizes can be customized. Economical but high grade. Corrosion resistance. Rust resistance. Long service life and durable. Applications of wedge wire screen tube Petroleum industry. Oil filtration. Water treatment industry. Desalination of seawater, treatment of industrial water and domestic water. Water softening treatment. Chemical industry. End products of chemical organic solution filtration, such as acid, alkali liquid filtration, alcohol and other products filtering. Hydro-geological exploration. Drilling construction. Geothermal development. Catalytic reformer.

Country of Origin : India

Material : Stainless Steel

Shape : Round

Packaging Type : Metalic

Feature : Superior Finish

Finishing : Polished

Basket Type : Wedge wire screen

Brand Name : GWWS

Material : Stainless Steel 304, 304l, 316, 316l, 321, Etc.

Wedge Wire Screen Support Grid for Carbon Filters and Lauter TanksWedge wire screen support grid is made of all stainless steel materials or nickel alloy materials, including the wedge wire screen, frames and other accessories. The high quality material make the wedge wire screen support grid corrosion and rust resistance and long service life. Compared with woven wire mesh or perforated metal, wedge wire has continuous slots, which have higher open area and precise openings. It can supply more precise filtering performance, higher strength and more durable life.   Types of wedge wire screen support grid Wedge wire screen support grid has various types, it can be whole type, and it can also be divided into several parts. The whole type is mainly in small diameter. The large diameter support grid will be divided into several parts for convenient transportation and installation. Whole type wedge wire screen support grid. Joint type wedge wire screen support grid. The joint type wedge wire screen support grid can be divided into different parts and in different shapes. Here are some typical type of joint wedge wire screen support grid. Just choose the perfect one suitable for you.Features of wedge wire screen support grid Smooth surface. High open area. Excellent capacity. Temperature resistance. Corrosion and rust resistance. High strength. Long service life. Non-clogging. Joint type for easy installation and transportation Applications of wedge wire screen support gridThe wedge wire screen support grids are very important to provide uniform flow collection The support grid can be used in the carbon filters, desulfurizers, molecular sieves, gas sweeteners and lauter tuns.

Material : Metal

Shape : Round

Certification : CE Certified

Feature : Good Quality, Matte Finish

Finishing : Polished

Basket Type : Wire Mesh

Advantages of Our Wedge Wire Screen Baskets in Centrifugal DewateringWedge Wire Screen Basket - Excellent in Screening, Filtering and Dewatering Similar to the wedge wire screen cylinder and wedge wire screen tube, the wedge wire screen basket is also manufactured from V-shaped profile wires and various support rods. The support rods are resistance welded onto the profile wires to form a firm structure. Wedge wire screen basket has a narrow top and a wide bottom, which is suitable for various centrifuge machines. Firm structure. Good mechanical property. High strength. High load capacity. Outstanding filtering performance. Corrosion and rust resistance. Wear resistance. Temperature resistance. Low maintenance. Durable and long service life Wedge wire screen basket is a very important component of centrifugal liners. The wedge wire screen basket commonly has flange on the bottom or top. It is connected to the machine by bolt and nuts. Sometimes, there are flanges on both the top and bottom of the wedge wire screen basket.ApplicationsWedge wire screen basket has outstanding screening, filtering and dewatering performance in various applications. Water treatment: centrifugal dewatering equipment. Mining. Coal. Oil. Chemical fertilizers. Food. Environmental protection.

Country of Origin : India

Number Of Flower : Wedge Wire Basket

Material : Stainless Steel

Feature : Superior Finish

Finishing : Polished

Basket Type : Wedge wire

Material : Stainless steel. 304, 314L, 316, 316L or 321.

When you require the most effective method to remove solids, trust our ClearBlu wedge wire waterfall systems. View five reasons our products are the best.GWWSL manufacturers wedge wire waterfall screens as a highly efficient and cost-effective alternative to other solids removal systems. A number of factors make these wedge wire screens an excellent choice.Wedge wire screen The wedge wire screens have a very steep angle. This allows water flow to push screened material off into a dewatering hopper. .5 mm screens will actually separate material as small as .25 mm. Automatic spray bars keep dried material from clogging the wedge wire screens. Because they are timer activated, they use 90% less water than rotary screens. Stainless steel construction means acidic wastewater is no challenge. Screening solids before pH balancing can reduce chemical consumption by 60%. Solids can soak up significant amounts of the chemical. Models0-150 GPM Wedge Wire ScreenThis wedge wire screen is designed for flows from 0 to 100 GPM for hydro screens. GWWSL screens are unique in that they have a 60-degree slope and are self-cleaning in most applications. They have no moving parts. The concept is simple: run the wastewater over a weir and down over a wedge wire screen. The solids are pushed off the screen and the liquids pass through the wedge wire.Wedge wire screenThere are several important factors in selecting a good waterfall filter. First, the spacing between the wedge wire bars can vary. Second, the top of the wedge wire is flat (wedge wire is made of flattened tubing) and the tops should be canted slightly so that they trap the water. Third, there needs to be sufficient runway at the top so that the water can gain velocity. This is accomplished by placing a smooth section of stainless just below the weir at the top. Fourth, the slope of the wedge wire needs to be steep. This is counterintuitive. It would seem that you would want a low slope to slow the water. Instead, you want a steep slope so that you don't build up solids on the wedge wire screen. Water is heavy and will pass through a steep screen. Manufacturer: MiTMWaterfall screen150 to 250 GPM Wedge Wire ScreenThe Model 2 waterfall screen has six square feet of wedge wire screen surface and is half the size of the Model 3. This wedge wire screen effectively removes solid particles from a waste stream. Like the other types, this model uses very little energy and requires only a minimum amount of maintenance. It's ideal for many different applications including agriculture and manufacturing.400 GPM Wedge Wire ScreenThis unit will handle flows up to 400 gallons per minute. It has a 1 MM wedge wire screen. The key to hydro screens is having the correct angle on the screen and having enough runway for the water so that it gains sufficient velocity over the wedge wire screen. This seems counterintuitive. Most manufacturers lower the slope and try to slow the water. This creates clogging and water bypass.Our unit has a 60-degree slope. The screen is 48" wide and 36" long. The unit is stainless steel.Wedgewire Waterfall ScreensWaterfall screens are ideal for effectively removing fibrous and solid particles from a waste stream. An automatic self-cleaning spray bar runs on a timer to continually keep the screen free from debris buildup. These screens use very little energy and require very little maintenance.Applications: Wineries Breweries Food Processors Agricultural Industrial (garbage companies,municipal yards, etc) Wedgewire waterfall screens are available in three sizes: Number One, 0-65 GPM Number Two, 65-150 GPM Number Three, 150-300 GPM. Standard wedge wire is available in 0.5 mm and 1 mm spacing, but custom spacing is available. All models are available with stands in carbon or stainless steel. For solids handling, self-dumping dewatering hoppers from ¼ yard to 5 yards in size are available. Dewatering screens are stainless steel mesh behind stainless steel perf plate with ½" openings. The hopper is carbon steel with an option to come painted or galvanized.

Wedge wire nozzle is manufactured from stainless steel material or other alloy material. The wedge wire nozzle features non-clogging, high filtering efficiency and economical. It has a wide range of applications in water treatment applications. The different wedge wire sizes and slot sizes can suit different class filtration. Continuous slot design make it high efficiency and long service life. Non-clogging. High open area. High filtering performance. Corrosion and rust resistance. High temperature resistance. Economical. Easy to install and replacement. Type of wedge wire nozzleAccording to different applications, the wedge wire nozzle can be divided into two main types, you can choose them according to your requirements. Single wedge wire nozzle. Double wedge wire nozzle. Applications of wedge wire nozzle Wedge wire nozzles are effective in a wide range of water treatment and other industrial applications for filtering and screening. Such as, under drain media retention elements, flow distributors in demineralizers, water softeners in pressure and gravity sand filters. Except for filtering and screening applications, wedge wire nozzles have other applications. Just install several nozzles uniformly to be used as collectors at the bottom of the vessels.

Country of Origin : India

Material : Stainless Steel

Shape : Round

Feature : Easy To Carry, Good Quality, Matte Finish

Basket Type : Wire Mesh

Wedge Wire Lateral Assemblies for Under Draining FilteringWedge wire screen is widely used in the under draining applications with the features of effective filtering and screening performance. Wedge wire lateral assemblies are a typical screen type used in the under draining.Wedge wire lateral assemblies, also called header lateral assemblies, are assemblies of horizontal herring bone style wedge wire screen laterals and vertical secured round hub. The screen lateral has inherent even pattern, which is made of stainless steel, hastelloy alloy steel and other alloy steels. The screen lateral has various slot size, wire size and diameters to suit common or customized applications.The wedge wire screen lateral has two type: threaded ending wedge wire screen lateral and flange ending wedge wire screen lateral. Threaded ending wedge wire screen laterals are composed of a solid cap on one end and a threaded pipe connection on the other end. The flange ending wedge wire screen lateral is composed of solid cap on one end and a flange. The different design make it possible to suit different applications and machines.Because of the different ending of wedge wire screen lateral, the connection type is different. Commonly the wedge wire screen laterals are installed onto the vertical hub by threaded. Sometimes, the screen laterals are bolted onto the round hub through flanges on the screen laterals and round hubs.Sometimes, the threaded ending wedge wire screen laterals are installed on to a hub with flanges. And the flanges are connected to the vertical hub flange by the bolts and nuts. The flange can be top flange or bottom flange. All the designs are used to suit different position and requirements of machine.

Material : Stainless Steel, Hastelloy Steel or other Alloy Steel.

Wedge wire filters, also called wedge wire filter screens, wedge wire candle filters, are installed on the filter equipment to achieve particles and liquid filtration. And the fineness can achieve 50 microns.Wedge Wire Filters - Filters above 50 Micron Particles from LiquidsThe wedge wire filters are made of triangle or wedge wire surface profiles with continuous slots which supply large open area for filtration.The top of the wedge wire filters are commonly thread for easy installation onto equipment and the bottom may be flat or taper for sealing and block particles from passing through. And it is also used for fixation and position.Features High temperature and pressure resistance capacity. Can filtration 20 micron particles. Wide ranges of sizes and end types. Large open areas for high filtration efficiency. Non-clogging and plugging performance. Stainless steel materials for long service life. Easy cleaned and low maintenance. Applications The wedge wire filters are used in primary filters with large difference of flow and pressure in various water treatment fields, including Boiler water, petrochemical water, paper water, ship ballast water. The wedge wire candle filters can be used as pre-coated candles wedge wire screen (vertical filtration elements, beer candles) for the clarification Kieselguhr alluvial filters /Candle Precoat Filters of beer.

Country of Origin : India

Material : Stainless Steel

Length : As per customer requirements (up to 6mtr)

Packaging Type : Metalic

Feature : Easily Clean

Technics : Machine Made

Length : 10, 20, 30, 40 Inch and customized types

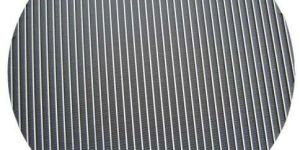

One of the main steps in the brewing process is lautering. In a word, its main job is to facilitate the filtration of crushed grains from the fermentation broth. This process is performed in a vessel called a lauter tun where false bottom is an integral part of the vessel. There are many different types of false bottoms for lautering. Finding the right equipment for the job is crucial important. Wedge wire screen is one of the main options for false bottom available on the market.The main job of the false bottom is to support the mash bed and confine the grains above the floor, while allowing liquid wort from the spent wort to flow through it. There are false bottoms manufactured by different methods, such as perforated or slotted sheet metal. However, some inherent problems still exist in these false bottoms: The false bottom is clogged, reducing the flow rate; Low filtration efficiency prevents grains from passing the false bottom into the wort, clogging the pump for recycling or transferring the wort to the next process; The false bottom is bent or moved out of position, resulting in the mash pass through with the wort together. Wedge wire screen panel false bottom is manufactured in a unique way. The wires are V-shaped with the wider end at the top, providing excellent support for the mash bed. As the wires with narrow end at the bottom, the space between wires becomes wider, providing a greater open area and allowing more worth to pass through. In the wedge screen manufacturing process, parallel support rods are welded to the wires. This leaves only two contact points on the wedge wire, which reduces clogging. In addition, the smooth surface of the wedge wire makes cleaning easier There are various benefits of using a false bottom made of wedge wire screen. These benefits provide an excellent alternative to solve the known problems inherently exist in other materials: Large opening area with precise slot size, providing a high wort flow rate; Higher mechanical strength to better support the grain; Better efficiency to prevent grains from trapping or clogging holes; Improved lautering speed.

Country of Origin : India

Material : Stainless Steel

Shape : Round

Certification : CE Certified

Feature : Good Quality,Matte Finish

Finishing : Polished

Basket Type : Wire Mesh,Wedge wire

Brand Name : GWWS

Wire Diameter : 1.90 - 5.00mm

Water Intake Screen Help Nuclear Power Plants Filter Clean WatersIntake Screens - T intake screens, half intake screens and drum intake screens Intake screens, also called passive intake screens and wedge wire intake screens, are constructed of non-plugging V-shaped wires with continuous and smooth slots. Point welded onto the wedge wire support rod, intake screen supply large open area and low velocity flow through the entire screen surface. This reduces impingement and entertainment of debris while protecting aquatic life. The slot width ranges from 1 mm to 10 mm (0.04" to 0.4") and 3 mm (0.12") is the most common. Intake screens are regarded as the first safeguard of intake system to keep fish safe and protect pumps and turbines from harmful debris. They are both efficient and environmentally safe. Features It is an passive device, which have no moving parts to allow for efficient and effective fabrication with little to no maintenance. Continuous slots and large open area is minimum clogging and maximum water flow. Multiple designs and configurations accommodate deep to shallow depths. Stainless steel material is corrosion resistance and durable life. It can protect aquatic life as well as protect pump and equipment safe from harmful debris. ApplicationsIntake screens provide continuous water extraction from rivers, lakes, dams and oceans.They are widely used in the following industries: Municipal water supply Water treatment plants LNG plants Desalination Paper & pulp Sugar mills Nuclear power plants

Country of Origin : India

What is V - Wire Screen? V - Wire Screens are fabricated in Pipe Form from Wires. All Welded Wedge Wires Screen is made from two elements - Outside V-shape wire and Inside Longitudinal Rods. The V-shaped Wire is spirally wrapped on a Cage made of Longitudinal Rods. The intersecting of shaped wire and rod is welded through each other by resistance welding. Due to resistance welding the weld joined is very strong. "V-Wire Screen Filter" is a Highly Acceptable Modern Technology in Rain Water Harvesting. It eliminates conventional filtration system, SAVES -Precious Space, Construction Cost and Construction Time for Filtration Tank. Scientific Design helps Cleaning Very Easy and SAVES Maintenance Cost. Features and Benefits of "V Wire Screen Anti Cohesive Material :Made from Stainless Steel and Suitable for acid treatment to remove incrustation, chocking of gravels which ENSURES LONG LIFE of bore well V Shaped Slot: Produces jetting effect to inject recharge water into the aquifer. Continous Slots Gives Large % Open Area Easy Installation: Save Money, Time and Energy Customized for very small or large roof top area.

Material : SS 304/316/316 L Or LCG Or As Per Customer Requirement

Thickness : 4mm - 10mm

Length : 0.2 Mtr - 6 Mtr. and as per customer requirements

Filter Solutions fabricates under-drain lateral sets for sand filters, carbon filters, and ion exchange units.Wedge wire screen laterals and pipe based laterals can be connected to distributor and drain headers by the following methods:Standard NPT threaded connectionsFlanged connections - fabricated or ANSIWelded as one assembly

Number Of Flower : Lateral Extensometer

Material : Stainless Steel

Application : Industrial Use

Feature : Anti Bacterial, Durable, Easy To Use

Width : 10-20mm20-30mm

Temperature Range : 100-150C

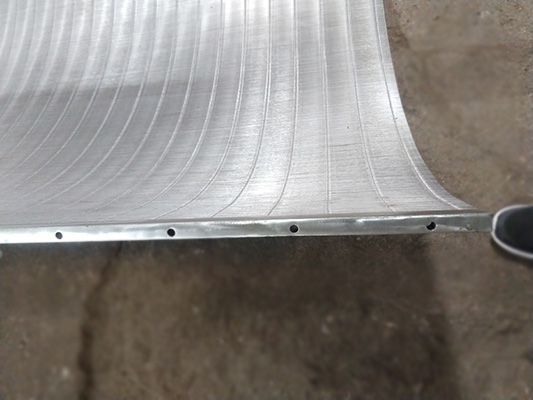

Number Of Flower : Sugar Centrifugal Screens

Material : Stainless Steel

Application : Dewatering

Packaging Type : Metallic

Condition : New

Finishing : Polished

Total Carbohydrate : Polished

Automation Grade : Polished

Filter Solutions offers a full line of baskets and strainers, as well as fully customized products to suite new or existing systems. Wedge wire offers a wide range of particle retention sizes with long service life potential.Wedge wire screen with V profile is engineered in various forms of filtering elements or cartridges in flow control. The mostly found shapes in uses are stainless steel wedge wire panels, cylinders, baskets, tubes and curved sieve bend in arc forms. Mainly serve mine, coal development, water treatment and well screening industries. Wedge wire filter strainer baskets are commonly used in existing strainer or filter cartridges for various flow controls.Features and Benefits of V Profile Wedge Wire Compared with Perforated Filter Basket and Woven Mesh Baskets Elements:The welded wedge wire screen baskets provide more sufficient opening than the perforated metal baskets. It is stronger and can bear heavy loading pressure than the woven mesh filter baskets. The wedge wire basket can work with both benefits of the perforated and woven mesh filter elements and avoid the shortcomings. It is stronger, has more aperture and pressure differential levels can be achieved by variety of the slotting. Also it is economic.

Thickness : 10-15mm

Feature : Durable, Hardend & Temper, High Tensile

Technics : Hot Dip Galvanized, White Zinc Plated

Surface Finishing : Polished

Material : SS AISI 201, 202, 304, 304L, 316, 316L

We are manufacturers of Vibratory Screen V-wire bore well pipes for recharging wells. We also manufacture V-wire or continuous slot Bore well pipes, v wire water well screens, wire wrapped screens pipe, spiral screen tube, welded wedge wire screen, reversed slot screen, continuous slot pre-pack, water filter, screen cylinders, stainless steel slot tube, reverse rolled screen, strainer pipe, continuous slot wire wrap well screens, pipe base well screen, ribbed-type wire wrapped screen, stainless steel or low carbon galvanized or mild steel wire screen, wire wrapped liner, woven wedge wire screen, slot wire screen tube, conical well screen, Suction strainers, strainer screens, wide slit screens, well point screens, PPS screen, oil screen tube. These pipes are used for bore wells in sandy soils. These are also ideal for use in groundwater recharging.

Material : Stainless Steel

Number Of Flower : Bore Well Pipe

Usage : Bore Wells In Sandy Soils, Groundwater Recharging

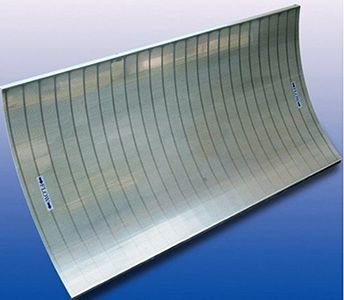

Structures of Sieve Bend ScreenWedge wire sieve bends are made of stainless steel wedge wires. They are consist of a concave curved profile wire screen, which are inserted into a stainless steel frame. The wedge wire sieve bends are manufactured by wrapping and welding stainless steel V-shaped profile wire and support rods. Then the panel screens are cutting and curved into arc screen. The wedge wire sieve bends have continuous slots, which has efficient filtering performance. Forces exerted as materials flows against the curved surface, curved screen structure has better filtering and greater capacity than the wedge wire screen panel.Working Principle of Sieve Bend ScreenDSM screen (sieve bend screen) is ideal for sizing and dewatering applications to remove solids from liquids or in solid/solid separation for dry feed situations. When the filtering materials flows against the sieve screens, Sieve bend screens can be manufactured into a variety of width, arc length and aperture to suit the flow rate and material sizing being separated. The feed materials are directed vertically and tangentially over the full width of the upper screen surface, then the material flows down the concave surface at right angles to the opening between wedge profiled wires. Wedge wire sieve bend screen has continuous slots, which supplies large open area and efficient filtering performance. Curved surface structure supplies higher flow rate, greater capacity and better filtering than wedge wire screen flat panels.As a result, Thinner materials on the underside is deflected and passed out between the wires.Features High filtering, sizing, dewatering performance. Good mechanical properties. Great capacity than the traditional vibrating screens. Corrosion and rust resistance. High temperature resistance. Low maintenance. It is easy to clean and need less maintenance. Non-clogging. Long and durable service life. Easy to install and replace. ApplicationsThe wedge wire sieve bends are mainly used for dewatering, sizing and waste water cleanup applications. They can be used in various fields, such as: Sewage treatment. Laundry wash water cleanup. Poultry, fish, fruit and vegetable waste water processing. Minerals processing. Paper production. Textile plants.

Country of Origin : India

Size : As per requirement

Number Of Flower : Wedge wire screen

Material : Steel

Packaging Type : Metalic

Finishing : Polished

Material : Stainless steel wire 304, 304L, 316, 316L, 321, etc.

In addition to flat panels, wedge wires can be readily made up into full cylinders and segments of cylinders. In most cases, the cross rods lie along the circumference and the profile wires lie parallel to the axis. Occasionally, this arrangement is reversed.Gujarat Wedge Wire Screens Ltd. Manufacture premium quality Wedge Wire Sieve Bend Screens.Specifications : Wedge Wire sieve bend screens can be custom made and designed for application in a wide range of industries. Used to separate solids from liquids, the curved screen of a sieve bend provides greater capacity than flat wedge screens due to increased gravitational forces on material flowing against the curve. Sieve bend screens are also known as side hill screens, parabolic screens, run down screens, gravity screens and DSM screens. At Gujarat Wedge Wire Screens Ltd. our high quality sieve bend screens consist of a concave curved profile wire screen mounted in a frame with the screen openings either perpendicular or parallel to the flow. We can supply both complete Wedge Wire sieve bend units and replacement Wedge Wire sieve bend screens to suit your existing unit. For special applications, we can offer wedge wire screens made from Stainless Steel (201, 202,304,304L, 316,316L) duplex & super duplex stainless steels.

GUJARAT WEDGE WIRE SCREENS has developed run down screens (D.S.M. type) complete with box and curved wedge wire screens to suit particular requirements of the customer in Sugar, Paper and Pulp, Water treatment and Chemical industryA no-moving part unit that cascades solid laden slurry downs a wedge wire screen to separate solids from liquids. The slurry is pumped or gravity fed into the unit’s top chamber, flows over a full width weir and cascades down the curved screens surface. The liquid passes through the screens voids into a collection chamber below. Solid particles larger than the screens void size stay on the surface, and as this accumulating mass increases in weight/volume, gently slides down the screens surface, compacted and further dewatered as it travels down. At the bottom discharge chute, the solids simply drop off or in some applications, go for further dewatering by a drum or screw press unit. The static screen version has it screen rigidly fixed in position whereas the other, more efficient unit, has its screen mounted to enable a small motor to vibrate it.

Material : Stainless steel

Pattern : Plain

Finishing : Polished

Size : 10x5feet, 12x6feet, 14x7feet, 16x8feet

Material : Rubber

Shape : Rectangular

Thickness : 15-20mm

Application : Building Material, Chemical Industry

GUJARAT WEDGE WIRE SCREENS LIMITED has developed Rotary screens complete with side flanges and support/ drive drums of Stainless Steel/ Mild Steel mainly for Sugar and other Chemical plants to achieve very efficient filtration. Our rotary screens have very .high strength coupled with very high open area and rigid construction.Rotary Wedge Wire Screens remove solids and other debris from wastewater flows to protect downstream equipment such as pumps and irrigation nozzles. The screens are suitable for all types of wastewater. The solid screenings are discharged by gravity. Screens are operating at Chemicals plant, Papers & Pulps, dairy farms and at food processors. They are designed to reduce blockages, maintenance and power consumption.Rotary Wedge Wire Screen operation: The wastewater enters a weir and is evenly distributed onto the sidewalls of the drum. The solids are retained on the screen surface and the liquid flows through the screen openings. The solids are transported by flights to the open end of the drum. The rotation of the drum allows the entire screening surface to be continuously washed by the wastewater. Cleaning is also done by intermittent use of external spray nozzles.Rotary Wedge Wire Screens feature: - In-feed flow distribution weir - Screen element of 304 stainless steel construction with screen size to suit flow and chosen screen aperture.

Material : Stainless Steel

Certification : ISI Certified

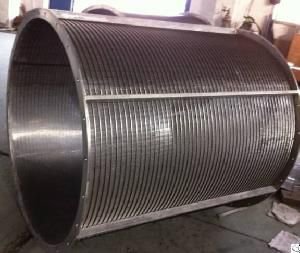

Rotary Drum Screens - Effective in High Pressure Working Conditions Rotary drum wire screen, also called wedge wire cylinder, is a type of cylindrical "V" shape wedge wire screen, which is made of stainless steel V shaped wires and support rods. As the wedge wire rotary drum screen is working under high pressure when separation and filtration, so there is reinforced rods on the structure. The end of rotary drum wire screen is welded flanges or welded rings for easy installation. The slot sizes and structures may varies according to different materials and working conditions. Working principleThe drum rotary screen is installed on the roller screen machine. Drive the internal blades by motor to compress the filtration subjects and separate the particles and liquid with rotary drum wire screen (wedge wire screen). Click for detailed working principle of rotary drum screen in water treatment.Advantages Continuous slot openings significantly increase the open area and filtration efficiency. V-shaped wire structures reduces clogging and ensures an uninterrupted flowing and working. Supply back washing performance for high working efficiency. Reinforced rods can bear high pressure during high speed rotary working condition. Stainless steel material reduces corrosion and rust and make it durable and reliable. Flange or metal ring ends make them easy to install onto the It is features smooth surface and high filtering efficiency as well as self-cleaning and clogging resistance. Applications Poultry, meat and seafood processing Fruit and vegetables processing Snack and frozen food processing Brewing and wine making processing Chemical processing Municipal waste water treatment plant Industrial waste water treatment plant Tanning industrial processing

Material : SS 304, SS 316

Filter Solutions offers a complete range of resin trap styles to suit virtually any application. Our resin traps provide a high percentage of open areaminimizing pressure loss through the system. Resin trapscan be designed to suit either new or existing strainer bodies and piping.Resin Trap Filters are essential protection devices for water treatment systems. These trap filters are manufactured from Stainless steel material & contemporary techniques in adherence with the international standards. Offered trap filters are checked by vendors quality experts on several quality parameters before supplying in the market.Features: Perfect design Anti corrosive Robustness Other Details: The trap is a Filter Basket type with fine filtration up to 0.2 mm (200 microns) with more filtration area. The strainer can be installed in backwash line before the drain manhole We make traps are designed in corrosion resistant alloy steel material to take care of PH values of flushed water containing slipped resin granuals. A resin trap is used on service outlet and backwash lines on: Cation, anion, mixed bed, and selective ion exchange resin systems Commercial and industrial water softeners Activated carbon filters Greensand, multimedia, sand, anthracite, etc. media filters The resin trap holds back escaping media at the onset of a failure Visual monitoring will alert the operator to under drain, lateral or strainer damage prior to catastrophic failure and extensive loss of media An unmonitored resin/media trap will collect the ion exchange or media in the resin trap until the water flow is completely blocked, but it will still protect the downstream product, process, equipment and/or pumps from damage and contamination Resin Trap Benefits: Saves your downstream product, process, equipment and/or pumps from damage ancontamination. Eliminates mass resin/media loss into piping distribution system Prevents loss of resin during backwashing Visual detection of minor resin/media losses prior to catastrophic failure of major equipment.

Size : 1.1/4inch, 1/2inch, 1inch

Material : Alloy Steel, Carbon Steel

Certification : ISI Certified

Pattern : Plain

Condition : New

Brand Name : Sandeep Rain Pipe

Size/Diameter : 40-330mm

Length of Pipe : 200-6000

Material : Metal (SS)

Pattern : Plain

Thickness : 5 - 10 Mm

Usage/Application : Industrial

Section Shape : Round

Country of Origin : Made In India
