Accurate Sales & Services Pvt. Ltd. Hadapsar, Pune, Maharashtra

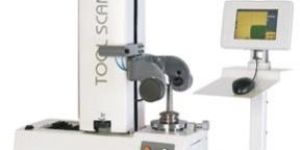

We are offering scan tools. Quick and precise measurement setting of cnc tooling vacuum clamping for positive gripping camera vision system glass scale with 0.001mm resolution memory upto 99 tool references diameter, height and angle measurement rs232 connectivity to pc and usb connection for printer run out on the spindle nose: 0.002 mm display: 5.7″ 10.4″ tft colour monitor spindle taper: iso 50 iso 40 iso 30 bt 50 bt 40 bt 30 hsk 63 hsk 100 hsk 63 hsk 50 hsk 40

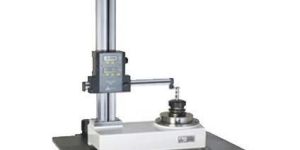

Pneumatic clamping for positive gripping. Spindle taper: ISO 50 ISO 40 ISO 30 BT 50 BT 30 HSK 63 HSK 100 HSK 50 HSK 40 Work table is provided with storage facility. Height Measuring Range: 400550 mm for tool set 1 and 2 respectively Maximum diameter: 300400 mm Presetter Accuracy: < 0.02 mm< 0.025 mm

We are offering steel gauge blocks. Manufactured as per din en iso 3650. material: steel grade: k, 0, 1, 2. metricimperial set of 32, 46,47,79,88,112,122. gauge blocks in set or individual micrometer calibration set in 10 & 13 pieces.

Facilitates checking of External Diameter with Precision and Speed. Smooth and anti-rotational movement of measuring spindle by guide pin. Repeatability: 0.001 mm Tungsten Carbide measuring anvils. Range (In mm): 0-25, 25-50, 50-75, 75-100, 100-125, 125-150, 150-175, 175-200, 200-225.

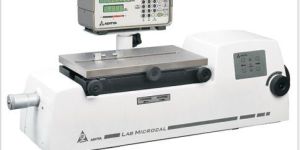

Precision Gauge Calibration Machine For Internal, External Dia. and Thread Measurement. High precision laboratory equipment for measurement and calibration of masters and gauges. A must for a gauge management certification required for quality management standards like ISO 9000, QS 9000, BA 6.1, TS 16949. Lab Microcal enables user friendly measurement with high accuracy, reproducibility & return on investment. Bi-directional probe coupled with variable measuring force wide measuring table, easy change over from internal to external measurement, motorised movement enables simplicity, flexibility and speed of measurement. The Microcal-300 display unit enhances operator’s reliability and comforts by linking all measuring system on a single display along with multi function key pad & PC connectivity.

Measuring Range : 5-310 mm, with riser blocks extendable upto 600 mm. Resolution : 0.001 mm Accuracy : +- 0.003 mm Travel of Micrometer Head : 20 mm Riser Block : 150 mm, 300 mm

We are offering Floating Carriage Micrometer. Offers effective calibration of Thread Plug Gauges and Taps. Provides Major, Minor Diameters calibration of threads. Mechanical Electronic Model Range: 0-100mm0-4” & 0-175mm0-7”. Resolution: 0.0002mm 0.0001 mm Repeatability: 0.002 mm0.0002 mm Accuracy: 0.004mm 0.002mm with P10 probe Accessories: Thread Measuring wires, Prisms, Cylindrical masters & Taper thread plug attachment.

We are offering electronic column gauge. Twin channel dual display bar graph and six digi display. absolute comparative measurement rs 232 output static dynamic reading mode max, min, avg, tir. metric inch readings single tri colour led for component status.(red-reject, green ok, yellow-rework). tolerance indicator pointer. tri colour bar craft available. tri-colour column available auto calibration facility. single double master calibration facility.

We offer Dial Calibration Tester. Calibration of Dial gauges (Plunger & Lever Type) and Bore Gauges Suitable for 0.01 and 0.001mm least count Interface with Computer for DG Cal Software. Graphical presentation of errors in both direction. Measuring Travel: 0 – 25mm 1 inch. Repeatability: 0.0003 mm on Sylvac D80 with P25 Probe. Repeatability: 0.001 mm on Sylvac Dial.

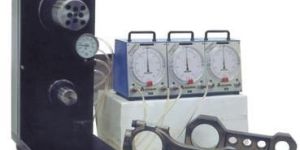

Offers connecting rod. Non contact gauging technique cost effective and fast inspection operator’s skill is not required to measuring big end and small end diameters, center distance, bend and twist etc.

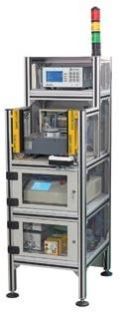

We offer auto multigauging systems. Measuring system for two and four wheeler Crankshafts Measures the crank bore and center distance between crank bore and crank pin If crank bore is within tolerance limit then grouping on center distance dimension and marking on crankshaft diameter of the group is automatic. Air Pressure Sensor provided to control the pressure and safety curtain on the door to avoid any accident at the time of marking the grade. Complete cycle is automatic except loading and unloading the component.

We offer Auto Gauging System. Electronic Autogauging System for Cylinder Liner to check the Inner and Outer Diameter at 3 different places of total measuring length. Measures collar Width and Runout of Outer Diameter w.r.t. Inner Diameter. After manually loading the component all required parameters are measured automatically. Display of the result on computer. Manual unloading of the component after measurement is complete. Enables SPC Analysis immediately after measurement.

Measuring system for two and four wheeler Crankshafts Measures the crank bore and center distance between crank bore and crank pin If crank bore is within tolerance limit then grouping on center distance dimension and marking on crankshaft diameter of the group is automatic. Air Pressure Sensor provided to control the pressure and safety curtain on the door to avoid any accident at the time of marking the grade. Complete cycle is automatic except loading and unloading the component.

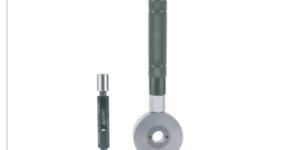

Air Ring is made of hardened HCHC steel; precision ground to provide designed clearance between the shaft and the jets. The backpressure is generated when the component is inserted into the Ring and this backpressure correspondingly is read as the comparative size of the part. Air Rings are supplied from 4 mm to 160 mm as per the requirement for measuring a through or a shouldered shaft. Two jets rings to measure size, taper and ovality or with three jets to measure size, taper and lobing. Special Air Rings for checking multiple diameters and multiple lobing or taper etc. can be provided.

Size : 4 mm to 160 mm

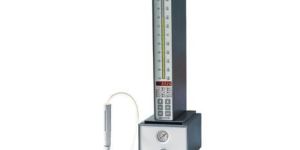

Advantages of Non Contact measurement & Electronics combined. Data to PC for SPC with Non Contact gauging system. Special gauges to check relational parameters like Center Distance, Parallelism, Straightness, Squareness, Concentricity and Clearance or Interference between shaft & bore. To get the better of the two gauging techniques the nonsubjective, non-contact air gauging & the precision multi range, multi least count electronics, Air-Electronic converters can be connected to any of the read out units. Ideal for match gauging operations where you need to match ID with OD for fitment or bearing purpose. For multi gauging application For very small bores where grading is required. Where feedback is needed for control and operation. When data needs to be captured for analysis like SPCSQC. When visual or audio signals are required.

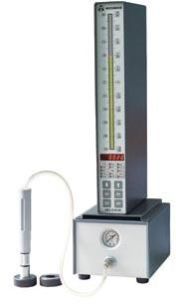

We are offering air electronic gauge. Advantages of non contact measurement & electronics combined. data to pc for spc with non contact gauging system. special gauges to check relational parameters like center distance, parallelism, straightness, squareness, concentricity and clearance or interference between shaft & bore. to get the better of the two gauging techniques the nonsubjective, non-contact air gauging & the precision multi range, multi least count electronics, air-electronic converters can be connected to any of the read out units. ideal for match gauging operations where you need to match id with od for fitment or bearing purpose. for multi gauging application for very small bores where grading is required. where feedback is needed for control and operation. when data needs to be captured for analysis like spcsqc. when visual or audio signals are required.

For GoNo Go Gauging with Reset facility Conforming to IS 7606. Available in square, grooved or pin type anvil design for the particular application. Hardened, ground and lapped anvils. Range: 0- 300 mm measurements.

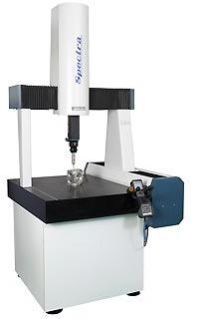

We offer 3d Coordinate Measuring Machines. Entry level machine with power packed features for 3D measurement of small parts. Designed for ease of operation and safety ensuring optimum performance. Features: Elevated Bridge All granite construction for measuring axis manual operation Increased protection for measuring guides. Choice for various probing system. Machine ready for Plug & Play Package includes PC, Air Dryer and clamping Kit.
