Air Core Reactor Dealers in Pune

We support credit cards, purchase cards, PIN-less debit cards, bank account transfers for your utmost convenience. We have database that is maintained by the financial experts; they make sure that the transactions are made keeping all the details of the clients confidential. We are instrumental in offering extensive range of products that is in compliance with the internationally accepted standards. Thus, the final products are of excetional quality.   MODEL : FK-Dr- Dry type   Specification: 50/60Hz Our filter reactors are made of high-class transformer sheets and copper wire or aluminum band. They are dried and impregnated in vacuum with evironment friendly low-styrole resin which ensures they can withstand high voltages, have low noise levels and offer a long operating life. Depending on their rated power, the reactors are provided with either terminal blocks or terminal lugs/cables. The connection of the aluminium reactors is made through copper terminals as well, which are reliably connected with the aluminium band by a special, well-proven welding method.   Details : Rating : 12.5/25/50/75/100/150 kVAR Voltage: 400/415/440/480/515/690/800/1200 V Application: Detuned/tuned harmonic filter

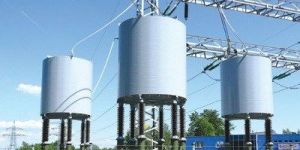

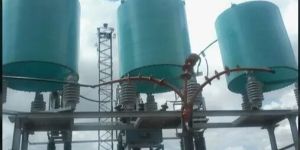

We offer custom designed Air Core Reactors for high voltage, high current, high frequency, or high power applications such as current limiting, shunt reactors, neutral grounding reactors, linear chokes, or tuning. Winding configurations include helix wound, archimedean spiral wound (flat pancake), and multi-layer wound.Air Core Reactors can be supplied either as single-phase coils individually supported on insulators or alternatively as three phase coils stacked vertically.

Lamco Transformers Pvt. Ltd. is a noteworthy manufacturer and supplier of air core reactor. This air core reactor is manufactured using supreme grade components with the help of cutting edge technology in observance with international quality standards. The entire air core reactor is appreciated in the market for its less maintenance, optimum functionality, ability to withstand harsh conditions, easy installation and longer functional life. Our valuable clients can avail this air core reactor at most reasonable price.

We manufacture Iron Core & Air Core Reactors as per IS 5553 Design & Construction Reactors are designed for 30% overload continuosly & which will not saturate at 150% of rated current. They are designed for continuous operation in an ambient temp 60oC with natural Air Cooling. Temp. class as 'F'. Reactors are fitted with thermal overload protector in one coil. •  Core is made out of CRGO lamination. •  Coils are made with SE/DFG Coper Strip Class 'F' •  Interlayer insulation by Normex Paper. •  Inductors are vacuum impregnated with 'F' Class Varnish followed by over pressure •  Frame parts duly powder coated •  Termination on Epoxy Insulators. Application: •  As tuning of Filter Reactors to be used in series with capacitors for reducing or blocking harmonics •  As Line Reactors in series with DC drive to suppress the spikes in supply voltage •  As filters chokes in DC supply.

Our reactor windings consist of numerous aluminum or copper conductors connected in parallel.These conductors can be insulated single wires, insulated cables or alumininum profiles separated by fiberglass spacers. The cost-effective Solution to be selected, in terms of dimensions and conductor type to be used in each design, depends on the required ratings for the equipment.For encapsulated design, the conductors are mechanically immobilized and Encapsulated by epoxy impregnated fiberglass filaments forming cylinders.Depending on the reactor ratings, one or more of these cylinders are connected in parallel between aluminum or copper spiders. The individual cylinders are separated by fiberglass spacers forming cooling Ducts. F+155 C & H-180 C Class.

Due to the harmonic content of the output voltage of the convertor units, harmonic current flow in the load circuit. The magnitude of which is determined by firing angle of the particular connection & the total effective inductance in the load circuit. The use of an additional smoothing choke in the armature circuit is thus of an advantage. Short Circuit Current Limiting Reactors suitable for use in series with the generators.

Air Core Reactor, UPS Transformer, Three Phase Reacto

Air Core Reactor, Harmonic Filter Reactor, UPS Transforme

Air Core Reactor, Hermetically Sealed Transformer, Three Winding Transforme

Air Core Reactors, Auto Transforme

Air Core Reactor, Pole Mounted Transformer, Solar Transforme
