Baker Gauges India Ltd. Nagar Road, Pune, Maharashtra

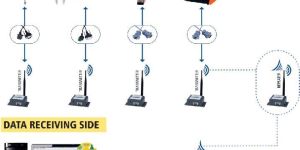

Baker provides a wireless data transfer system to transfer reading from Baker digital instruments and read out units to a centralized PC. FEATURES: RS232 compatible Baker electronic measuring instruments, each equipped with a Wireless Transmitter (WT), can be interfaced to a Wireless Receiver (WR) at PC end Small and compact wireless modules, easy to use License free operating frequency (2.4GHz), ISM (Industrial Scientific & Medical) frequency band RS232 interface Wireless communication up to 250Kbps In-built network security like: 128 bit AES (Advance Encryption Standard) Encryption, 16 bit customized Network ID Supports Mesh network topology Transmission range 100 meters, this depends on environment and clear line of sight Transmission range can be extended using active Baker instruments fitted with Wireless Transmitters or Wireless Repeaters (WRP) Very high receiver sensitivity and low power operation NOTE If clear line of sight, between antennas of WTs and WR is interrupted, then one or more WRPs will have to be introduced Number of WRPs that will be required for a networking project, cannot be ascertained at the beginning, and can be fully determined only during installation and commissioning

WATERPROOF – IP65 DIGITAL Mini plunger dial, 0.001mm/0.00005inch reading, accurate inductive measuring system, RS232 output, sealed module against water/coolants/oils, Hardened & ground SS plunger & stem. Accurate Inductive measuring system Inch / Metric capability RS232 output Hardened and ground stainless steel plunger and stem GAUGE can be set to 0.01 mm / 0.0005 Inch, besides the standard 0.001 mm / 0.00005 Inch The Electronic Module is completely sealed against dust and water / coolants / lubricating oils directed towards it from all sides (IP 65) Each GAUGE carries a calibration certificate giving actual values Measuring force 0.5-0.9 N Accuracy 0.005 mm / 0.0002 in Repeatability ± 0.002 mm / 0.0001 in (± 2s)

ZD series Digital vernier caliper / Digital Caliper IP67 available from 0-150mm to 0-300mm with IP67 Protection. RS232 data output allows to store in PC, Auto switch on bt motion, water proof, Automatic standby mode. 3V battery. FEATURES: Every gauge carries a calibration certificate giving actual values Highest degree of protection to a hand-held instrument of its type, IP67 (according to IEC 60529) Immunity to penetration of liquids or dust Reliability and Accuracy of measuring tool is assured even in the most Hostile workshop environment High contrast Liquid Crystal Display Ergonomic beam design increases comfort; reduces fatigue Latest Smart Inductive System (S.I.S) Automatic stand-by mode Origin securely saved even in stand-by mode Auto switch-on by motion of slider New, Proximity type contactless RS232 data output allows user to store and analyze measurement data in PC or any other digital data storage apparatus Accuracy as per DIN 862 Power supply 1 Lithium battery, type CR2032, 3V, 220 mAh Working temperature 5 to 40 °C

We are a renowned manufacturer and exporter of dial caliper that comprises of a dial which is precision engineered for the accurate measurement of the objects. Our vernier calipers are available in two types - one with fine adjustment and one without fine adjustment.

    VCF series MECHANICAL Vernier calipers available from 0-130mm to 0-980mm with fine adjustment. Measures Od, ID, Step and Depth. Robust, hardened and ground SS jaws & beam. VCF series MECHANICAL Vernier calipers available from 0-130mm to 0-980mm with fine adjustment. Measures Od, ID, Step and Depth. Robust, hardened and ground SS jaws & beam. FEATURES: Every gauge carries a calibration certificate giving actual values With 0.02 mm / 0.001” Least Count Measures OD, ID, Step and Depth Accuracy as per DIN 862 Robust, Hardened and Ground stainless steel jaws and beam Supplied in a sleek plastic box

Variable Spline Indicator Ring Gauge with setting Master Plug Variable spline indicator ring gauges are ideally suited to measuring component effective tool thickness. Spline indicators can also be supplied with two opposite sectors of teeth to measure actual tool thickness. We can supply ring gauges with analogue or digital indicators or even with transducer ports, making SPC type analysis possible on an external computer or other processing device.

Variable Spline Indicator Ring Gauge with setting Master Plug Variable spline indicator ring gauges are ideally suited to measuring component effective tool thickness. Spline indicators can also be supplied with two opposite sectors of teeth to measure actual tool thickness. We can supply ring gauges with analogue or digital indicators or even with transducer ports, making SPC type analysis possible on an external computer or other processing device.

Category : SPLINE GAUGES & MASTER GEARS

PARAMETERS Seat angle to valve guide concentricity / runout Seat roundness FEATURES Measures without operator influence and hence is extremely reliable Available for all kinds of valve seats Can be used not only in vertical handling, but also in inclined handling Can be designed as a combined gauge for intake / exhaust

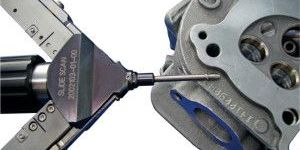

PARAMETERS Seat angle Seat Width Seat Straightness Angular gauge line position FEATURES Scans the outline of valve seats Available for all kinds of gauge diameters in between 24 to 34 mm or others Safe and reliable since it processes about 1000 values within a scan of 1mm Realises this complex measurement within few seconds

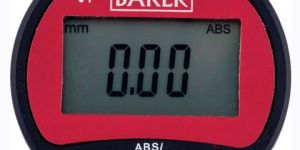

VALUE LINE DIGITAL Plunger DIAL GAUGE Range 12.5mm / 50mm READING 0.01MM/ 0.0005', Large digits, Zero setting, with 0.01/0.0005" display resolution. Preset referance, Manual/auto power off.

FEATURES: Every gauge carries a calibration certificate giving actual values Consists of back Plunger dial Gauge, ‘G’ clamp, universal clamp, swinging arm assembly, tool post holder, holding rod, tommy bar and anvil Swinging arm assembly enables the back plunger dial gauge to be used for internal work up to a depth of 40 mm similar to a lever type gauge ‘G’ Clamp, tool post holder. holding rod and universal Clamp allows multiple types of mounting possibilities Versatile combinations, allow gauging applications like concentricity checks, alignment of machine tools, testing parallelism and surface plate work

The Bowers Universal Gauge’s ingenious modular design enables it to be quickly configured to suit almost any measuring challenge, both internal and external. The Universal’s clever constant measuring pressure device ensures accuracy and consistency of reading.A large variety of measuring contacts and adaptors are available for the Universal Gauge enabling countless measuring tasks to be completed with ease. Accessories for the measurement of threads, grooves, splines, gears, hole centers and many others are available as standard and special adaptations for more non-standard applications can be quoted on request. FEATURES: Internal and External measurement Large measuring range possible 0-3000mm (0-118″) with interchangeable extensions Constant measuring force Digital or Mechanical readout display Large range of accessories for standard measurement of threads, grooves, splines, diameters, lengths, shallow spigots and recess diameters etc. Special anvil designs available on request

FEATURES: Every gauge carries a calibration certificate giving actual values Accommodates all jet diameters of Air Plug Gauges, Air Ring Gauges & Air Calipers Facilitates quick & easy setting through Mag & Zero knobs Supplied with a fixed adaptor which fits all types of connectors Foldable feet for better Readability High pressure system: high speed of response and self cleaning of gauging area ensures accurate reading of size, taper and ovality at a time Non-contact Gauging: long life due to minimal frictional wear Two Setting Masters: ensures correct magnification of reading at all times System pressure check gauge: provides a constant check on the system pressure i.e. 3 bars (45 psi) regulated by a high precision regulator built into the unit Minimum line pressure required 4.5 bars (67 psi) Air consumption 46 LPM

A Thread Depth Gauge developed specifically to monitor compliance with safety requirements for minimum trade depth of automobile tyres. Additionally, it is useful for gauging general tyre wear in the range of 0-8 mm. FEATURES: Every Thread Depth gauge carries a calibration certificate giving actual values The thread depth gauge gives accurate readings to 0.1mm / 0.004Inch A ‘telltale’ maximum reading pointer is fitted to retain measurement, allowing the thread depth gauge to be applied to tyre positions where it cannot be easily read The dial has coloured bands for quick and easy reading

We are offering twin channel electronic comparator twin channel gauge units with selectable probe combinations of +a, -a, +b, -b, +a +b, +a -b, -a +b, -a -b. inch and metric measuring ranges. red, green and yellow tolerance indication for undersize-ok-oversize condition. data output. comprehensive outputs for further processing. compatible with half-bridge and lvdt type inductive measuring probes. sturdy, ergonomic design, suitable for shopfloor environment . add-on modules available for further processing.

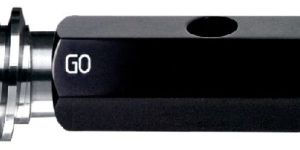

Gauge dimensions are as per DIN 103-9 Recommended Tolerance classes are 7H/7e for medium tolerance quality and 8H/8c for coarse tolerance quality.

Gauge dimensions are as per DIN 103-9 Recommended Tolerance classes are 7H7e for medium tolerance quality and 8H8c for coarse tolerance quality.

Multi start threads are used where quick axial travel is desired with less rotation. These are also used for threads which cannot have coarse pitches due to metallurgical constraints. In comparison to single start threads, multi start threads  can accept higher axial thrusts for restricted angles of rotation, the efficiency is high, the tendency to locking is reduced. Multi start threads are commonly used in power transmitting screws, valve spindles.

Thread Gauge: Hole Location Baker manufactures hole location plugs as shown. These are used to measure & check the location of small tapped holes. This is a perfect gauge to inspect features for run-out to the pitch diameter of the threads. These give a firm locating grip without pulling the shoulder of the plug up against the hole face thus avoiding squareness errors. Hole location plugs are commonly used to measure the location of tapped holes. It is difficult to accurately measure the location of tapped holes using conventional methods; i.e. CMM’s or indicating type instruments. Hole location plugs are deliberately manufactured with Pitch diameter over-size, then slitted, resulting in the threaded section collapsing while being screwed in the threaded hole. The hole location plug will screw in tightly, locating on the Pitch diameter of the tapped hole. A measurement can then be taken from the datum point to the cylindrical diameter on the hole location plug to determine location.  For very small sizes, the plug is not slitted but the thread is manufactured with a gradual taper, which will lock up on the thread. Positive grip on flanks regardless of hole size. Shank diameter 6.35 mm is maintained within ± 0.0025 mm. The shank is concentric to the threaded portion within 0.0025 mm. Available in Metric & Unified Sizes. Metric Sizes M6 & above are slitted. Unified Sizes No 12 & above are slitted.

Acceptance criteria for components:The GO gauge when screwed by hand without using excessive force, should enter and pass the whole length of the workpiece thread. The NOT GO gauge when screwed by hand without using excessive force, should not enter the component by more than two turns of the thread from both ends.

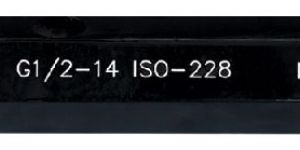

  These are pipe threads where pressure-tight joints are not made on threads. Gauge dimensions are as per ISO 228-2. Acceptance criteria for components:The GO gauge when screwed by hand without using excessive force, should enter and pass the whole length of the workpiece thread. The NOT GO gauge when screwed by hand without using excessive force, should not enter the component by more than two turns of the thread from both ends.
