Casting Machine Dealers in Pune

Moulding Line For CI Foundry With Both End Cushioning Valves Adjustable• Working Pressure - 160Bar• Operating Pressure - 90Bar

Our resin casting plant is manufactured using quality components and spare parts to ensure optimum performance and long functional life. Resin casting plant is integrated with mixing chamber, which is designed with heating system with temperature controlling arrangement. It is designed with heating system having precise temperature controlling arrangement for controlling the exotherm during mixing, as required.

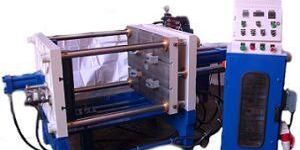

Products are manufactured by two processes in Gravity die casting – Stationary Gravity Process Tilt Pour Gravity Process Weight Range : 330 GMS to 65 KG Core Weight : 20 GMS to 20 KG Component Weight range : 0.180 Kg to 13.5 Kg Features – The machines used for die casting are manufactured as per specific requirements from our customers. Our design and processes enable us to manufacture critical parts such as intake manifolds having a wall thickness of 2mm or components having lengths of 1200mm. We manufacture components like intake manifolds, engine mounting brackets, Charge air cooled tanks, EGR parts, adaptors, housings and torque rods through Gravity Die Casting Process.

We are situated in Maharashtra(India) and our well-developed network assists us in meeting the exact requirements of the clients. With our modern transportation facility, timely and safe deliveries are guaranteed with us.

Casting weight - 93 kg, ANoy - Alsi7Mg (LM - 25), Job size : Dia - 800, Length - 800 mm Special process involved - HMC Machining, Helium Leak Proof Used in - Instrument Transformer

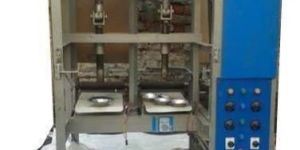

Our company holds vast experience in this domain and is involved in offeringDouble Die Dona Making Machine.

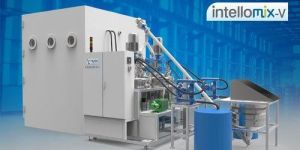

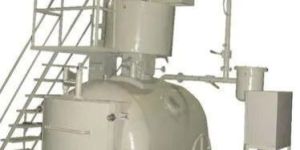

In order to obtain void-free epoxy castings with low partial discharge and good du-electric strength suitable for use at high voltage it is necessary, among other things, to mix the resin & pre-dried filler well, to de-aerate it by vacuum and finally to pour it, also in vacuum. The mixing chamber with circular cone-shaped bottom is heated with an oil jacket, the temperature being measured and controlled continuously. The temperature of the wall is hence uniform. A stirrer with baffle rotating at the correct speed which gives shearing action causes thorough resin filler mixing. The agitation exposes all the mix to vacuum& thus degassing is thorough. The mixing paddle drive is with 3 phase motor & reduction gear. The shaft seal is robust rotary seal with tapered roller bearings. The pouring valve is made of P.T.F.E. (Teflon) & this makes cleaning easy. Trap is used to very effective stop abrasive filler particles from entering & ruining the vacuum pump. Water-cooled trap is provided for preventing volatile hardeners from entering the vacuum pump. Pouring chamber can be heated or unheated as required. Rotary turntable with vacuum-tight rotary seal or chain & sprocket driven trolley or rails allows the moulds to be positioned below the pouring spout without breaking vacuum. Epoxy mixing & de-aerating plant: Medium size epoxy vacuum mixing plant for use in the laboratories of a progressive Electrical Manufacturer can handle from 5 kg to 200 kg of Resin-filler gardner mix. It is very versatile being able to handle solid or liquid resins hot or cold processing. Temperatures fro 160oC to room temperature are possible. A vacuum of 1 torr is easily obtained. the use of the plant enables void-free castings to be obtained.   Our Team The reason behind the success and growth of our organization is the support of our competent team of experts. These professionals have industry expertise of many years and posses a thorough knowledge in their respective domains. We make sure that the professionals are regularly trained to keep them updated about the market scenario. The team consists of the following: Technicians Quality controllers Research & development associates Sales & marketing executives   With the united and tenacious efforts of these professionals, we ensure that the products offered by us are in compliance with the needs of our clients.

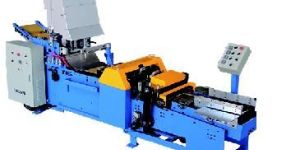

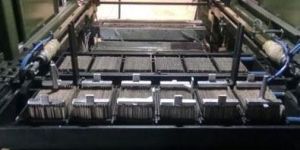

Product features horizontal cutting – reduce grid deformation rate after cutting process precise thickness shaping- achieve high precision and consistency of plate thickness ,and better flatness humanized design- human-computer interface, high automation intelligence centralized lead supply system- various combination from one for 1 to 12 main machines heating method of melting pot- gas-he.

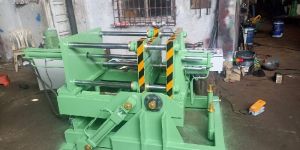

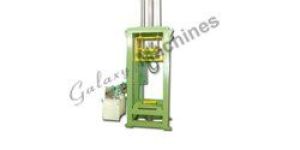

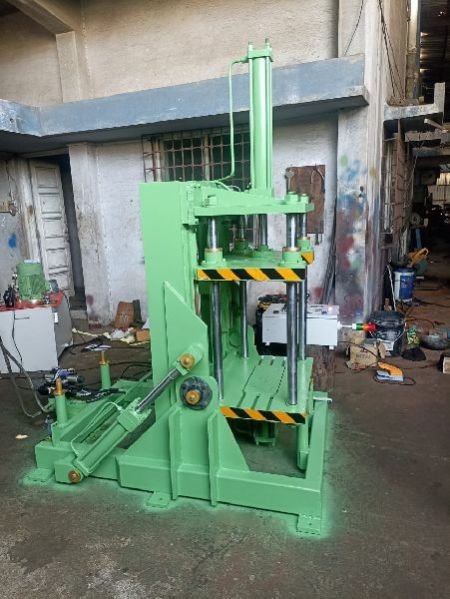

We are offering gdc machine. renu enterprises was established in august 2010 & it started its manufacturing of gdc machines, gdc & pdc dies & machining activities at this location after installation & commissioning of all the machinery and equipments required for the set up. This is a firm with the 15-20 years experience and good knowledge in the design & development of tooling & the design of machines. Renu enterprises is involved in the machining components for automobile, process and other engineering industries at present.

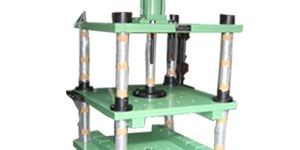

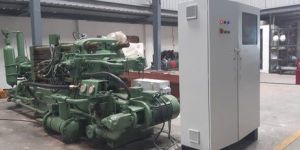

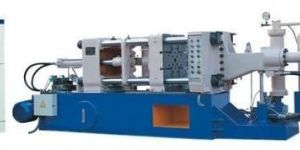

We are offering die casting machine. Machine : 160 tonnes pressure die casting machine, model : 2012, company : namashivaya and sons, country of origin : india, coimbatore

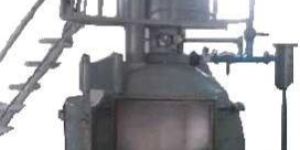

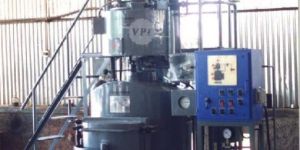

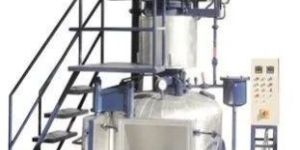

We are counted amongst the foremost Manufacturers and Suppliers of Epoxy Mixing And Casting Plants which are highly demanded in the market. We have gained expertise in this field and offer efficient Epoxy Mixing And Casting Plants. These Epoxy Mixing And Casting Plants are manufactured from superior quality raw materials and components which impart strength and durability. We offer our Epoxy Mixing And Casting Plants at economic prices. Capacity from 20kg to 500kg The Plant Consist of Mixing Chamber (M.S or S.S)Shroud box assemblyPouring chamberVacuum pumping systemControl console Mixing Chamber Mixing of resin hardener with accelerator will be done thoroughly by anchor type stirrer with stationary blade rotating at speed 70 – 80 RPM. The mixing chamber is surrounded by oil heating jacket with precise temperature controlling arrangement. Water jacket is provided surrounding to heating jacket for chamber cooling as required. Shroud Box This unit connects mixing chamber and pouring chamber in which Teflon ball and Sleeve arrangement is provided for pouring the mix under vacuum into moulds in pouring chamber. Pouring Chamber (Insulate) Chamber shape : Cylindrical or RectangularHeating : Air heating to prevent heat loss during pouringDoor : Circular or RectangularDesigned to : Vacuum and also desired pressure as requiredIsolating valve between mixingChamber and pouring chamber : A special type gate value of sai guru make.Rotating cone : By geared wheels rotating 360 degreeTrolley : Adequate capacity trolley with moving arrangementTemperature Indicator : Digital Type Vacuum Pumping System A designed vacuum pumping system by rotary oil sealed pump or combination of roots Rotary vacuum pumps are adopted and connected to mixing chamber , shroud box and pouring chamber through effective hardner cum particle trap by 100% leak proof valves of our own make. Control Console Necessary electrical instrumentation with digital display of temperatures, emergency stop button equipped accessibly for easy operationA mimic diagram provided on control panel for viewing various functioning of events Accessories A suitable platform railing and paras ladder provided for suitably for easy workingSet of Spares will be given with the plant

Gravity Die Casting Machines, Furnaces, Auto Parts Cast Product

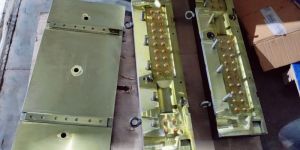

GDC Casting Tool, Gravity Die Castin

Gravity Die Casting Machines, Casting Dies, Injection Moulds, Jig

Gravity Die Casting Machine, Expanded Polystyrene, Polypropylen

Epoxy Casting Plants, Oil Degassing Plan
