CEE DEE VACUUM EQUIPMENT PVT LTD Bhosari, Pune, Maharashtra

CEEDEE VACUUM offers ‘Micavac patented JET Evaporator System’, used in new plants or as an upgrade of existing plants. The system makes use of aerospace technology to shorten heating-up times by optimising heat transfer of solventkerosene-vapour. Additionally, putting minimal stress on cellulose insulation by distributing heat evenly, results in minimised depolymerisation.

Capacity ranges from 50 LPH to 24000 LPH. Inlet mesh filter is easy to clean and is used to hold back coarse dirt. Standard efficiency of 0.5 1 micron cartridge filter. Heat is exchanged through very low, specific density electric heaters. Vacuum pumpset is provided along with rotary vane vacuum pump and roots to produce high vacuum during process. Plants can be skid mounted, mobile, truck mounted etc. Plants can be supplied with transformer evacuation system placed alongwith purification system.

There is a temporary storage requirement at site where the parent equipment is under commissioning or repair. To cater this need CEE DEE VACUUM provides a solution with supplying oil storage tanks. There are different types of these tanks. The tank and capacity can be designed to suit the application and are available in the following categories: Mobile (Capacity range 1KL - 35KL),Stationary (Capacity range 1KL - 100KL),Without Insulation.

Auto manual control Online PPM measuring instruments With filtration cartridge Mobile portable (pneumatic or castor wheels) This model is available on skid as well as mobile. The plant capacity varies from 300LPH to 7000LPH. This is available for indoor and outdoor application. It has the capacity to dehydrate oil less than 50 PPM in single or multi pass.

CEE DEE VACUUM EQUIPMENT PVT LTD designs transformer oil filtration and purification plants that are utilised for dehydration, filtration and degassing of insulating oil. This easy-to-operate and compact equipment has a degassing column with single, two or three stage versions. Known for its precise engineering, these plants are manufactured in different specifications to suit the needs of diverse applications.

Vacuum impregnation is the most important process for electrical insulation. CEE DEE VACUUM designs, manufacture and installs vacuum pressure impregnation plants suitable for all types of impregnation varnishes, oils, resins etc. The plants are useful for impregnation of LTHT motors, generators coils, HV motors. The system can be designed for special applications like silver nitrate impregnation, carbon impregnation etc. In this case, the pressure applied is critical and needs special care.

Vacuum impregnation is the most important process for electrical insulation. CEE DEE VACUUM designs, manufacture and installs vacuum pressure impregnation plants suitable for all types of impregnation varnishes, oils, resins etc. The plants are useful for impregnation of LTHT motors, generators coils, HV motors. The system can be designed for special applications like silver nitrate impregnation, carbon impregnation etc. In this case, the pressure applied is critical and needs special care.

Vacuum impregnation is the most important process for electrical insulation. CEE DEE VACUUM designs, manufacture and installs vacuum pressure impregnation plants suitable for all types of impregnation varnishes, oils, resins etc. The plants are useful for impregnation of LTHT motors, generators coils, HV motors. The system can be designed for special applications like silver nitrate impregnation, carbon impregnation etc. In this case, the pressure applied is critical and needs special care.

Electric transformers perform best when the insulating oil is devoid of moisture, dissolved gases and unwanted particles. Even new oils require some treatment to limit these contents to suitable levels. Contaminated oil loses its characteristics of dielectric strengths, resistivity and loss factor. Excessive moisture leads to acid and sludge formation. CEE DEE VACUUM EQUIPMENT PVT LTD designs transformer oil filtration and purification plants that are utilised for dehydration, filtration and degassing of insulating oil. This easy-to-operate and compact equipment has a degassing column with single, two or three stage versions. Known for its precise engineering, these plants are manufactured in different specifications to suit the needs of diverse applications.

Vacuum impregnation is the most important process for electrical insulation. CEE DEE VACUUM designs, manufacture and installs vacuum pressure impregnation plants suitable for all types of impregnation varnishes, oils, resins etc. The plants are useful for impregnation of LTHT motors, generators coils, HV motors. The system can be designed for special applications like silver nitrate impregnation, carbon impregnation etc. In this case, the pressure applied is critical and needs special care.

CEE DEE VACUUM designs and installed a state of art oil handling system which are required during processingtesting of various equipment. These are for transformer oil, lube oil, hydraulic oil etc. the system consists of :Storage tanks having capacities as required.Purification plant,Oil transfer pumps.

VPI is a process in which resins, varnish is forced into integrate parts of its winding to achieve void the insulation. The impregnation vessels are available in different options such as top loading and front loading. This can be offered depending on the application and handling facility available at work station. 1. ResinVarnish Vacuum Pressure Impregnation (for electrical insulation application) 2. CastingMetal Impregnation (for porosity removal and surface finish application) 3. Special Applications viz Silver Nitrate

The impregnation vessels are available in different options such as top loading and front loading. This can be offered depending on the application and handling facility available at work station. Vacuum impregnation is the most important process for electrical insulation. CEE DEE VACUUM designs, manufacture and installs vacuum pressure impregnation plants suitable for all types of impregnation varnishes, oils, resins etc. The plants are useful for impregnation of LTHT motors, generators coils, HV motors. The system can be designed for special applications like silver nitrate impregnation, carbon impregnation etc. In this case, the pressure applied is critical and needs special care.

VPI is a process in which resins, varnish is forced into integrate parts of its winding to achieve void the insulation. The impregnation vessels are available in different options such as top loading and front loading. This can be offered depending on the application and handling facility available at work station.

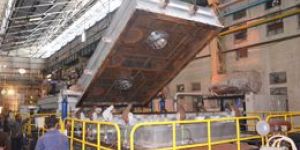

Research, development, production and in-house testing of Vacuum Vapour Phase Drying Plants and Technology is one of Micavac's core businesses. CEEDEE VACUUM offers ‘Micavac patented JET Evaporator System’, used in new plants or as an upgrade of existing plants. The system makes use of aerospace technology to shorten heating-up times by optimising heat transfer of solventkerosene-vapour. Additionally, putting minimal stress on cellulose insulation by distributing heat evenly, results in minimised depolymerisation.

Through this process, the oil is purified and conditioned to a safe operational standard without removing additives or detergents. Vacuum dehydration is the only comprehensive method for complete removal of water from the oil. Oil can be revived to its original state through low temperature distillation along with fine filtrations.

Mixing chamber for mixing of resin, with hardener, accelerators, pigment and filters, of capacities from 5kg to 1000kg, designed for high vacuum degassing. It is designed with heating system having precise temperature controlling arrangement for controlling the exotherm during mixing, as required. Casting chamber, adequately sized to accommodate desired number of moulds, designed for pouring resin under high vacuum.

Pouring system designed for vacuum casting with easy control and observation from outside, with specially designed PTFE valves. Casting chamber, adequately sized to accommodate desired number of moulds, designed for pouring resin under high vacuum. It is designed with heating system having precise temperature controlling arrangement for controlling the exotherm during mixing, as required.

Our resin casting plant is manufactured using quality components and spare parts to ensure optimum performance and long functional life. Resin casting plant is integrated with mixing chamber, which is designed with heating system with temperature controlling arrangement.

Country of Origin : India

Number Of Flower : Vacuum Casting Machine

Certification : ISO 9001:2008, CE Certified

Condition : New

Automatic Grade : Semi Automatic, Manual, Fully Automatic, Automatic

Warrenty : 1year

Country of Origin : 380V

Brand Name : CEE DEE VACUUM

Research, development, production and in-house testing of Vacuum Vapour Phase Drying Plants and Technology is one of Micavac's core businesses. CEEDEE VACUUM offers ‘Micavac patented JET Evaporator System’, used in new plants or as an upgrade of existing plants. The system makes use of aerospace technology to shorten heating-up times by optimising heat transfer of solventkerosene-vapour. Additionally, putting minimal stress on cellulose insulation by distributing heat evenly, results in minimised depolymerisation.

Country of Origin : India

Number Of Flower : Portable Autoclave

Material : Mild Steel

Certification : ISO 9001:2008

Country of Origin : 380V

Condition : New

Operating Mode : Fully Automatic

Phase : Three Phase

IP Grade : IP 50

Total Carbohydrate : 1 Year

Corrosion Resistance : Yes

Mount Type : Floor Mounted Autoclave

Rust Proof : Yes

Usage : Industrial Use

Electric transformers perform best when the insulating oil is devoid of moisture, dissolved gases and unwanted particles. Even new oils require some treatment to limit these contents to suitable levels. Contaminated oil loses its characteristics of dielectric strengths, resistivity and loss factor. Excessive moisture leads to acid and sludge formation.

The oil is then drawn into a vacuum chamber where a thin layer of it is gradually exposed to the vacuum at a very low flow rate. Here it is boiled by heating or through vacuum process with emulsified water, dissolved gasses, air and other low range volatile elements. Through this process, the oil is purified and conditioned to a safe operational standard without removing additives or detergents.

CEE DEE VACUUM designs and installed a state of art oil handling system which are required during processingtesting of various equipment. These are for transformer oil, lube oil, hydraulic oil etc. the system consists of : Storage tanks having capacities as required. Oil transfer pumps.Oil pipeline to various stations within the plant raised from 2km to 10km. The systems are fully automatic with PLC, SCADA systems which enable to operate for a single person from single point.

Electric transformers perform best when the insulating oil is devoid of moisture, dissolved gases and unwanted particles. Even new oils require some treatment to limit these contents to suitable levels. Contaminated oil loses its characteristics of dielectric strengths, resistivity and loss factor. Excessive moisture leads to acid and sludge formation. CEE DEE VACUUM EQUIPMENT PVT LTD designs transformer oil filtration and purification plants that are utilised for dehydration, filtration and degassing of insulating oil. This easy-to-operate and compact equipment has a degassing column with single, two or three stage versions. Known for its precise engineering, these plants are manufactured in different specifications to suit the needs of diverse applications.
