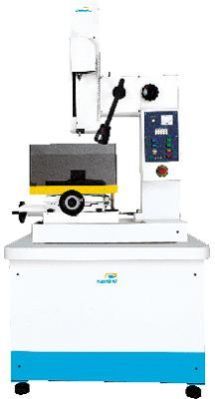

Features Small hole drilling in hard metals Both brass and copper electrode tubes can be used. Large drilling range. Tap water is used as dielectric fluid. Granite work table ensures longer life. Precision DC servo control to maximise drilling stability and speed. Compact footprint.

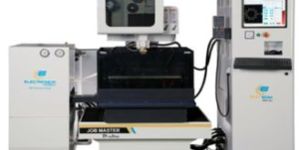

Compact rigid T base structureJapanese AC Servo drive for all 5 axesDirect Coupling for AC servo motorsC3 grade Japanese ball screwsTable moving structureCompact footprintFront Loading MachineHigh Precision LM guide ways
Number Of FlowerElectrical Discharge Sawing Machine
MaterialMetal
PurityCut Any Electrically Conductive Material,Sawing Of Spherical Or Slanting Surfaces,Faster Than Band Saw For Hard Materials,Minimum Loss Of Material,No Deformation Of Workpiece,Good Sawing Efficiency,Low Running Expenses
Cutting Material TypeElectrically Conductive Materials
Cutting Width< 1.5mm
Maximum Cutting Limits1400mm X 1000mm
Work Table Dimensions1400mm X 1000mm
Longitudinal Travel600mm
Vertical Saw Travel1150mm
Rapid Free Rate600mm/min
Cutting Saw Servo Feed40mm/min
Average Cutting Speed10 - 15cm2/min
Saw Speed16m/sec
Tension On Saw Belt300kg
Electrode MaterialMild Steel
Axis Measurement Y & Z With Encoder0.005mm
Net Weight4500kg
Maximum Output30 V, 1000 A
Input Power Supply3 Phase, AC, 415V, 50Hz
Connected Load20 KVA
we are listed among the most reputed electrical discharge sawing machine manufacturers and suppliers from pune. our electric discharge sawing machines can easily cut through electrically conductive materials irrespective of its hardness. the electrical discharge sawing machine provided by us is made from quality raw materials, which offer its durability and strength.
features :-
it can cut any electrically conductive material irrespective of its hardnesssawing of spherical or slanting surfacesfaster than band saw in case of hard materialsminimum loss of material, as the cutting width is less than 1.5mmno deformation of work piecegood sawing efficiency irrespective of hardness & resistant strengthonly small zone gets affected due to heat generationvery low running expenses
click here for more details
technical specifications :-
machine tooleds200eds400eds600eds1000maximum cutting limits (cross-section of work piece) 200mm x 200mm400mm x 400mm600mm x 600mm1400mm x 1000mmwork table dimensions400mm x 600 mm600mm x 800 mm800mm x 800 mm1400mm x 1000mmlongitudinal travel (y)600mm600mm600mmnavertical saw travel (z)250mm450mm650mm1150mmrapid free rate600mm/min600mm/min600mm/min600mm/mincutting (working) saw servo feed40mm/min40mm/min40mm/min40mm/minaverage cutting speed10 -15cm2/min10 -15cm2/min10 -15cm2/min10 -15cm2/minsaw speed 16m/sec16m/sec16m/sec16m/sectension on saw belt300kg300kg300kg300kgelectrode material--mild steel-axis measurement y & z with encoder0.005mm0.005mm0.005mm0.005mmnet weight4500kg5000kg6000kg1000kgmachine tooleds200eds400eds600eds1000maximum output30 v, 200 a30 v, 400 a three stages change30 v, 400 a 30 v, 800 a output amperage adjustment methodsaturated reactor typeelectrode servo feeding methoddc servo type (ac servo optional)input power supply* 3 phase, ac, 415 v, 50 hz*connected load20 kva45 kva45 kva140 kva
note :- alternate power supply rating available on request.
