Sensors For Packaging Industry Dealers in Pune

We are a reputed Manufacturer, Exporter and Supplier of Color Mark Sensor in India. Color sensors detect subtle color contrasts to inspect registration marks by using one, two or merely three color LEDs. Our Color Mark Sensor is quite easy to operate and provides 100% accuracy in results. For bulk order of Color Mark Sensor, contact us now.

We are offering trough beam photoelectric proximity sensor, protocontrol offers variety of proximity switches & sensors for automation. More than 3500 varieties of switches are offered under one roof. These include tubular threaded switches from m5 to m 80, square rectangular, slot types. The supply voltage available is ac, dc and ac-dc universal. Special namur switches are certified for use in hazardous area. Models with quick disconnect plug are offered for ease of wiring. Switches can directly be connected to load like plc. trough beam type photoelectric proximity switch: beam of invisible pulsed modulated infra-red light is produced by emitter. This beam is sensed by receiver at another end. When this beam is interrupted by object, the receiver signal gets changed and signal is produced.

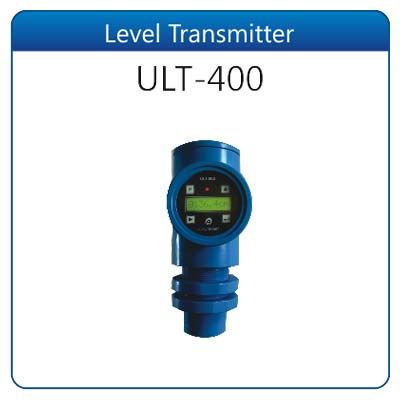

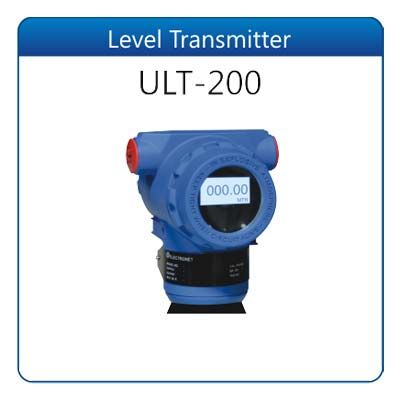

SALIENT FEATURES Non contact type level measurement. 2 wire operation. Integral LCD Display Self diagnostic function i.e. Error message are displayed. Automatic temperature compensation. Instrument configuration settings are password protected. Accuracy 0.25% of F. S. Compact size & easy maintenance. Reliable & cost effective system. Software calibration.   DESCRIPTION MicroSet series MS ULT - 311 is a 4 wire Ultrasonic Level Transmitters specially designed for non contact type level measurement. Ultrasonic level measurement is based on the time required by ultrasonic pulses to travel from sensor & surface of liquid & back to sensor. Ultrasonic level transmitters are the best for applications such as slurries, corrosive liquids & waste water. The transmitter provides 4-20 mA DC continuous output with local indication through LCD. The measuring range is available from 0.6 to 8 meter.   TECHNICAL SPECIFICATIONS Measuring Range : 0.6 to 8 mtr Type of Output : 4 - 20 mA DC, 2 wire Power Supply : 24 V DC, External Power Consumption : < 500 mW Dead Band : 0.6 mtr Display : 8 x 1 LCD (4 digit for Level) Accuracy : +/- 0.25% of F. S. Operating Temperature : -30 to 80°C Operating Pressure : Atmospheric Beam Angle : < 7° Response Time : < 500 mSec Measuring Frequency : 25 Khz Temperature Coefficient : +/- 0.01% per°C Enclosure : Weather-proof, IP-65 Process Connection : 2” BSP Threaded Mounting : Top of the tank Weight : 1.5 kg Operating Conditions : Temperature 0 to 55 C / Humidity 5 to 95% non condensing NOTE : Process temperature & pressure exceeding specified limits, kindly consult with factory.

Many applications require linear motion to be monitored for system control or to ensure safety. With lengths ranging from 1 m to 10 m (3’ to 33’), LINARIX draw wire sensors are available in many configurations to meet an application’s requirements. Options include a wide variety of outputs (including analog, fieldbus and Ethernet variants), heavy duty housings and compact designs. Features: Wide Selection of Measuring Lengths 1 to 10 m (3' to 33') Absolute Position Measurement with Resolutions up to 2 µm High Linearity even with Long Cycle Times Low Cost yet Rugged Construction Scalable Analog Output to Fit Measuring Length

Offering the Ultrasonic Level Transmitters featuring precision engineering and manufactured using superior grade material and advanced technology. We make sure our products are always up to mark of our clients expectations. We are one of the best known and trusted manufacturers, exporters and suppliers of Ultrasonic Level Transmitters all over the country for a reason, and that reason is the reliability of our products. These Ultrasonic Level Transmitters are available with us at competitive rates.

  Pepperl+Fuchs-GmbH Rotary Encoders Incremental rotary encoders supply a certain number of pulses for each shaft revolution. Speed is measured by counting the pulses for a period of time. To calculate angle or the distance covered, pulses are counted starting from a reference point. Dual channel quadrature output encoders feature two signal outputs that are 900 out of phase with each other. This permits the controller to determine direction of rotation and perform bi-directional positioning tasks. In addition, three-channel incremental encoders have a third signal channel (known as “zero”, or reference, signal) that provides a single pulse for each revolution.  Incremental and absolute  Solid shaft and hollow shaft versions  Used for rotary position feedback and many other applications  Standard pulses :50to 5000 PPR  Diameter : 40mm ,50mm, 58mm

We are offering encoders and motors. Complete motorization solution electronic control cards integrated in or external to the motors, for controlling speed, torque and direction of motor.

the qs18 and q20 series of photoelectric sensors are now available in diffuse models with a small, visible spot for detecting the presence/absence of small features (for example screws or tabs) on a larger part. the new models provide a compact, cost-effective alternative to laser sensors for contrast detection of features in error-proofing and inspection applications..

Baumer's bearingless encoders offer non-contact operation. Most are magnetic and all of them are virtually wear-free. Their reliable function is not affected by dust, dirt or humidity. They are extremely resistant to shocks and vibrations and have a virtually unlimited service life.

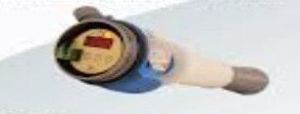

The Ultrasonic level sensors of the Series SW 3051 are very useful for sensing high levels (up to 20 meters.) of liquids or slurry material. The sensor gives a 4-20 mA output signal to the controller and operates relays at preset high and low levels. Probes are available forsensing water levels of 5/10/15/20 meters.

A wide range of robust industrial incremental rotary encoders providing up to 5000 ppr with differential outputs & index marker as standard. Special line counts are easily accommodated. High resolution linear encoding systems providing 0.1 micron resolution. High resolution rotary encoding systems provide 7,200,000 cpr Leine & Linde single turn absolute encoders up to 13 bit resolution. 25 bit multi-turn absolute encoders with 13 bit single turn resolution. Parallel, series and alternative Bus interface options.

Our Print Mark Scanner is in constant demand in the market as they conform to the international standard and meet the requirements of our esteemed clients. Our scanners are based on latest technology that ensures efficiency in the application areas. Below are some of the Technical Specifications of our Scanners:-■ Supply Voltage : 12 to 30 VDC■ Supply current : 85 mA■ Scanning Distance : 15mm, +/-1mm■ Dash size : 1.5x4.5mm■ Max. switching voltage : 30 VDC■ Max. switching current : 100 mA■ Output type : NPN / PNP■ Output with over current protection

Features :• 2 or 4 wire compact transmitters • Non-contact level metering • Narrow 5o beam angle • PP, PVDF, PTFE, stainless steel or foam faced transducers • Plastic or Aluminum housing • Range : 0.1 to 1 Mtr, 2 Mtrs, 6 Mtrs, 10 Mtrs, 20 Mtrs• Supply : 18 to 32 C DC• Output : 4 to 20mA, Optional HART• Accuracy : ± 0.5% FS

With firm commitment to quality, we are engaged in offering sophisticated Twin Beam Sensors, which is procured from the most eminent vendors of the industry. Category: Security Systems
