Electropneumtaics and Hydraulics (I) Pvt Ltd Chakan, Pune, Maharashtra

Electropneumatics makes light duty tube bending and end forming machines for bending of copper and aluminium tubes and sections for the air conditioning, heating and cooling applications. Parts such as evaporator and condenser coils for air conditioners, chest coolers, deep freezers and refrigerators, stainless steel plates for heat exchangers, etc. can be formed on specially designed machines for these applications. They are highly productive machines engineered to fit the customer’s needs. Rigid, high-tonnage specialised hydraulic presses are available for stainless steel heat exchanger plate forming. Since material cost if a large percentage of the component cost, these presses are specially designed for fast operation and low rejection rates.

Though stamping is an age-old, well-established technology, the advantage Electropneumatics offers here is the latest developments in this technology through modern stamping presses and specialised forming machines. We can produce large parts and complicated draws such as roof panels, skin panels and other automotive sheet metal parts on these presses. Our stamping line of presses from 25T to 7000T with bed sizes up to 2500 (LR) x 1800 (FB) are used for mass production of stamped sheet parts. Further capacity can be added depending on need.

Size : 2500 (LR) x 1800 (FB)

Servo Mechanical Presses of slide and cushion speeds and motion sequences make blanking, shallow drawing, trimming, coining, too tryout, transferprogressive die operations, etc. possible on the same press. The large, high-performance AC torque motors drive the eccentric gear arrangement replacing the flywheel, clutch and brake and offering dynamic control over forming operations and energy savings.

Pneumatic Cylinders in any stroke length up to 3500 mm. Pneumatic cylinders made to ISO 6431 standard with bores from 32 to 125 mm are also available. These cylinders are manufactured to a high degree of precision and come with a wide variety of mounting style options.

Hydraulic Power Packs and Systems are built with hydraulic elements of reputed makes with international mounting and manifold style valve assembly. Power packs with proportionalservo valves and variable displacement pumps are available.

Hydraulic Moulding Presses with first-class surface quality because they are light-weight and yet structurally strong. Electropneumatics presses for forming and moulding of engineering plasticscomposites (such as SMC, DMC, FRP, epoxy, etc.) and also automotive interior fabrics and friction material for brake and clutch facings meets this demand. These machines have features specially designed to control the forming, heating and cooling cycles and accurately level, form and eject parts to achieve Grade I component surfaces.

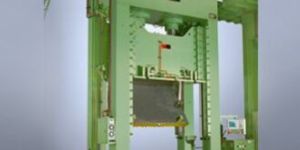

Hydraulic Die Spotting and Tryout Presses it has become necessary to break-in and prove dies (new and reconditioned) well in advance of production start to save expensive production time. Electropneumatics’ Die Spotting and Tryout Presses have all the features needed to accurately simulate the actual manufacturing process for die prove-out. These presses can be used for die inspection, mould finishing and limited batchprototype production.

Hydraulic Cylinders are available in bores from 25 to 500mm and stroke lengths from 25 to 3000mm. Options are singledouble acting, singledouble ended shaft, high-temperature seals, etc. Special extra-heavy duty and large bore cylinders are also available. Double acting cylinders with bores up to 540mm and single acting cylinders with rams up to 1300mm in different configurations are available.

Electropneumatics makes pneumo-hydraulic booster pumps with pressure rating up to 15,000 psi and hydro-hydraulic booster pumps with pressure rating up to 35,000 psi. Double acting models are also available. They are suitable for water, oil and other fluids and find application in pressure testing of valve seats and bodies, pressure vessels, fittings, hoses, pipes, etc. They can also be used as a source for power clamp heads, hydraulic actuators and expansion of AC condenser coils.

Electropneumatics makes pneumatic valves suitable for compressed air, water, vacuum, gases and low pressure oil. They are available as solenoid-operated, pneumatically-operated and manually-operated. Solenoid coils are available for AC and DC voltages. The valve range consists of Directional control valves- 2, 3, 4-way, 2, 3-position, singledouble solenoid, directpilot pneumatically manually operated, Flow control, check and needle valves, Quick exhaust valves, Shuttle valves, Rotor seal couplings, Dual sensing valves, Rotary actuators, Stackable valves- 2, 3, 4-way, 2, 3-position, singledouble solenoid, Accessories like silencers, mufflers, air preparation units

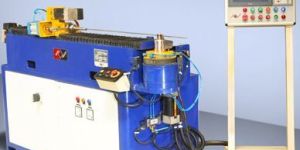

CNC Wire Benders like door locks, hood support, actuator levers and also consumer and interior decoration items. Fully programmable axes movement in close loop position and velocity feedback mode, Complex curved parts possible by interpolation of feed and bend axes.

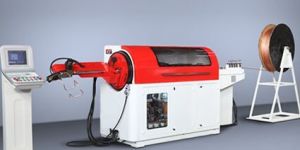

CNC Three-Axes Tube Benders Can produce parts with multiple bends in single plane (NCX model) and in multiple planes (NCXR model), Fully programmable axes movement in close loop position and velocity feedback mode, Advanced on-line diagnostics, display of axes positionspeed, on-going sequence and error messages, Features such as automatic tube length compensation, springback calculation and compensation, programmable tube loading position, multi-sequence bend capability, etc. are available.

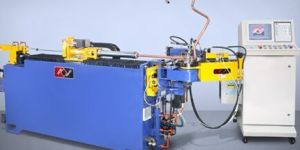

CNC Multi-Axes Tube Benders Features such as automatic tube length compensation, spring back calculation and compensation, programmable tube loading position, multi-sequence bend capability, etc. are available, Advanced on-line diagnostics, display of axes positionspeed, on-going sequence and error messages, Fully programmable axes movement in close loop position and velocity feedback mode.

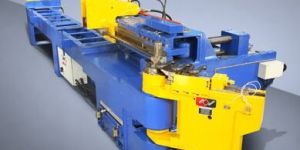

CNC Boost Benders Capability of serpentine bends, Fully programmable closed loop (hydraulic servo) bend-boost speed and position control, Can be used for bending in both normal (with higher capacity) and boost modes, Electropneumatics’ SMARTBEND 310 with colour LCD touch screen and keyboard access.

Booster Pumps and Intensifiers in pressure testing of valve seats and bodies, pressure vessels, fittings, hoses, pipes, etc. They can also be used as a source for power clamp heads, hydraulic actuators and expansion of AC condenser coils.

Pressure : up to 15,000 psi

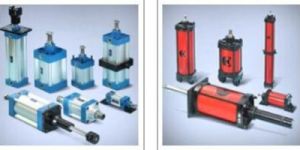

Electropneumatics’ standard pneumatic cylinders are available with bores from 10 to 500 mm in any stroke length up to 3500 mm. Pneumatic cylinders made to ISO 6431 standard with bores from 32 to 125 mm are also available. These cylinders are manufactured to a high degree of precision and come with a wide variety of mounting style options.

Electropneumatics custom builds hydraulic power packs for user specifications. The power packs are built with hydraulic elements of reputed makes with international mounting and manifold style valve assembly. Power packs with proportionalservo valves and variable displacement pumps are available. They can be provided with the electrical relayPLCCNC control systems too. Complete turnkey projects are undertaken. Power packs for special applications in pharmaceutical and food processing industry, process industry, construction industry, steel mills, etc. can be built. In addition, we also undertake reconditioning, retrofitting and upgrading of customer’s hydraulic systems.

Electropneumatics designs and manufactures standard and customised metal forming equipment, and provides its services for the production of formed parts. We specialise in providing the right solutions for all your forming needs. Our extensive range of indigenous machines, products and technologies cater to a variety of metal forming and allied applications and offer a perfect blend of modern technology and cost-competitiveness.

Electropneumatics designs and builds tailor-made powder compacting and sintering presses for near-net shape forming of parts. Powders of iron, steel, high speed steel, carbides, ceramics, friction material, bronze, copper and their alloys can be formed into complex parts of high strength. Our presses can be used for dry and wet compacting and come with a wide variety of options, sophistication and automation for large volume, continuous production. These are hydraulic high-efficiency automatic presses that can be supplied with sophisticated precise tools and tool adaptors to ensure production of complex parts to high quality levels. Sintering and sizing presses are also available.

Electropneumatics builds high performance multi-station presses for volume production of formed sheet or solid parts. These highly productive machines are characterised by their flexibility and repeatability. The operations can be performed by a single ram or with multiple rams having independent controls of speed, force and position. These multi-station presses can be equipped with automatic electric AC servo transfer systems for feeding of blankpart from start to end. Transfer presses are completely automated to perform all tasks from blankcoil to finished product, without human intervention. Several optional automation solutions are available as per application and requirement.

Electropneumatics makes light duty tube bending and end forming machines for bending of copper and aluminium tubes and sections for the air conditioning, heating and cooling applications. Parts such as evaporator and condenser coils for air conditioners, chest coolers, deep freezers and refrigerators, stainless steel plates for heat exchangers, etc. can be formed on specially designed machines for these applications. They are highly productive machines engineered to fit the customer’s needs. Rigid, high-tonnage specialised hydraulic presses are available for stainless steel heat exchanger plate forming. Since material cost if a large percentage of the component cost, these presses are specially designed for fast operation and low rejection rates.

Electropneumatics’ range of honing machines meet the critical requirements of a wide variety of honing applications. They guarantee fast, accurate and precise honing of small to very large parts thereby offering higher productivity and efficiency to the user. They can be used to maintain diameter tolerance, correct taper, out-of-roundness, bell-mouth, waviness, misalignment in bores and for removing machining marks from bores. These honing machines are available in the following options:Light duty - for small parts such as two-wheeler engine master and brake cylinders, connecting rods, rocker arms and gears, valve and pump bodies, Medium duty - for compressor blocks, multi-cylinder engine blocks and liners, extruder barrels, hydraulic and pneumatic cylinder barrels, Heavy duty - for large, long parts such as heavy vehicle engine blocks, process industry tubes and liners, big hydraulic and pneumatic cylinder barrels, Special - with multi-spindles and automation for high volume production

Electropneumatics’ hydraulic cylinders are designed for three pressure ranges- up to 70 bar, 210 bar and 350 bar. These cylinders are precision honed and fitted with custom designed seals (PTFE & NBR) for long life and leak proof performance. They are available in bores from 25 to 500mm and stroke lengths from 25 to 3000mm. Options are singledouble acting, singledouble ended shaft, high-temperature seals, etc. Special extra-heavy duty and large bore cylinders are also available. In addition to the standard hydraulic cylinders, Electropneumatics also designs and manufactures special cylinders to suit the customer's requirement. Double acting cylinders with bores up to 540mm and single acting cylinders with rams up to 1300mm in different configurations are available. We also make special cylinders such as compact-design cylinders for mobile applications, stainless steel rust and leak-proof cylinders for the pharmaceutical and food industry, cylinders for high-temperature furnace applications, servo cylinders, swing clamp cylinders, die lifters, die clamps, etc.

The need for quick and reliable diemould tryout is constantly increasing because of the increasing number of new models and smaller batch quantities that are being produced in the automotive industry. In addition, forming processes have become complex, especially with the newer difficult materials. Therefore, it has become necessary to break-in and prove dies (new and reconditioned) well in advance of production start to save expensive production time. Electropneumatics’ Die Spotting and Tryout Presses have all the features needed to accurately simulate the actual manufacturing process for die prove-out. These presses can be used for die inspection, mould finishing and limited batchprototype production.
