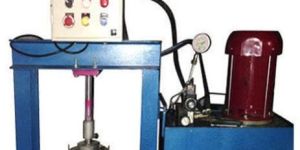

The Hydraulic Paper Plate Making Machine, provided by us, has sturdy make and long service. Thanks to our immense expertise in this domain that allows us to deliver nothing short of the best quality Hydraulic Paper Plate Making Machine. With our excellence in this field, we share forefront for supplying world-class array of products from Pune(India).

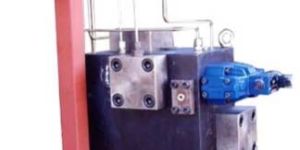

We are one of the leading manufacturers and suppliers of Manifold Blocks in the market. An essential part of the Hydraulic Power Pack Units our Manifold Blocks are made of superlative quality raw materials. Extremely strong with dimensional accuracy our Manifold Blocks find wide application in various industries. We fabricate our Manifold Blocks in various standard sizes as well as according to customer specifications. Features : Every port is marked as per the hydraulic circuitProvided with flangesStrong buildEasy to useUser friendlyCrack resistantCorrosion resistantAbrasion resistantResistant to dust Applications : Steel IndustryPrinting IndustryTextile IndustryPaper Industry Sizes : 600 lpm. & WP up to 350 bar Weight : 500 Kgs

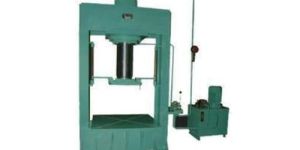

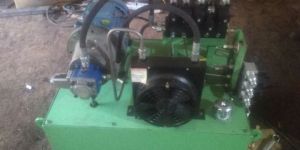

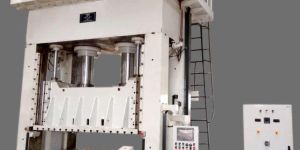

STRUCTURE:The Presses have good rigid structure for accurate works. POWER PACK UNIT:Our Presses are powered by specially designed Power Pack Unit having Oil Breather (Hydroline), Oil Level Indicator (Hydroline), Suction Strainer (Hydroline), Gear Pump (Bosch Rexroth), Flexible Coupling (Jeck Tech), Electric Motor (Crompton / Siemens), Hand Lever operated Direction Control Valve (Bosch Rexroth), Pressure Gauge (Air Master), Return Line Filter (Hydroline), Oil Tank (without oil), Internal & External Pipe Line etc. HYDRAULIC CYLINDER:Our Presses are powered by specially designed Double Acting Hydraulic Cylinders. Cylinders manufactured out of quality steel. Cylinder Bores will be honed to mirror finish or long life of piston seals. All chevron seals & bronze strip used for leak proof performance. Ram will be made from EN-8 material & surface ground hardened for long life of seals & corrosion resistance.

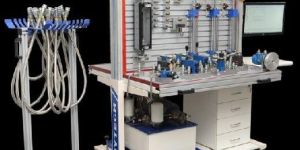

Simulation Mode,Software from IRAI France,Complete Flexibility in PLC operation,Online Simulation of Hydraulic circuits,Dynamic Ladder Diagram Updation,Online simulation and updation of PLC Programs,Completely controlled through computer software,Compatible with Siemens Allen Bradley Mitsubishi PLC,Hydraulic components from Reputed brands such as Rexroth YUKEN EATON,Hydraulic circuits can be designed in software and the same can bedemonstrated on training kit.

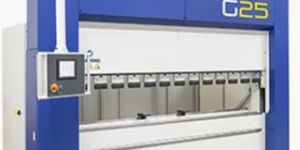

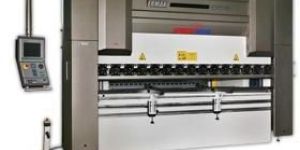

New generation press brake SPEEDERMAK with max. speed, performance and productivity achieves the goals of mass production. SPEEDERMAK moves more at high speeds, its stopping distance and speed alteration points distances are less according to the ordinary units. Also max. safety is provided by Laser and special safety equipments without making a concession at productivity. The operator can hold the steel near to the die confidently while the punch approaching at a high speed when working with Laser Safety System installed SPEEDERMAK Hands and fingers are protected by continuously activated laser senses just under the punch area. If Laser Safe controller (LZS-003 or PCSS series! determines any obstacle, instantly stops the movement of punch and thus punch never touches to the obstacle. In comparison to working with conventional light barriers or double hand buttons. Laser Safe protection system gives the possibility of working more safety and high productivity by means of reacting both high sensitive and speedy. All used inputs and outputs suit to CE safety regulations as well. Maximum functionality is aimed with elevated standard hardware.   High Speed. High Performance Press Brakes: The precision repeatability performance of these machines is achieved by synchronizing the hydraulic cylinders with the use of advanced proportional valve control. With automatic indexing of the axes at the start of running process, calibration is provided. Data inputs of material thickness, type and length through a user friendly software enables the control to calculate and provide the following: Determination of bending power required for each stroke. Graphical display of the unfolding of bending parts. Positioning of the back gauge for each step of the bending program, Determination of the most practical bending sequence Automatic calculation of top beam stroke for bending angle. Adaptation condition of tools and work pieces. Graphical display of potential interferences between material, tools and the machine. Storage of programs with alpha-numerical names and recalling. Programmable bending speeds. Manuel, semi-automatic or automatic working modes, ' Upper beam tilting for conical bending.
